SKU: FS-5324-7-E/G

7" 2-Hole Clevis Fitting - Electro-Galvanized

7" 2-Hole Clevis Fitting - Electro-Galvanized!

Skip to product information
1 of 5

Continue Browsing

Clevis Fittings

SKU: FS-5324-7-E/G
$13.99

Request Bulk Pricing
min. order qty: 7
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

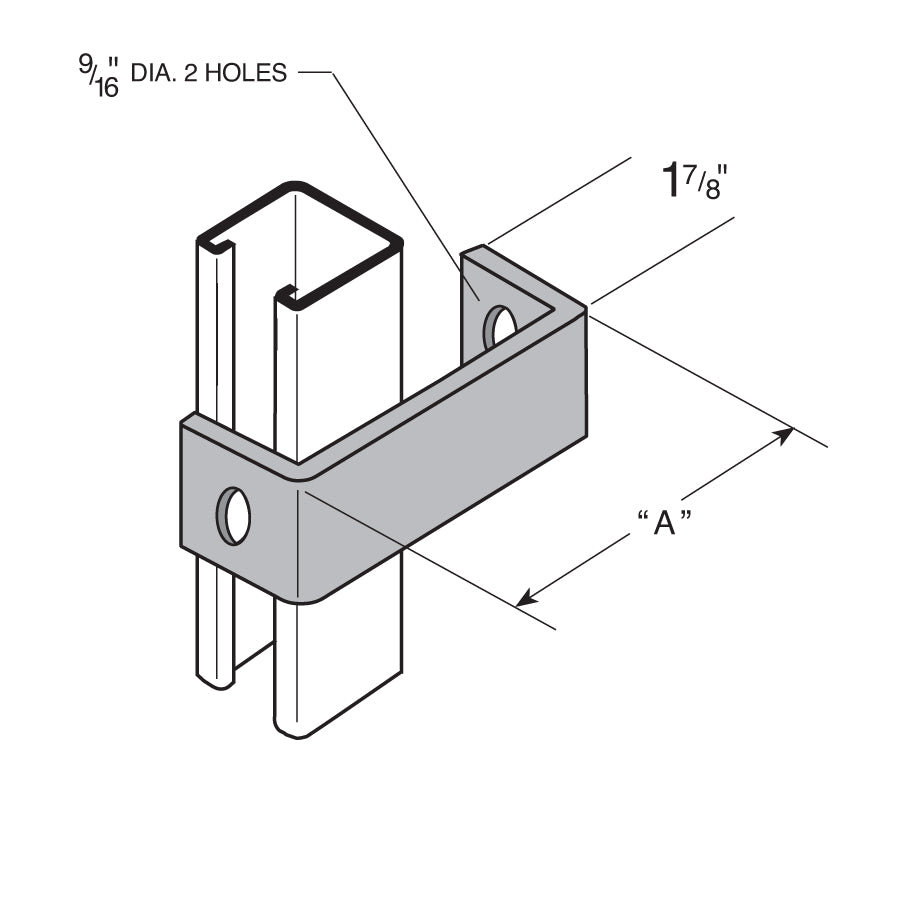

Specifications

Finish: Electro-Galvanized
Length: 7"
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 34
Thickness: 1/4"
Width: 1-5/8'
Description

7" 2-Hole Clevis Fitting - Electro-Galvanized connect to one of the two holes to the front of the channel to allow space for a connection to be made to the other. Most of the time that connection is another channel or connecting the existing channel to a support. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
