7/8" 1x19 EHS Galvanized Guy Wire | 5,000 Feet
7/8" 1x19 EHS Galvanized Guy Wire | 5,000 Feet!
Continue Browsing
7/8" 1x19 EHS Galvanized Guy Wire | 5,000 Feet
Specifications

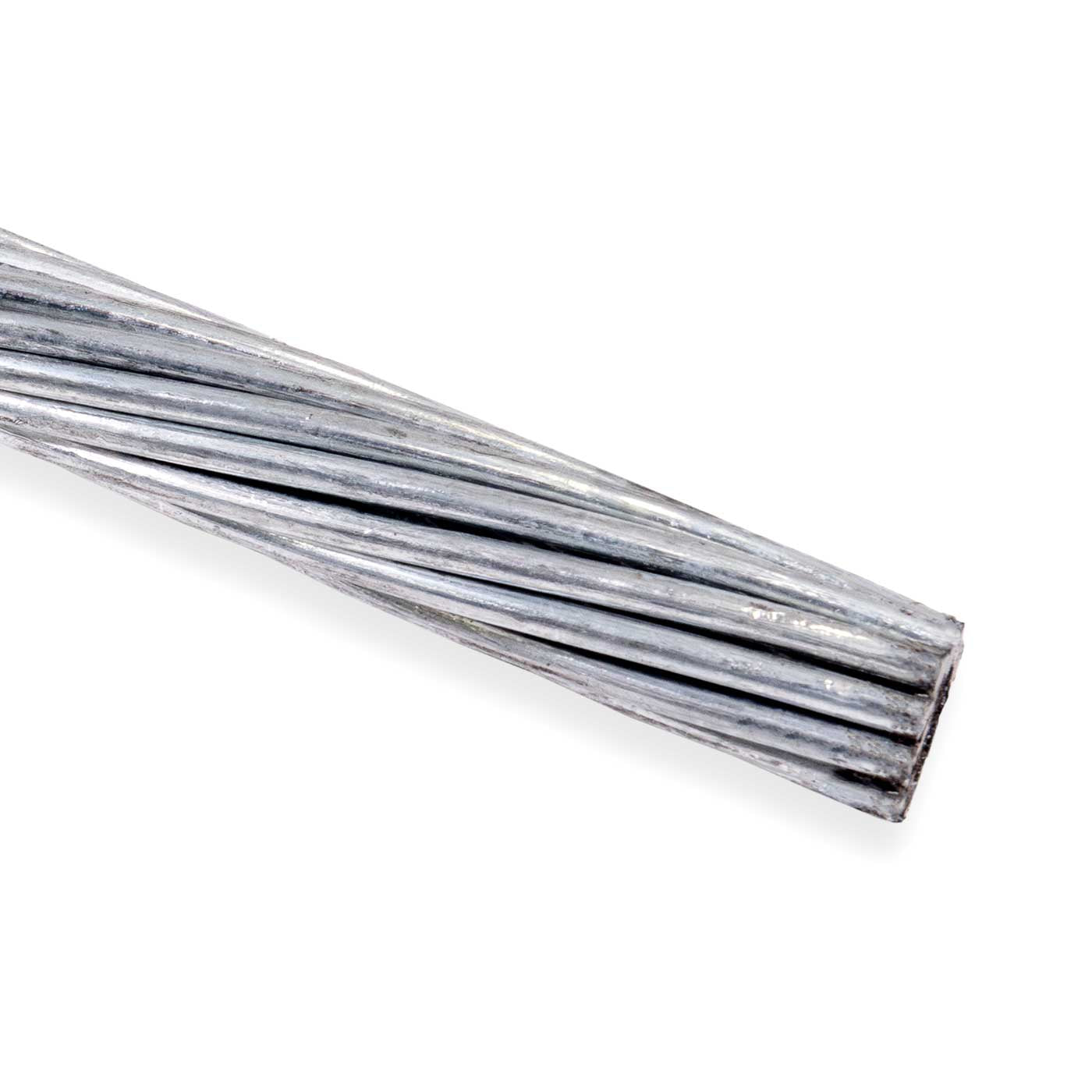

7/8" 1x19 Guy Wire for Towers
This 7/8" 1x19 guy wire is engineered for high-tension support and structural stabilization applications. Manufactured from Extra High Strength (EHS) steel and protected with a galvanized finish, it delivers exceptional tensile strength with minimal stretch, making it ideal for securing communication towers, antennas, utility poles, and other free-standing structures.
High-Strength Guy Wire for Tower Bracing & Structural Support
The 1x19 construction provides excellent strength and stability while offering slightly greater flexibility than traditional 1x7 guy wire. This design also improves resistance to compressive forces, making it well-suited for demanding tensioning and bracing applications where long-term structural support is critical.
Its low-stretch characteristics help maintain proper tension over time, reducing the need for frequent adjustments and ensuring reliable support in both permanent and temporary installations.

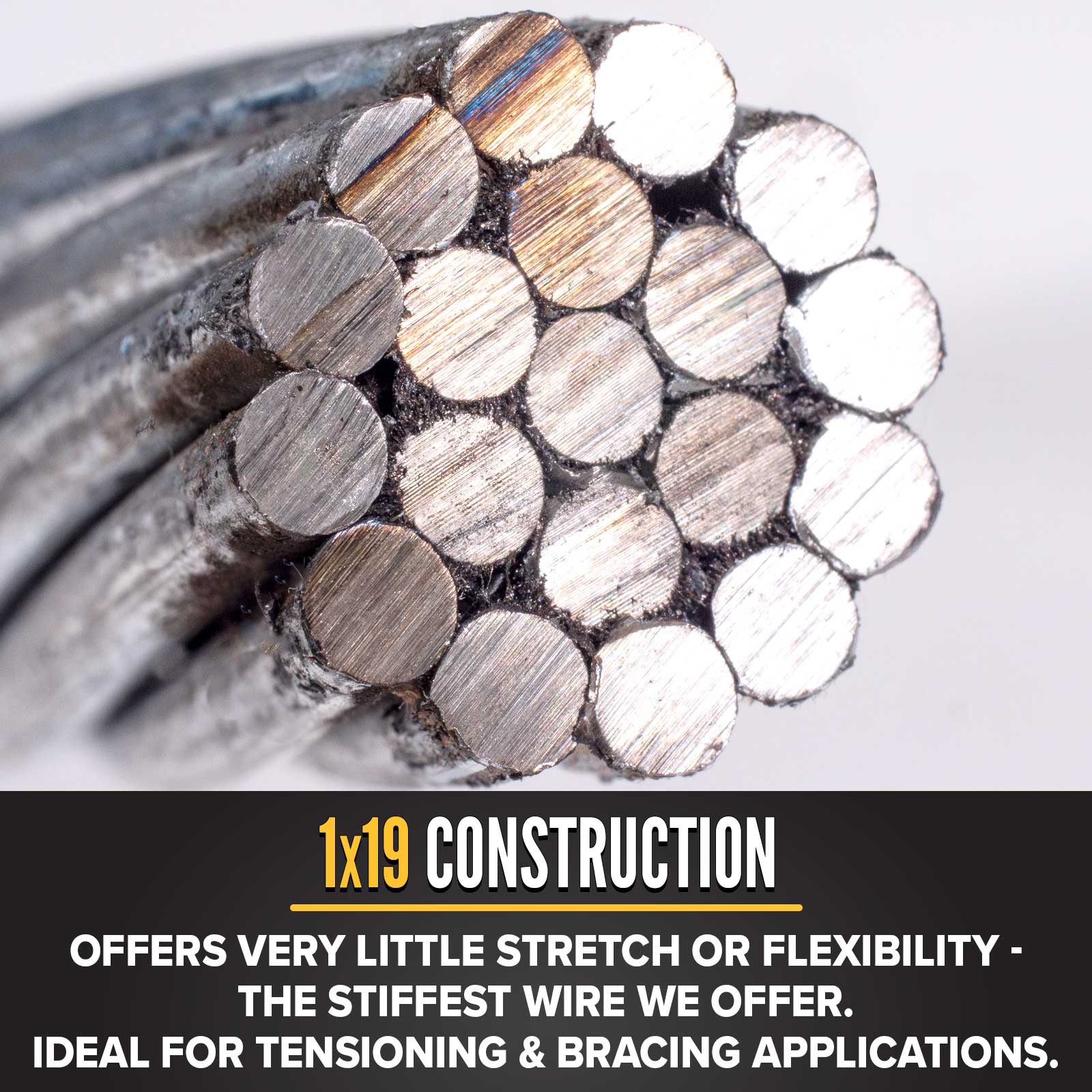

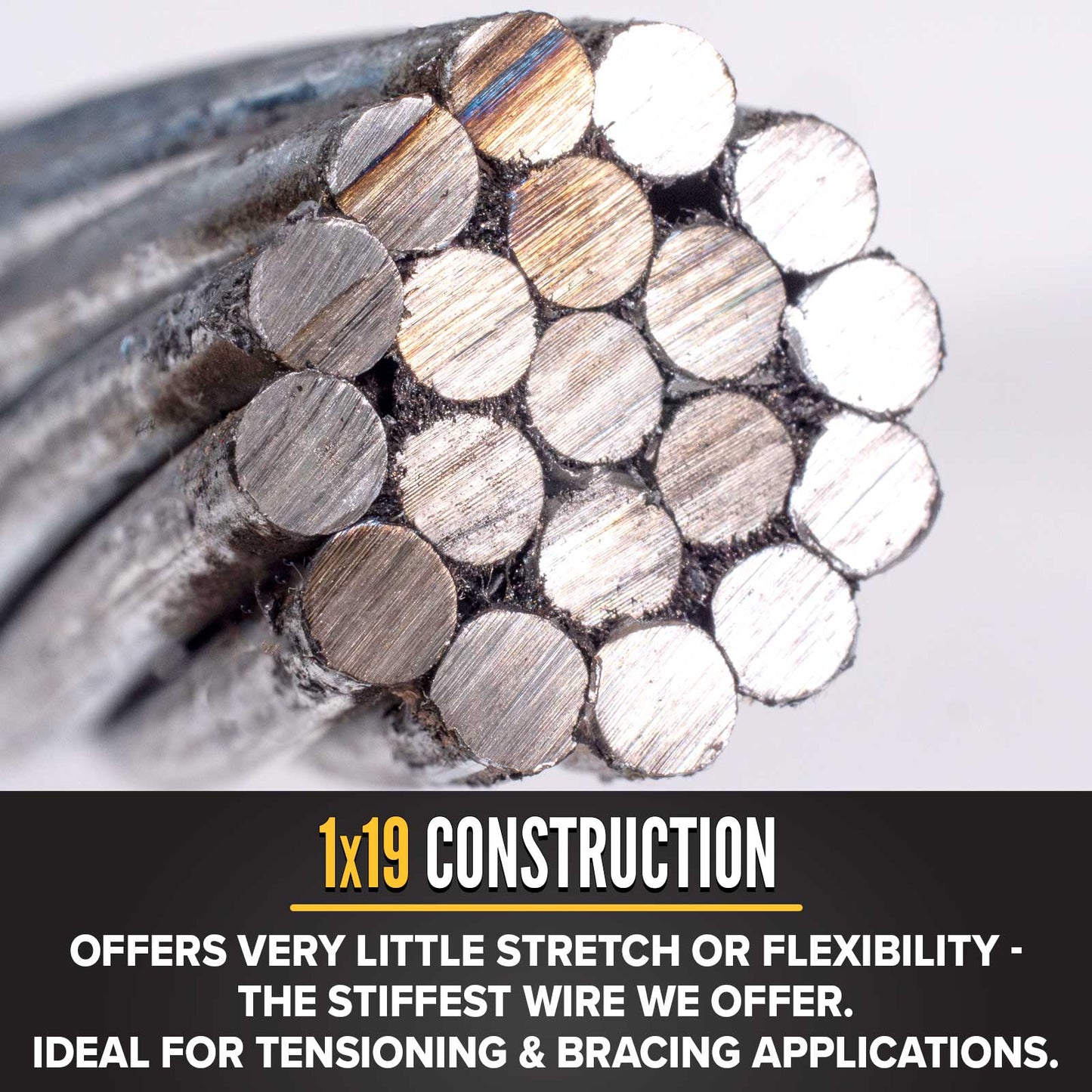

1x19 Guy Strand Configuration
Our guy wire is manufactured using EHS-grade steel. EHS (Extra High Strength) steel provides approximately 40% greater tensile strength than standard HS-grade material, resulting in significantly improved breaking strength and dependable performance in high-load applications.

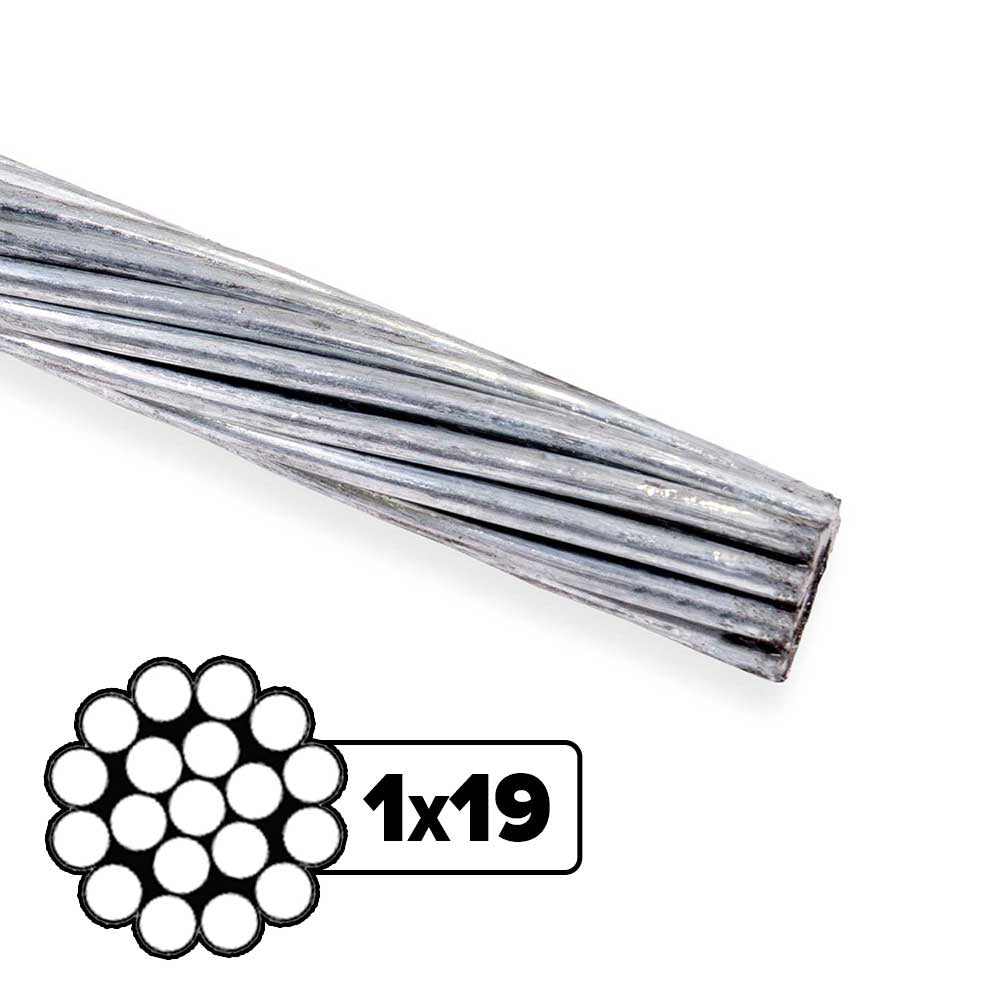

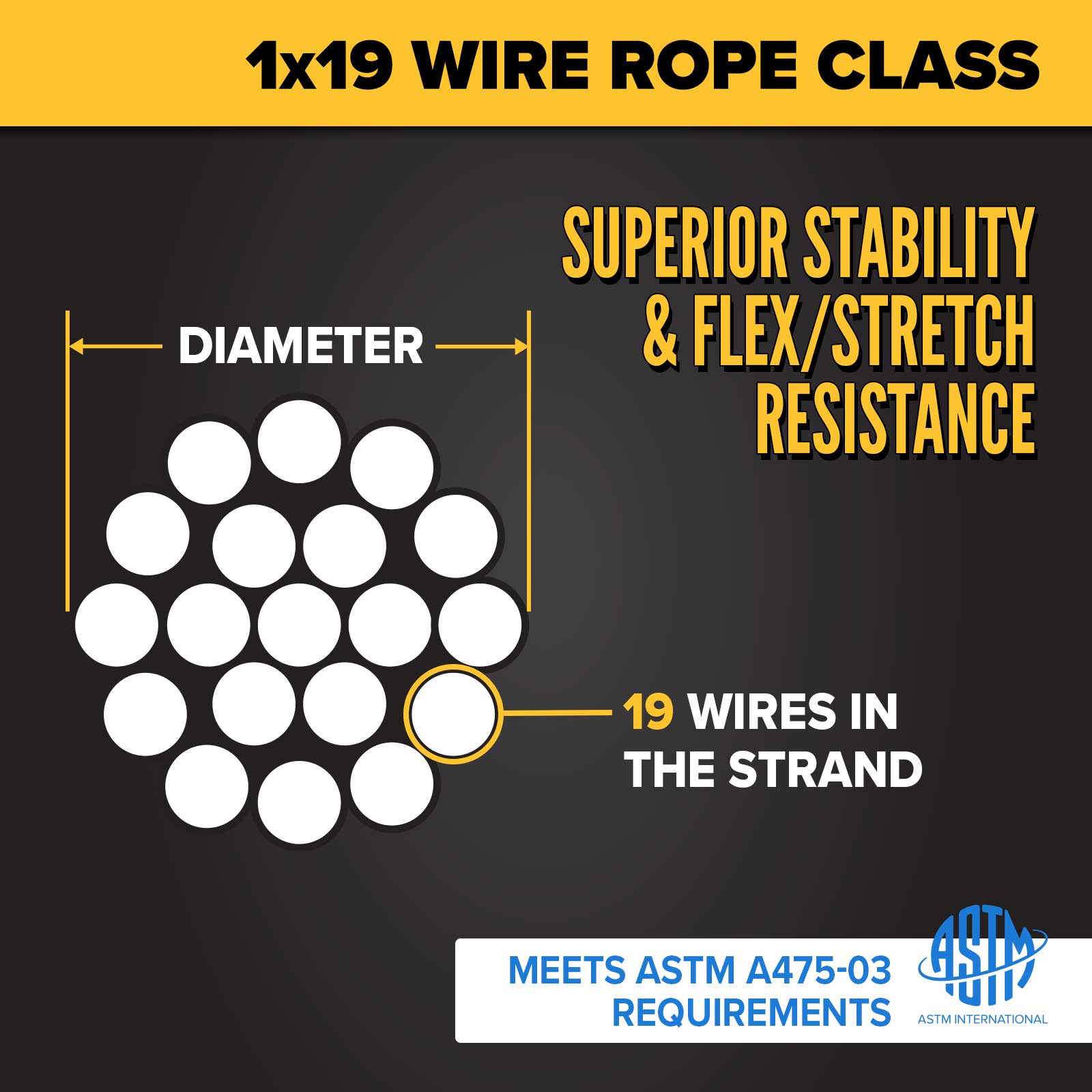

The class of this cable is 1x19. The first number indicates a single strand construction, while the second number represents the 19 individual wires that make up that strand. This configuration provides an excellent balance of strength, stability, and moderate flexibility.

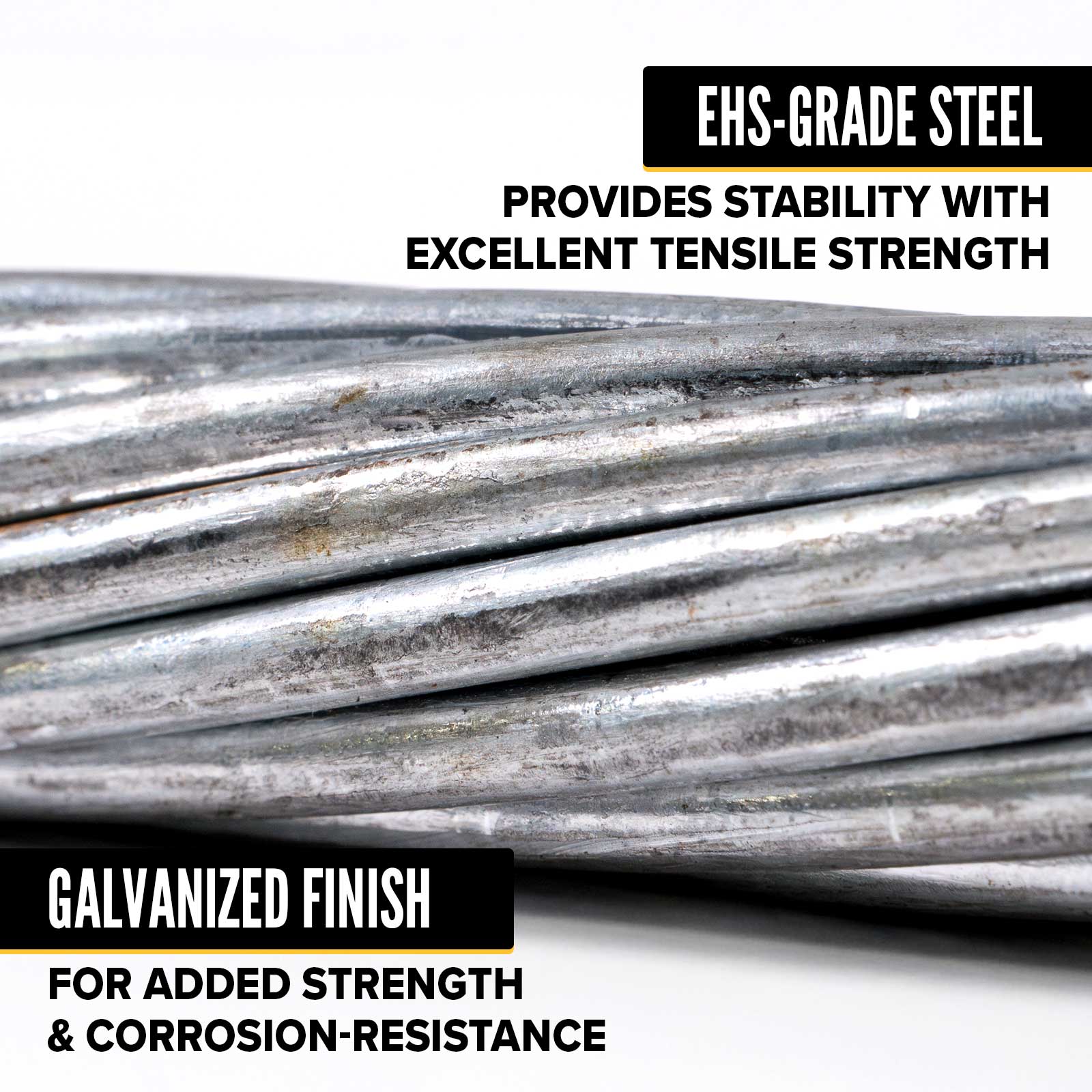

Galvanized Finish for Corrosion Protection
The galvanized coating helps protect the steel from rust and environmental exposure, extending service life in outdoor installations. This protective finish makes the wire suitable for long-term use in utility, telecommunications, and infrastructure applications where weather resistance is essential.
Key Features
- EHS-grade steel provides approximately 40% greater tensile strength than HS-grade wire
- 1x19 construction offers excellent strength with minimal stretch
- Greater flexibility and compressive force resistance than 1x7 guy wire
- Galvanized finish protects against corrosion and environmental exposure
- Designed for tower stabilization, structural bracing, and tensioning applications
- Ideal for antennas, communication towers, utility poles, and free-standing structures
- Low-stretch design helps maintain consistent tension over time
- Meets all requirements of ASTM A475-22
- Imported from a vetted supplier
- Certificate of Conformity available upon request
Accessories & More
Looking for additional components? Shop our full selection of guy wire hardware, including guy wire clamps for creating secure cable connections and guy wire tensioners for adjusting and maintaining proper tension in your guy wire system.
