SKU: CSB2000-2

Caldwell 1 Ton x 2' Spreader Beam | Dura-Lite 430-1-2

Regular price $2,09500

Description

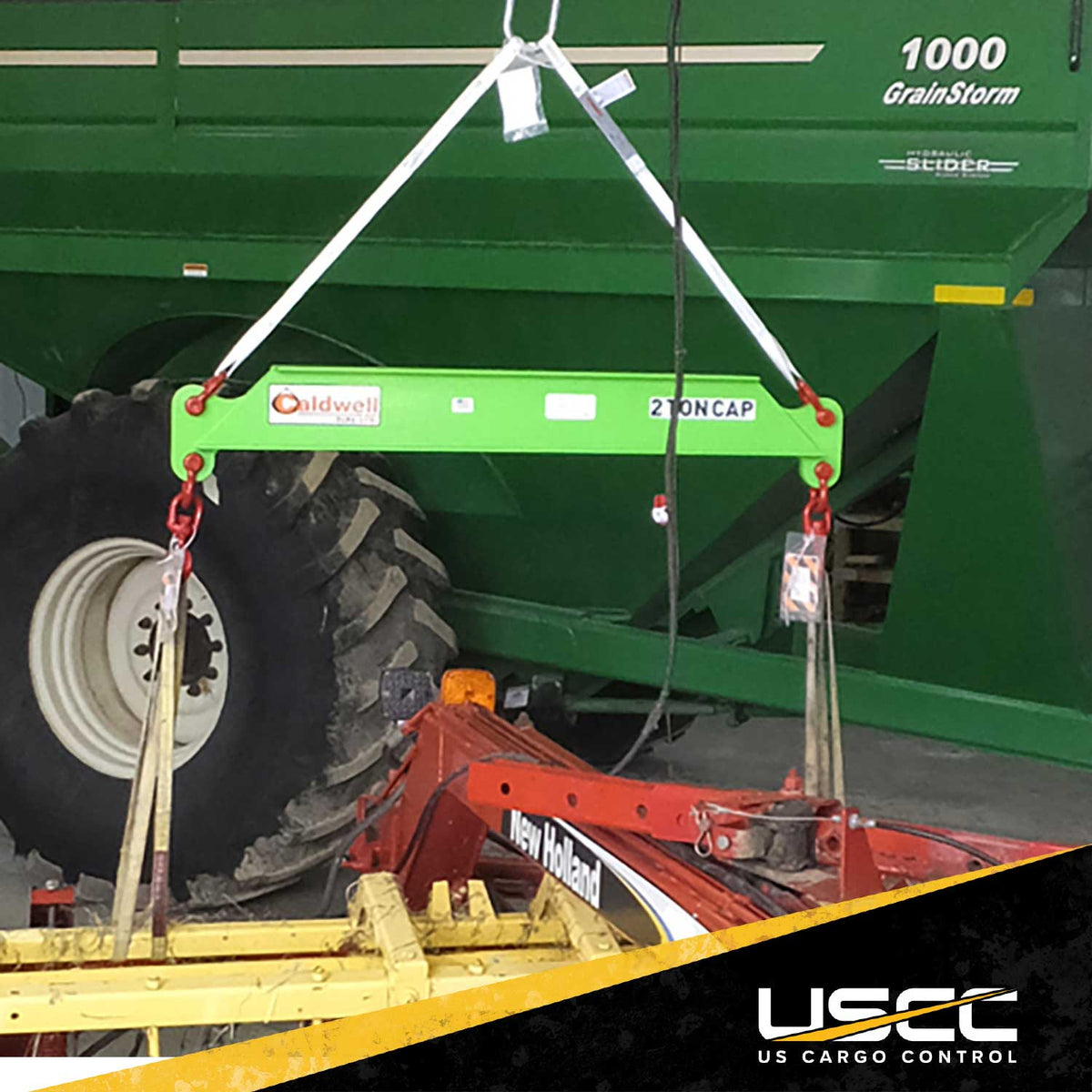

Wide or top-heavy loads need more than a single pick point to stay stable in the air, and that is exactly what a spreader beam solves. This Caldwell Dura-Lite composite spreader bar spans the load and distributes weight across multiple connection points below it, which keeps the lift level and reduces sling angle stress compared to rigging straight to a single hook. Built from a fiber-reinforced polymer composite rather than steel, it is lighter to rig, will not corrode in wet or marine conditions, and will not conduct electricity around spark-sensitive equipment.

Key Features

  • Composite spreader bar construction: A fiber-reinforced polymer composite that is lighter than a comparable steel spreader beam.
  • Non-corrosive and non-conductive: Suited for marine rigging and jobsites where sparking is a concern.
  • Steel-bushed lug holes and UV-protective acrylic polyurethane finish for wear resistance and long service life.
  • Rated for 2 million duty cycles at capacity when used as intended.
  • Proof-tested to 200% of rated capacity, shipped with certification paperwork.
  • Top rigging and bottom swivel latch hooks included, along with master link and shackles.
  • Industry-compliant: Conforms to ASME B30.9, BTH-1, and B30.20 requirements, design category B, service class 4.
  • 2-year limited manufacturer's warranty.

Applications

  • Crane spreader bar and hoist spreader bar rigging for wide or oversized loads that need multiple pick points.
  • Critical lifts where load stability and level orientation matter as much as raw capacity.
  • Marine and coastal rigging spreader beam use where corrosion resistance is a priority.
  • Jobsites where a non-conductive spreader beam is needed near electrical hazards.

Specifications

Working Load Limit (lbs.): 2,204
Safety Factor: 3:1
Rated For Overhead Lifting: Yes
Throat Opening: 0.89"
Spread: 2'
Bail Dimensions: Inside Width: 2.8"
Inside Length: 5"
Diameter: 0.62"
End Fitting: Bottom Swivel Latch Hooks & Top Rigging Included
Material: Fiber-Reinforced Polymer Composite
Finish: Acrylic Polyurethane
Item Weight: 12 lbs.
Standards: Complies with ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations.
Manufacturer Name: Caldwell
Manufacturer Part Number: 430-1-2
Shipping and Returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Additional Info: WLL (tons): 1
Headroom: 25"
