SKU: FS-5125-ST6

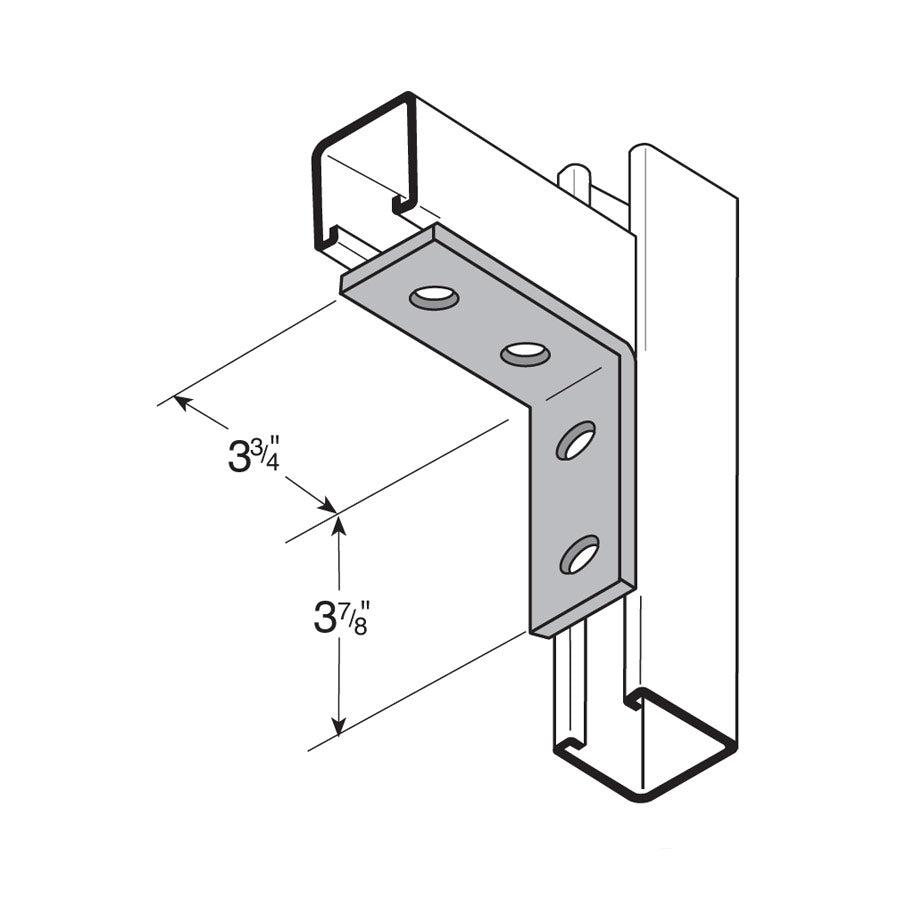

FS-5125 ST6 4-Hole CORNER Strut Angle - 316 Stainless Steel
FS-5125 ST6 4-Hole CORNER Strut Angle - 316 Stainless Steel
Regular price
$18.91
Sale price
$18.91
Regular price
Unit price
per
0% off
Call to Order
Description:
Description:
4-Hole CORNER Angle - 316 Stainless Steel fittings connect strut channel at the corners and joints. If you are looking to join channel sections using angle fittings use channel nuts, bolts, nuts, and washers to join the fitting to the channel. 316 Stainless Steel provides superior corrosion resistance and is rated for harsh exterior conditions.
Specifications:
Specifications:
Material: 316 Stainless Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Plain
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Plain
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
