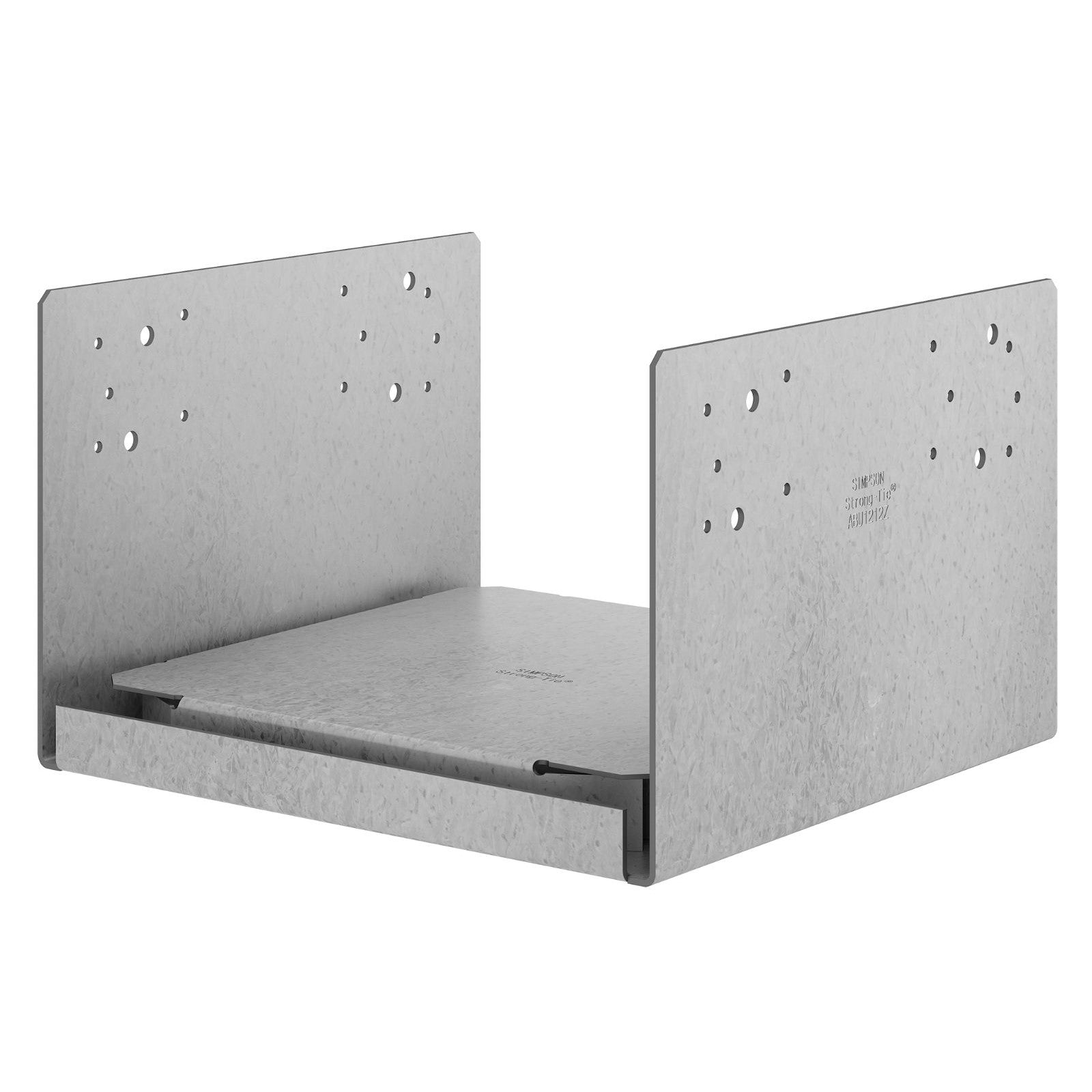

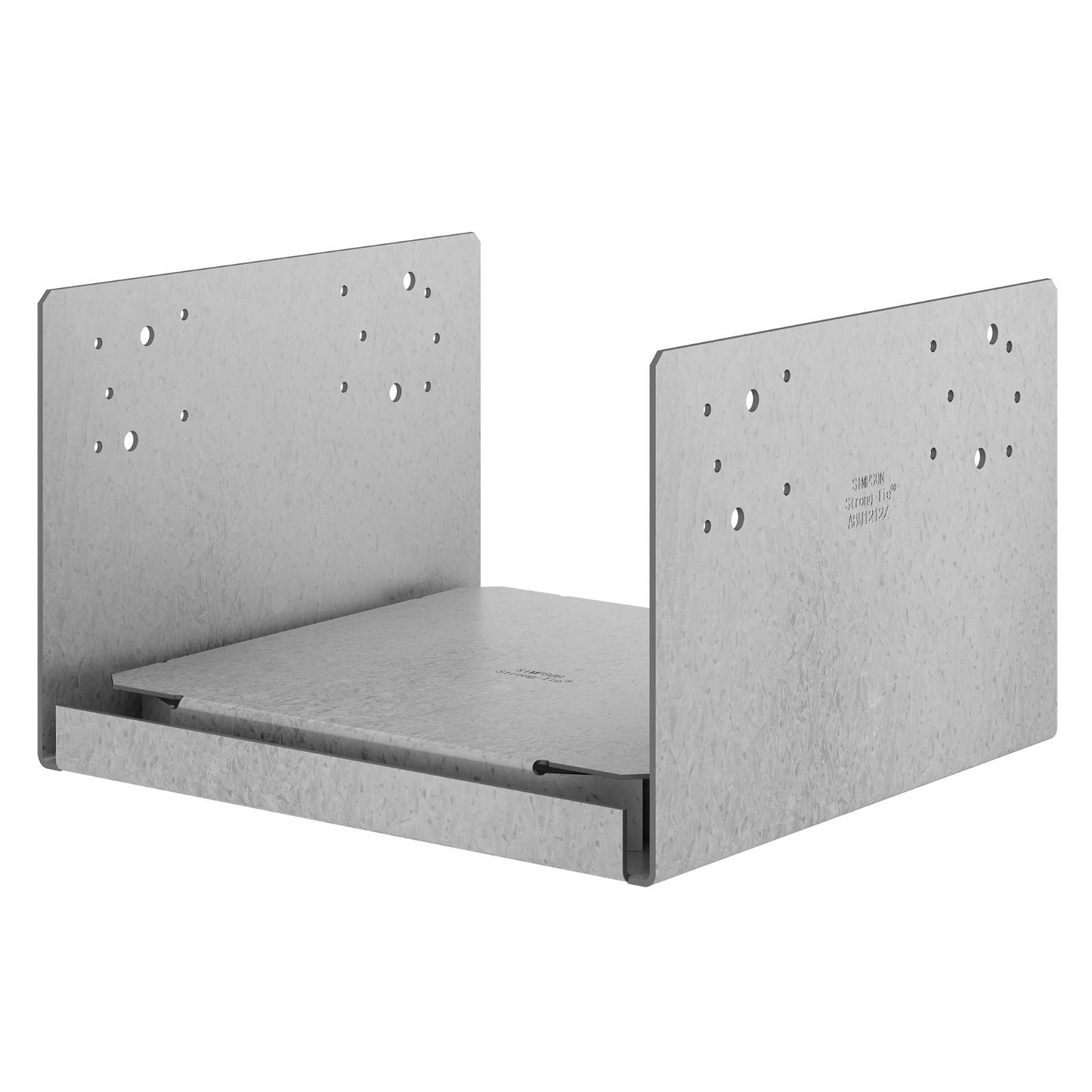

Simpson ABU1212Z 12x12 Adjustable Post Base - Zmax Finish

SKU: ABU1212Z
$127.89

The Simpson Strong-Tie ABU series of adjustable post bases provide a 1" standoff for the post and are slotted for adjustability. The ABU1212Z adjustable post base is approved to be installed with the specified nails, Strong-Drive SD connector screws or specified machine bolts. The Strong-Tie ABU1212Z post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Features:
  • The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
  • The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash

Installation:
  • Use all specified fasteners.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

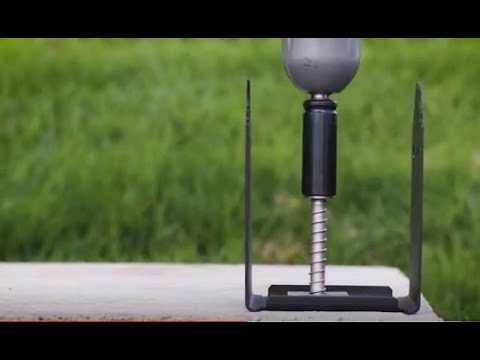

  • Place the base, load transfer plate and nut on the anchor bolt. Loosely tighten the nut.

ABU
  • Place the standoff base and then the post in the ABU.
  • Fasten using nails or Strong-Drive SD structural connector screws or bolts (ABU88, ABU1010 – SDS optional).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Adjustable Post Bases.


California Residents: WARNING

The Simpson Strong-Tie ABU series of adjustable post bases provide a 1" standoff for the post and are slotted for adjustability. The ABU1212Z adjus...

Read More

The Simpson Strong-Tie ABU series of adjustable post bases provide a 1" standoff for the post and are slotted for adjustability. The ABU1212Z adjustable post base is approved to be installed with the specified nails, Strong-Drive SD connector screws or specified machine bolts. The Strong-Tie ABU1212Z post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Features:
  • The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
  • The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash

Installation:
  • Use all specified fasteners.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • Place the base, load transfer plate and nut on the anchor bolt. Loosely tighten the nut.

ABU
  • Place the standoff base and then the post in the ABU.
  • Fasten using nails or Strong-Drive SD structural connector screws or bolts (ABU88, ABU1010 – SDS optional).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Adjustable Post Bases.


California Residents: WARNING

Show Less

finish spec:
ZMAX

manufacturer name:
Simpson Strong-Tie

fasteners required:
- (22) 0.162 x 3-1/2" Nails Or (8) 1/4" x 3" SDS Screws
- (2) 5/8" Concrete Anchors

for treated lumber:
yes

post size:
12X12
