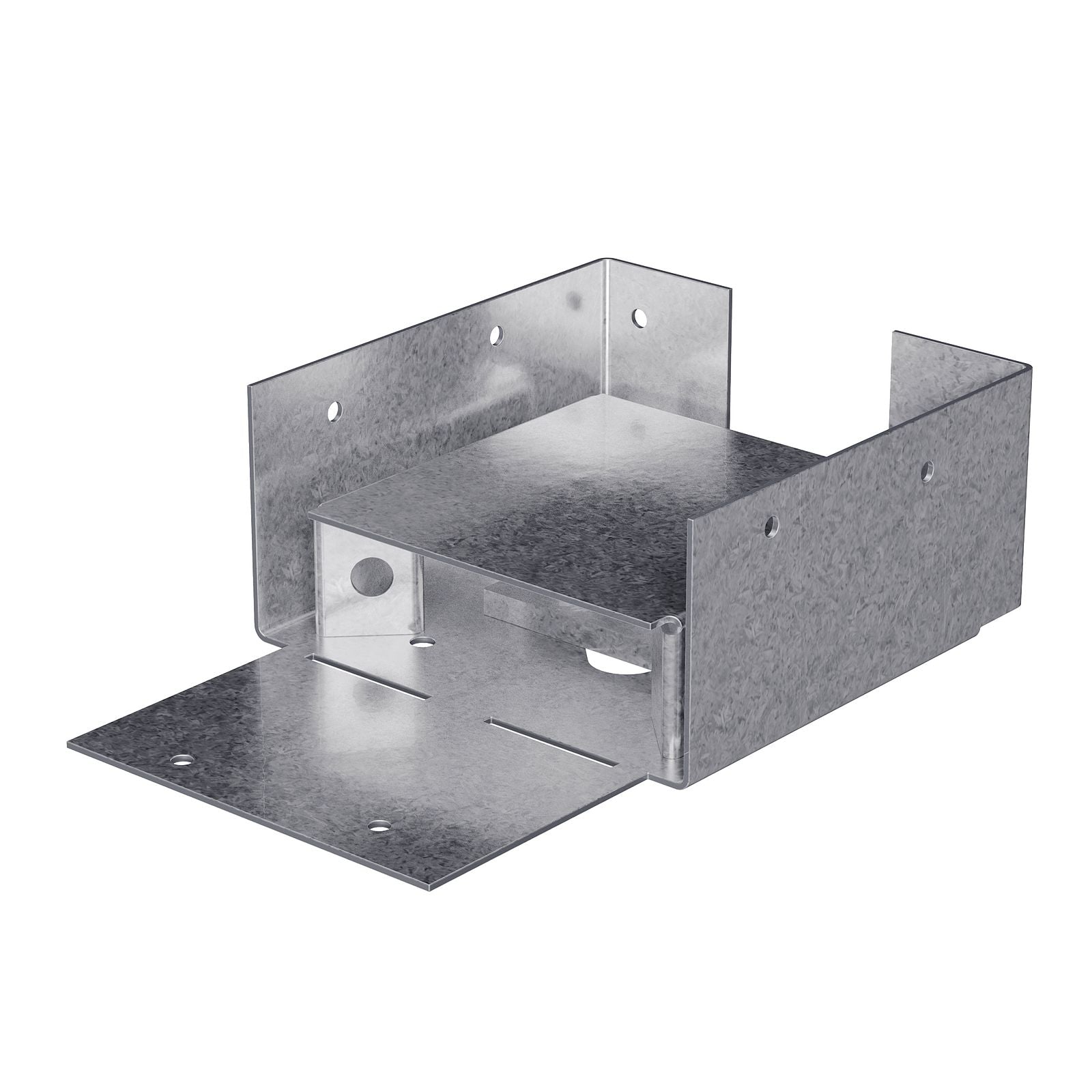

Simpson ABW44RZ Rough Cut 4x4 Adjustable Post Base - Zmax Finish
Simpson ABW44RZ Rough Cut 4x4 Adjustable Post Base - Zmax Finish
Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 4x4". If you have a nominal post measuring 3-1/2x3-1/2" you will need an ABW44Z Post base
The Simpson ABW44RZ Rough Cut 4x4 Adjustable Post Base - Zmax Finish is designed to securely attach wood posts to existing concrete, making it an essential component for your construction projects. This versatile post base is ideal for various applications and the additional wind uplift support makes this a good choice for jobs where both lateral and uplift resistance is necessary. Its built-in 1-inch standoff design helps prevent rot at the end of the post, ensuring durability and longevity.
One of the standout features of the ABW Adjustable Post Base is its slotted anchor hole, which allows for precise post placement, making installation more manageable. The post base can be attached using nails or Strong-Drive® SD Connector screws, providing flexibility and ease of use.
This product is intended for use with Rough Cut 4x4 lumber but is also available in other sizes, including double 2x, 4x4, 4x6, and 6x6, for both nominal and rough-cut lumber.
Features:
- Increased Load Capacity: Engineered to withstand higher lateral and uplift loads, making it ideal for structures like pergolas or gazebos that require additional stability.
- Versatile Application: Intended for use with Rough Cut 4x4 lumber with a slotted base for adjustable installation.
- Enhanced Durability: The 1-inch standoff design meets code requirements and helps prevent post rot.
- Light Corrosion Resistance: Proprietary ZMAX coating applied to the product provides protection against corrosion in most environments.
California Residents: WARNING

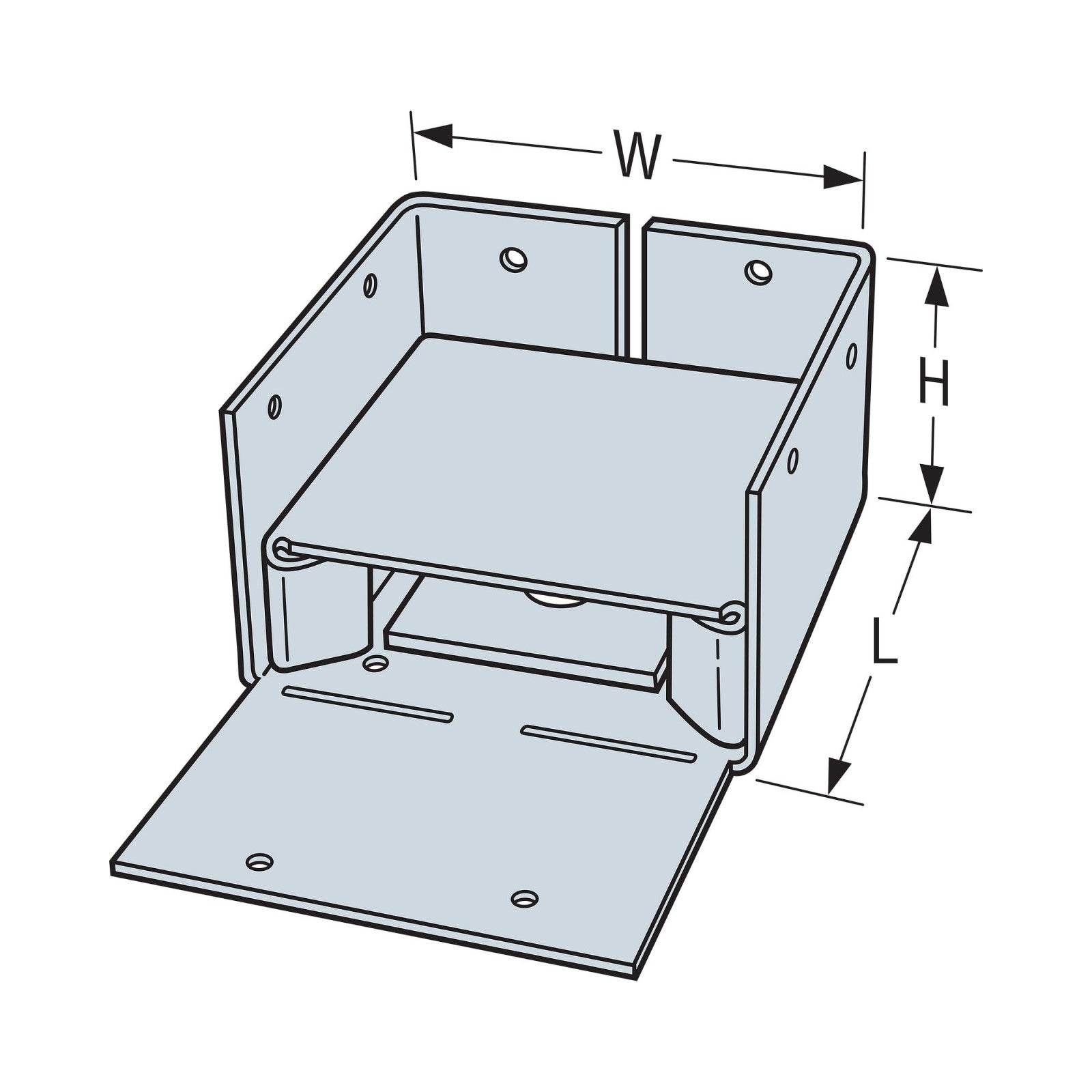

Specifications:
Specifications:
Post Size: Rough Cut 4x4
Fasteners required: - (8) 0.148 x 3" Nails - (1) 1/2" Concrete Anchor
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Features
Features
-The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier

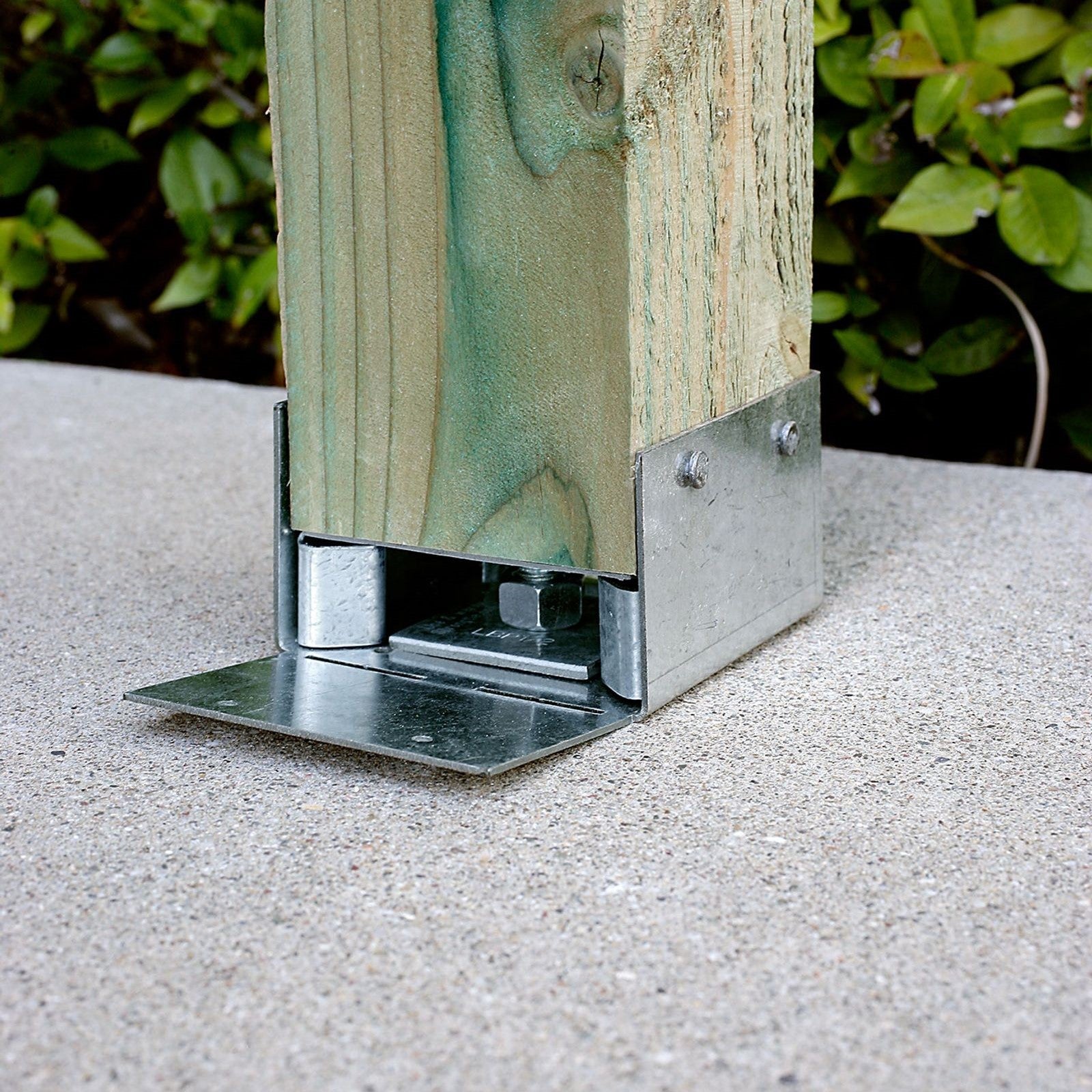

-The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash
Installation
Installation
-Use all specified fasteners.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

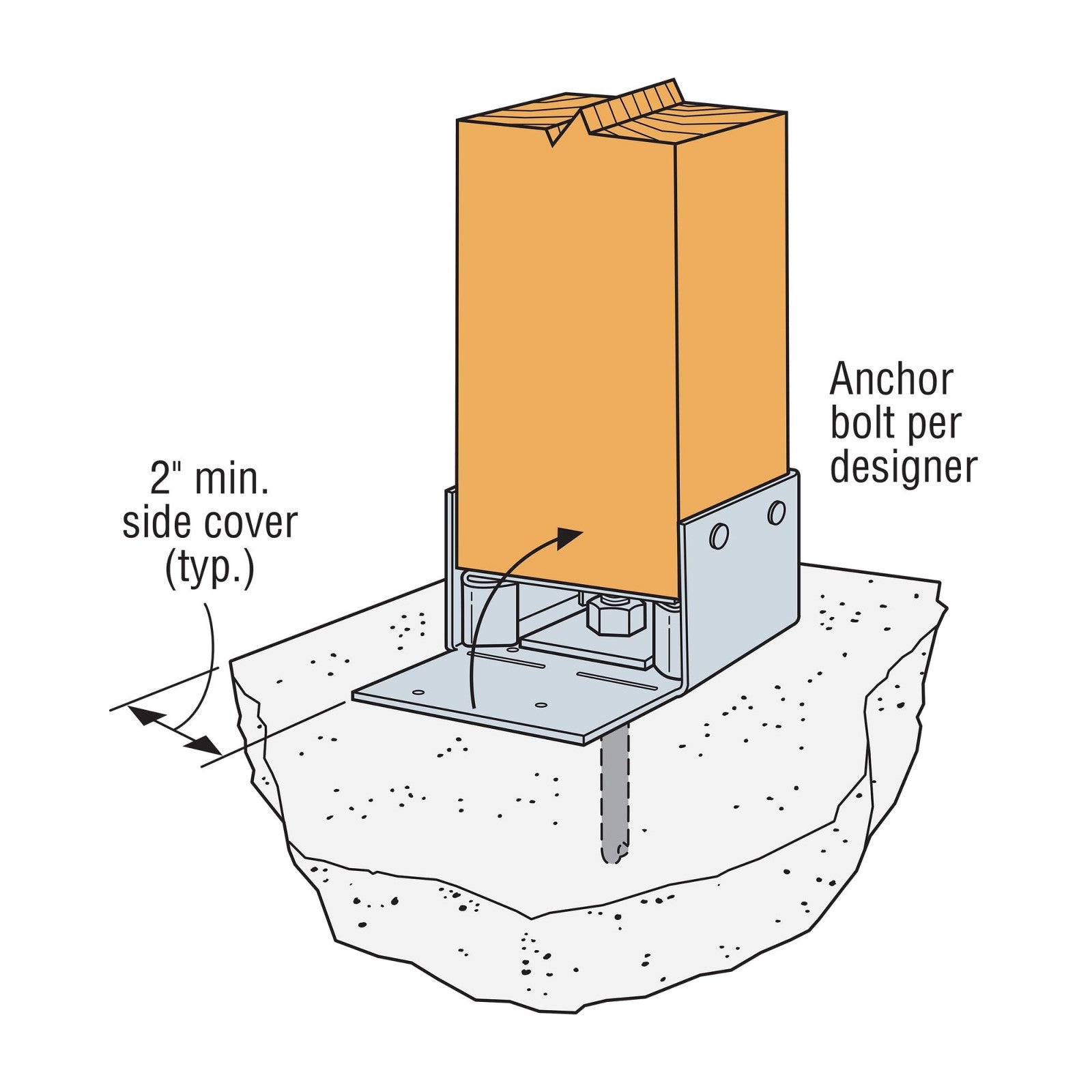

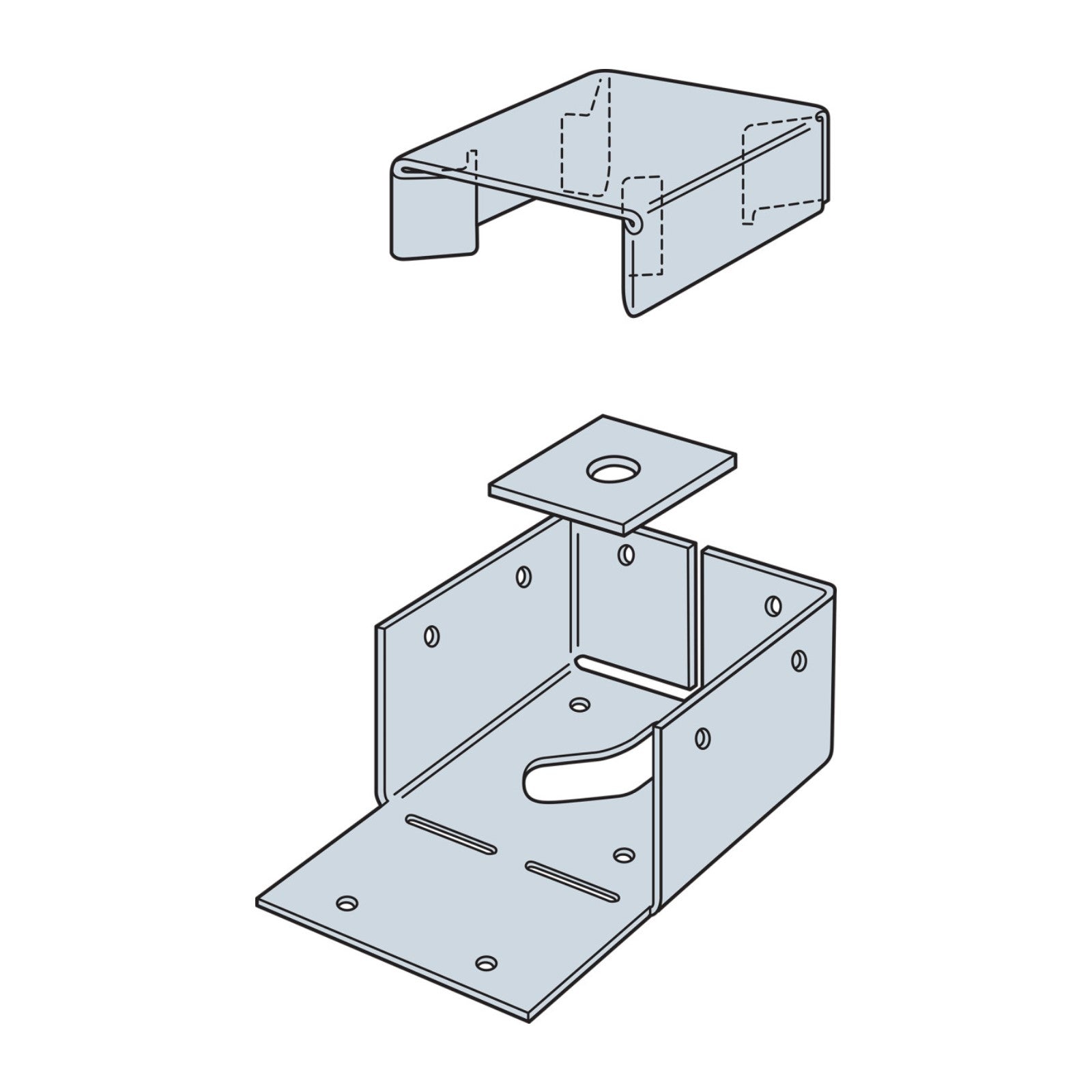

-Place the base, load transfer plate and nut on the anchor bolt. Loosely tighten the nut.
ABW
-Place the standoff base and then the post in the ABW and fasten on three vertical sides, using nails or Strong-Drive® SD Connector screws.

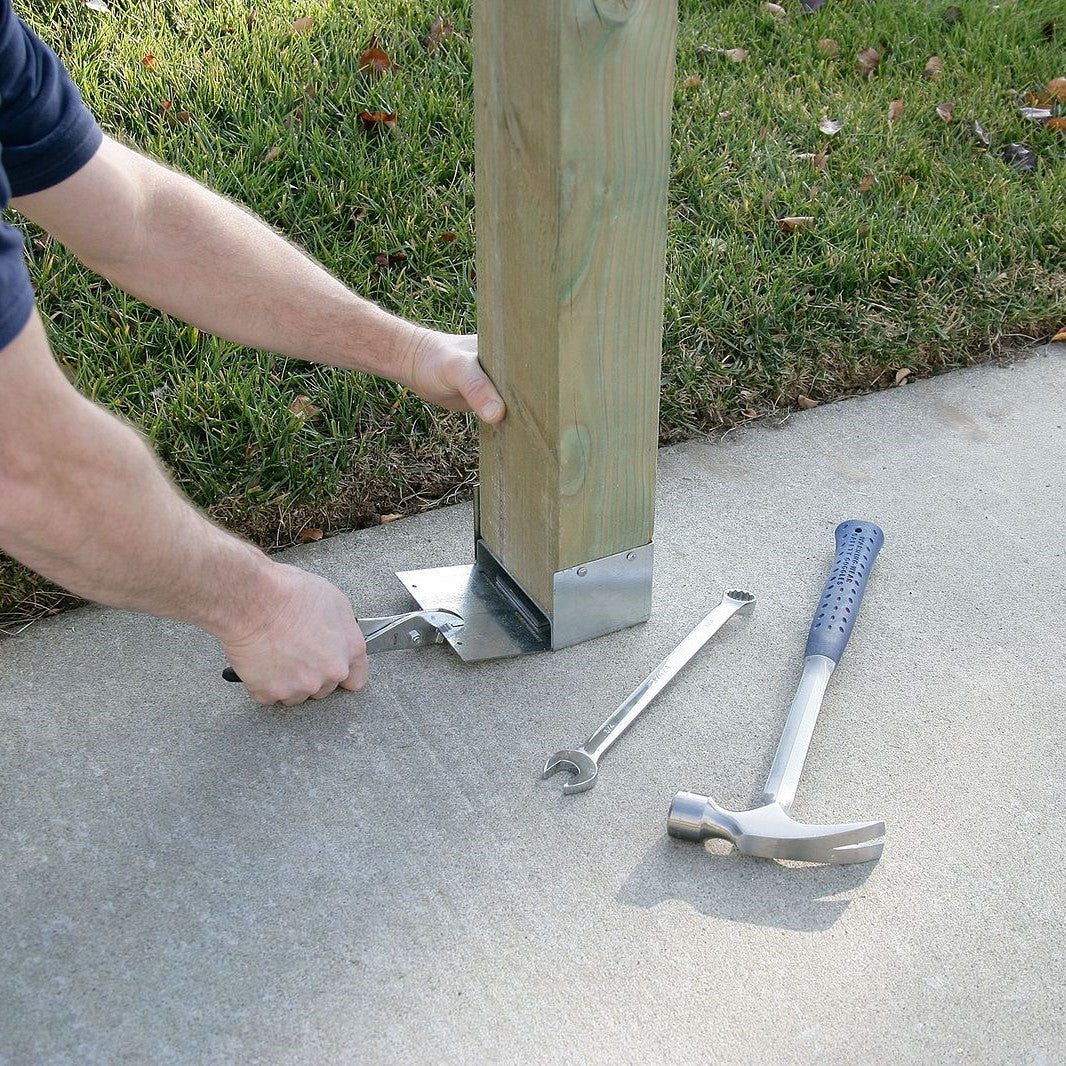

-Make any necessary adjustments to post placement and tighten the nut securely on the anchor bolt.
-Bend up the fourth side of the ABW and fasten using the correct fasteners.
