Simpson BC4R Rough Cut 4x Post Cap - G90 Galvanized

SKU: BC4R

$46.42

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a beam and post that measures an actual 4x4". If you have a nominal beam and post measuring 3-1/2x3-1/2" you will need a BC4 Post Cap

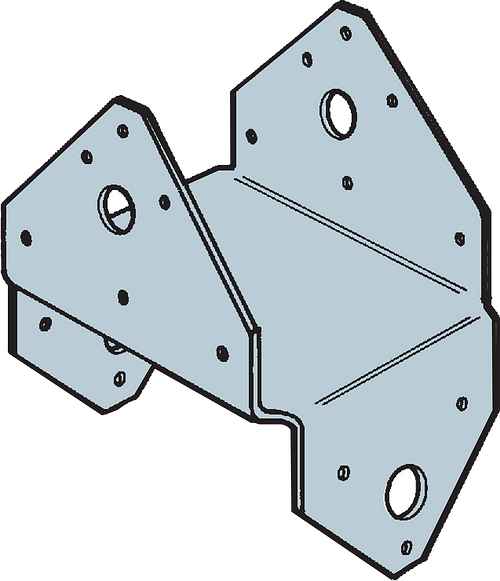

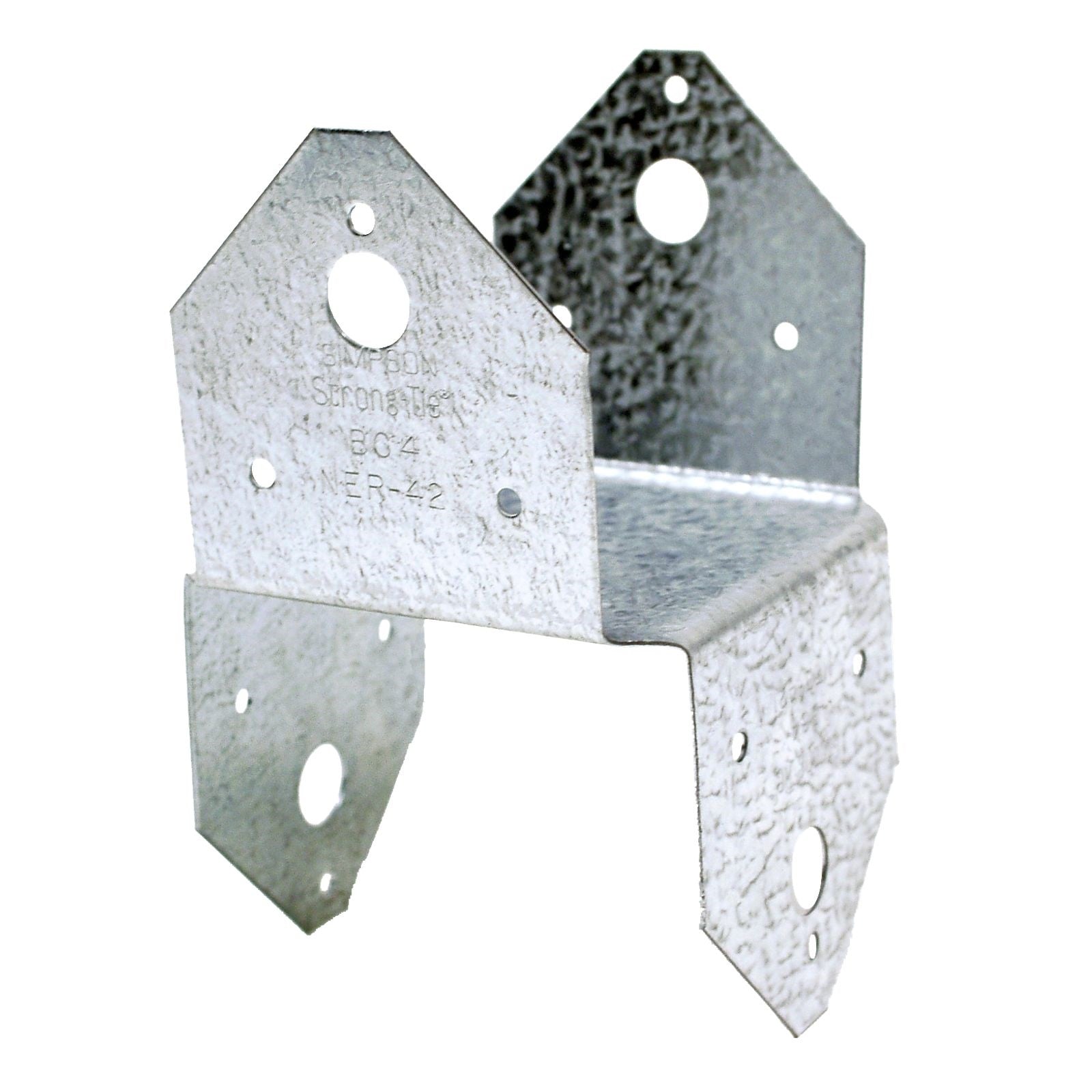

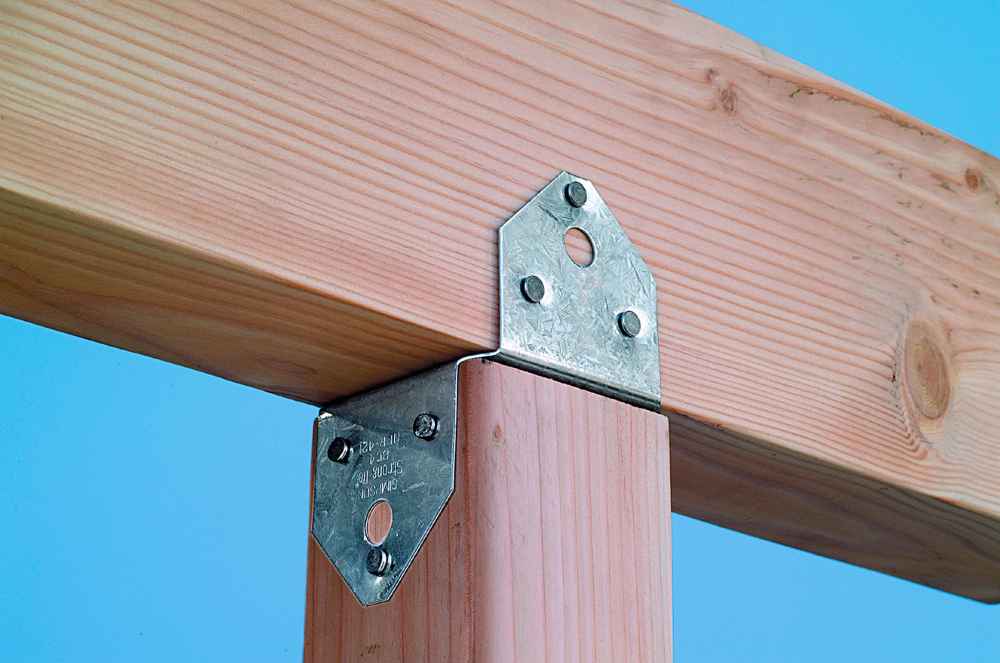

The BC4R post cap is a light duty cap designed for connecting a rough cut 4x post and 4x beam. Rough cut means it’s made for lumber that’s an actual 4” wide or a true 4x4. The Strong-Tie BC4R post base features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Do not install bolts into pilot holes
  • This rough cut 4x4 post cap requires the following fasteners for installation: (24) - 16d x 3-1/2” Common Nails
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson BC & BCS Post Caps.


California Residents: WARNING

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a beam and post that measures an a...

Read More

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a beam and post that measures an actual 4x4". If you have a nominal beam and post measuring 3-1/2x3-1/2" you will need a BC4 Post Cap


The BC4R post cap is a light duty cap designed for connecting a rough cut 4x post and 4x beam. Rough cut means it’s made for lumber that’s an actual 4” wide or a true 4x4. The Strong-Tie BC4R post base features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Do not install bolts into pilot holes
  • This rough cut 4x4 post cap requires the following fasteners for installation: (24) - 16d x 3-1/2” Common Nails
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson BC & BCS Post Caps.


California Residents: WARNING

Show Less

Fasteners Required:
Beam Flange - (12) 0.162 x 3-1/2" Nails Post Flange - (12) 0.162 x 3-1/2" Nails

For Treated Lumber:
no

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

Thickness:
18 Gauge

Product Guide:
