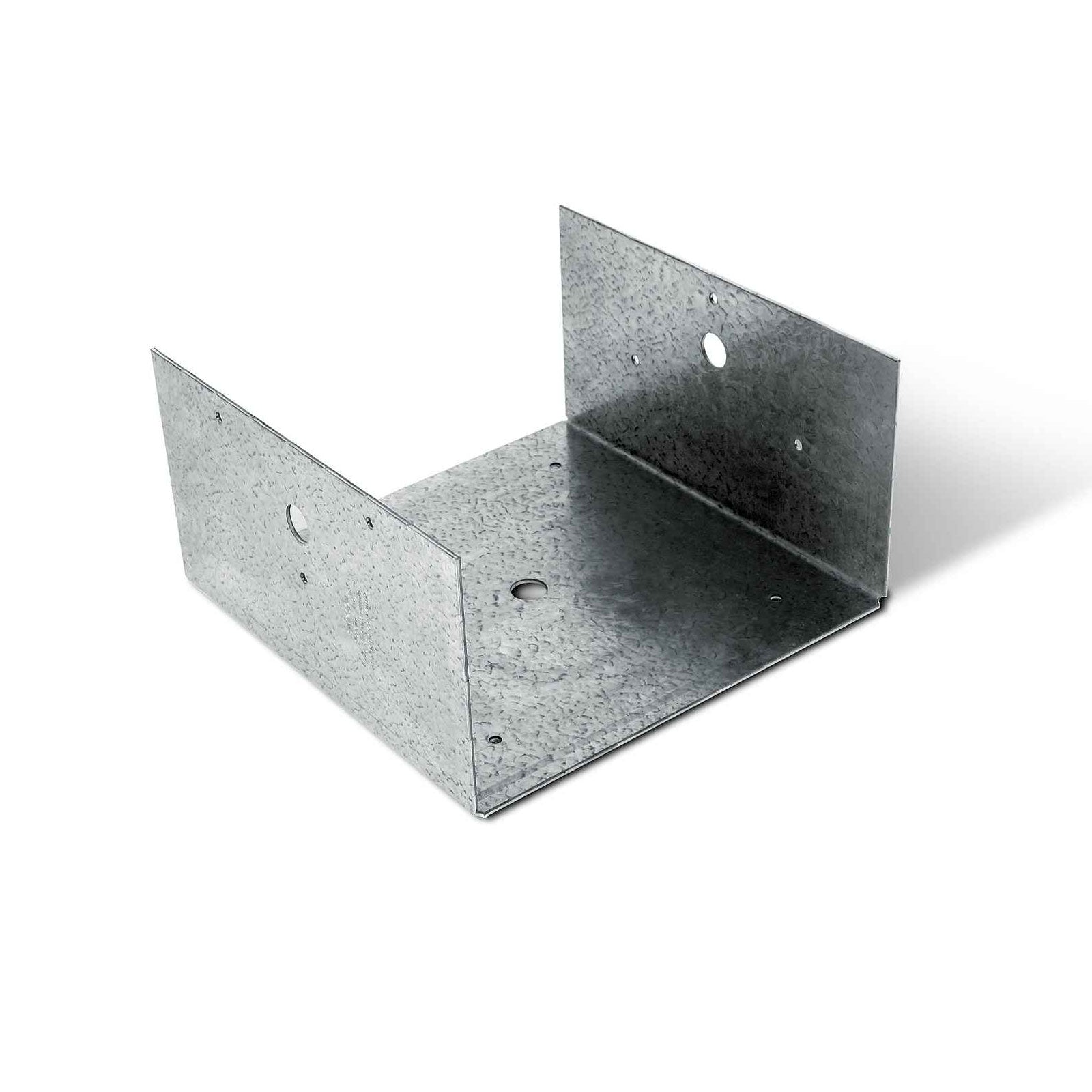

Simpson BC80R Post Cap - Rough Cut - G90 Galvanized
Simpson BC80R Post Cap - Rough Cut - G90 Galvanized
Ships in 1-3 business days.
Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common).

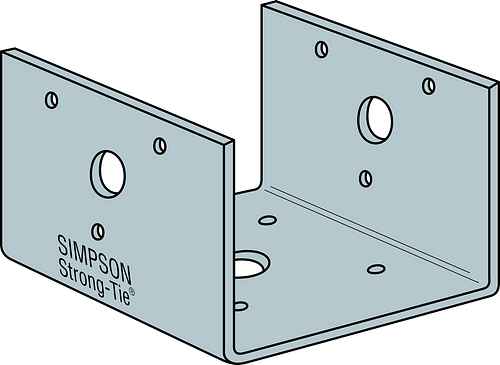

The Simpson Strong-Tie BC series offers dual purpose post cap/base for light cap or base connections. The BC80R post base is approved to be installed with the specified nails or Strong-Drive SD connector screws. The Strong-Tie BC80R post base features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Do not install bolts into pilot holes
- BC: install with 16d commons or 16d x 2-1/2" joist hanger nails.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
- To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson BC & BCS Post Caps.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 8X
Height: 4"
Fasteners required: Post Flange - (6) 0.162 x 3-1/2" nailed; Base Bottom - (4) 0.162 x 3-1/2" nails
Thickness: 18 Gauge
Quantity: 1
Width: 8"
Finish: G90 Galvanized
Length: 8"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Opposing nail pattern to reduce wood splitting
•Attains full allowable load using either common nail or pneumatic nail sizes
•Light-gauge material designed for light-duty applications
Installation
Installation
•Use all specified fasteners; see General Notes
•Do not install bolts into pilot holes
•BC post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations
