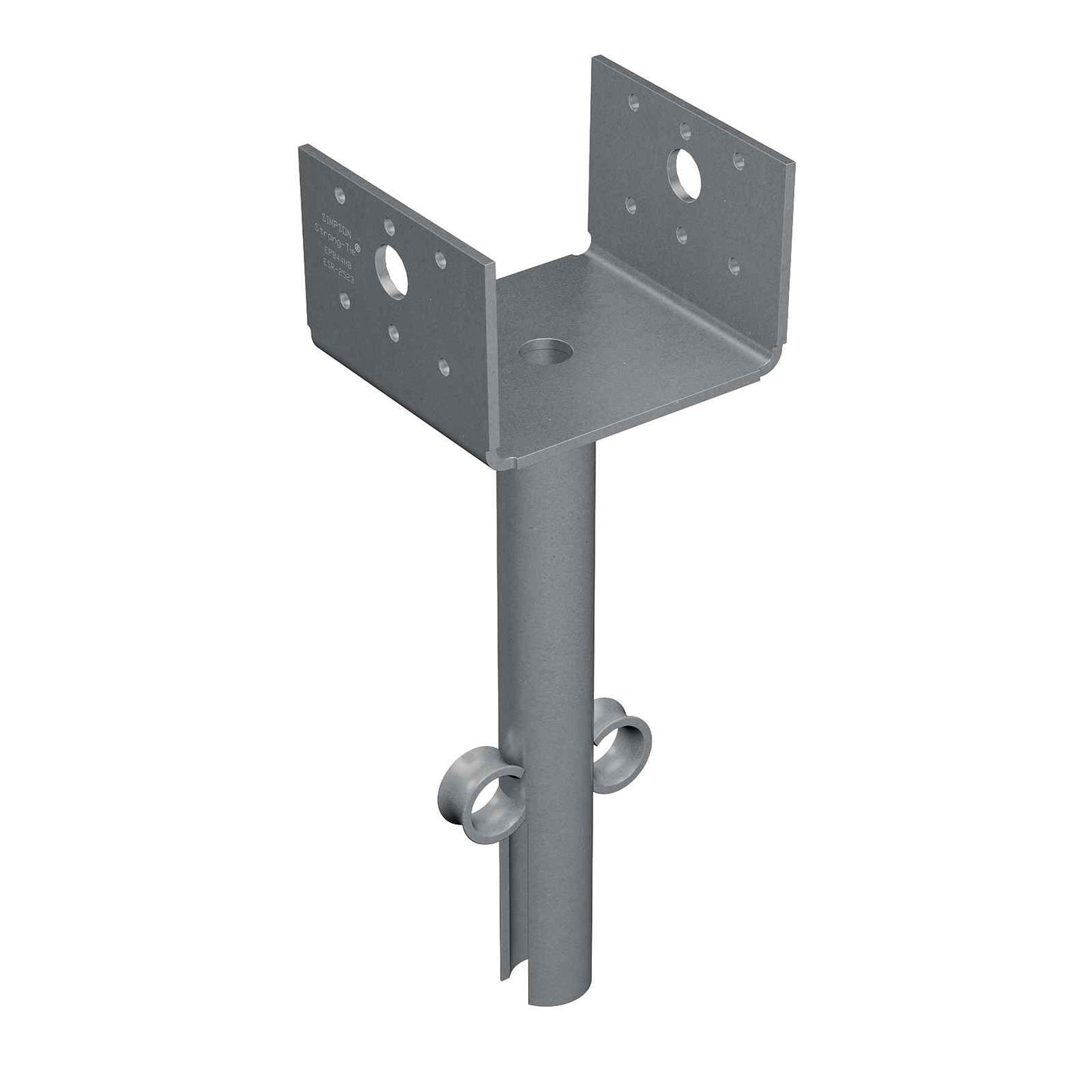

Simpson EPB44MB 4x4 Elevated Post Base - Gray Paint, Qty 50
Simpson EPB44MB 4x4 Elevated Post Base - Gray Paint, Qty 50
Description:
Description:
The Simpson Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB44MB elevated post base is finished in gray paint for added corrosion resistance.
Looking for smaller quantities? Also available individually as EPB44.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Post Size: 4 X 4
Height: 2-5/16"
Fasteners required: (8) 0.162" x 3-1/2" Nails
Thickness: 12 Gauge
Quantity: 50
Width: 3-9/16"
Finish: Gray Paint
Length: 3-1/4"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Installation
Installation
• Use all specified fasteners.
• Supported by a Nut: Drill a 1" diameter hole 3 1/2" deep minimum. Insert the EPB44PHDG and adjusts to the desired height.
• Cast-in Place: Embedded end to have a nut and bearing plate with a minimum embedment of 4" from top of concrete to the top of plate.
• Minimum sidecover is 3" from the center of the threaded rod.
• Fully engage at least three threads in the base.
• Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
