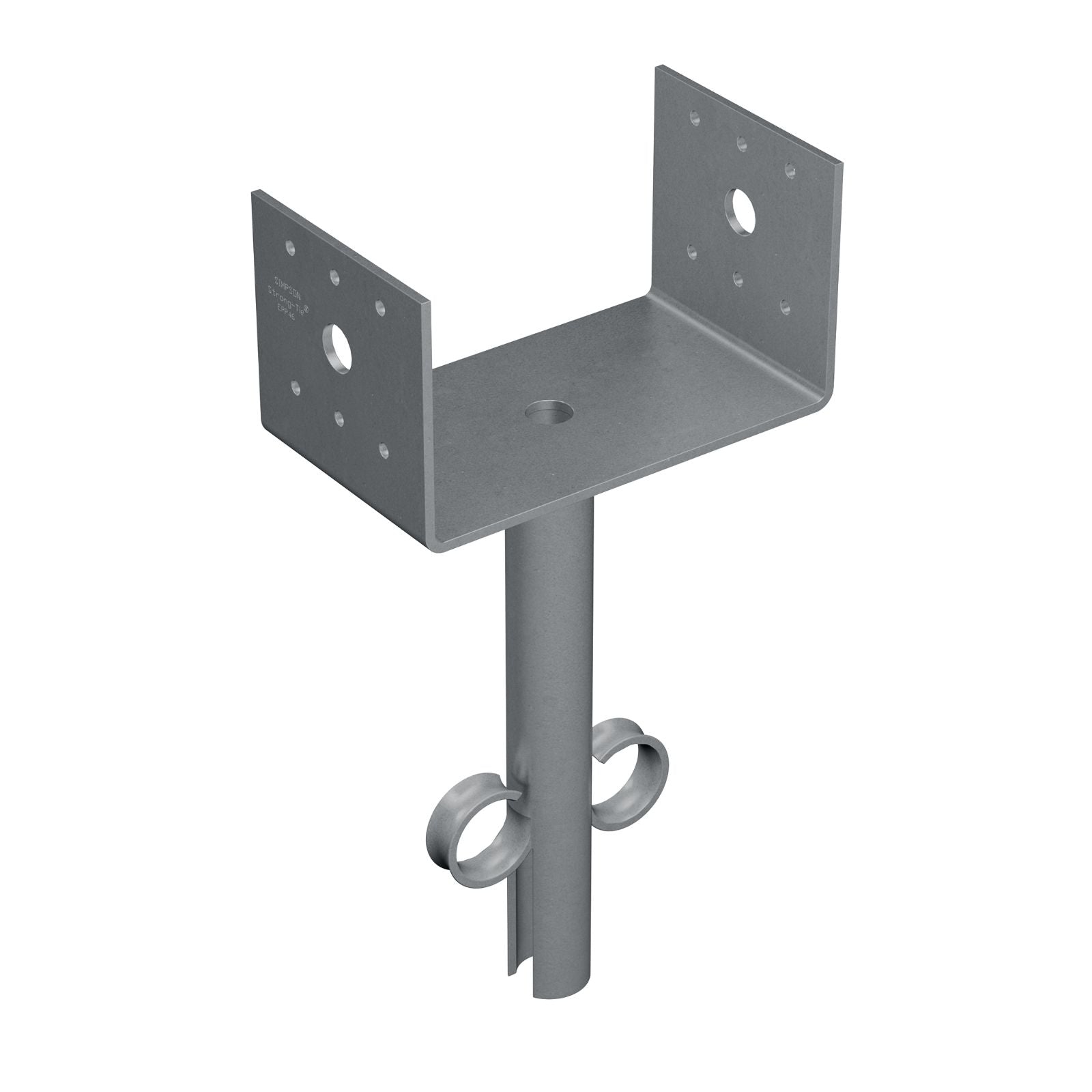

Simpson EPB46HDG 4x6 Elevated Post Base - Hot Dip Galvanized

SKU: EPB46HDG
$24.99

The Simpson Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB46HDG elevated post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).


Installation:
  • Use all specified fasteners.
  • Allows 1" to 2-1/2" clearance above concrete.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Elevated Post Bases.


California Residents: WARNING

The Simpson Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB46HDG elevated post...

Read More

The Simpson Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB46HDG elevated post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).


Installation:
  • Use all specified fasteners.
  • Allows 1" to 2-1/2" clearance above concrete.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Elevated Post Bases.


California Residents: WARNING

Show Less

finish spec:
Hot Dip Galvanized

length spec:
3-5/16"

manufacturer name:
Simpson Strong-Tie

fasteners required:
(12) 0.162" x 3-1/2" Nails

for treated lumber:
yes

height:
3"

thickness:
12 Gauge
