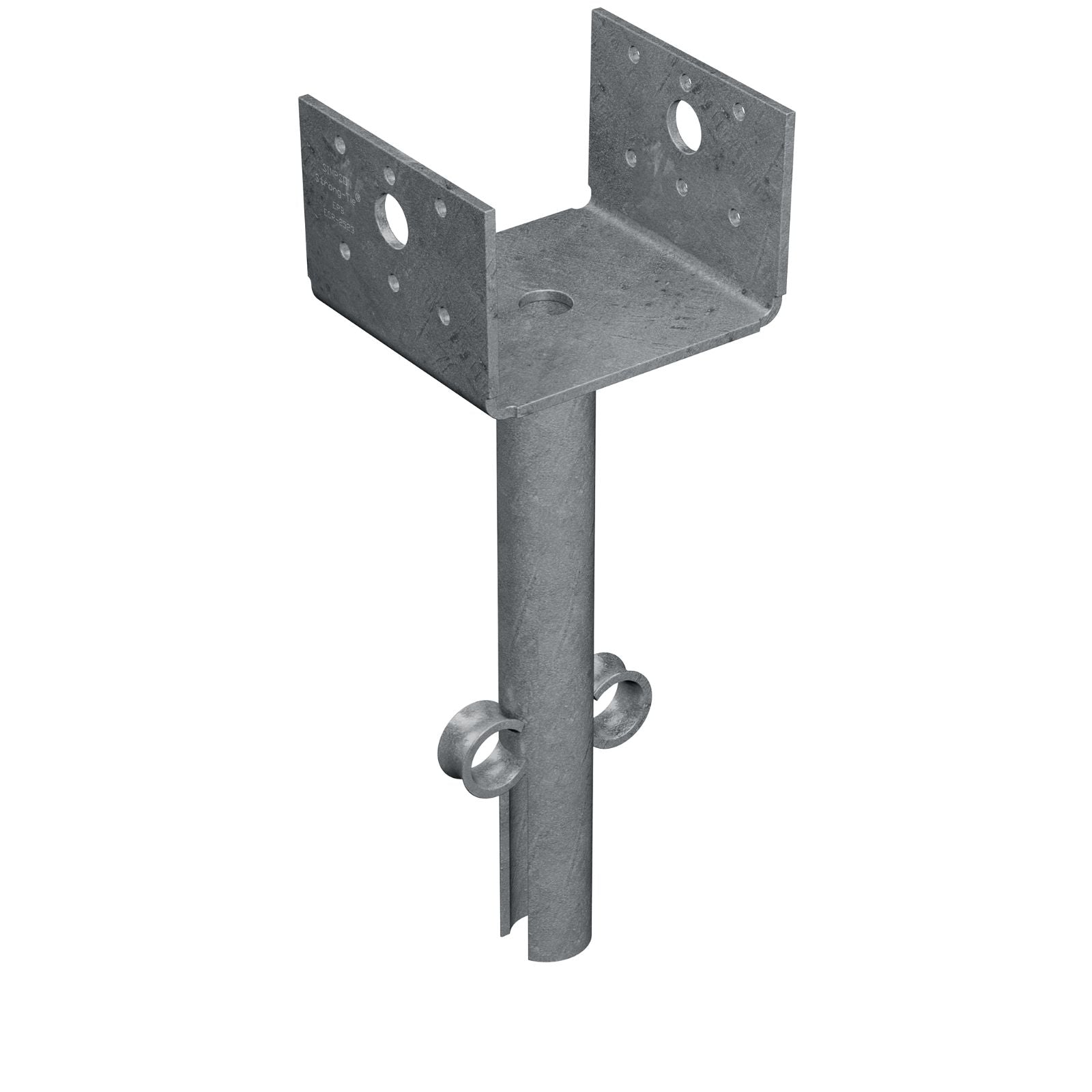

Simpson EPB66HDG Elevated Post Base - Hot Dip Galvanized
Simpson EPB66HDG Elevated Post Base - Hot Dip Galvanized
Couldn't load pickup availability

Description:
Description:

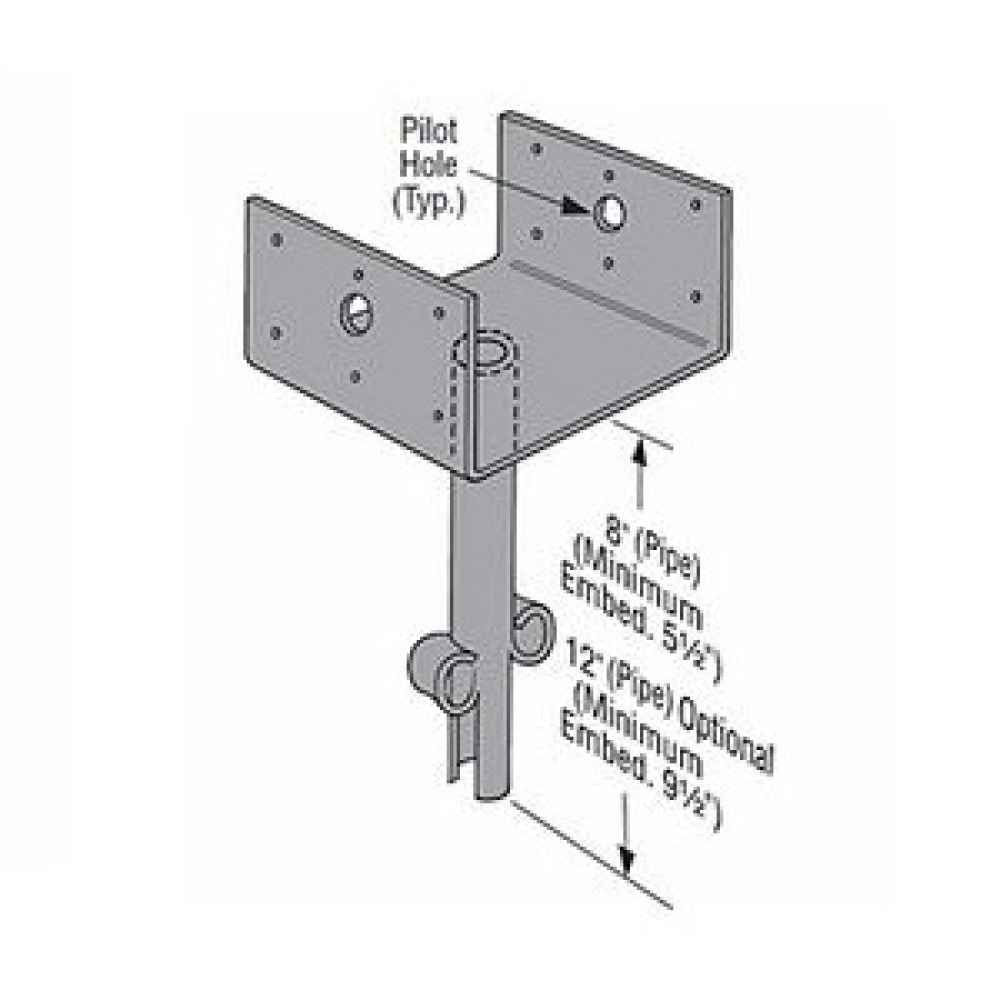

The Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB66HDG elevated post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).
Installation:
- Use all specified fasteners.
- Allows 1" to 2-1/2" clearance above concrete.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson Elevated Post Bases.
California Residents: WARNING
Specifications:
Specifications:
Height: 3"
Fasteners required: (12) 0.162" x 3-1/2" Nails
Length: 5-1/2"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Installation
Installation
- Use all specified fasteners.
- Allows 1" to 2-1/2" clearance above concrete.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
