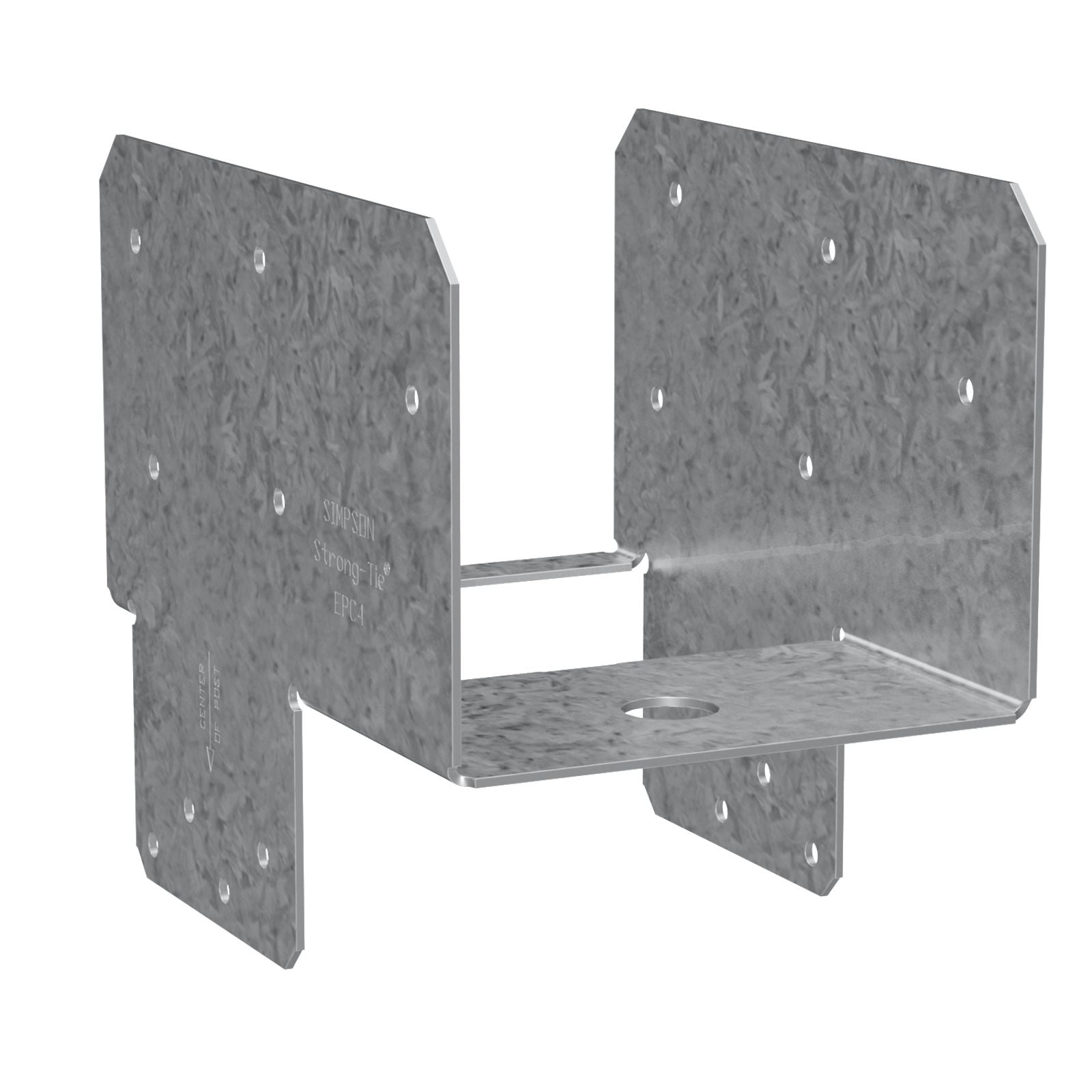

Simpson EPC4RZ 4X Rough End Post Cap - ZMAX Finish

Simpson EPC4RZ 4X Rough End Post Cap - ZMAX Finish

Regular price $81.74
Sale price $81.74 Regular price
You Save 0%
Sale Sold out

Description:

The Simpson Strong-Tie EPCZ series of post caps are used to attach the top of posts to beams. The next-generation EPC4RZ, for rough size lumber, post caps are designed with their post and beam flanges in-line so that one EPC4RZ model can accommodate several post sizes. The EPC4RZ now uses easier-to-install 10d common nails. An alternate choice of fasteners is Strong-Drive® #9x1 1/2" SD Connector screws. The EPC4RZ post cap is approved to be installed with the specified nails or with Strong-Drive SD connector screws. The Strong-Tie EPC4RZ post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

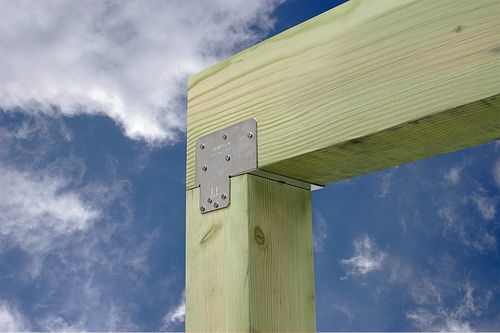

Installation:
  • Use all specified fasteners.
  • Do not install bolts into pilot holes.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson PCZ & EPCZ Post Caps.


California Residents: WARNING

Specifications:


Fasteners required: Beam - (10) 0.148 x 3" Nails OR (10) SD9112 Screws Post - (8) 0.148 x 3" Nails OR (8) SD9112 Screws
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Do not install bolts into pilot holes.
