Simpson F44Z 4x4 Panelized Construction Hanger - Zmax Finish

SKU: F44Z
$4.04

The HFN hangers are designed for panels or components using jigs or similar devices for precision fabrication. Grip-groove feature provides positive lock into the 2x or 3x member without nailing. F series panel hangers are engineered components for panelized construction only. The Strong-Tie F44Z panelized construction hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

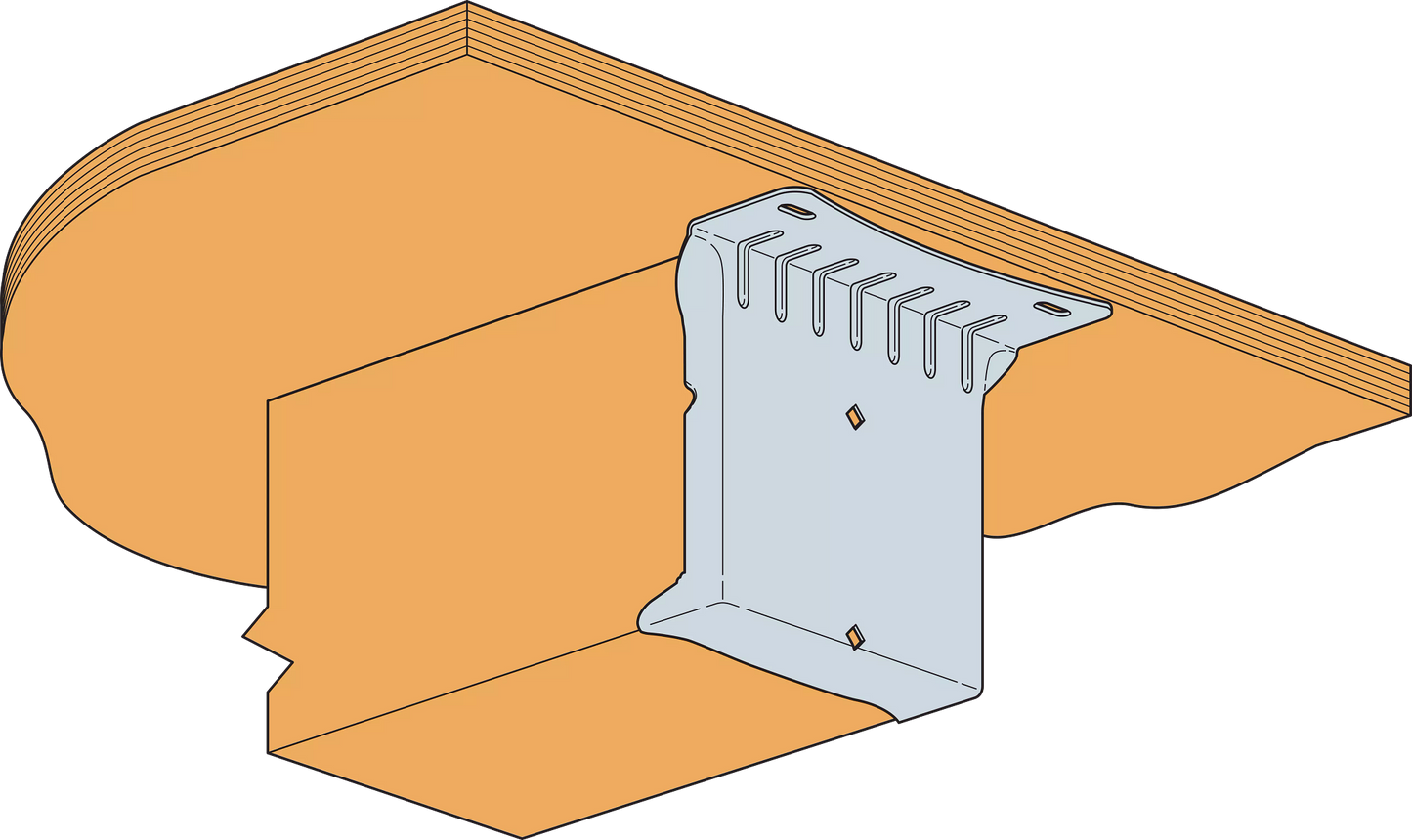

Installation:
  • Use all specified fasteners.
  • On the F-series hanger, the diamond hole nail is non-structural and does not contribute to the load.
  • Installing two nails through sheathing in middle of hanger achieves full load.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The HFN hangers are designed for panels or components using jigs or similar devices for precision fabrication. Grip-groove feature provides positiv...

Read More

The HFN hangers are designed for panels or components using jigs or similar devices for precision fabrication. Grip-groove feature provides positive lock into the 2x or 3x member without nailing. F series panel hangers are engineered components for panelized construction only. The Strong-Tie F44Z panelized construction hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

Installation:
  • Use all specified fasteners.
  • On the F-series hanger, the diamond hole nail is non-structural and does not contribute to the load.
  • Installing two nails through sheathing in middle of hanger achieves full load.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
ZMAX

manufacturer name:
Simpson Strong-Tie

fasteners required:
(2) 0.148" x 2-1/8" Nails

for treated lumber:
yes

height:
3-7/16"

joist size:
4X4

thickness:
18 Gauge

width spec:
3-9/16"

Product Spec Sheet:
