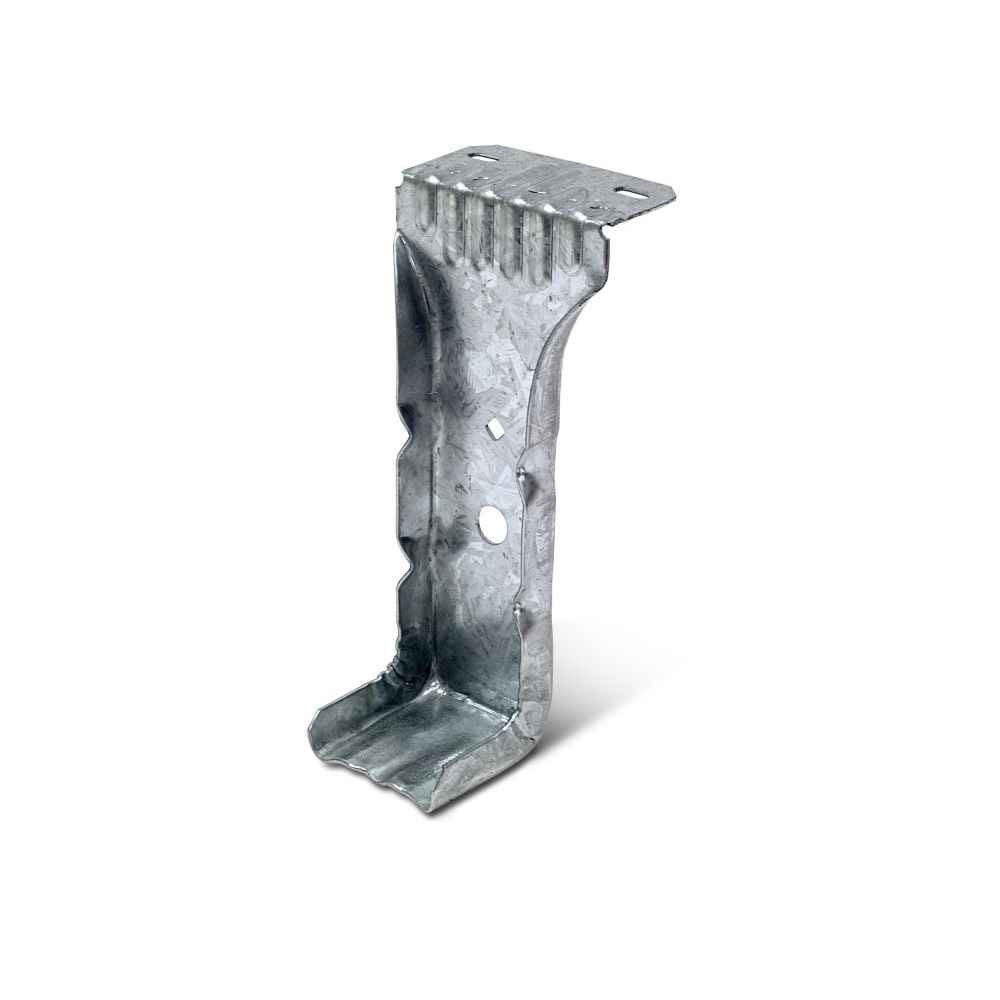

Simpson HF34NZ Panelized Construction Hanger - ZMAX
Simpson HF34NZ Panelized Construction Hanger - ZMAX
Description:
Description:
The HFN hangers are designed for panels or components using jigs or similar devices for precision fabrication. Grip-groove feature provides positive lock into the 2x or 3x member without nailing. F series panel hangers are engineered components for panelized construction only. The Strong-Tie HF34NZ panelized construction hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:- Use all specified fasteners.
- Installing two nails through sheathing in middle of hanger achieves full load.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 3-3/8"
Fasteners required: (2) 0.148 x 2-1⁄8"
Thickness: 18 Gauge
Quantity: 1
Width: 2-9/16"
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
Joist size: 3X4
Product Guide: View Spec Sheet
Features
Features
•Compression dimples, instead of joist nails, lock the joist in place, making installation faster
•Designed to allow panels to drop easily into place
•For panelized roof construction only
Installation
Installation
•Use all specified fasteners; see General Notes
•For additional information on retrofit options see flier RUZ/NRUZ Retrofit U Hangers for Panelized Roof Construction (F-C-RUZNRUZ)
Panelized Installation:
•Installing two nails through sheathing in middle of hanger achieves full load. See product illustrations for fastener location requirements. See technical bulletin HF24N and HF26N Panelized Roofing Hangers (T-C-HFHANGER) for alternate nailing and allowable load adjustments.
