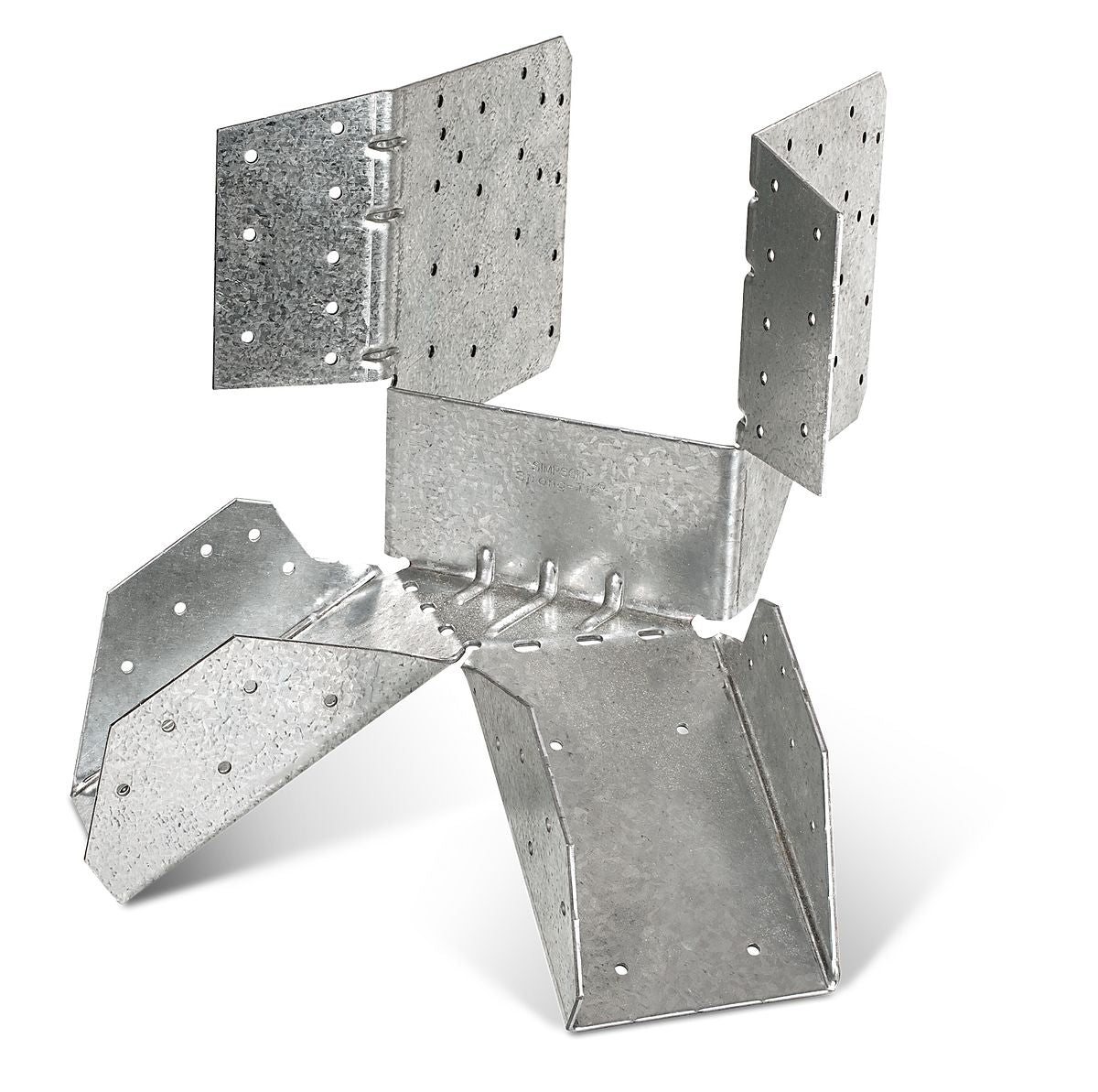

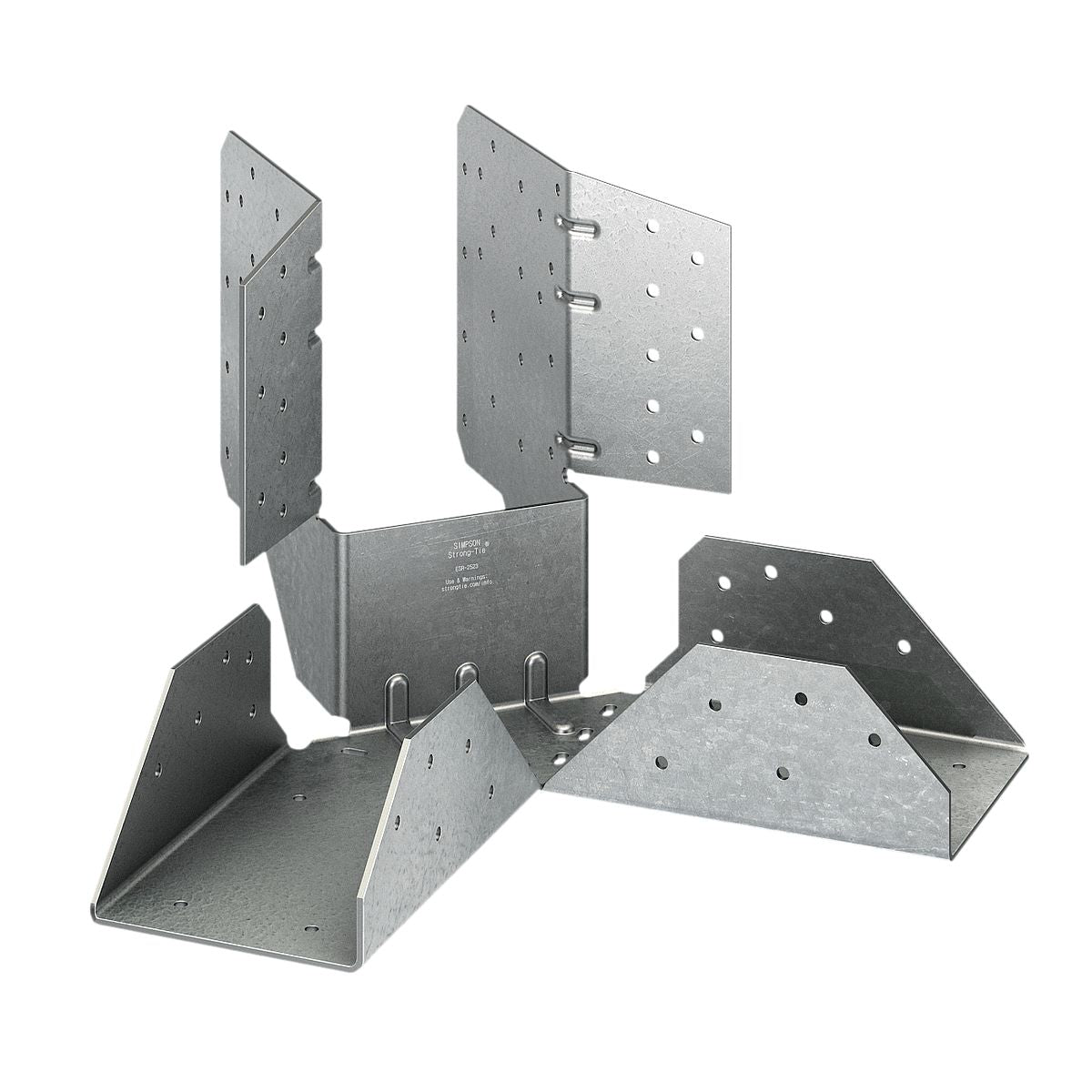

Simpson HHRC66 Hip-Ridge Face-Mount Connector - Galvanized

Simpson HHRC66 Hip-Ridge Face-Mount Connector - Galvanized

Regular price $276.57
Sale price $276.57 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 7 hours 10 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

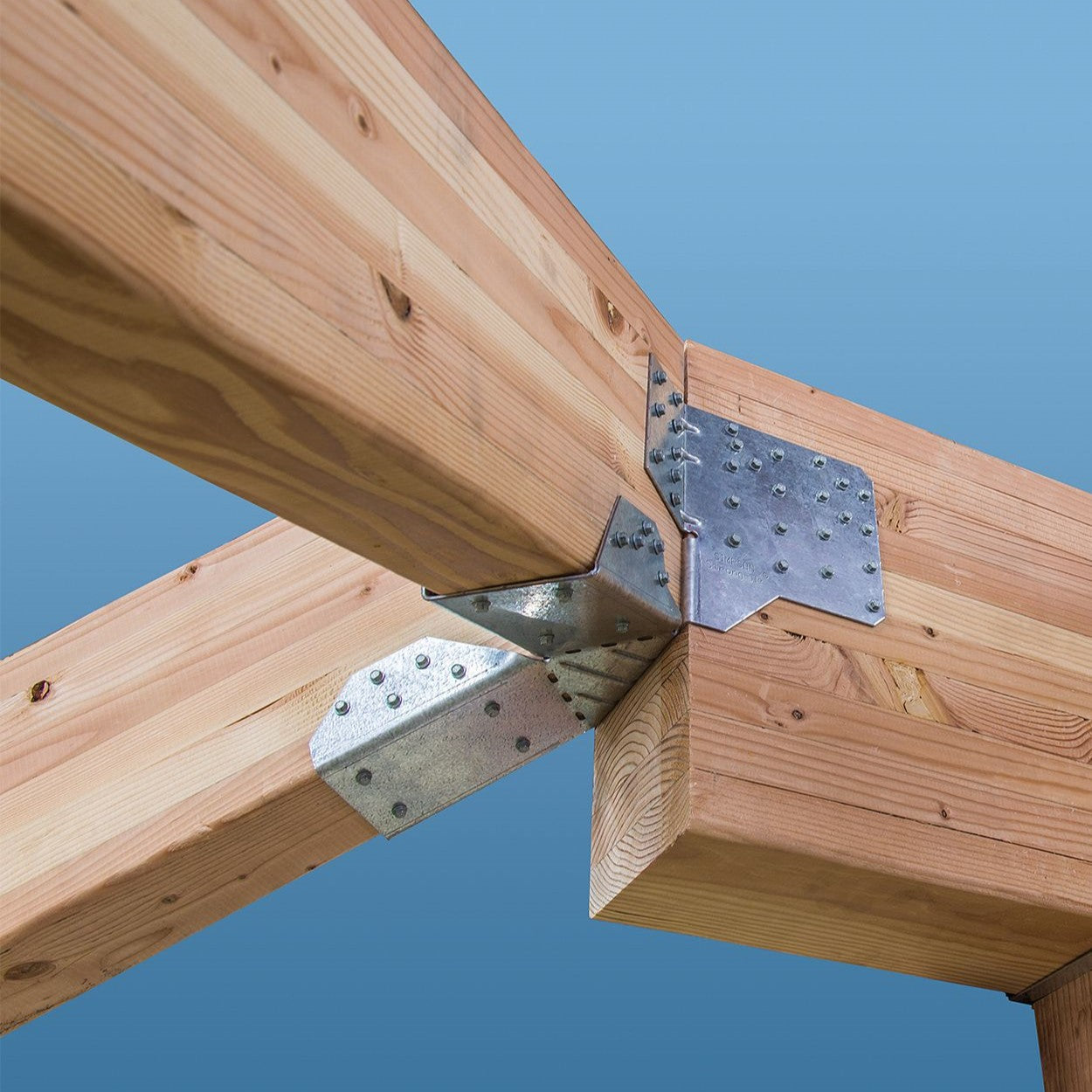

The Simpson HHRC Hip-Ridge Face-Mount Connector attaches hip beams to the end of a ridge beam. It takes the inconsistency out of this common detail and assigns a standard load capacity. The HHRC can be placed higher or lower on the ridge beam so the hips are flush at the top.

  • HHRC accommodates higher loads.
  • Total load carried by the connector is double the load spec for each hip; see Spec Guide Document.

Strong-Drive® SD Connector screws included.

California Residents:WARNING

Specifications:

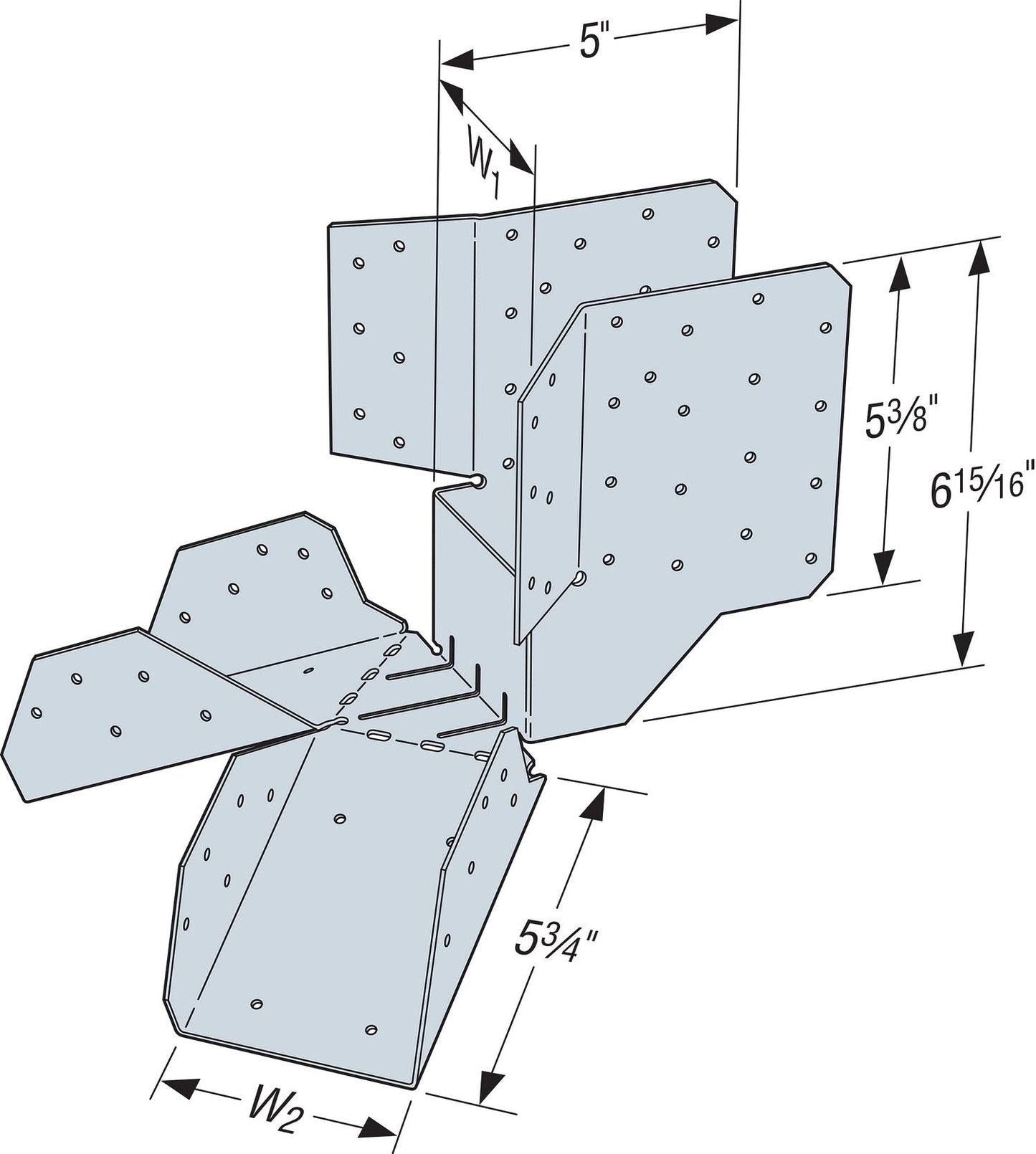

Thickness: 12 Gauge
Width: 5-5/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
