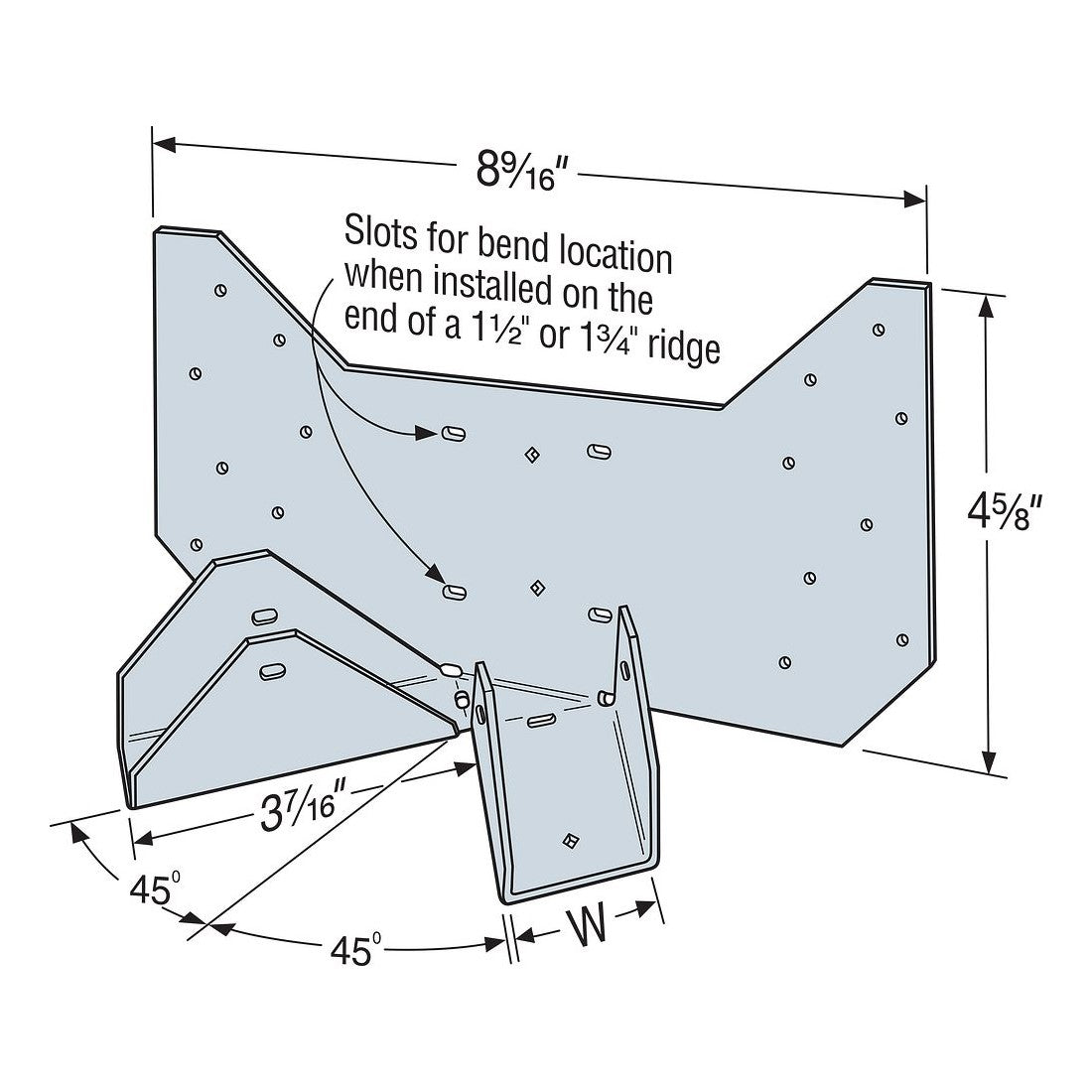

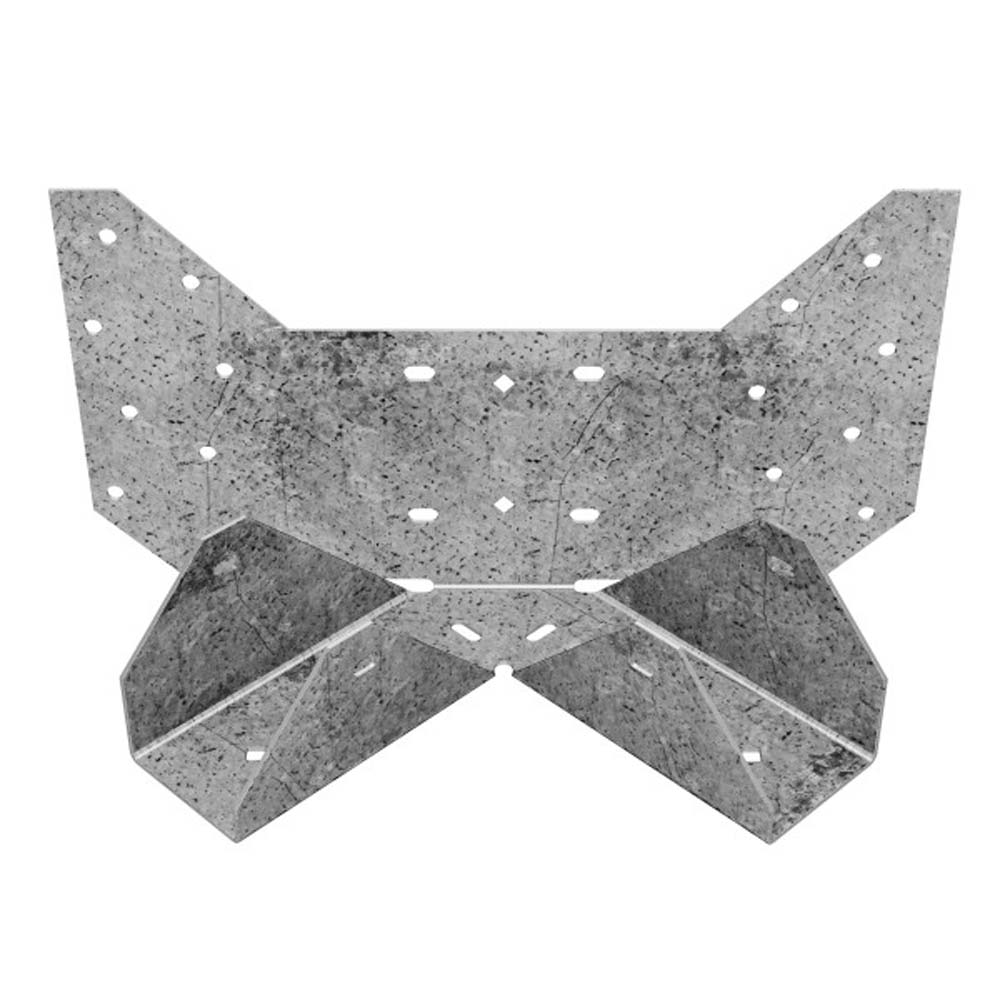

The Simpson HRC Hip-Ridge Face-Mount Connector is engineered for secure and efficient hip-to-ridge beam connections. Designed for solid sawn lumber applications, this connector enhances structural stability in roof framing by providing a strong, load-bearing connection for hip rafters.

With a face-mount design, the HRC simplifies installation while maintaining the high performance needed for residential, commercial, and agricultural construction. Whether reinforcing hip-to-ridge connections or supporting complex framing layouts, this connector ensures durability and ease of use in various building environments.

Key Features:

• Face-Mount Installation: Attaches directly to the ridge beam for a strong, stable connection.
• Engineered for Strength: Designed to handle high structural loads in hip and ridge applications.
• Versatile Compatibility: Works with a variety of solid sawn lumber framing configurations.
• Precision Manufacturing: Ensures a secure fit and reliable performance.

Applications:

• Hip-to-Ridge Connections: Reinforces the intersection where hip rafters meet the ridge beam.
• Roof Framing Systems: Adds stability to trusses and rafters in both residential and commercial structures.
• Outdoor Structures: Suitable for pergolas, gazebos, and other timber-framed projects.
• Agricultural & Barn Construction: Provides long-lasting performance in heavy-duty framing applications.

Installation:

• Attach the connector directly to the ridge beam using approved Simpson Strong-Tie nails or structural screws.
• Ensure the hip rafter is properly aligned before fastening.
• Use all designated fastener holes to achieve full load capacity.
• Follow manufacturer recommendations for compatibility with framing materials.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
