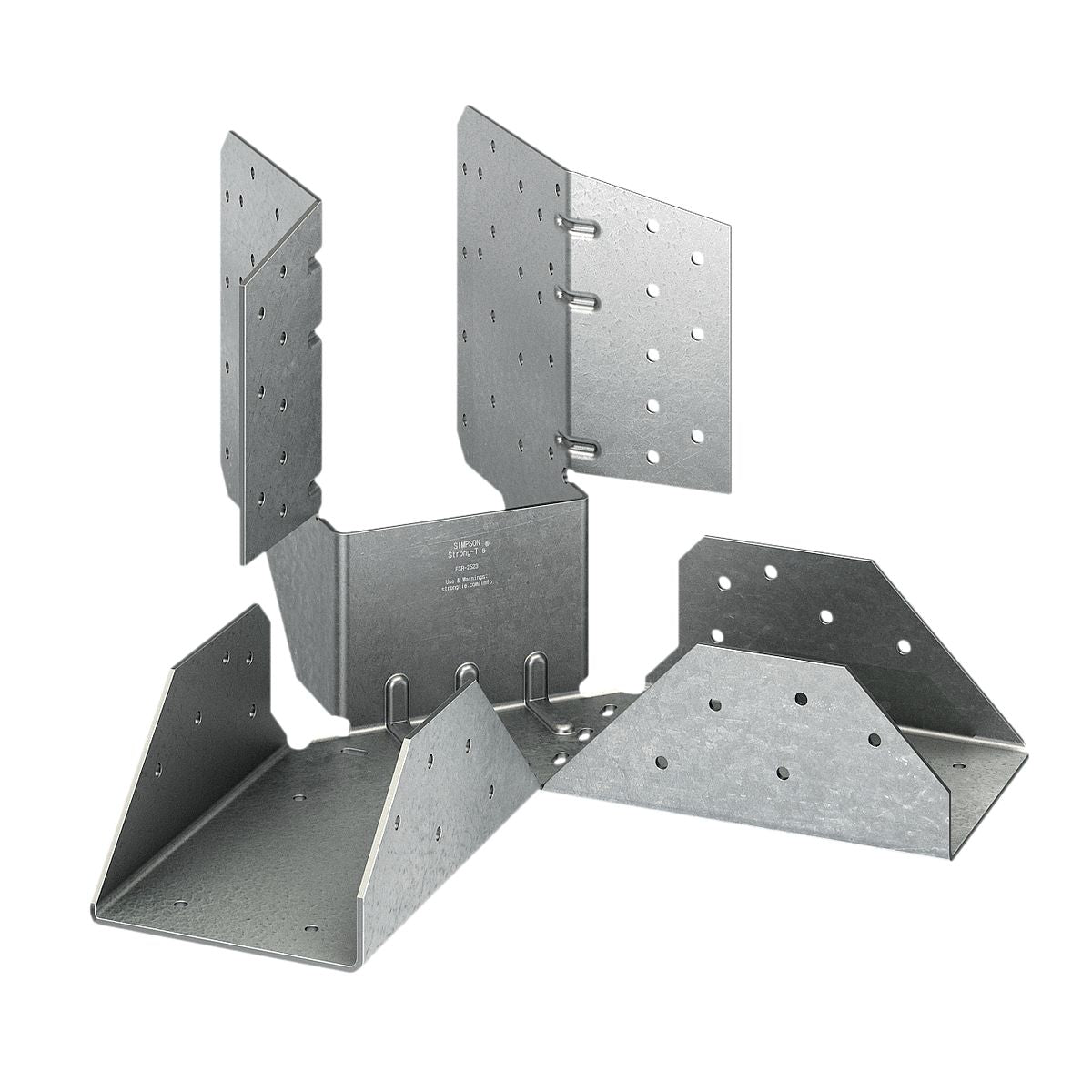

• Simpson HHRC Hip-Ridge Face-Mount Connector Galvanized

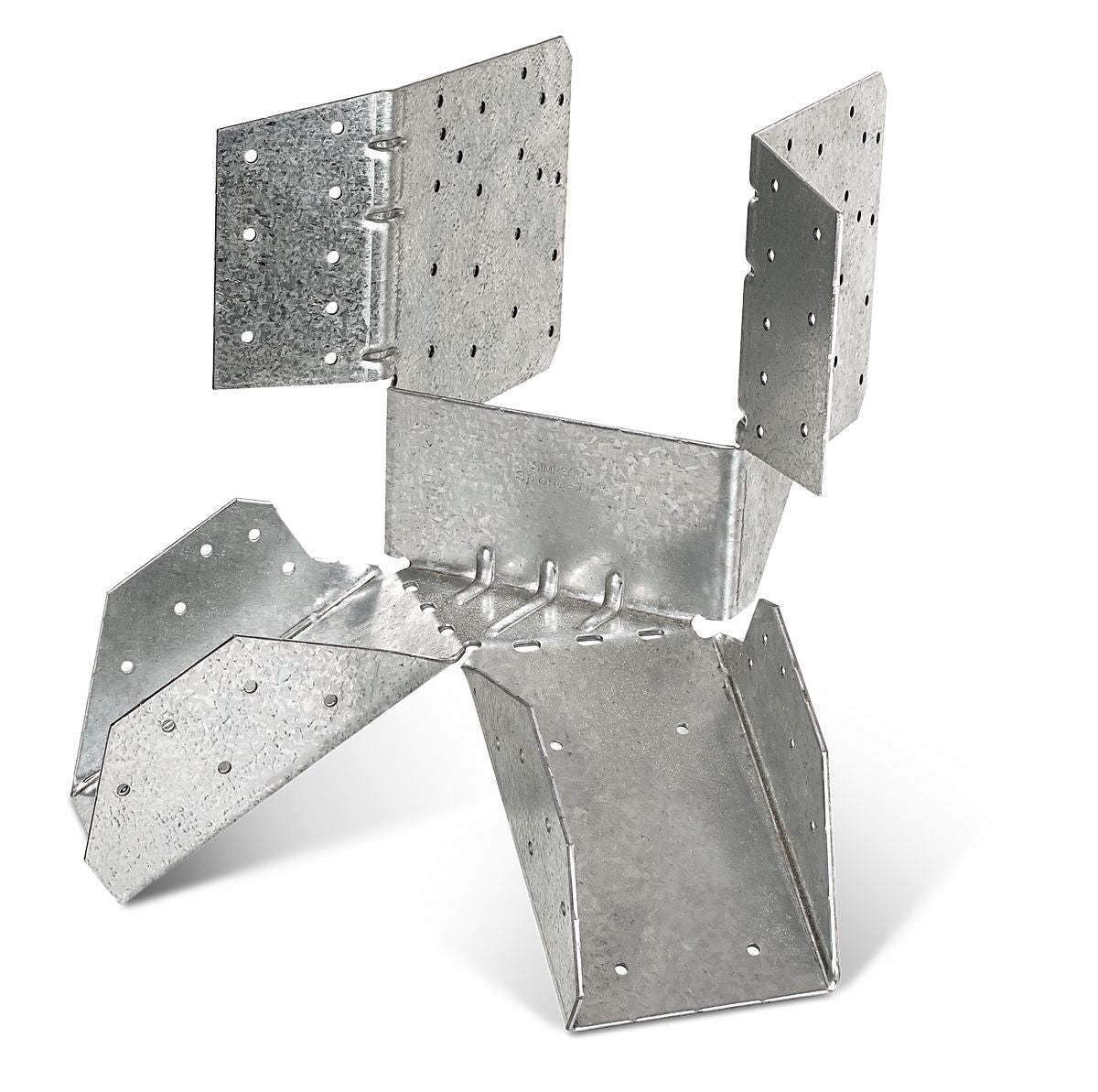

  • Simpson HHRC Hip-Ridge Face-Mount Connector Galvanized Sloped

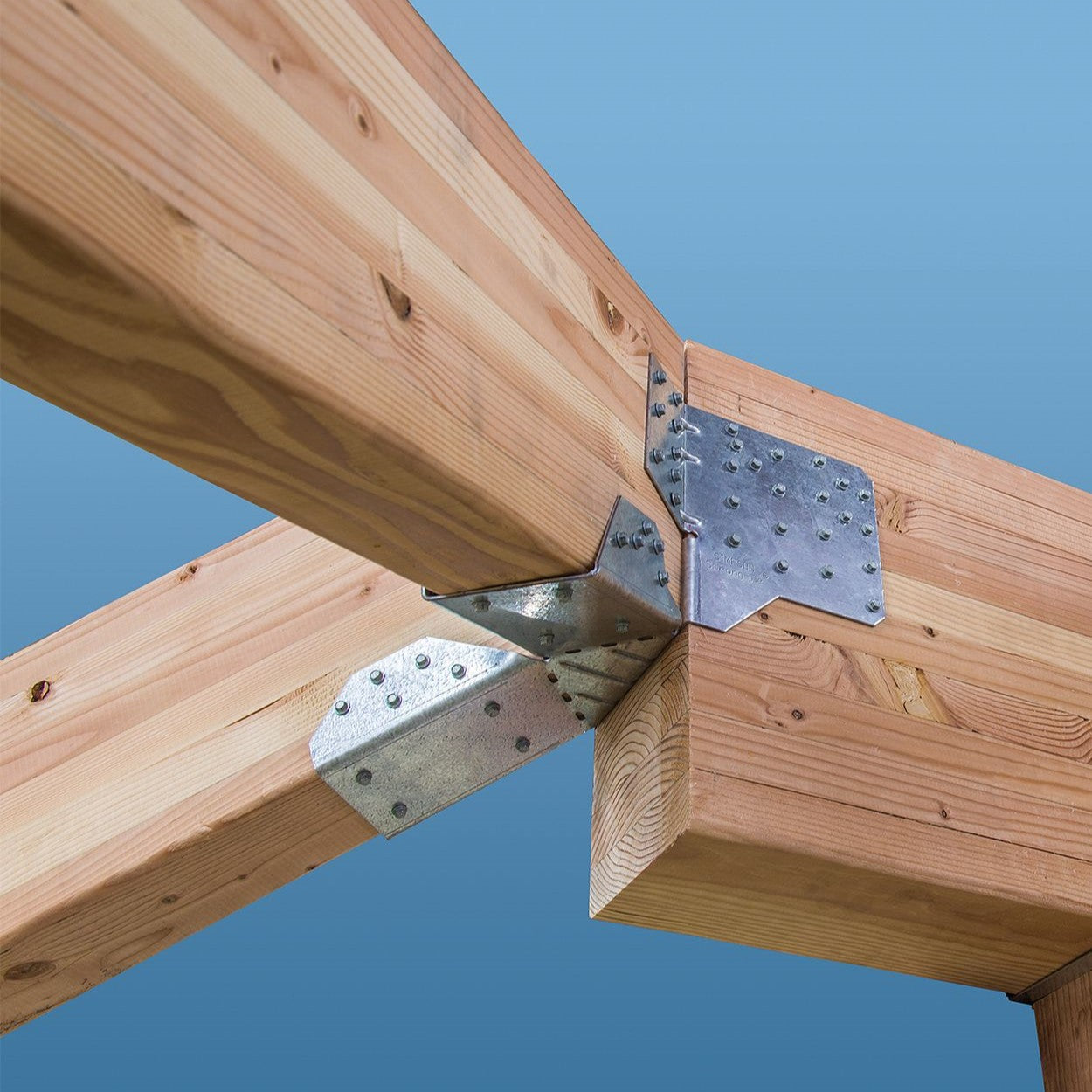

  • Simpson HHRC Hip-Ridge Face-Mount Connector Galvanized Installed

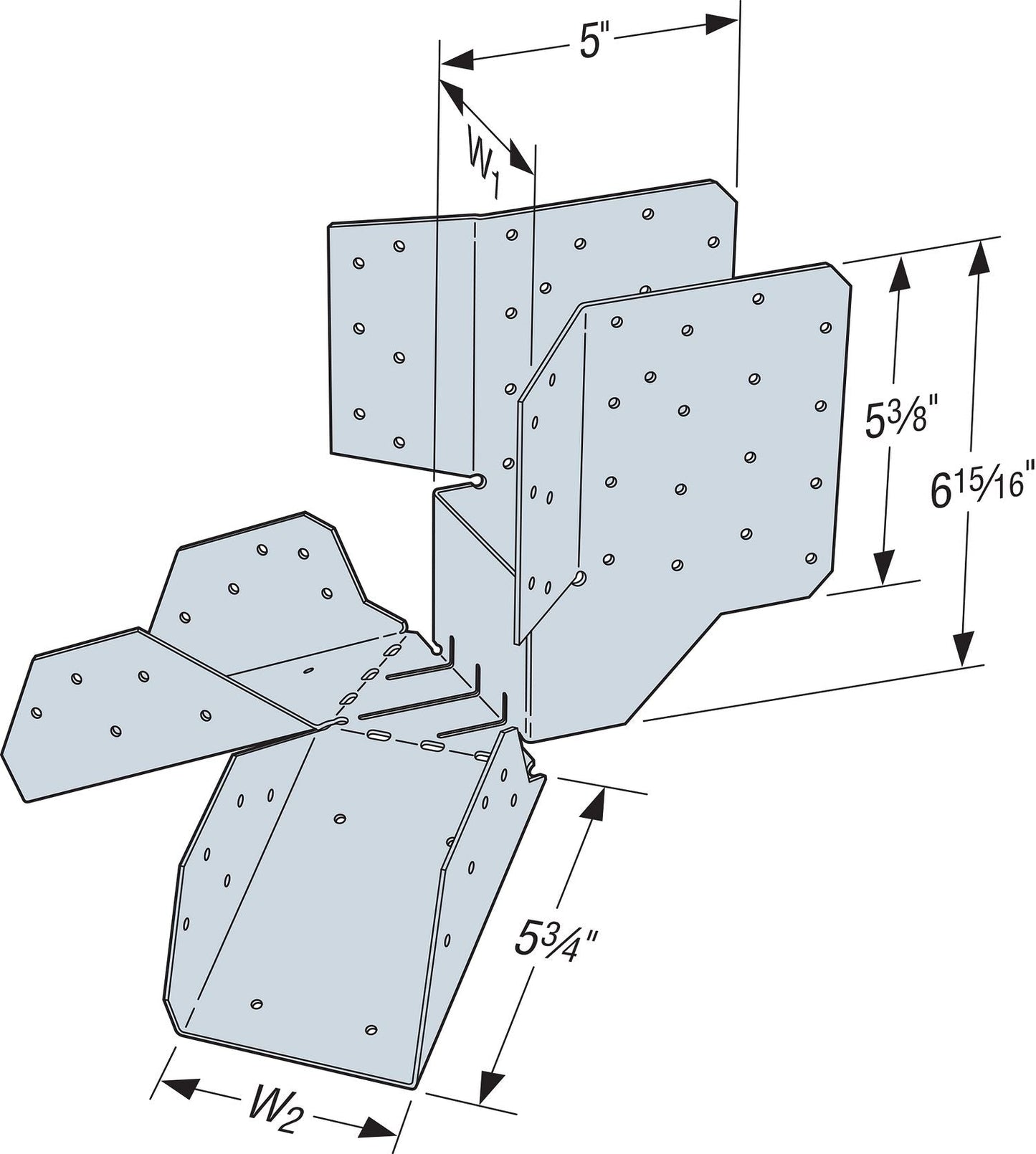

  • Simpson HHRC44 Hip-Ridge Face-Mount Connector Galvanized illustration - others similar
1 4
Shop more HRC/HHRC Hip-Ridge Connectors
SKU: HHRC64

Simpson HHRC64 Hip-Ridge Face-Mount Connector - Galvanized

Simpson HHRC64 Hip-Ridge Face-Mount Connector - Galvanized

$277.79
$277.79
0% off
shipping truck, lead time icon
Ships Apr 26 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The Simpson HHRC Hip-Ridge Face-Mount Connector attaches hip beams to the end of a ridge beam. It takes the inconsistency out of this common detail and assigns a standard load capacity. The HHRC can be placed higher or lower on the ridge beam so the hips are flush at the top.

  • HHRC accommodates higher loads.
  • Total load carried by the connector is double the load spec for each hip; see Spec Guide Document.

Strong-Drive® SD Connector screws included.

California Residents:WARNING

Specifications:


Thickness: 12 Gauge
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Additional information:
Width (1): 5-5/8"
Width (2): 3-5/8"
Product Guide: View Spec Sheet
