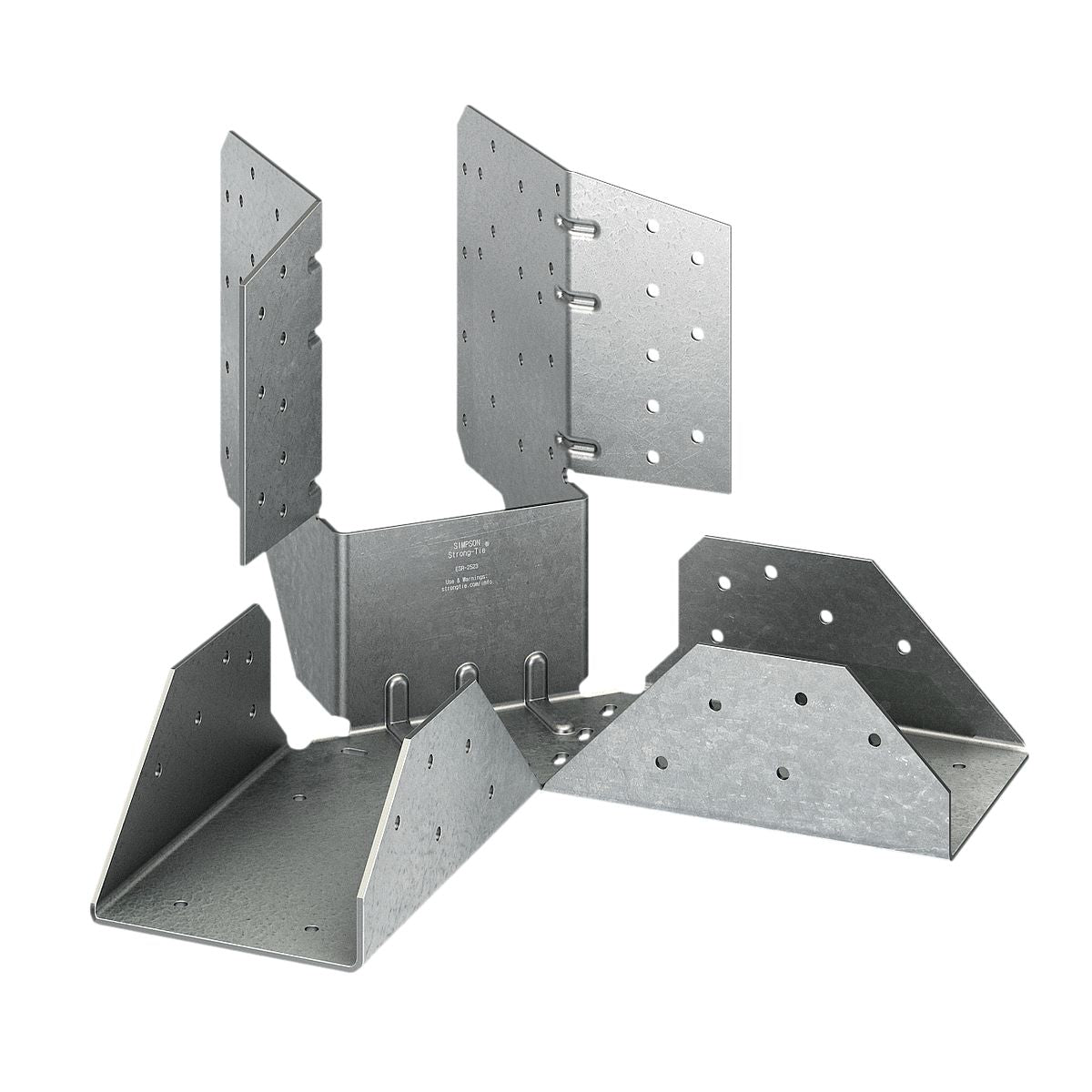

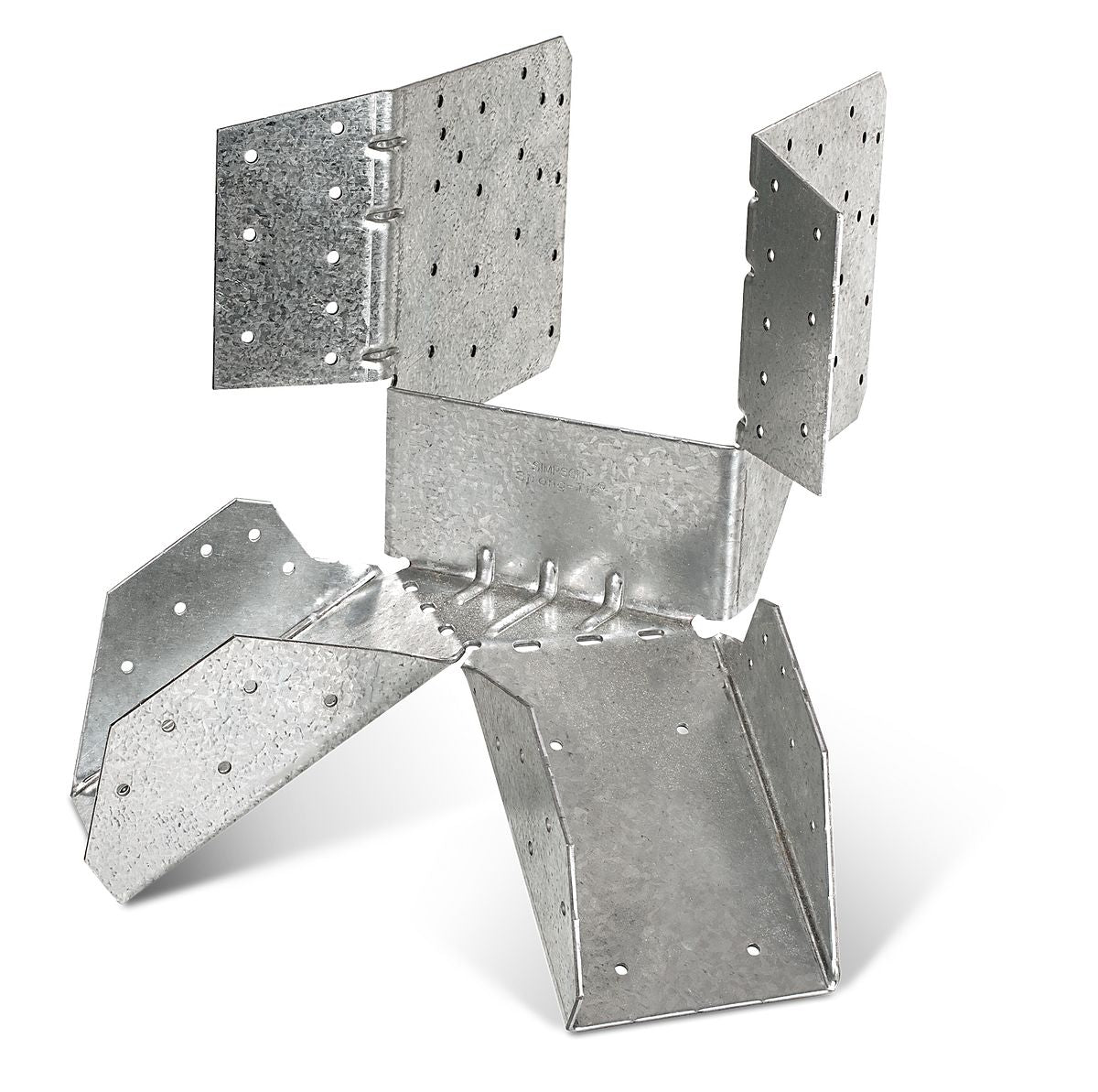

The Simpson Strong-Tie HHRC Hip-Ridge Face-Mount Connector is engineered to create secure connections between hip rafters and ridge beams in solid sawn lumber applications. With its G90 galvanized finish, this connector provides a durable and cost-effective solution for interior and non-corrosive environments, ensuring structural integrity where strength and stability are critical.

Designed for efficient installation, the HHRC features a face-mount configuration that simplifies alignment while maintaining a strong hold. Pre-punched fastener holes allow for precise nail or screw placement, optimizing load distribution and performance.

Whether you're working on residential, commercial, or timber-framed structures, this connector is built to provide long-lasting reliability in traditional and modern framing applications.

Key Features:

• G90 Galvanized Finish: Protects against general atmospheric corrosion in interior and dry environments.
• Heavy-Gauge Steel Construction: Ensures high load capacity and structural durability.
• Face-Mount Design: Provides easy and secure installation for accurate framing.
• Pre-Punched Fastener Holes: Optimized for nails or Simpson Strong-Drive® SD screws to enhance performance.
• Versatile Application: Ideal for hip, valley, and ridge beam connections.

Installation:

• Use only Simpson Strong-Tie approved fasteners to ensure maximum strength and load capacity.
• Recommended fasteners: Install with nails or Strong-Drive SD screws per manufacturer guidelines.
• Ensure proper alignment of the connector before securing fasteners to avoid misalignment of structural components.
• Do not modify or alter the connector—use in its intended orientation for optimal performance.

Applications:

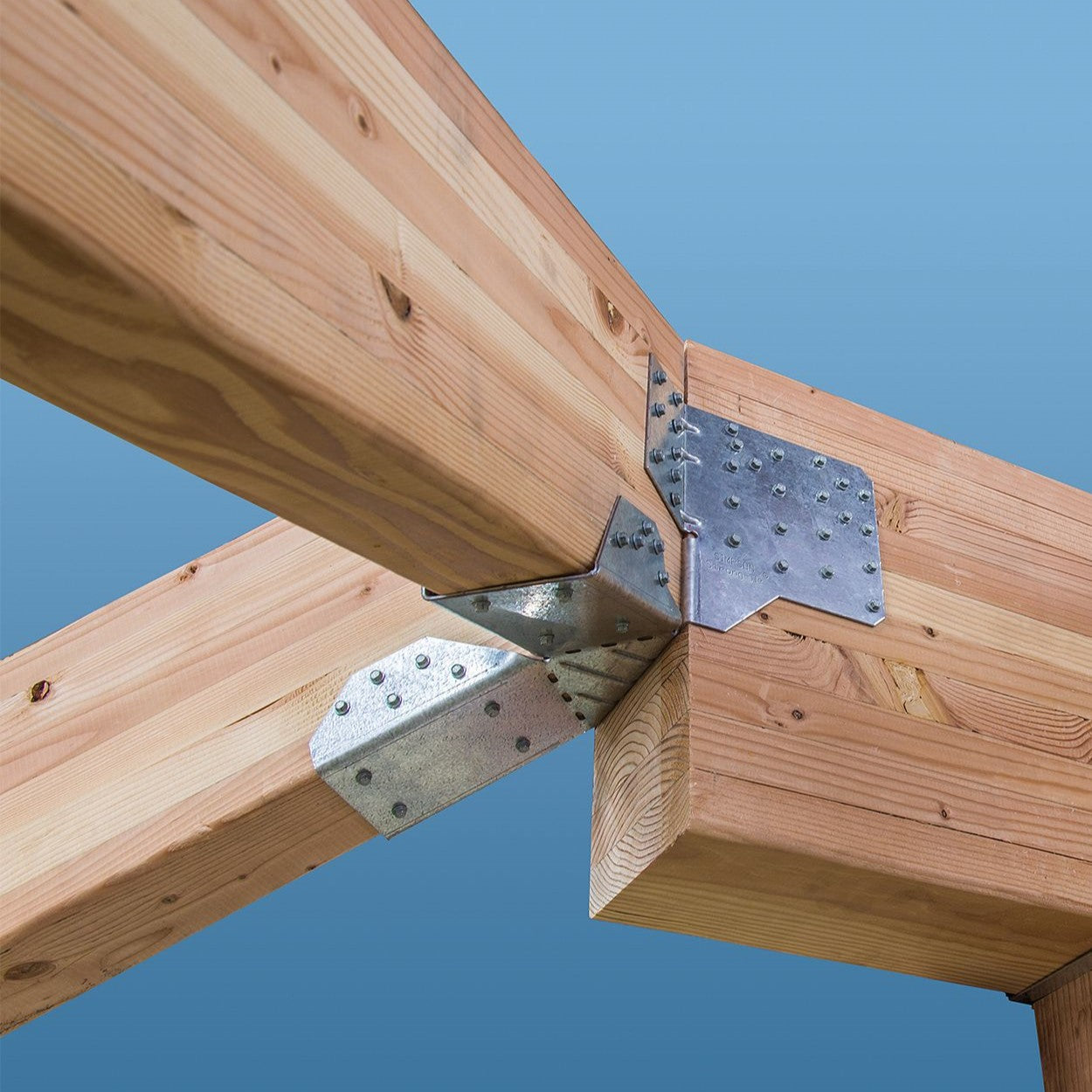

• Hip Beam Connections: Provides secure attachment between hip rafters and ridge beams for strong, stable roof framing.
• Valley Beam Support: Reinforces valley beam intersections to handle structural loads effectively.
• Timber Framing: Designed for large wood members in traditional and engineered wood construction.
• Residential & Commercial Roof Systems: Enhances durability and load distribution in various roof framing designs.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
