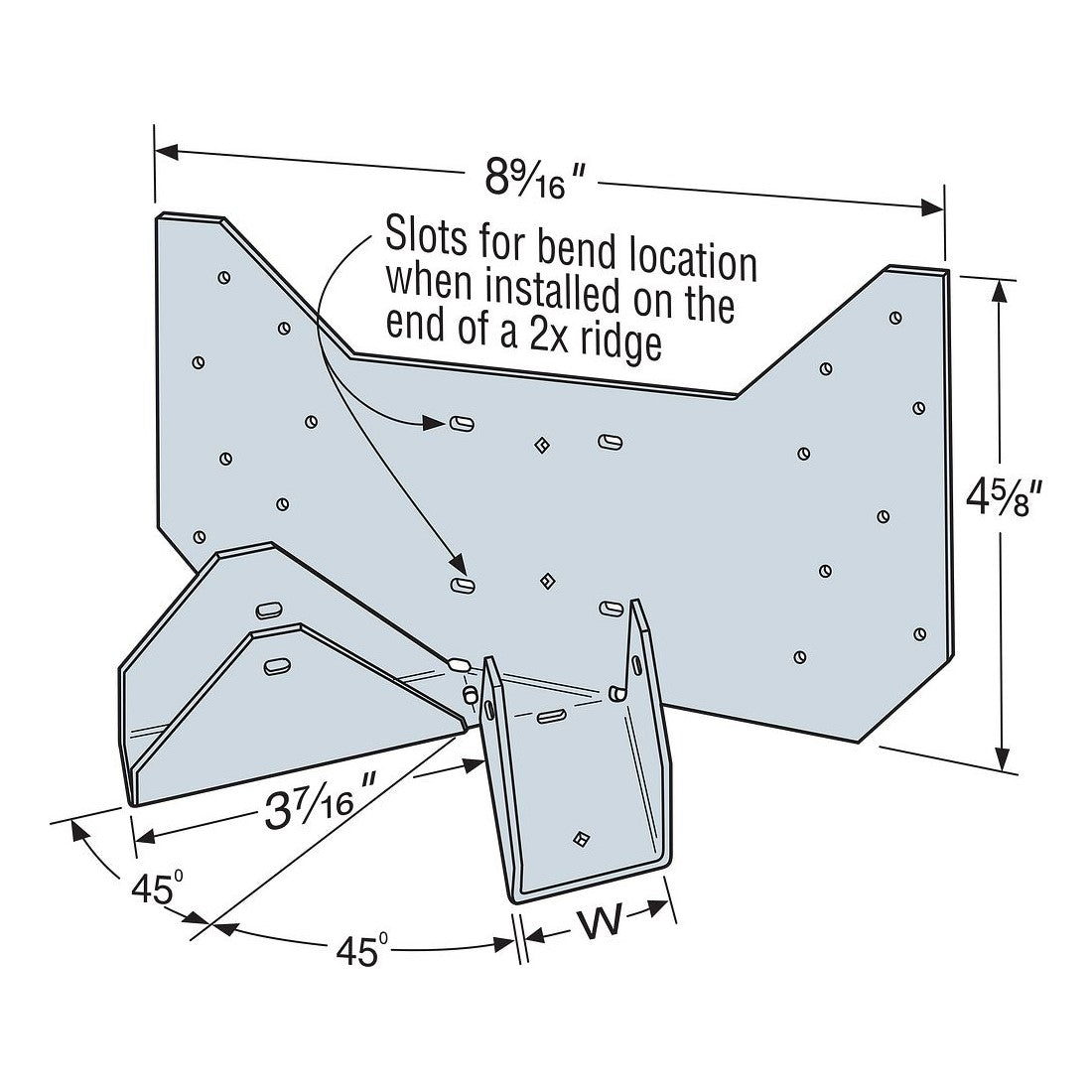

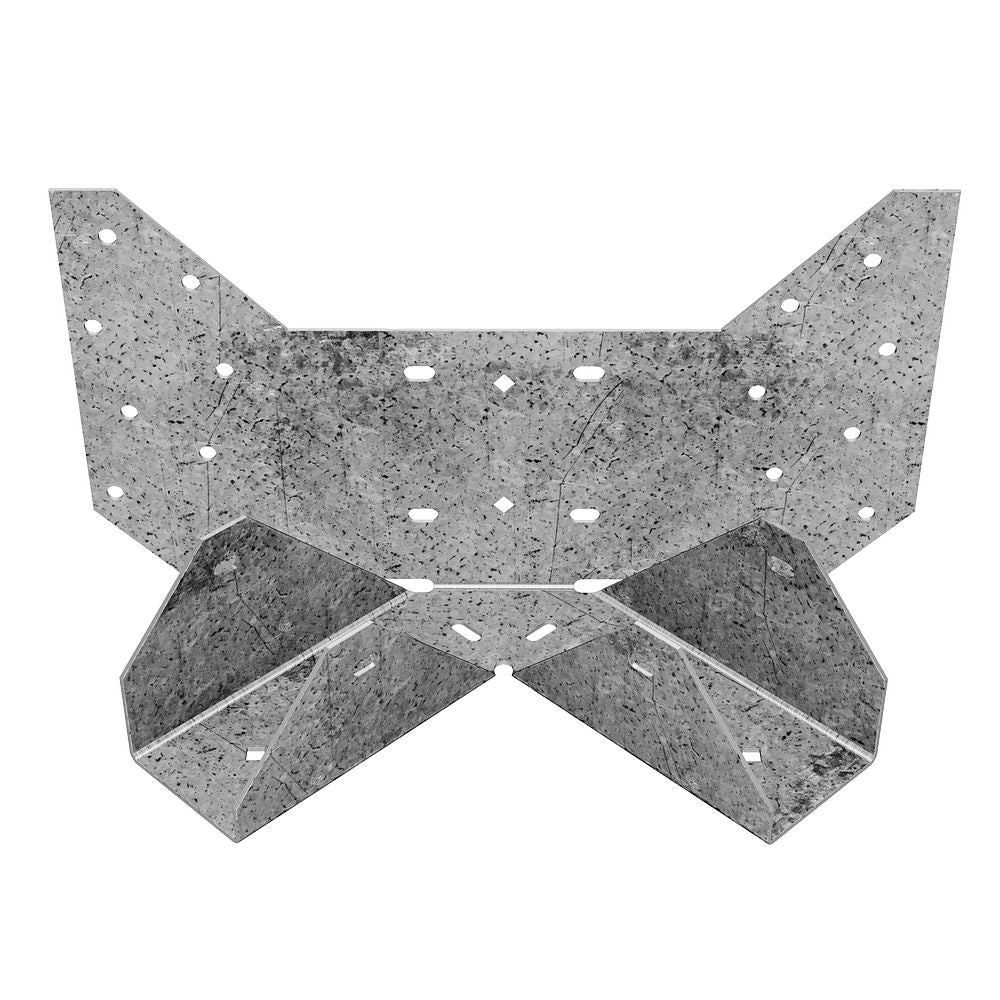

The Simpson HRC Hip-Ridge Connector attaches hip roof beams to the end of a ridge beam. The HRC is a field slopeable connector that may be sloped downward a maximum of 45°.

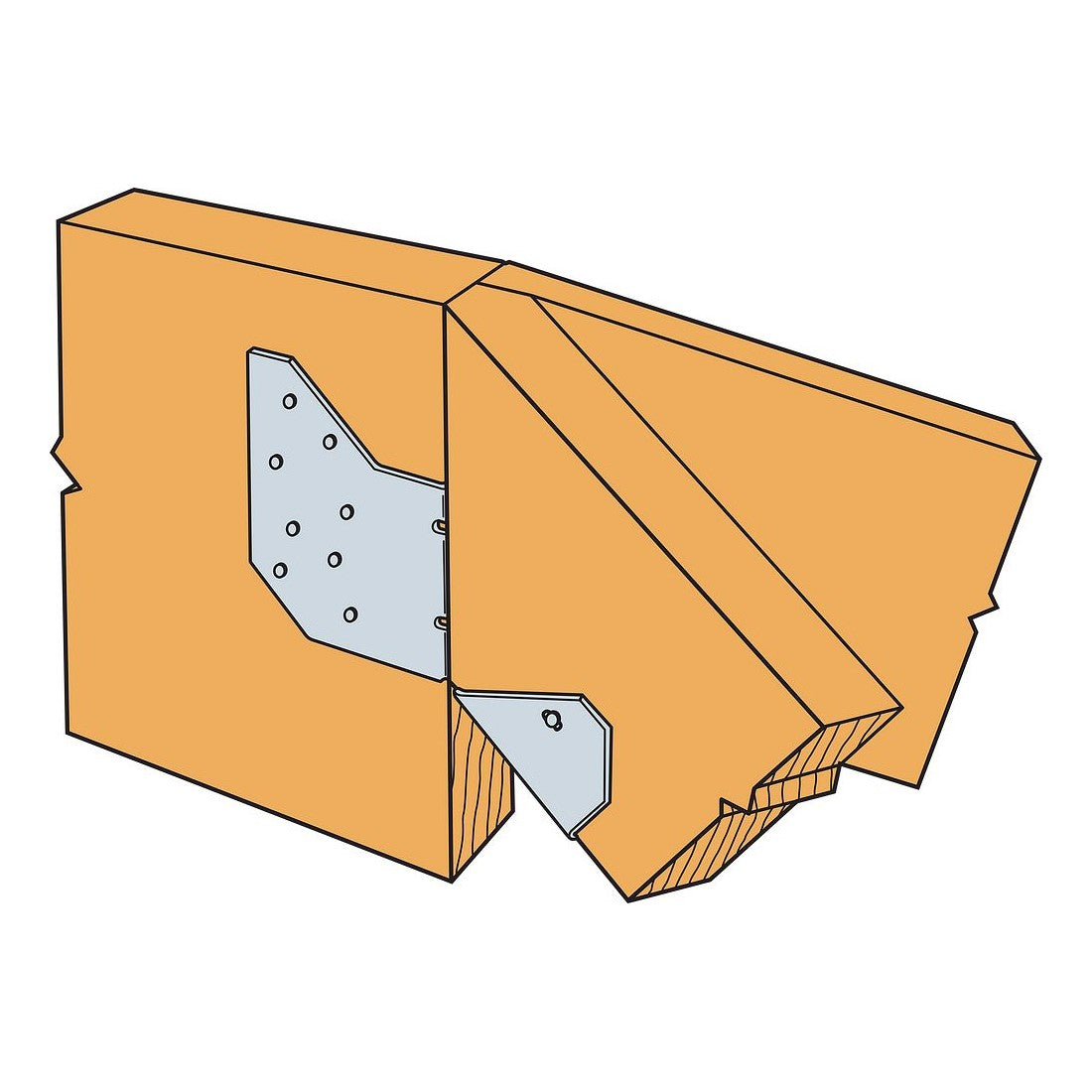

• On end of ridge: use optional diamond holes to secure the HRC. Bend face flanges back flush with ridge, and complete nailing.

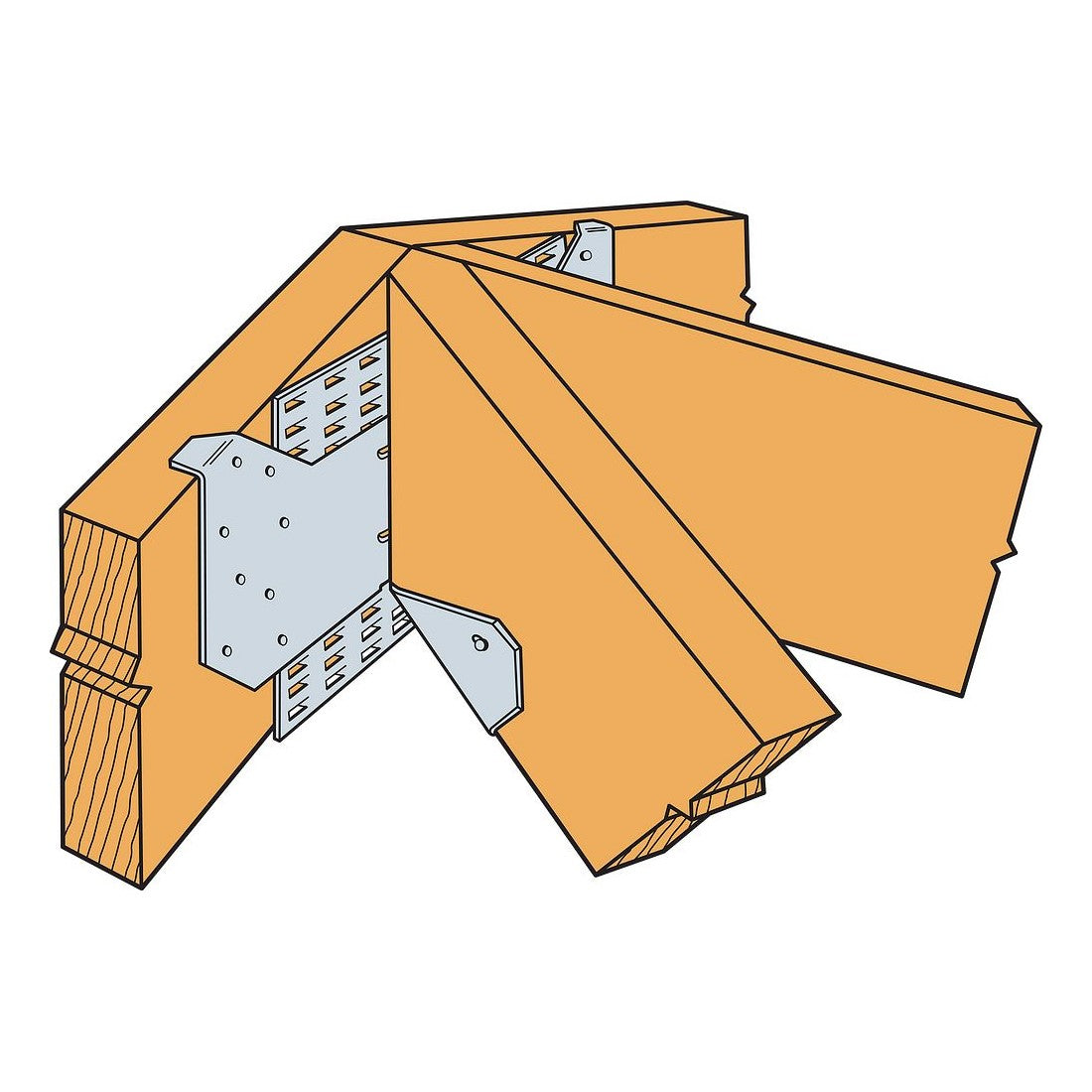

• On face of ridge: adjust to correct height and install nails.
• Double bevel-cut hip members to achieve full bearing capacity.
• The HRC may be sloped to 45° with no reduction in loads.

Does not include fasteners; use all specified fasteners in spec document.
