SKU: HSUL4.12/9

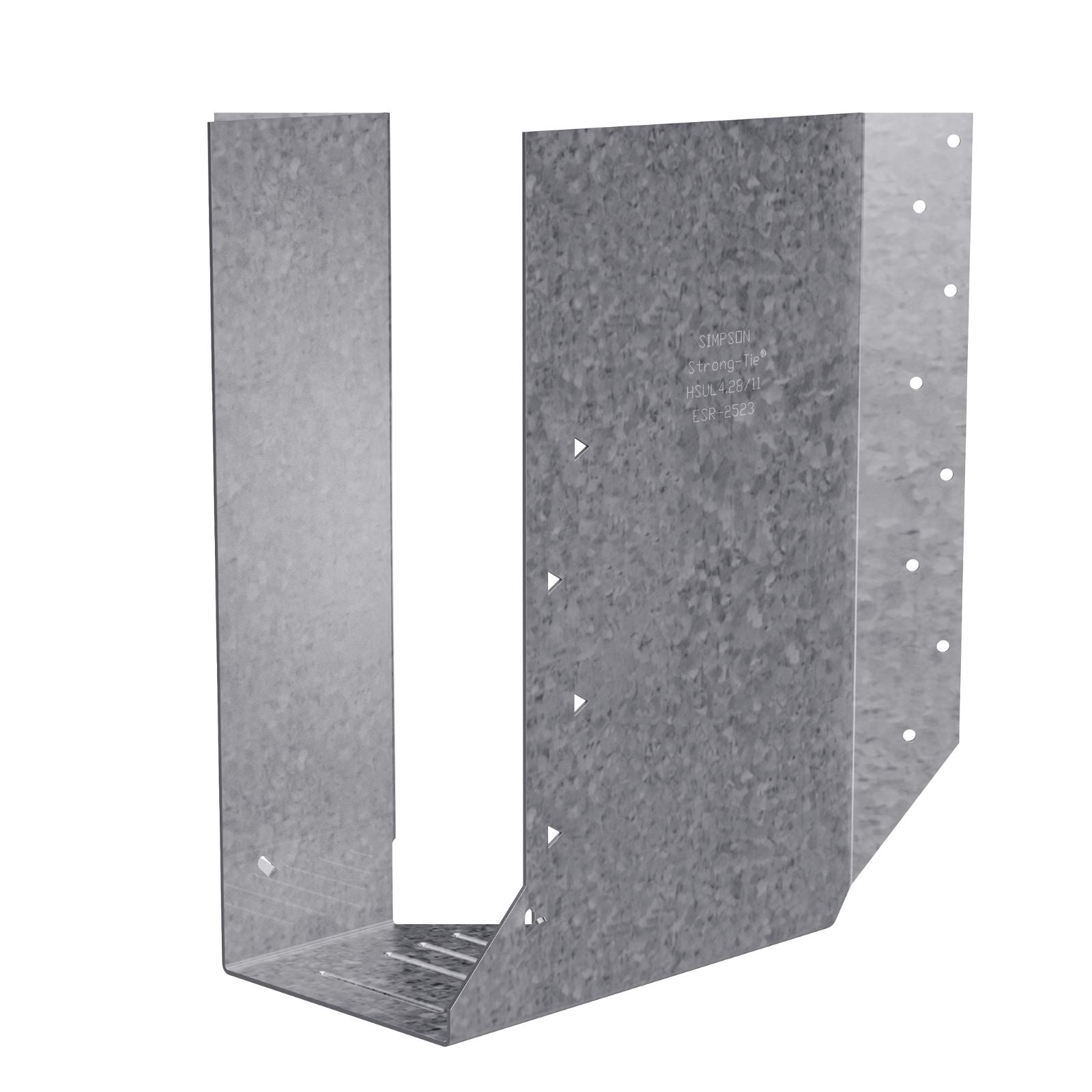

Simpson HSUL4.12/9 I-Joist Hanger Skewed Left - G90 Galvanized

Simpson HSUL4.12/9 I-Joist Hanger Skewed Left - G90 Galvanized!

Skip to product information
$48.36

Request Bulk Pricing
Made to Order
Ships in 3-5 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: Face - (12) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 1-1/2" Nails
For Treated Lumber: No
Height: 9"
Joist size: 4" X 9-1/2"
Manufacturer name: Simpson Strong-Tie
Width: 4-1/8"
Description

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie HSUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUL4.12/9 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


    Installation:
    • Use all specified fasteners.
    • These hangers will normally accommodate a 40° to 50° skew.

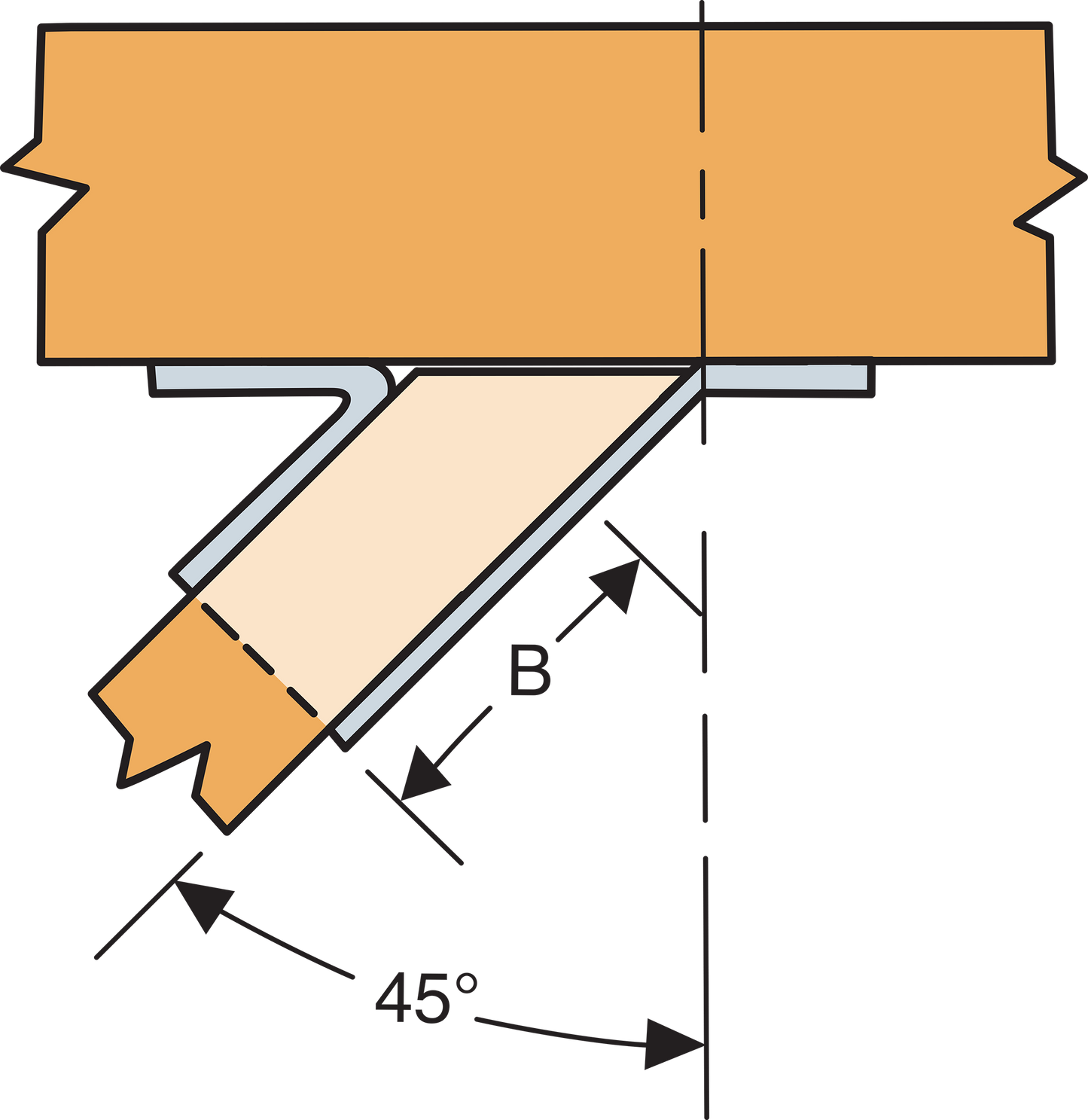

    • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
    • The joist end may be square cut or bevel cut.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
