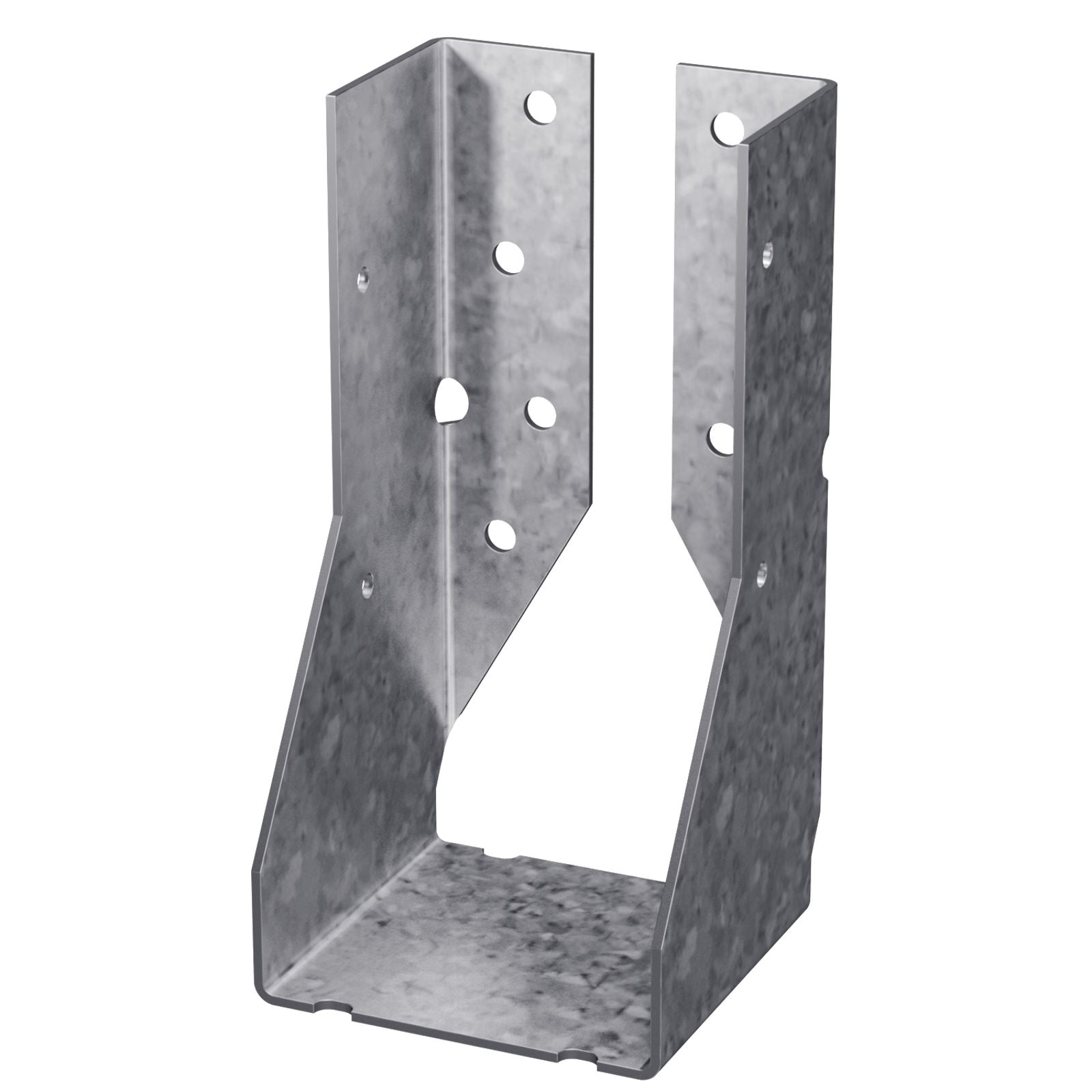

Simpson HUC36 3x6 Concealed Flange Heavy Face Mount Hanger - G90 Galvanized

Simpson HUC36 3x6 Concealed Flange Heavy Face Mount Hanger - G90 Galvanized!

  • Simpson HUC36 3x6 Concealed Flange Heavy Face Mount Hanger G90 Galvanized

Continue Browsing

HUC/HUCQ Concealed Face Mount Hangers
SKU: HUC36

Simpson HUC36 3x6 Concealed Flange Heavy Face Mount Hanger - G90 Galvanized

$13.25

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 2-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (8) 0.162" x 3-1/2" Nails Joist - (4) 0.148" x 1-1/2" Nails
For Treated Lumber: No
Height: 5-3/8"
Joist size: 3X6
Manufacturer name: Simpson Strong-Tie
Width: 2-9/16"
Description
  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.

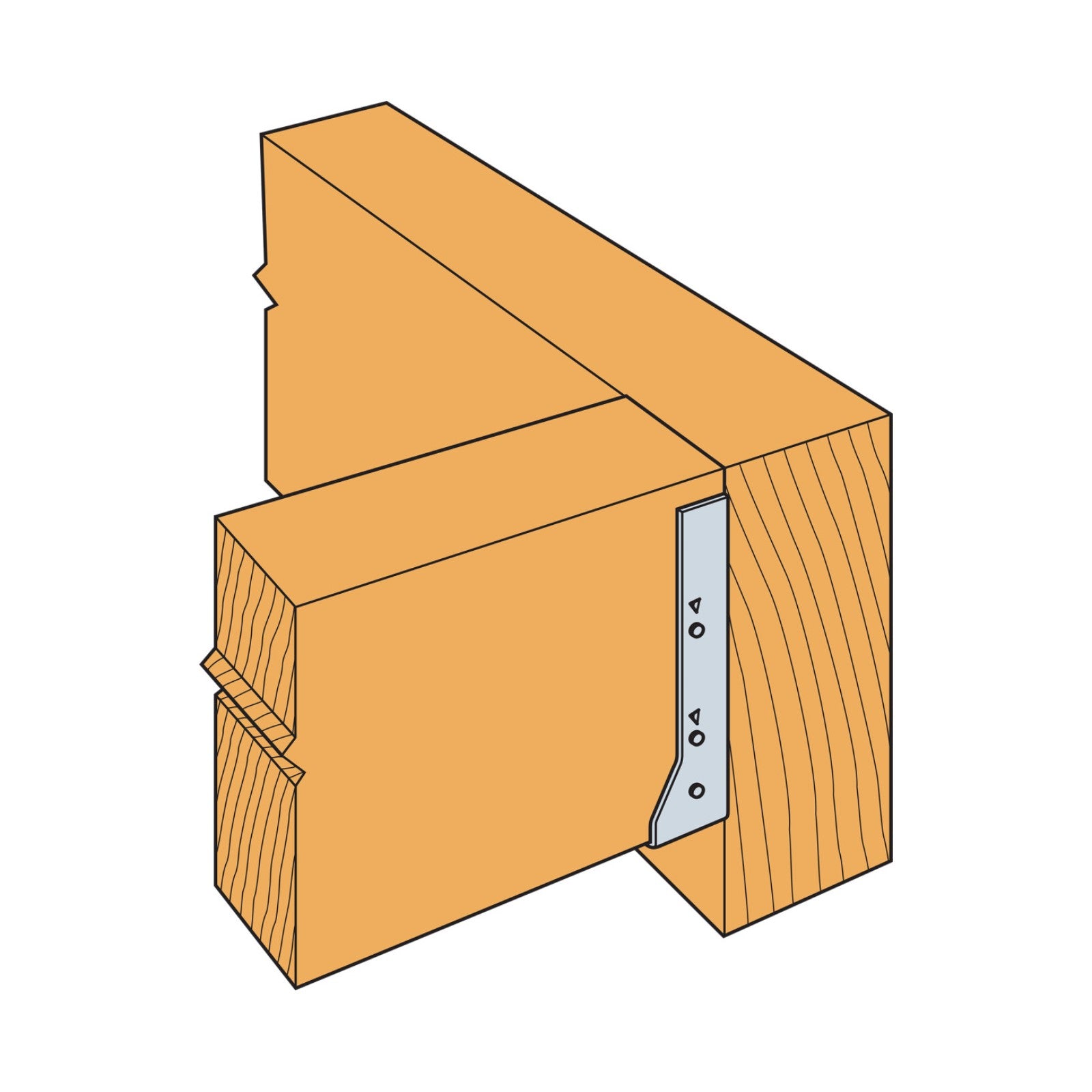

Simpson Strong-Tie HUC hangers are the concealed flange version of the HU joist hanger. Concealed flange hangers have the face flanges turned in. The Strong-Tie HUC36 concealed flange hanger features a G90 Galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153. Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails. These heavy-duty connectors are designed for schools and other structures requiring additional strength, longevity and safety factors.


Installation:

  • Use all specified fasteners.
  • HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Joists sloped up to 1/4:12 achieve load tables.

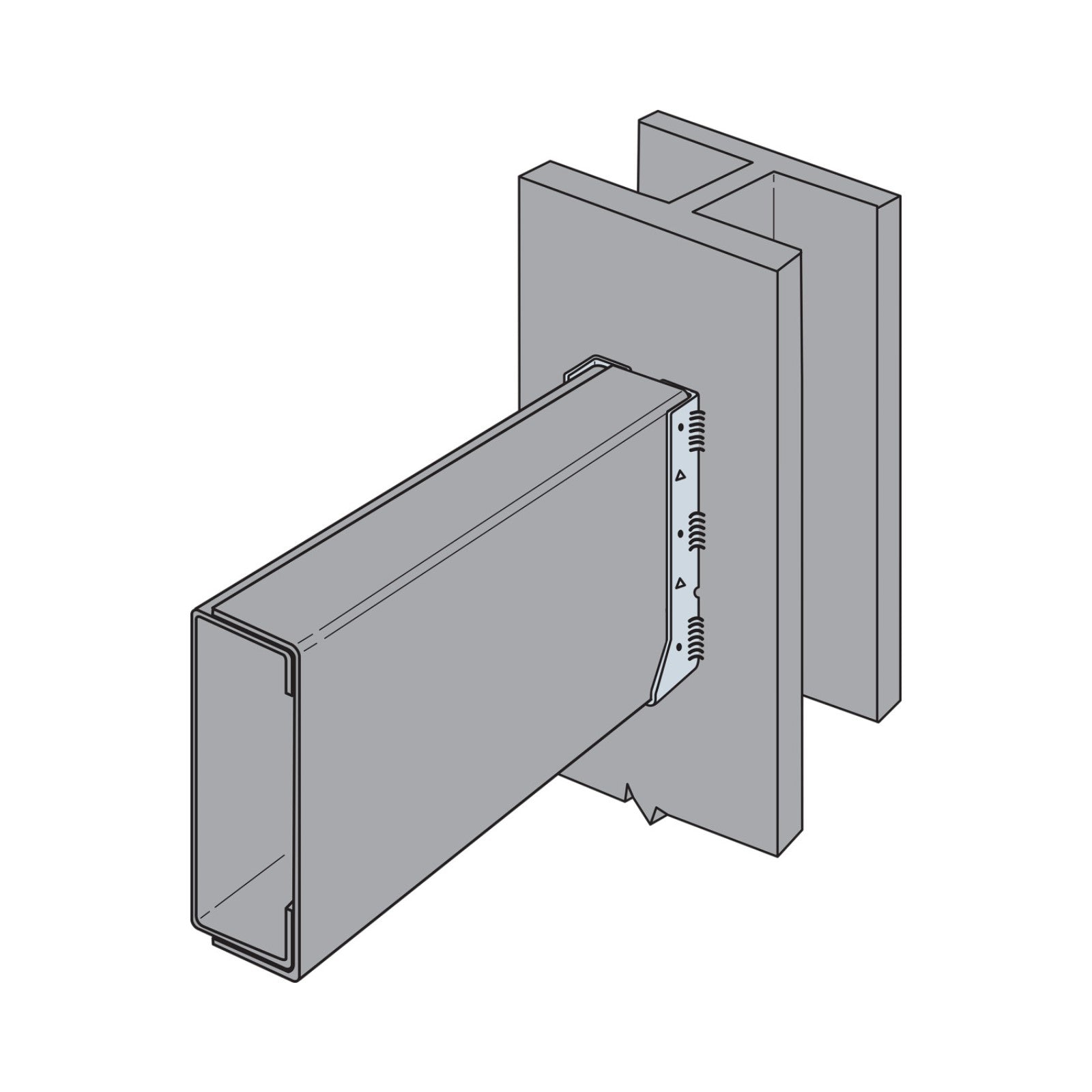

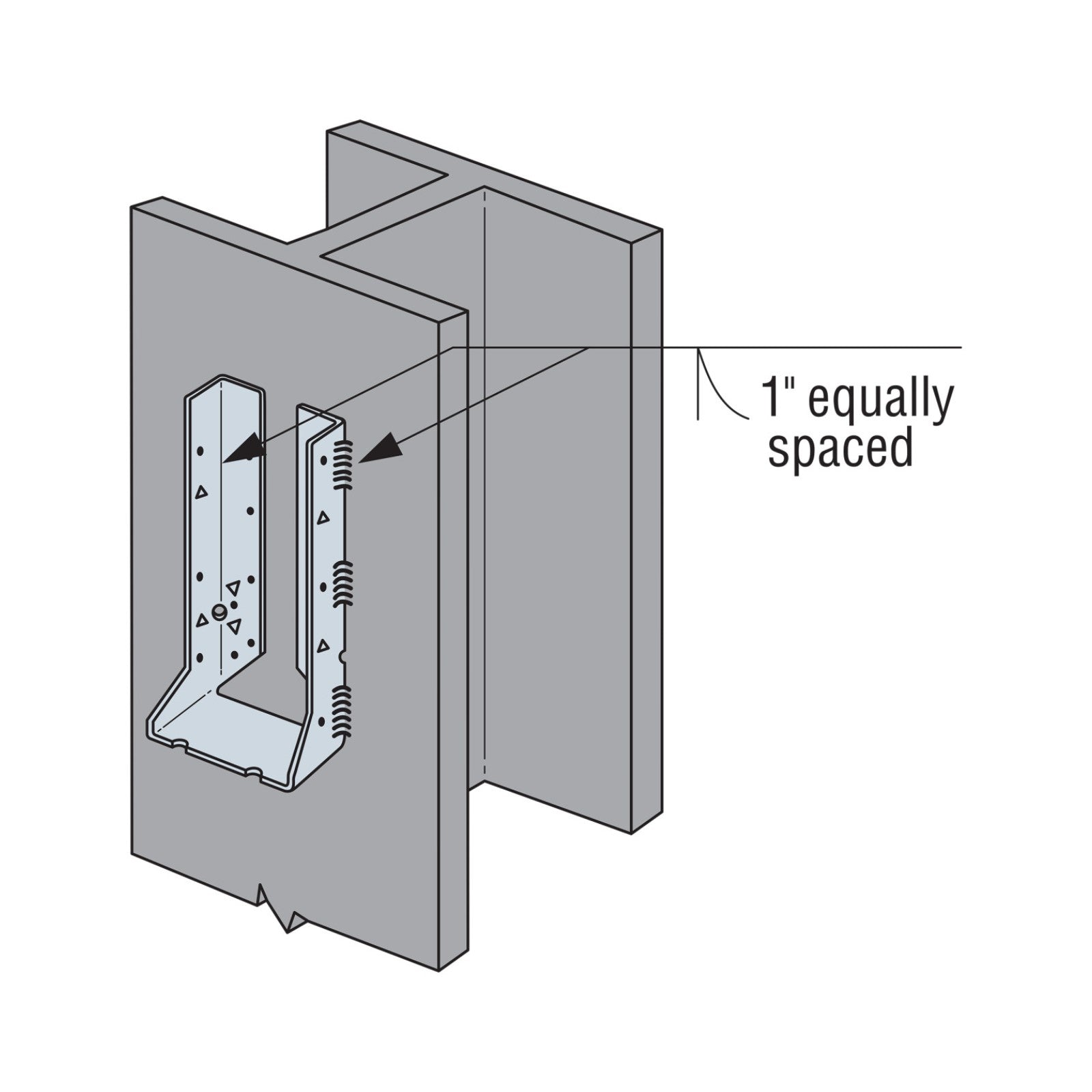

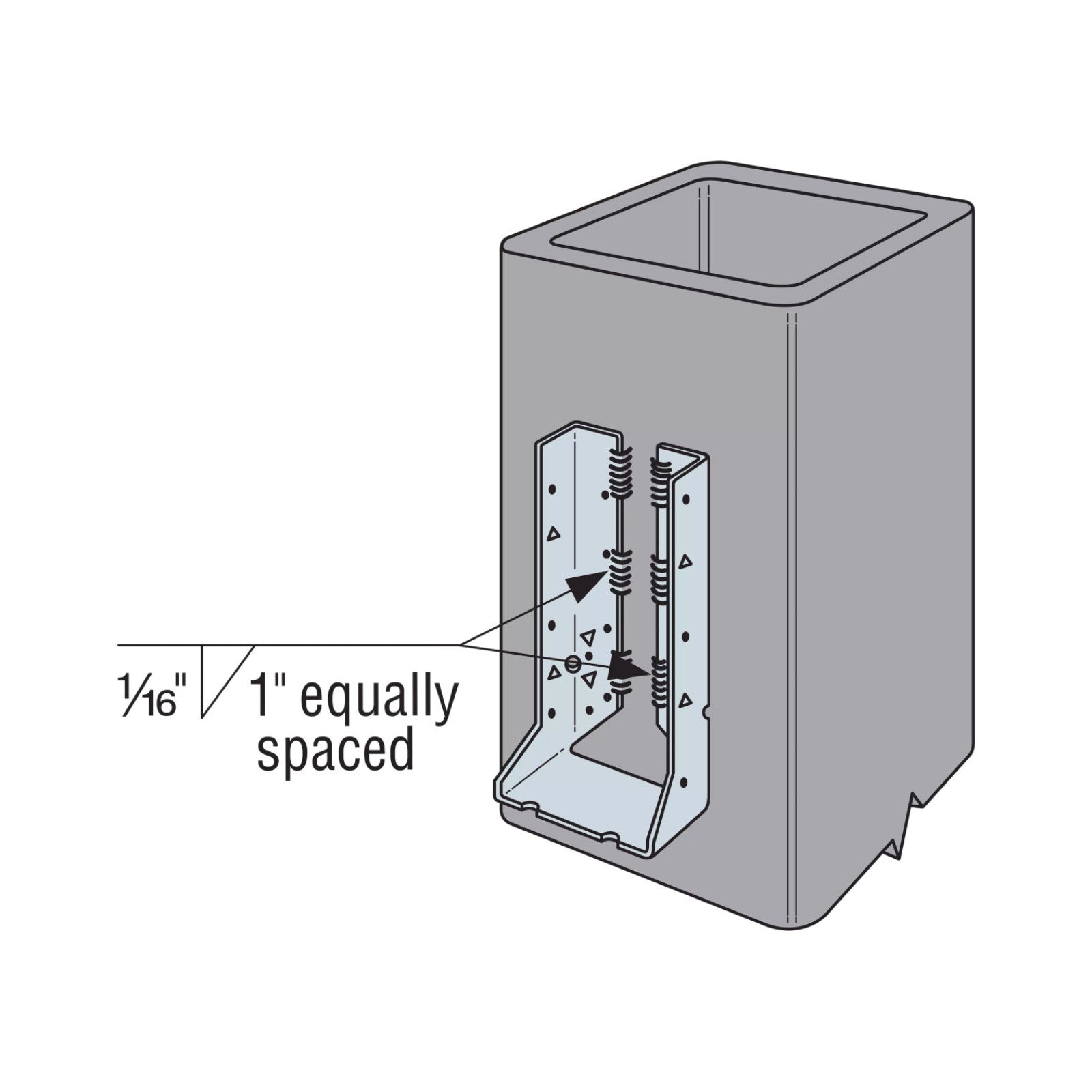

  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
