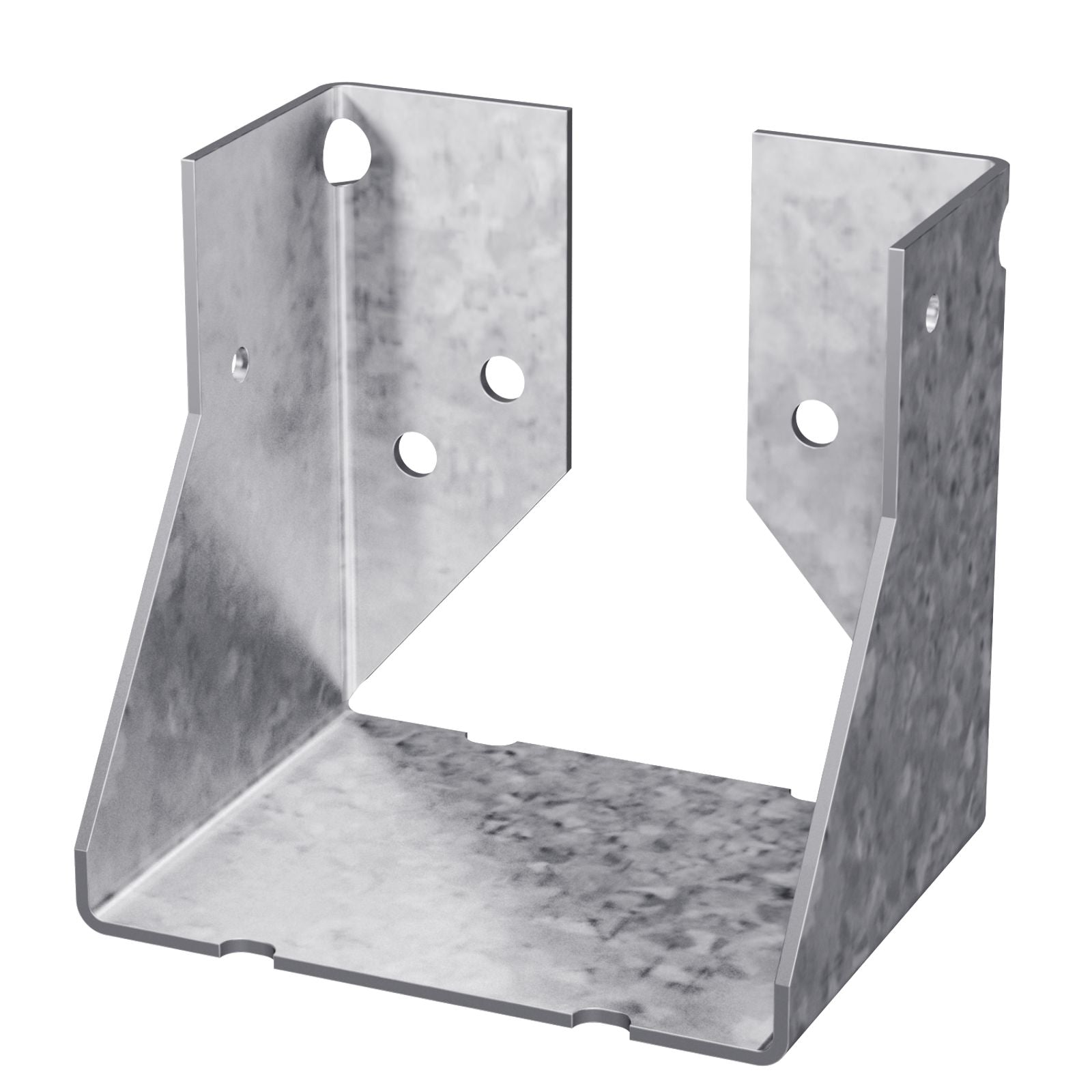

Simpson HUC24-2 Double 2x4 Concealed Flange Heavy Face Mount Hanger - G90 Galvanized

SKU: HUC24-2

$12.56
Made to Order
Standard Lead Time 2-3 days.

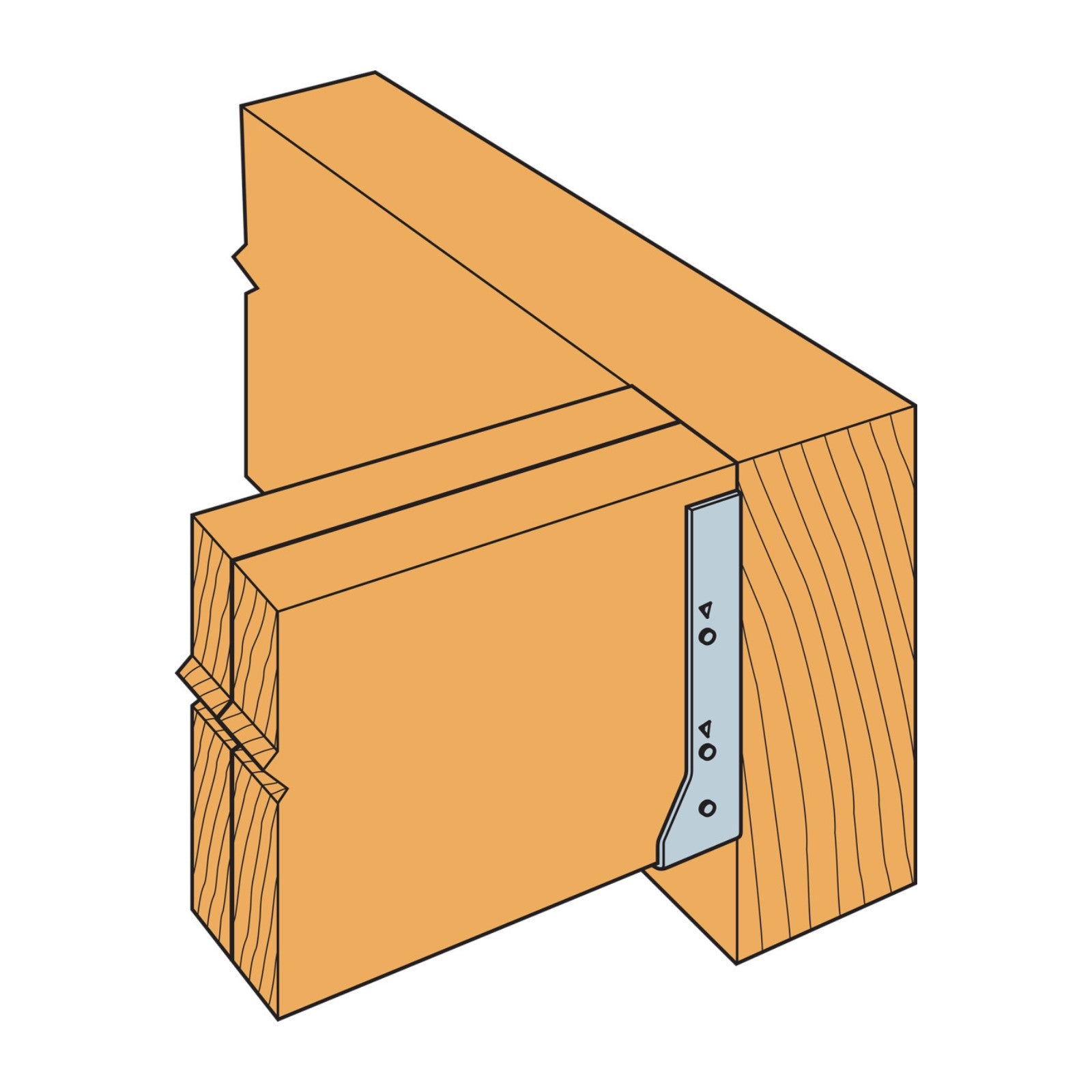

Simpson Strong-Tie HUC hangers are the concealed flange version of the HU joist hanger. Concealed flange hangers have the face flanges turned in. The Strong-Tie HUC24-2 concealed flange hanger features a G90 Galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153. Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails. These heavy-duty connectors are designed for schools and other structures requiring additional strength, longevity and safety factors.


Installation:
  • Use all specified fasteners.
  • HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Joists sloped up to 1/4:12 achieve load tables.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HUC hangers are the concealed flange version of the HU joist hanger. Concealed flange hangers have the face flanges turned in. T...

Read More

Simpson Strong-Tie HUC hangers are the concealed flange version of the HU joist hanger. Concealed flange hangers have the face flanges turned in. The Strong-Tie HUC24-2 concealed flange hanger features a G90 Galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153. Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails. These heavy-duty connectors are designed for schools and other structures requiring additional strength, longevity and safety factors.


Installation:
  • Use all specified fasteners.
  • HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Joists sloped up to 1/4:12 achieve load tables.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (4) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 3" Nails

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
3-1/16"

Joist Size:
Double 2X4

Product Guide Document:
Face_Mount_Hangers_Load_Table_for_Solid-Sawn_Lumber.pdf

Thickness:
14 Gauge

Width Spec:
3-1/8"

Product Guide:

Read More

Show Less

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Matt J.

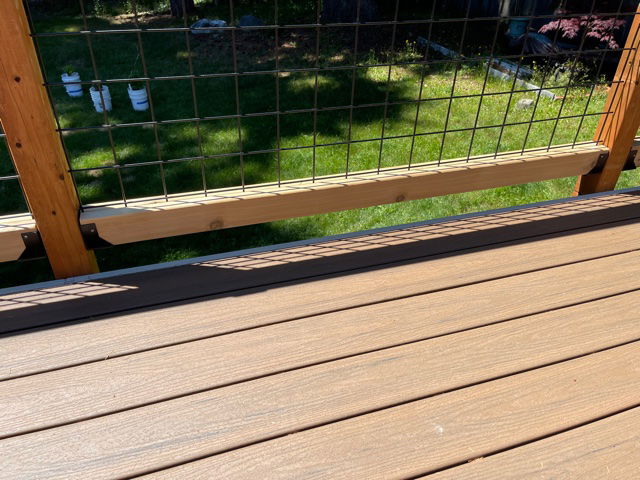

Railing Panel Support

These hangers were just what we needed to support the bottom portion of our hog wire fence panels.
