SKU: MIU1.56/11

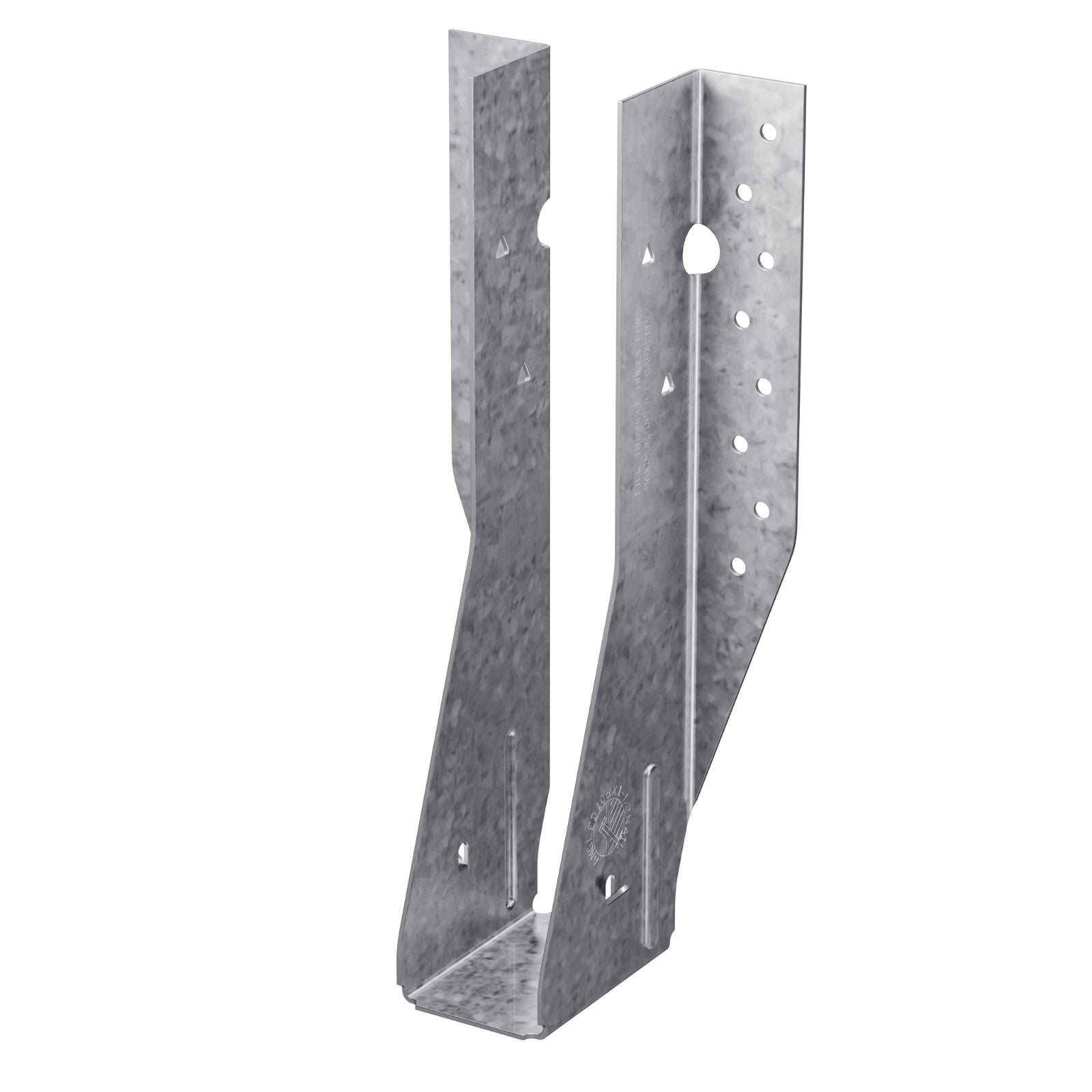

Simpson MIU1.56/11 Face Mount I-Joist Hanger - G90 Galvanized

Simpson MIU1.56/11 Face Mount I-Joist Hanger - G90 Galvanized

Regular price $15.41
Sale price $15.41 Regular price
0% off
shipping truck, lead time icon
Ships Mar 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU features Positive Angle Nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. The Strong-Tie MIU1.56/11 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
  • MIU—add four additional 10dx1 1/2" joist nails for a total uplift load of 975 lbs.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 11-1/16"
Fasteners required: Face - (20) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 1-1/2" Nails
Width: 1-9/16"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 1-1/2" X 11-1/4" - 11-7/8"
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
-Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
-MIU—add four additional 10dx1 1/2" joist nails for a total uplift load of 975 lbs.
