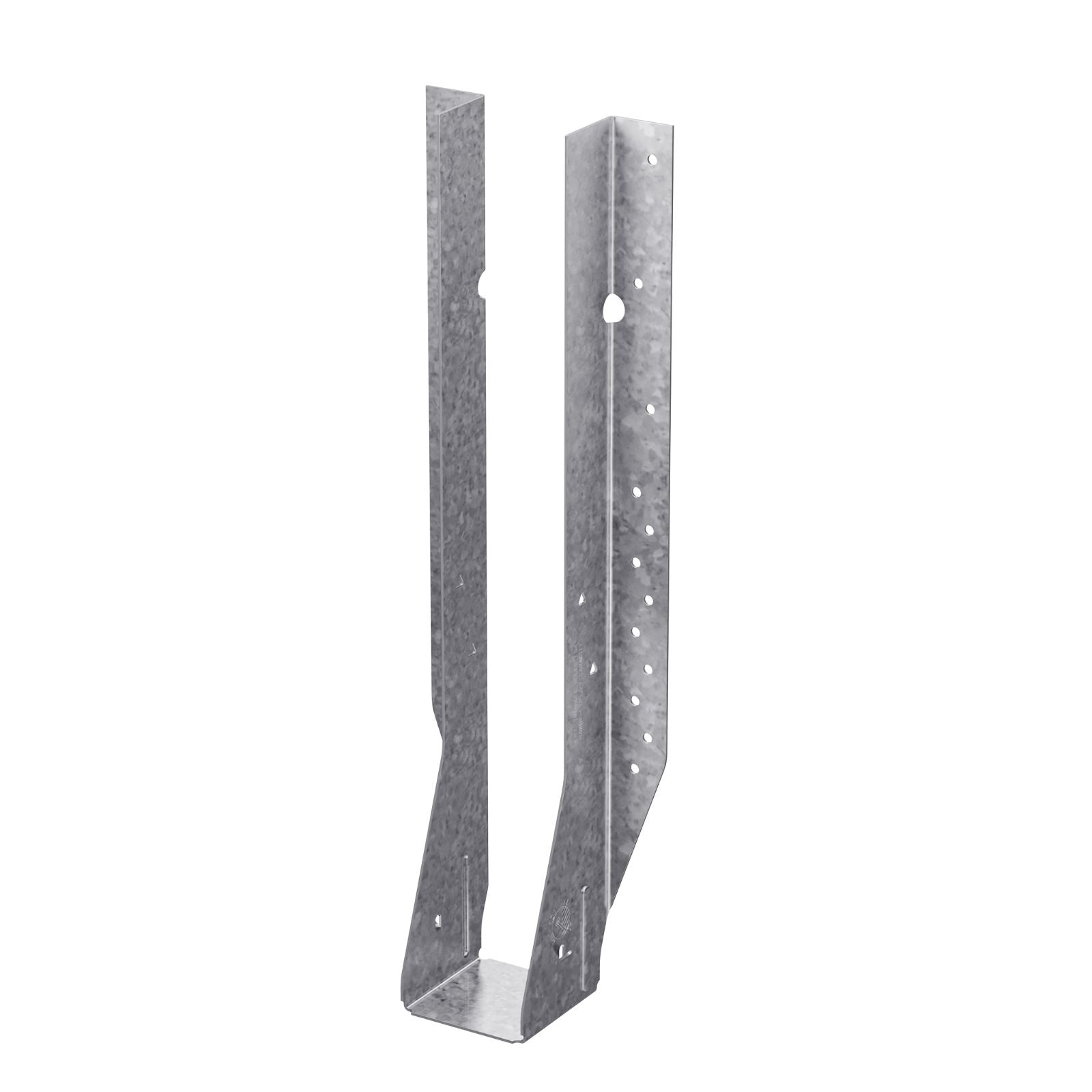

Simpson MIU2.37/16 Face Mount I-Joist Hanger - G90 Galvanized

SKU: MIU2.37-16
$27.24

Simpson Strong-Tie MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU features Positive Angle Nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. The Strong-Tie MIU2.37/16 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
  • MIU—add four additional 10dx1 1/2" joist nails for a total uplift load of 975 lbs.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU feat...

Read More

Simpson Strong-Tie MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU features Positive Angle Nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. The Strong-Tie MIU2.37/16 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
  • MIU—add four additional 10dx1 1/2" joist nails for a total uplift load of 975 lbs.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
Face - (24) 0.162" x 3-1/2" Nails
Joist - (2) 0.148" x 1-1/2" Nails

for treated lumber:
no

height:
15-1/2"

joist size:
2-5/16" X 16"

thickness:
16 Gauge

width spec:
2-3/8"
