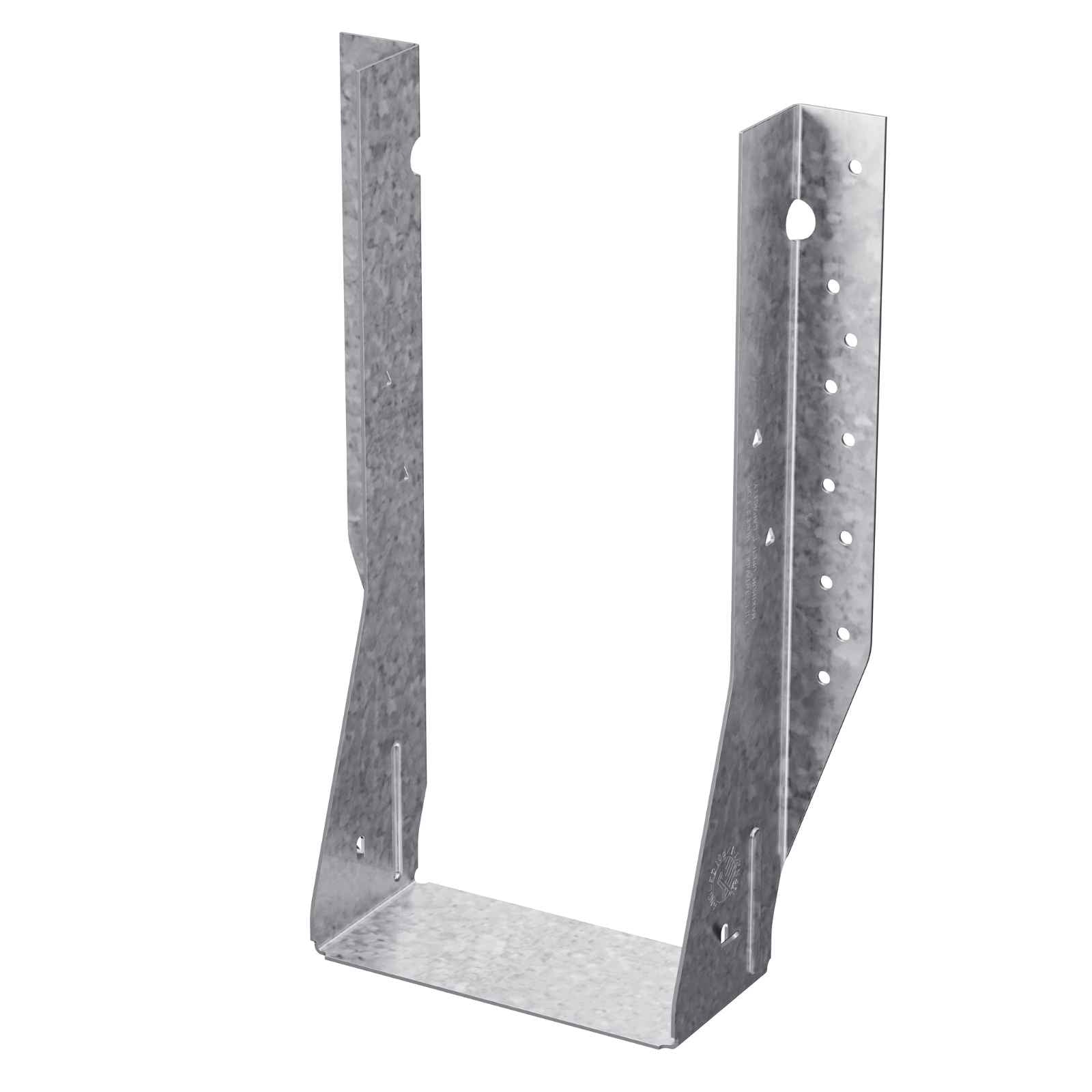

Simpson MIU5.12/11 Face Mount I-Joist Hanger - G90 Galvanized

SKU: MIU5.12-11

$23.15

Simpson Strong-Tie MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU features Positive Angle Nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. The Strong-Tie MIU5.12/11 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
  • MIU—add four additional 10dx1 1/2" joist nails for a total uplift load of 975 lbs.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU feat...

Read More

Simpson Strong-Tie MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU features Positive Angle Nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. The Strong-Tie MIU5.12/11 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
  • MIU—add four additional 10dx1 1/2" joist nails for a total uplift load of 975 lbs.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (20) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 1-1/2" Nails

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

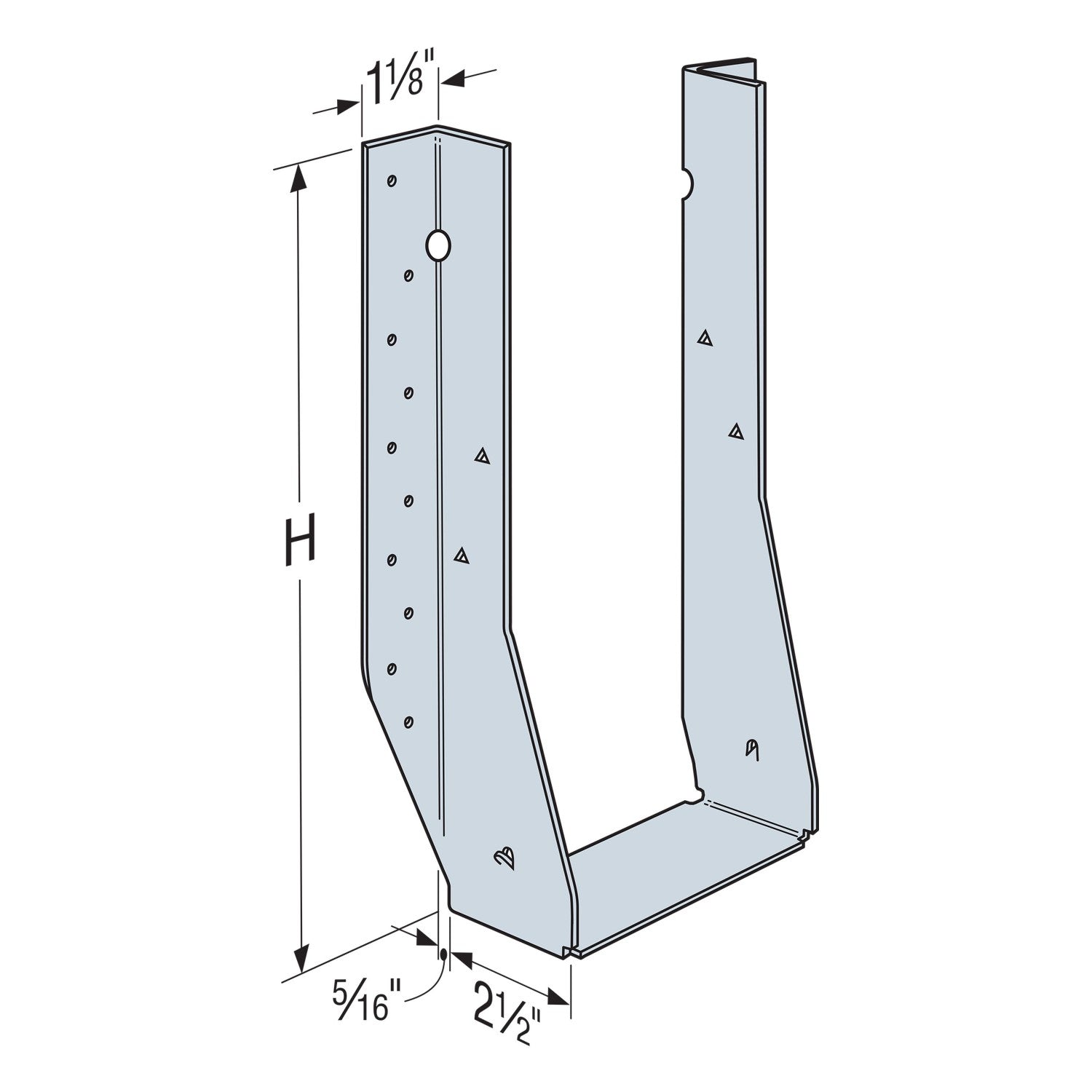

Height:
11-1/8"

Joist Size:
5" X 11-7/8"

Thickness:
16 Gauge

Width Spec:
5-1/8"
