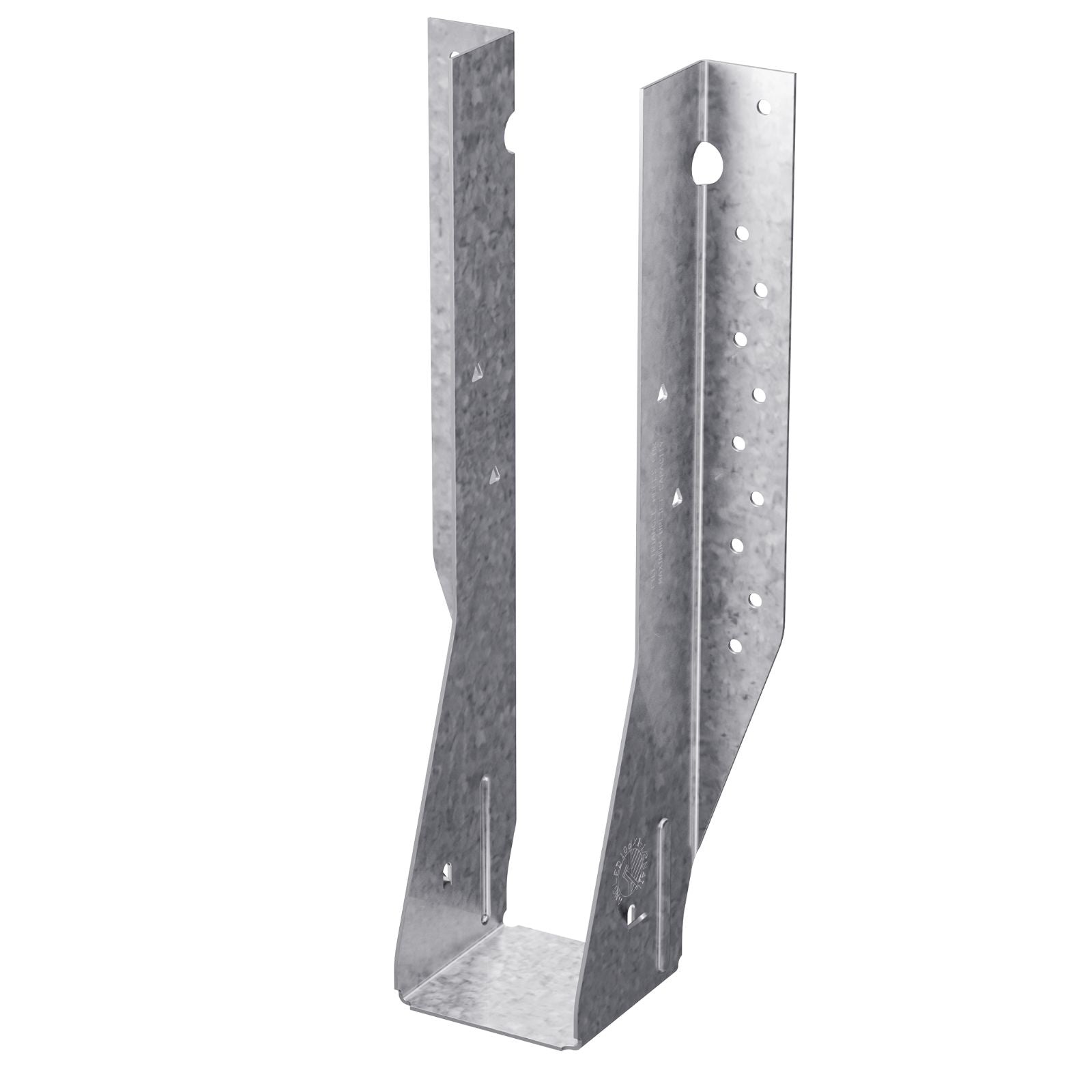

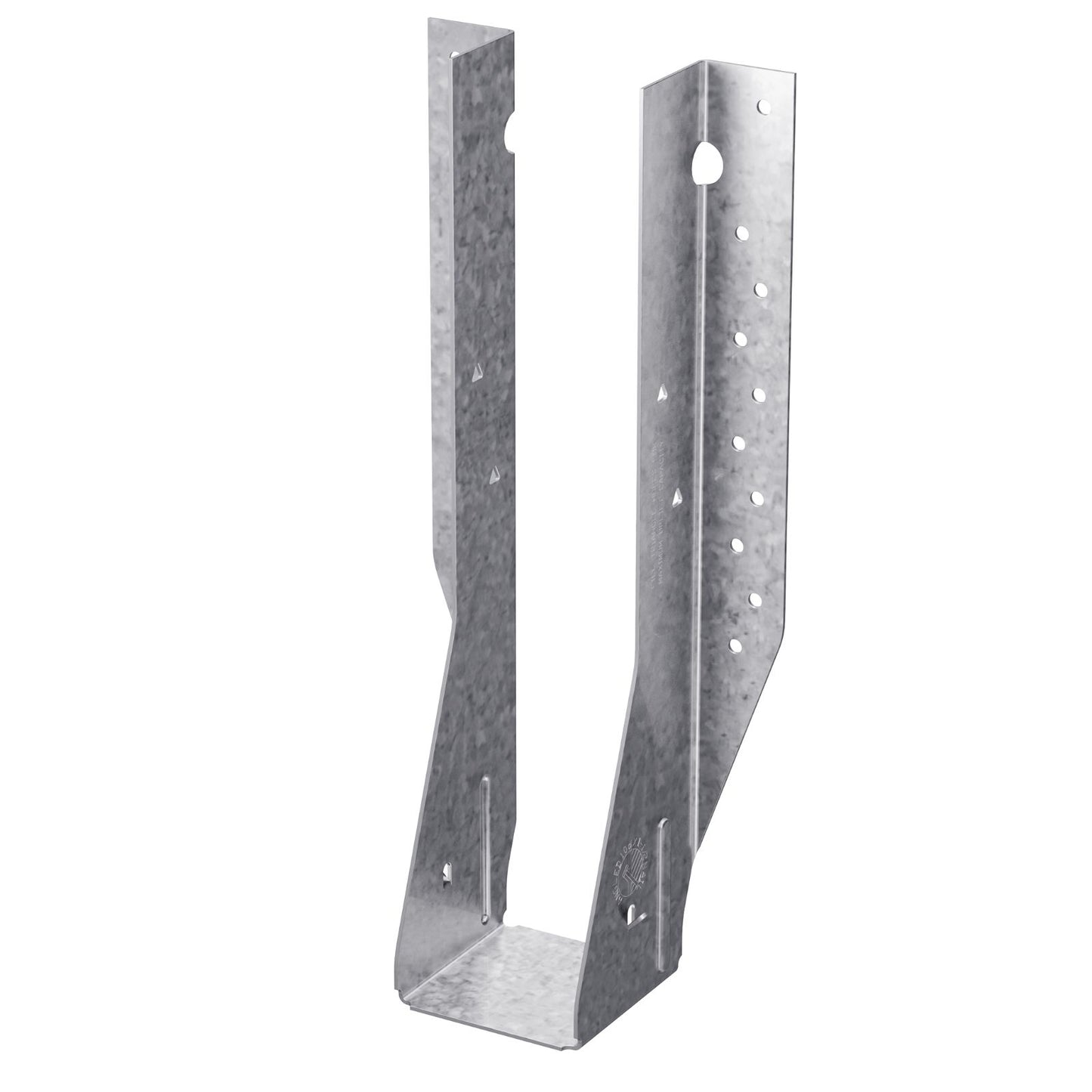

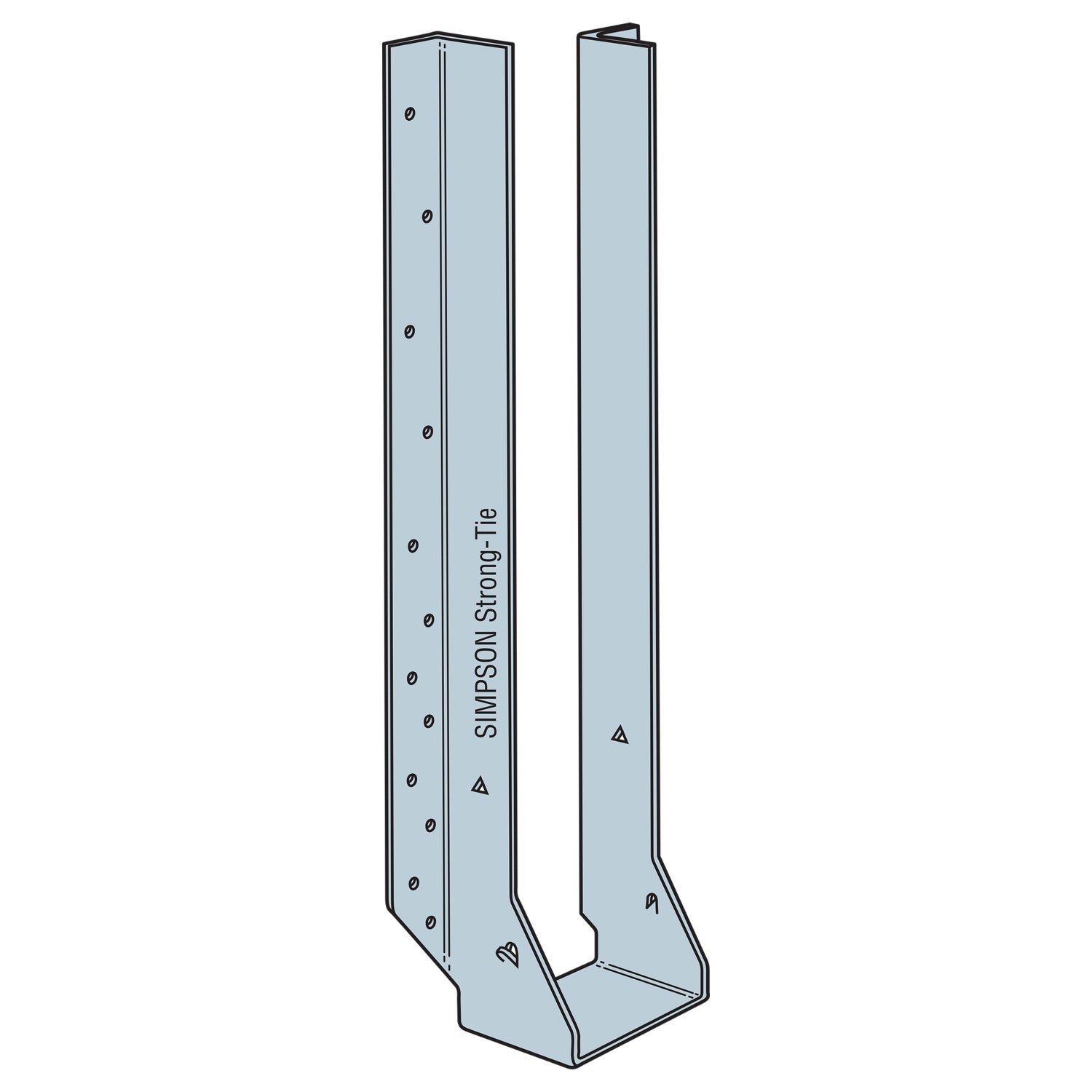

Simpson MIU2.37/11 Face Mount I-Joist Hanger - G90 Galvanized
Simpson MIU2.37/11 Face Mount I-Joist Hanger - G90 Galvanized!
Continue Browsing
MIU I-Joist Hangers
Specifications
The Simpson Strong-Tie MIU Medium Face-Mount I-Joist Hanger is a durable, high-capacity connector designed for securing engineered wood joists in a variety of framing applications. Made from 14-gauge steel with a G90 galvanized finish, this hanger provides reliable corrosion resistance, making it ideal for interior framing and protected exterior environments.
Featuring a full-height design, the MIU hanger offers enhanced lateral and uplift capacity, reducing joist rotation and ensuring long-term structural integrity. The face-mount installation simplifies the attachment process, providing a strong, code-compliant connection between joists and headers. Pre-punched nail holes ensure optimal fastener placement for a secure, high-performance fit.
Key Features
- G90 Galvanized Finish: Provides standard corrosion protection for indoor and covered exterior applications.
- Full-Height Joist Support: Minimizes joist rotation and enhances load capacity for stronger connections.
- Precision-Engineered Construction: 14-gauge steel ensures durability and reliability under heavy loads.
- Face-Mount Design: Allows direct attachment to headers and beams for a secure connection.
- Versatile Compatibility: Works with a variety of engineered wood products, including LVL, LSL, and PSL.
Applications
- Interior Floor Framing: Creates a strong, load-bearing connection between engineered wood joists and headers.
- Roof Framing: Provides superior uplift resistance, reinforcing the stability of engineered wood roof systems.
- Deck Framing (Covered Applications): Ideal for covered outdoor structures where G90 galvanized protection is sufficient.
- General Wood Construction: Used in residential and commercial projects requiring high-capacity engineered wood connections.
Installation Guidelines
- Fastener Requirements: Install using 10d common nails or Simpson Strong-Tie SD screws to achieve full load capacity.
- Face-Mount Installation: Secure the hanger to the header with all available nail holes filled for maximum strength.
- Ensure Proper Joist Fit: The I-joist must sit fully into the hanger seat to ensure proper load transfer.
- Follow Manufacturer Guidelines: Maintain correct spacing and alignment per framing best practices and building codes.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
