Simpson PGT2-R 2-3/8" O.D. Pipe Grip Tie - G90 Galvanized

SKU: PGT2-R
$2.07

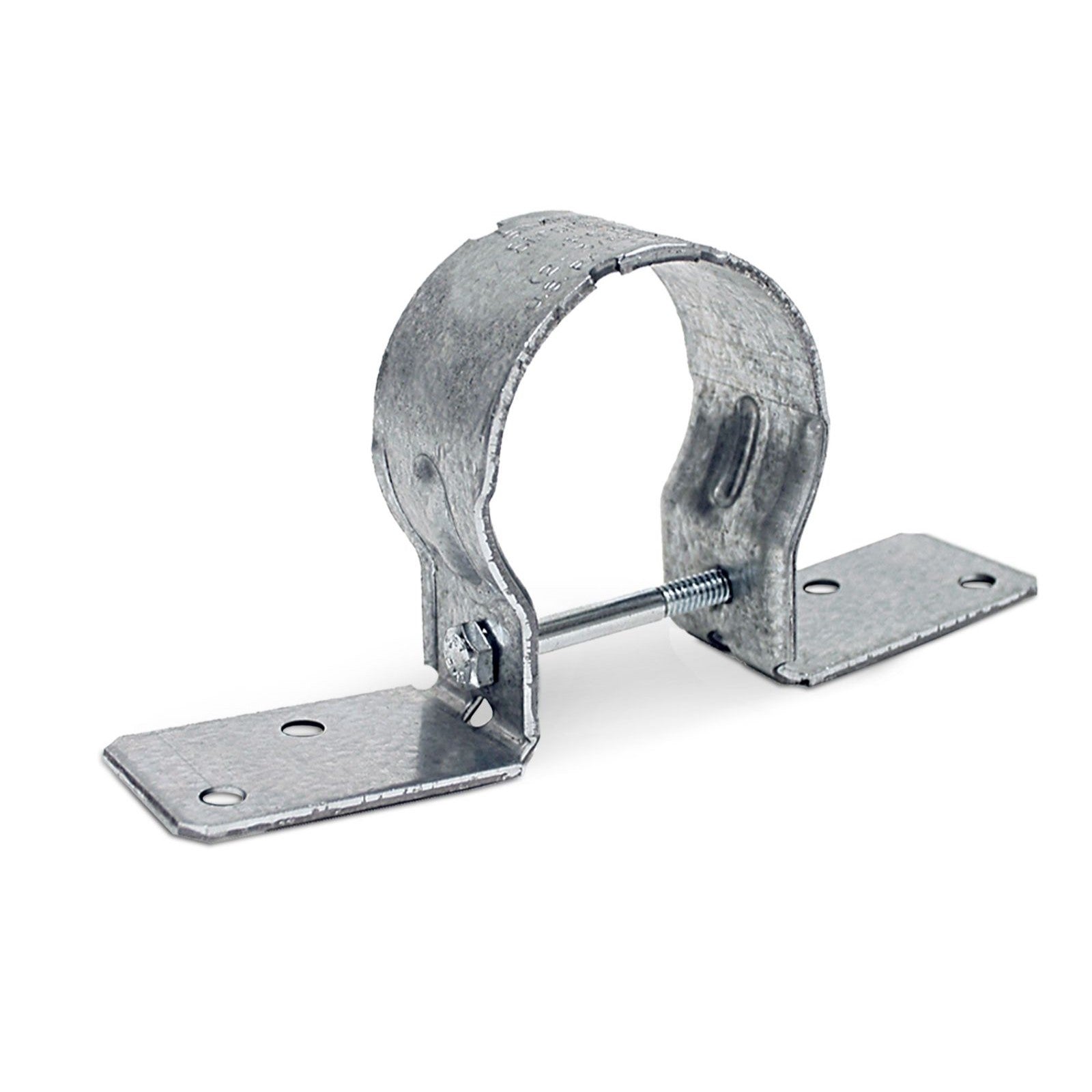

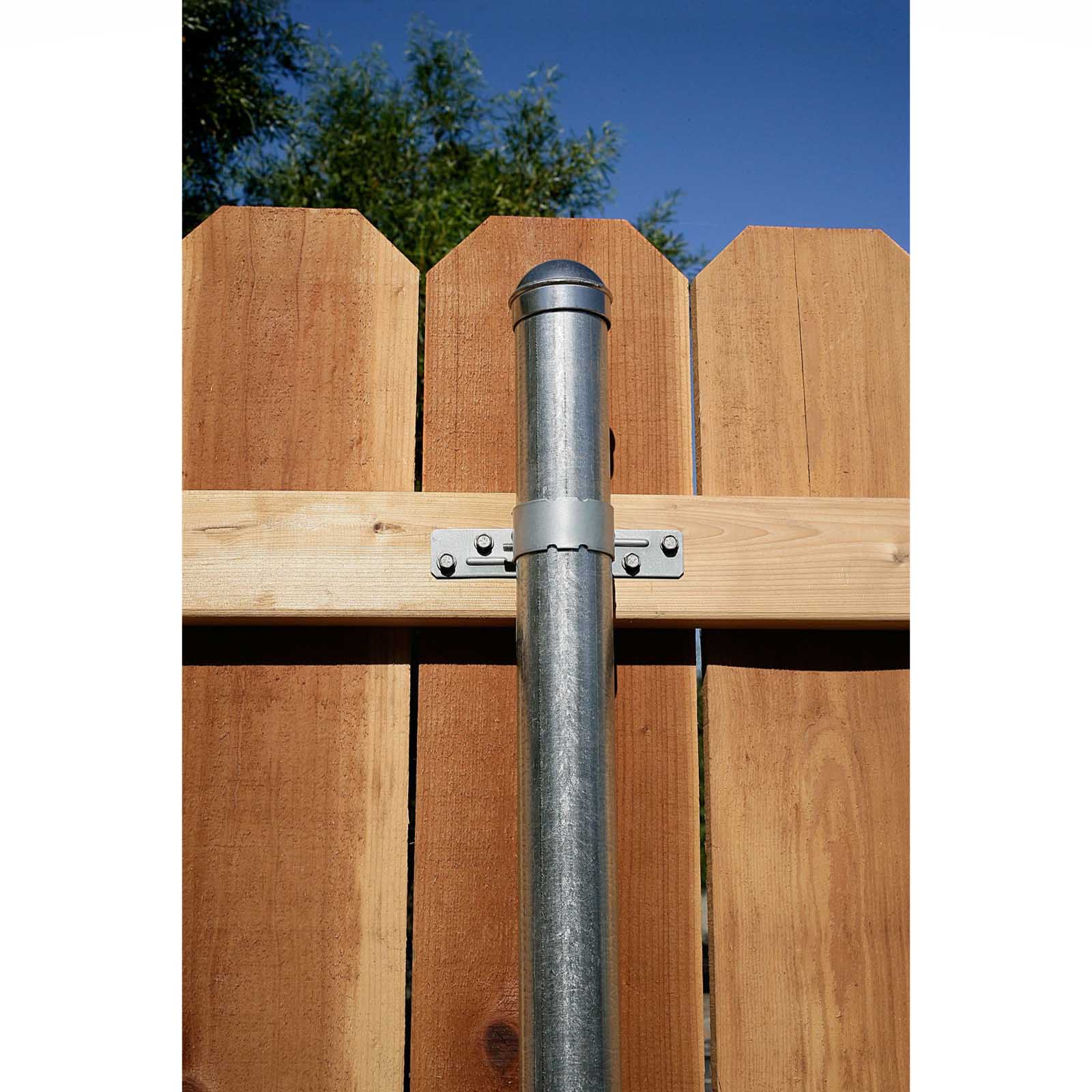

The Strong-Tie PGT2-R Pipe Grip Tie is used to quickly attach your 2-3/8" OD metal fence posts to wood fencing rails, creating a reliable connection. Just tighten the clamp bolt on the bracket, zip in 4 SDS 1/4" x 1-1/2" heavy duty screws and you're done installing the tie. Whether you're replacing old rotted wood posts with sturdy metal posts or starting new fence construction, these galvanized post brackets will get the job done. These fence brackets are usually installed flush to straight fence railing sections, but can also be field bent one time to accommodate corners or angled positions. The PGT2-R model is 1/8" narrower and 1/4" taller than the popular PGT2A Galvanized Fence Bracket.


Installation:
  • Use all specified fasteners.
  • Install on vertical pipes, offsetting corners to allow for the correct rail alignment.
  • Use 3 to 4 PGTs per pipe; line up to stringline.
  • Fasten PGT with 1/4" hex head bolt (supplied).
  • PGT attaches to rails with four Simpson Strong-Tie SDS 1/4"x1 1/2" HDG wood screws (not supplied).
  • 1/4" lag bolts may be used. Follow the code requirements for predrilling.
  • Nail or screw fence boards to rails.

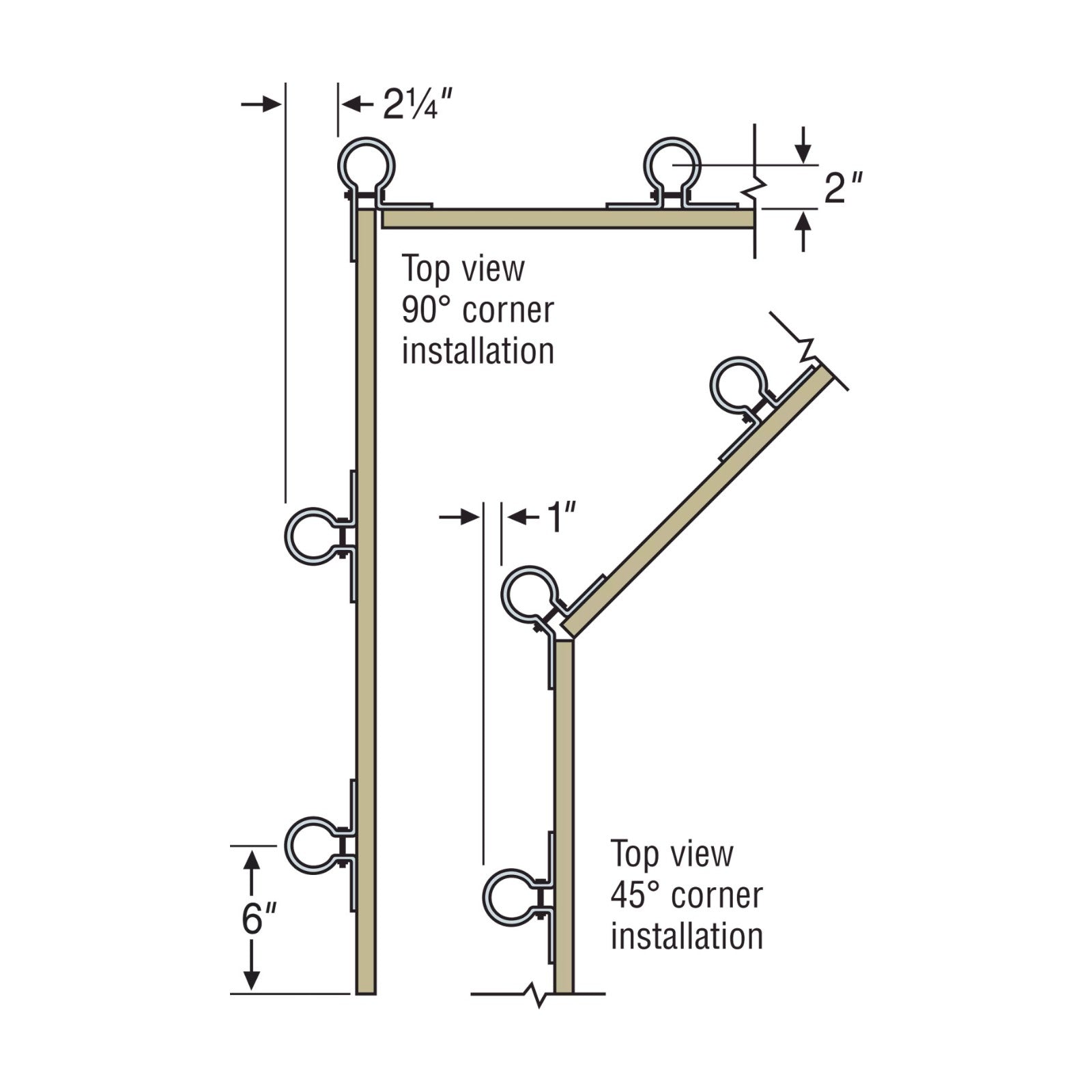

  • Field bend PGT flanges to fit corner and angled conditions (bend one time only).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Strong-Tie PGT2-R Pipe Grip Tie is used to quickly attach your 2-3/8" OD metal fence posts to wood fencing rails, creating a reliable connectio...

Read More

The Strong-Tie PGT2-R Pipe Grip Tie is used to quickly attach your 2-3/8" OD metal fence posts to wood fencing rails, creating a reliable connection. Just tighten the clamp bolt on the bracket, zip in 4 SDS 1/4" x 1-1/2" heavy duty screws and you're done installing the tie. Whether you're replacing old rotted wood posts with sturdy metal posts or starting new fence construction, these galvanized post brackets will get the job done. These fence brackets are usually installed flush to straight fence railing sections, but can also be field bent one time to accommodate corners or angled positions. The PGT2-R model is 1/8" narrower and 1/4" taller than the popular PGT2A Galvanized Fence Bracket.


Installation:
  • Use all specified fasteners.
  • Install on vertical pipes, offsetting corners to allow for the correct rail alignment.
  • Use 3 to 4 PGTs per pipe; line up to stringline.
  • Fasten PGT with 1/4" hex head bolt (supplied).
  • PGT attaches to rails with four Simpson Strong-Tie SDS 1/4"x1 1/2" HDG wood screws (not supplied).
  • 1/4" lag bolts may be used. Follow the code requirements for predrilling.
  • Nail or screw fence boards to rails.
  • Field bend PGT flanges to fit corner and angled conditions (bend one time only).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
Wood Rail - (4) 1/4" x 1-1/2" SDS Screws
Metal Post - (1) Screw Supplied

fits pipe size:
2-3/8" OD

for treated lumber:
no

height:
1-1/2"

thickness:
12 Gauge

Product Spec Sheet:
