Simpson PGT2E-R50 2-3/8" O.D. Pipe Grip Tie, Pkg 50

SKU: PGT2E-R50

$140.80

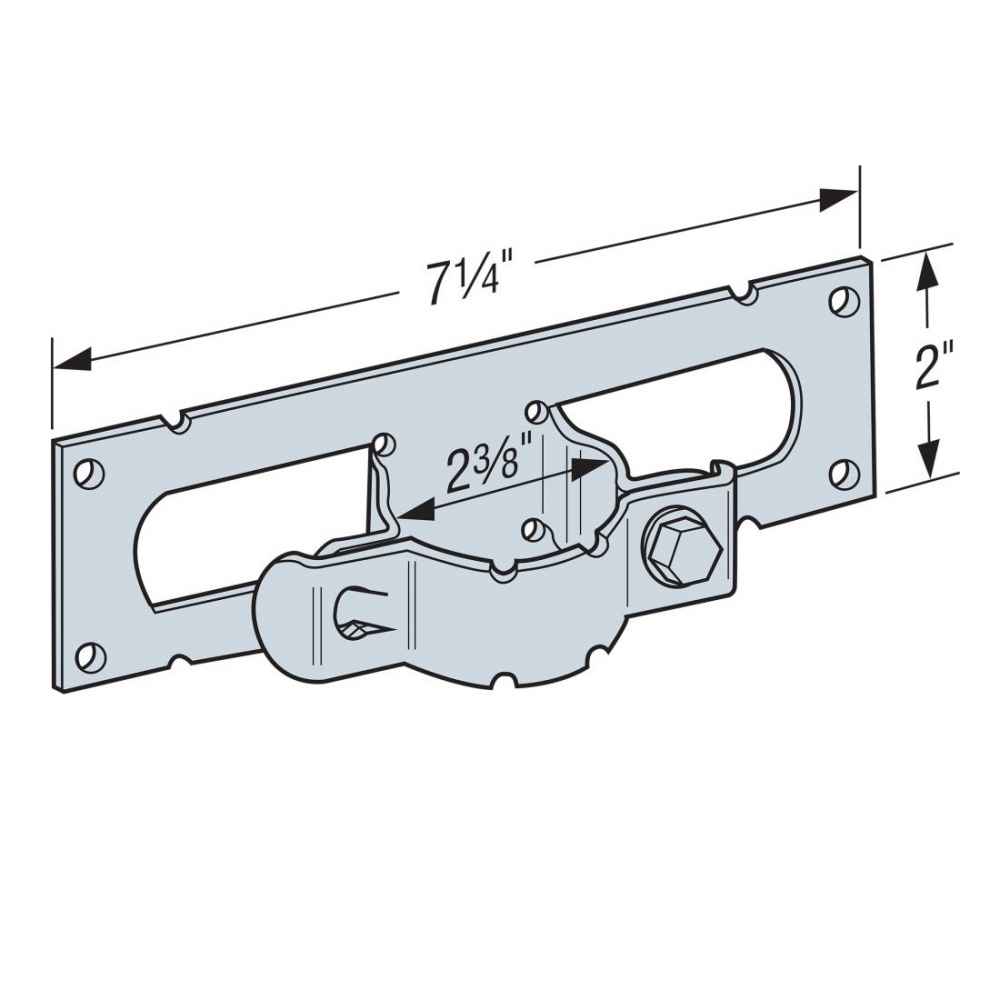

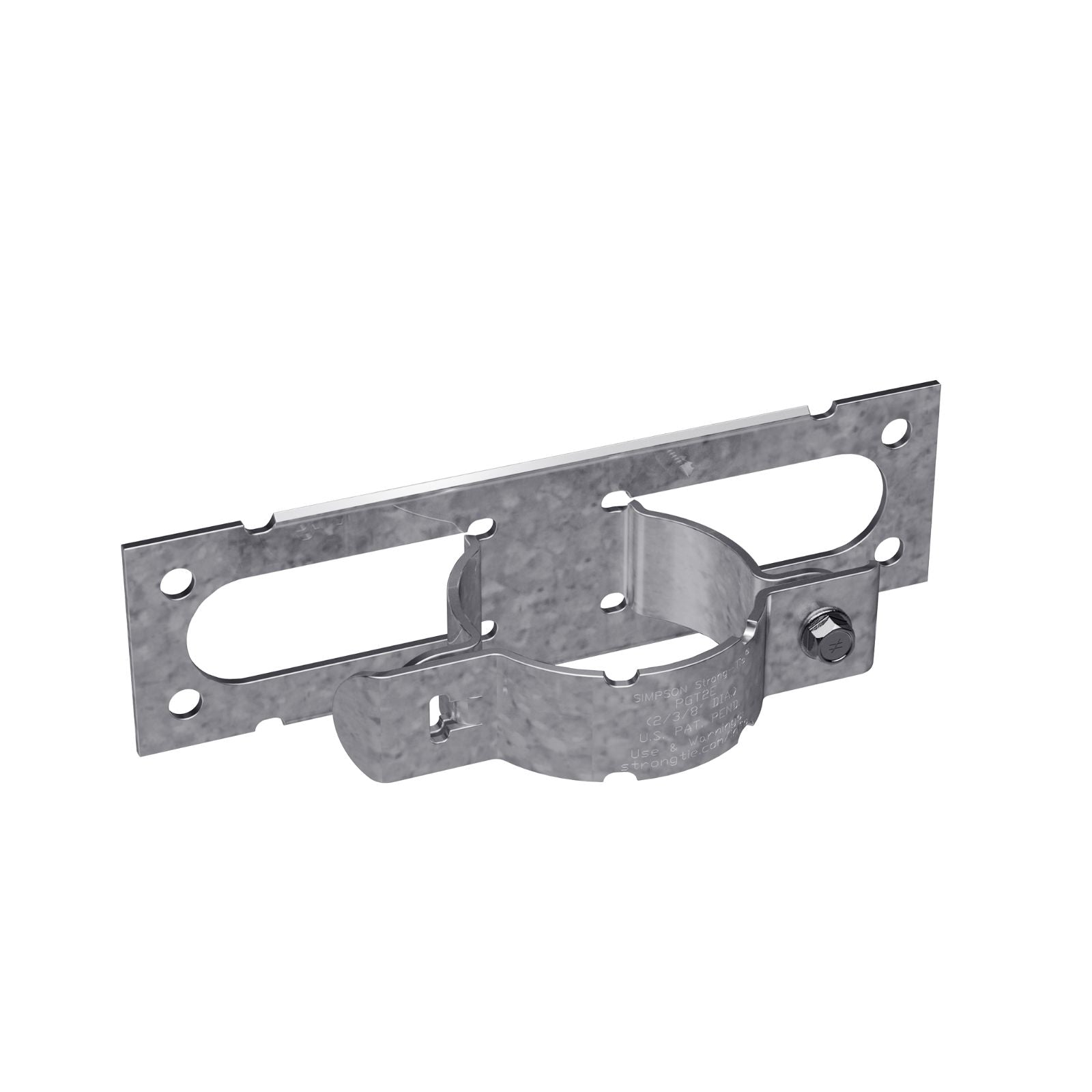

Simpson Strong-Tie PGTE Pipe Grip Tie is the latest time-saving solution for building fences with 2" steel posts. The PGT2E pipe-grip tie features a unique two-piece design that installs quickly and provides a solid connection between fence stringer and post. Snap the attachment plate onto the post for easy positioning and secure the strap using one thread-tapping screw. The PGT2E-R50 is designed for 2" pipe (2-3/8" outside diameter)


Installation:
  • Use all specified fasteners.

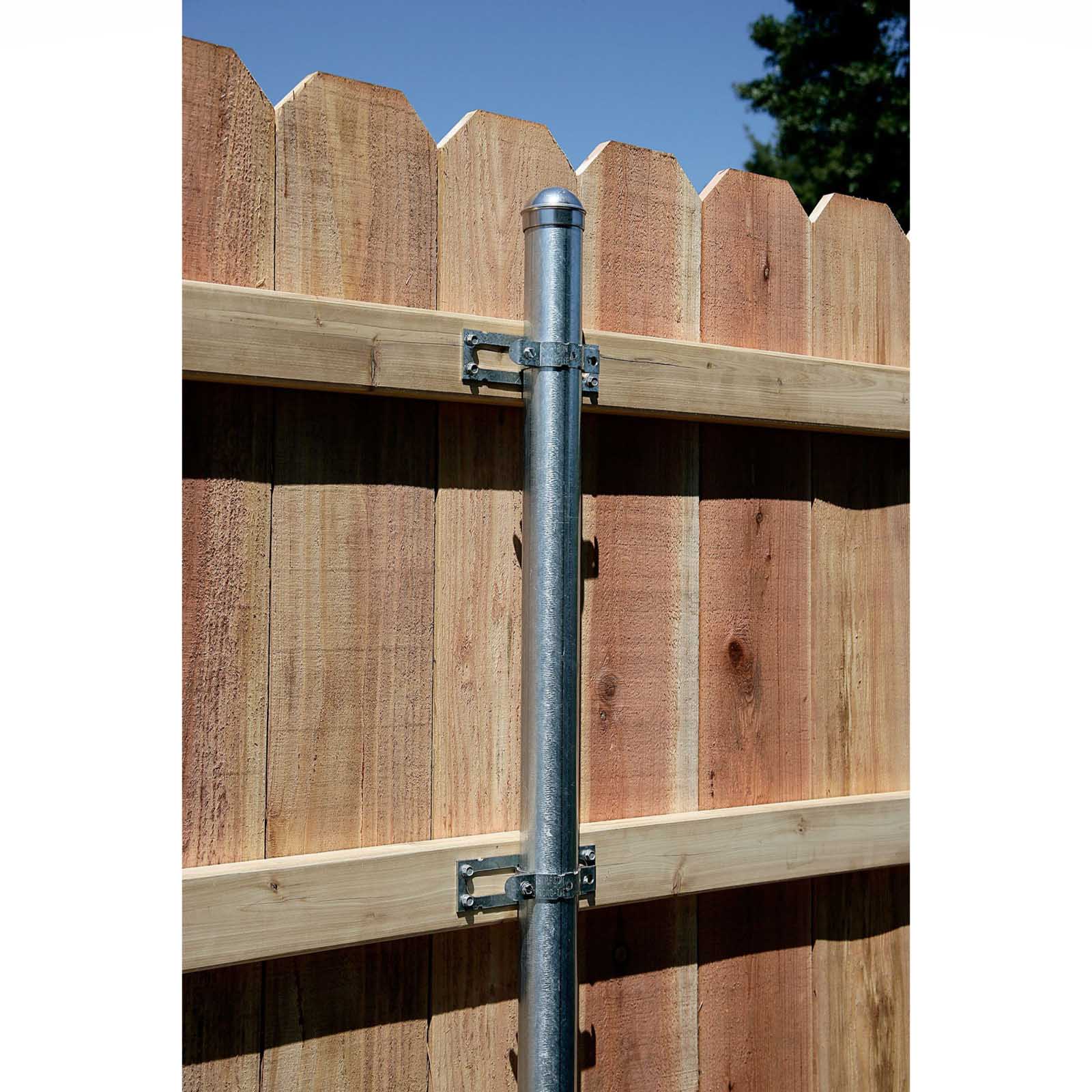

  • Install on vertical pipes, offsetting corners to allow for the correct rail alignment.
  • Use 3 to 4 PGTs per pipe; line up to stringline.
  • Fasten PGT with 1/4" hex head bolt (supplied).
  • PGT attaches to rails with four Simpson Strong-Tie SDS 1/4"x1 1/2" HDG wood screws (not supplied).
  • 1/4" lag bolts may be used. Follow the code requirements for predrilling.
  • Nail or screw fence boards to rails.
  • Field bend PGT flanges to fit corner and angled conditions (bend one time only).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie PGTE Pipe Grip Tie is the latest time-saving solution for building fences with 2" steel posts. The PGT2E pipe-grip tie features ...

Read More

Simpson Strong-Tie PGTE Pipe Grip Tie is the latest time-saving solution for building fences with 2" steel posts. The PGT2E pipe-grip tie features a unique two-piece design that installs quickly and provides a solid connection between fence stringer and post. Snap the attachment plate onto the post for easy positioning and secure the strap using one thread-tapping screw. The PGT2E-R50 is designed for 2" pipe (2-3/8" outside diameter)


Installation:
  • Use all specified fasteners.
  • Install on vertical pipes, offsetting corners to allow for the correct rail alignment.
  • Use 3 to 4 PGTs per pipe; line up to stringline.
  • Fasten PGT with 1/4" hex head bolt (supplied).
  • PGT attaches to rails with four Simpson Strong-Tie SDS 1/4"x1 1/2" HDG wood screws (not supplied).
  • 1/4" lag bolts may be used. Follow the code requirements for predrilling.
  • Nail or screw fence boards to rails.
  • Field bend PGT flanges to fit corner and angled conditions (bend one time only).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Wood Rail - (4) 1/4" x 1-1/2" SDS Screws Metal Post - (1) Screw Supplied

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Thickness:
12 Gauge
