SKU: SUL1.81/11

Simpson SUL1.81/11 I-Joist Hanger Skewed Left - G90 Galvanized

Simpson SUL1.81/11 I-Joist Hanger Skewed Left - G90 Galvanized!

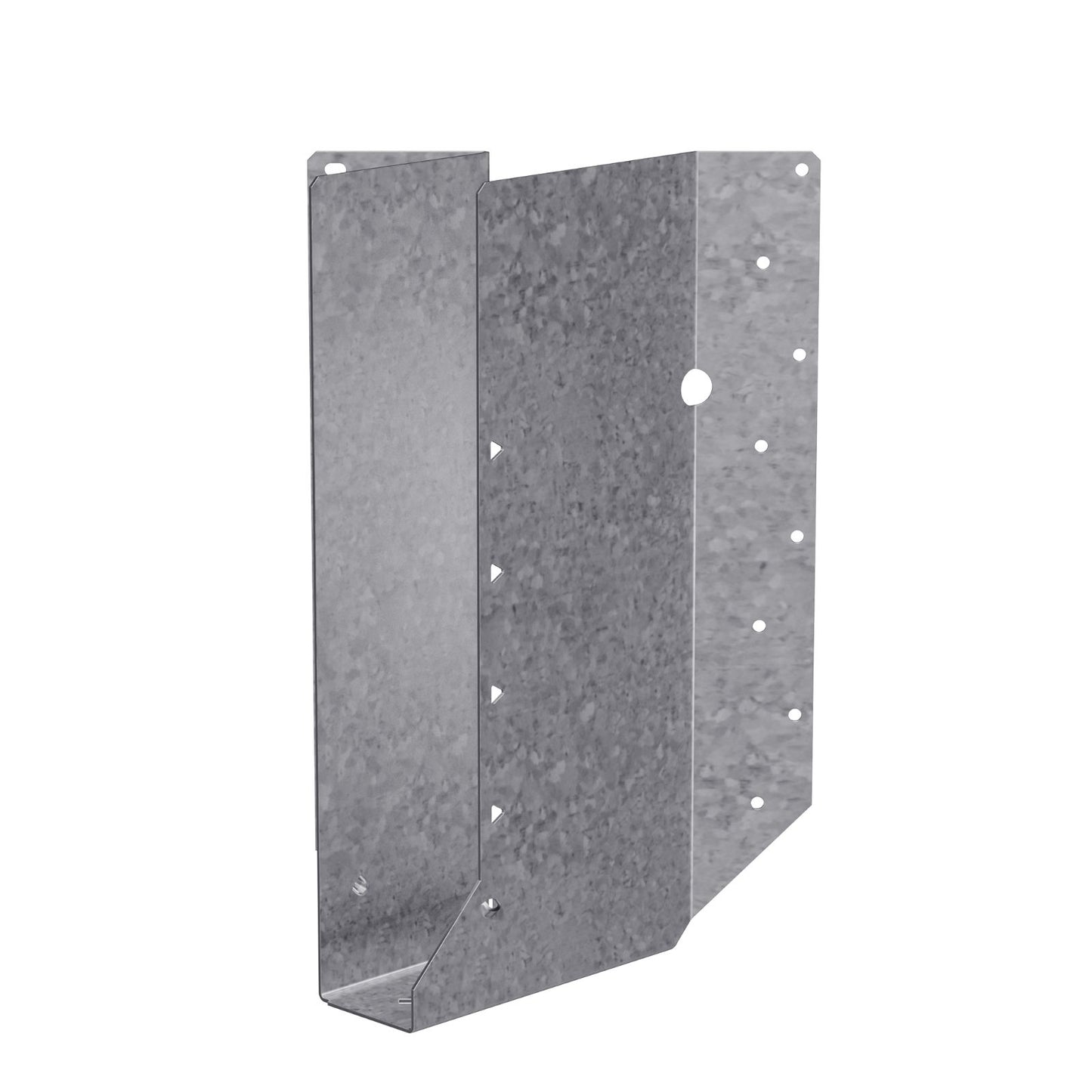

  • Simpson SUL18111 IJoist Hanger Skewed Left G90 Galvanized image 1 of 2

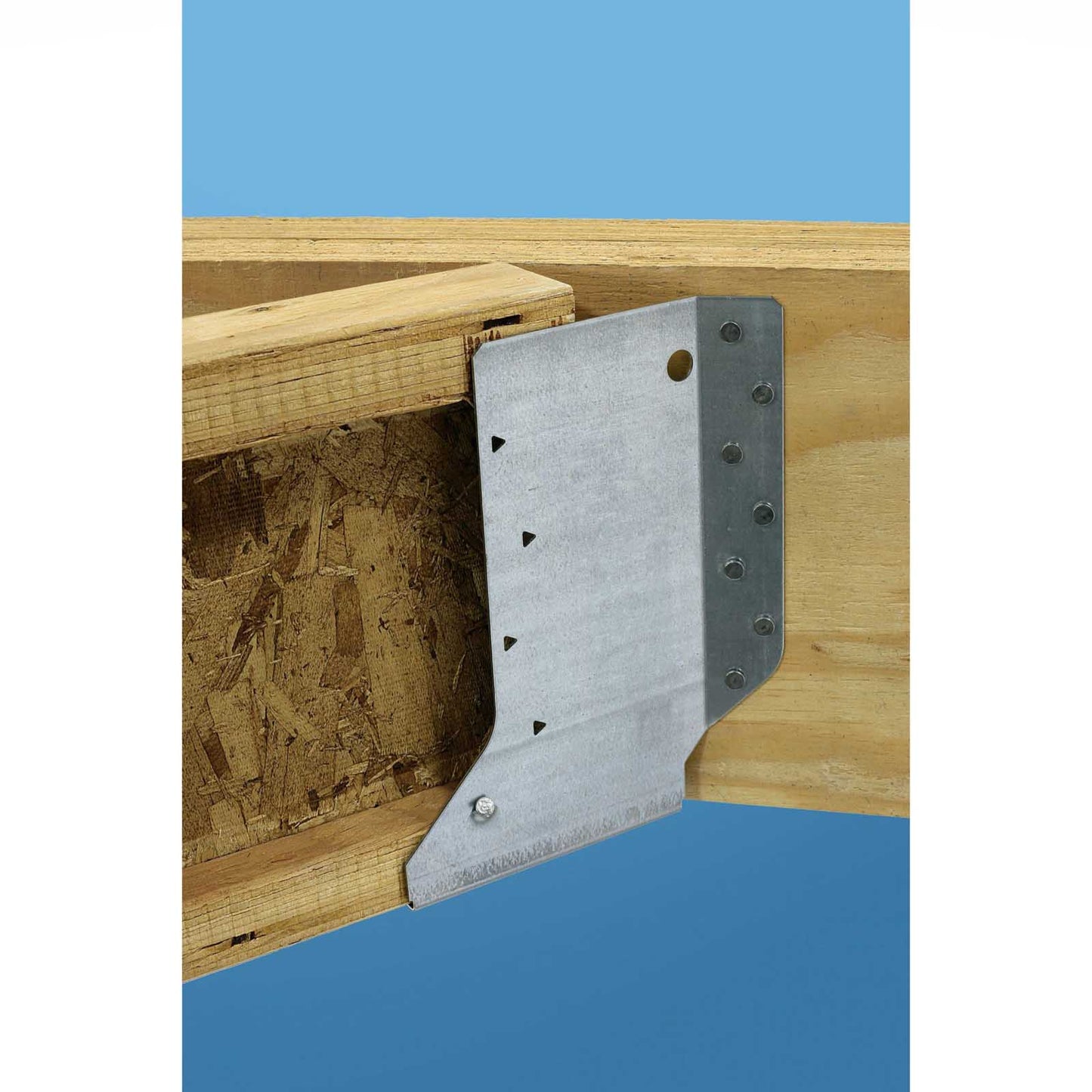

  • Simpson SUL18111 IJoist Hanger Skewed Left G90 Galvanized image 2 of 2
  • Simpson Strong-Tie SUL specifications
  • Simpson Strong-Tie SUL standard installation

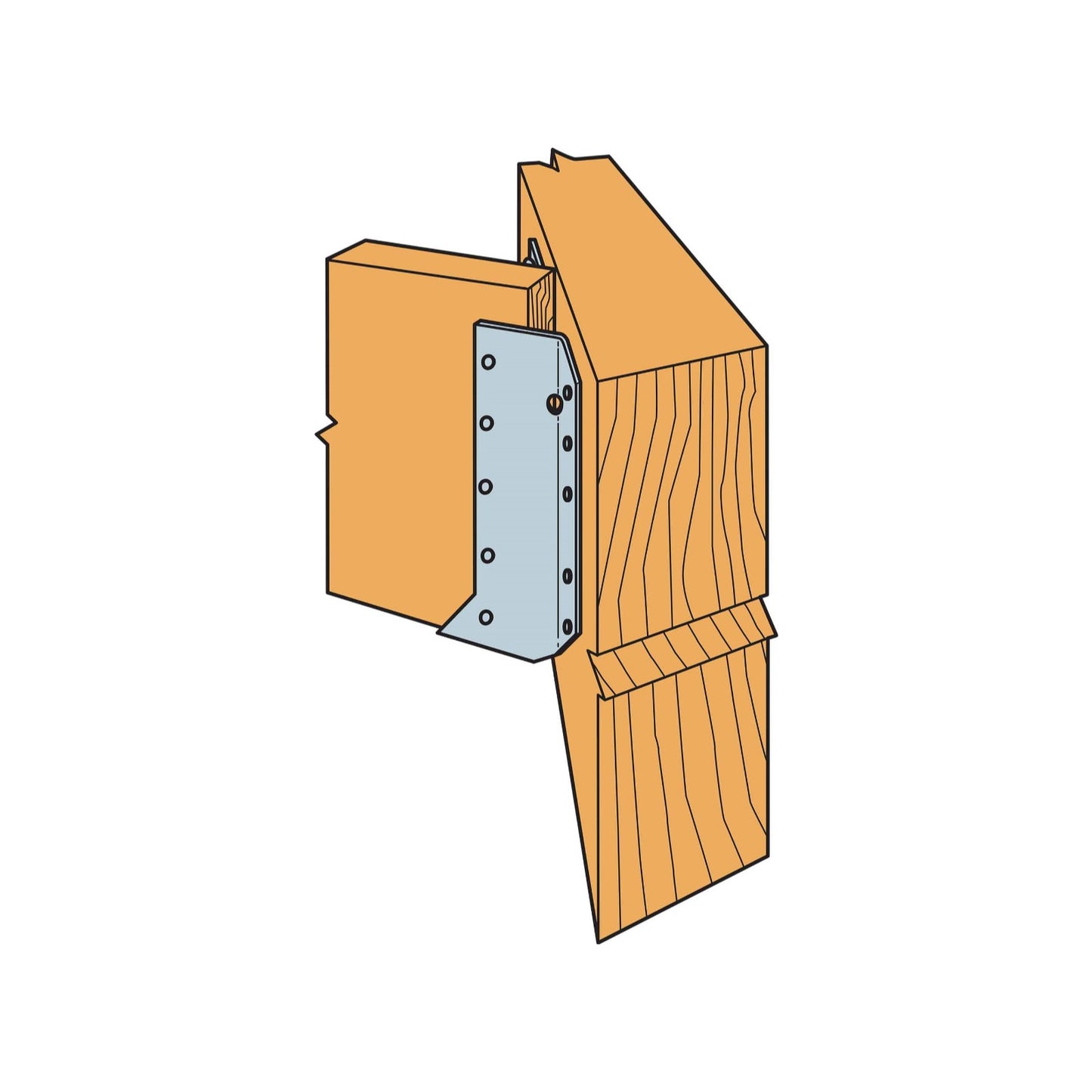

  • Simpson Strong-Tie SUL210 Installation
1 5

Continue Browsing

SUR/SUL Skewed 45 Hangers
SKU: SUL1.81/11

Simpson SUL1.81/11 I-Joist Hanger Skewed Left - G90 Galvanized

$25.84

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 8 and order in the next 8 hours 49 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: Face - (16) 0.162" x 3-1/2" Nails OR (16) SD9112 Screws Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws
For Treated Lumber: No
Height: 11"
Joist size: 1-3/4" X 11-1/4"
Manufacturer name: Simpson Strong-Tie
Description

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL1.81/11 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:

  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
