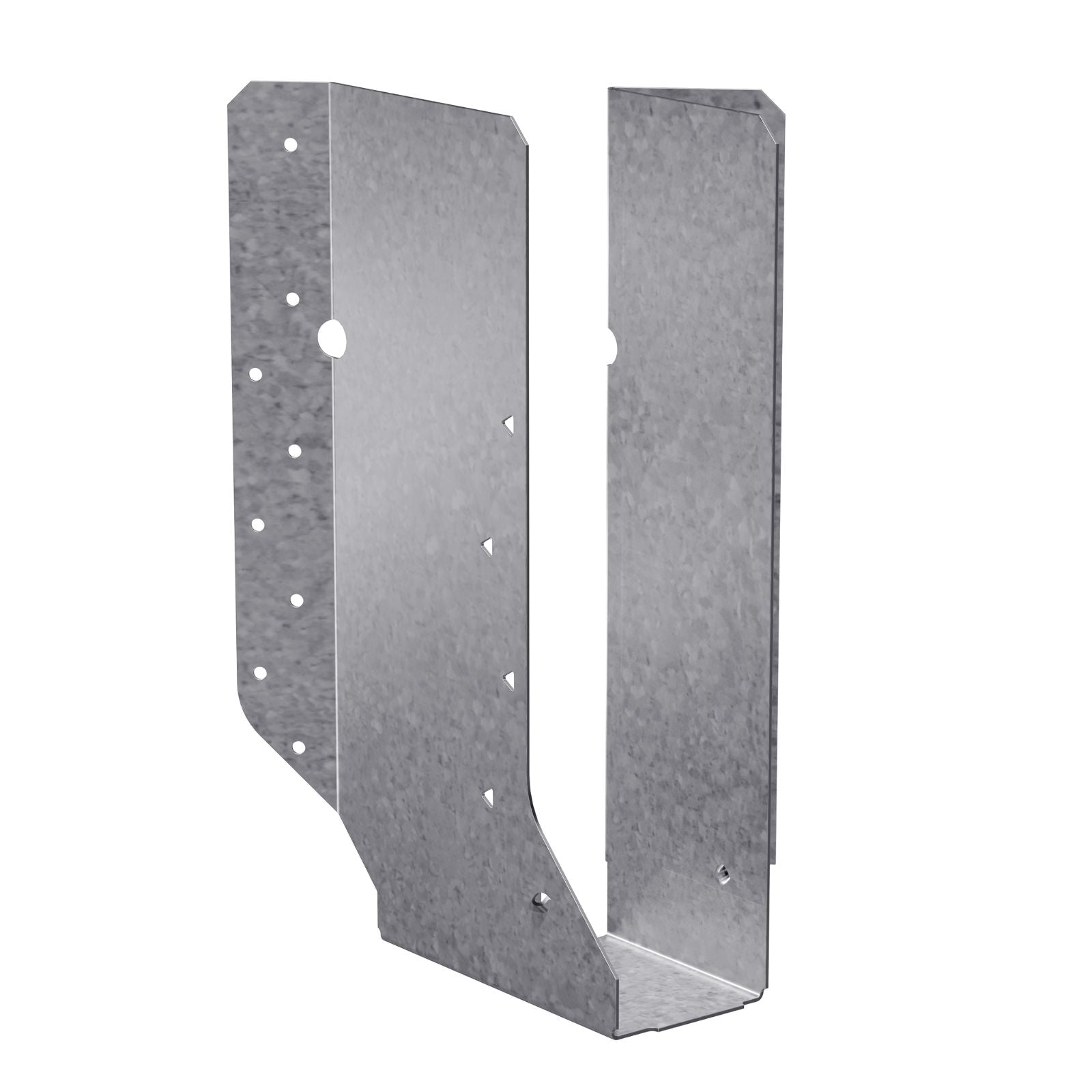

Simpson SUR2.37/11 I-Joist Hanger Skewed Right - G90 Galvanized

SKU: SUR2.37-11

$30.47

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR2.37/11 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

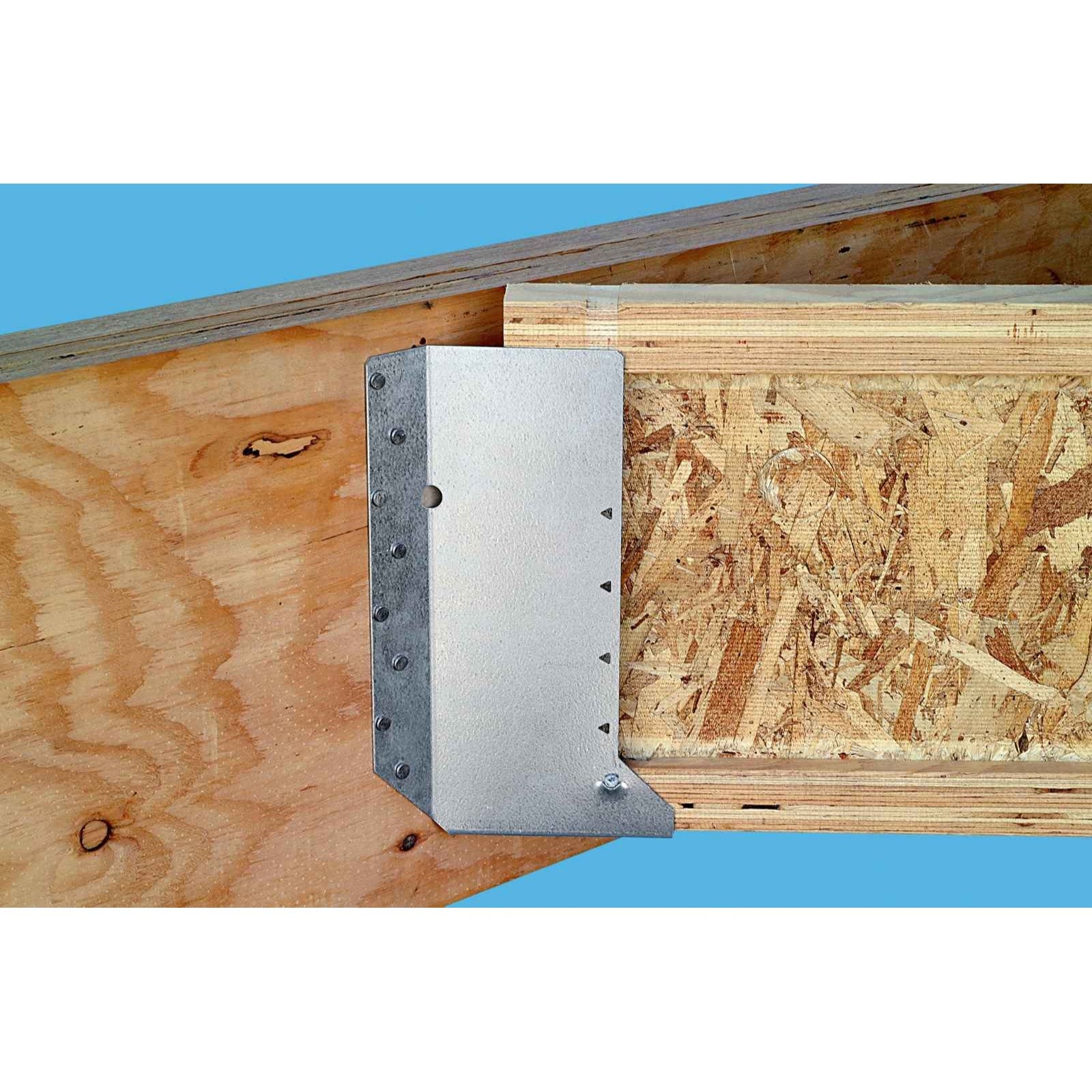

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-...

Read More

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR2.37/11 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (16) 0.162" x 3-1/2" Nails OR (16) SD9112 Screws Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws

For Treated Lumber:
no

Finish Spec:
G90 Galvanized

Height:
11-3/16"

Joist Size:
2-1/4" X 11-7/8"

Manufacturer Name:
Simpson Strong-Tie

Thickness:
16 Gauge

Product Guide:
