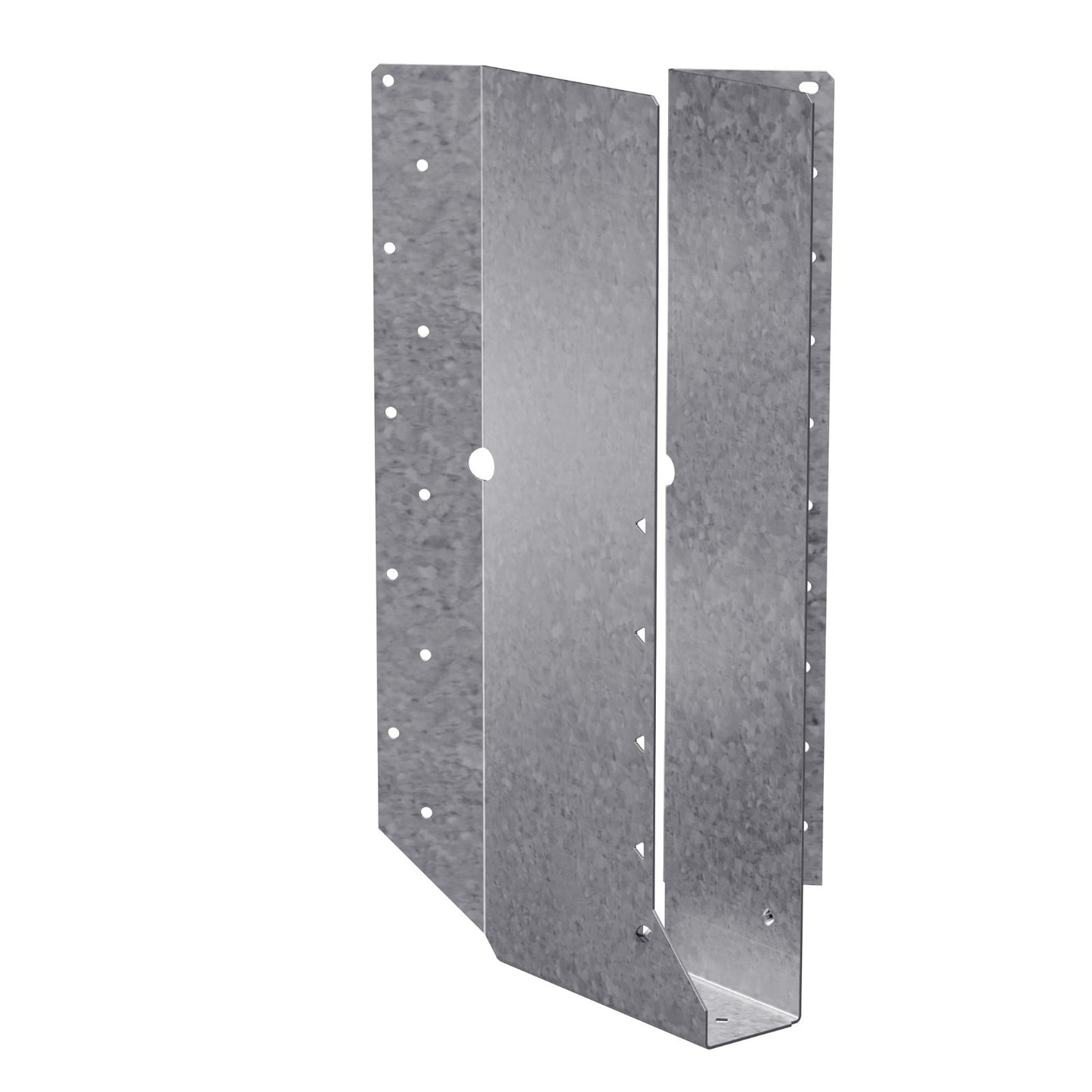

Simpson SUR2.06/14 I-Joist Hanger Skewed Right - G90 Galvanized

SKU: SUR2.06-14

$33.49

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR2.06/14 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

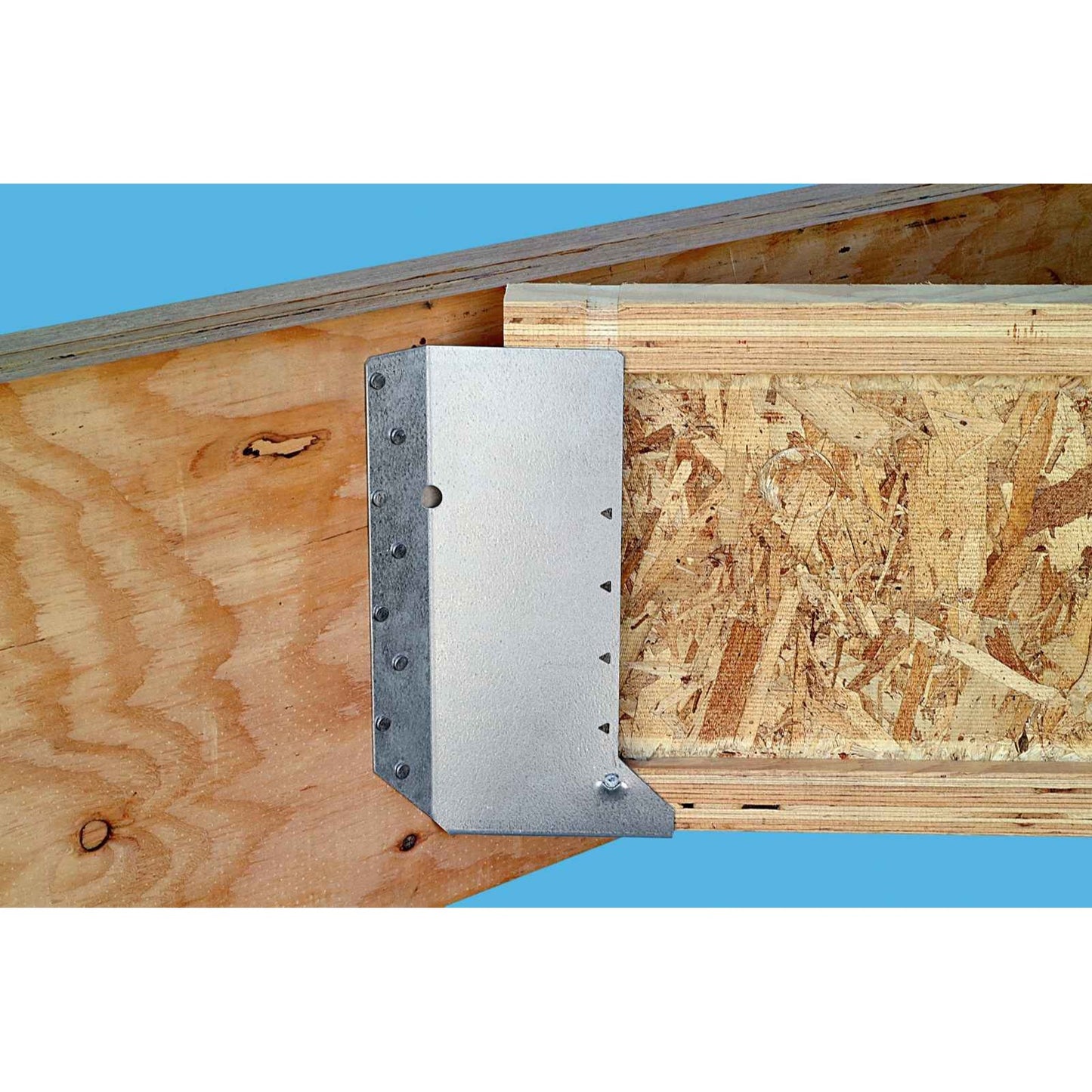

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-...

Read More

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR2.06/14 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (18) 0.162" x 3-1/2" Nails OR (18) SD9112 Screws Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
13-5/8"

Joist Size:
2X14

Thickness:
16 Gauge

Product Guide:
