Simpson WT8/125 Wedge Form Tie - G90 Galvanized, Pkg 250
Simpson WT8/125 Wedge Form Tie - G90 Galvanized, Pkg 250!
Simpson WT8/125 Wedge Form Tie - G90 Galvanized, Pkg 250
Specifications
• For 8" thick walls

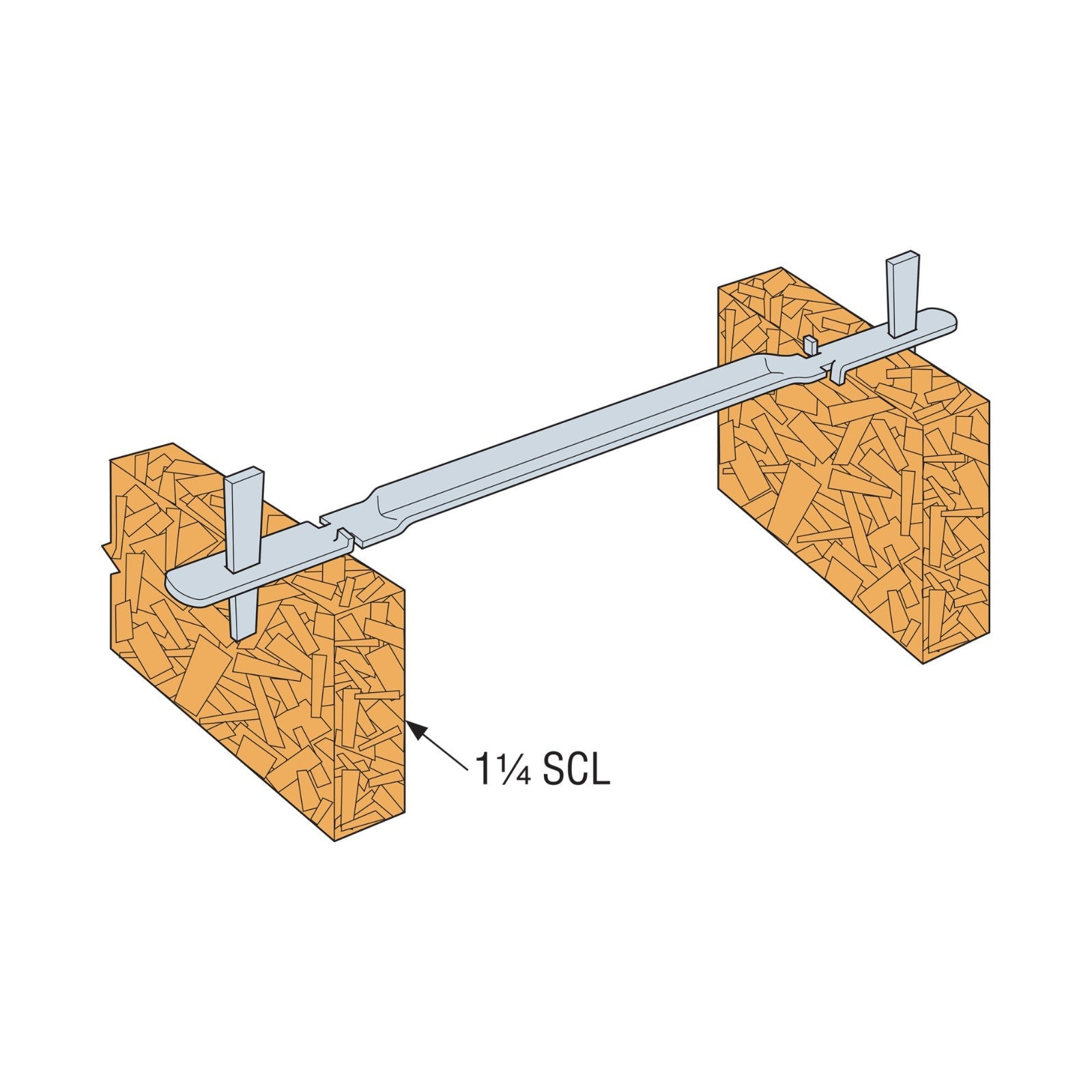

• Use with 1-1/4" SCL formboard

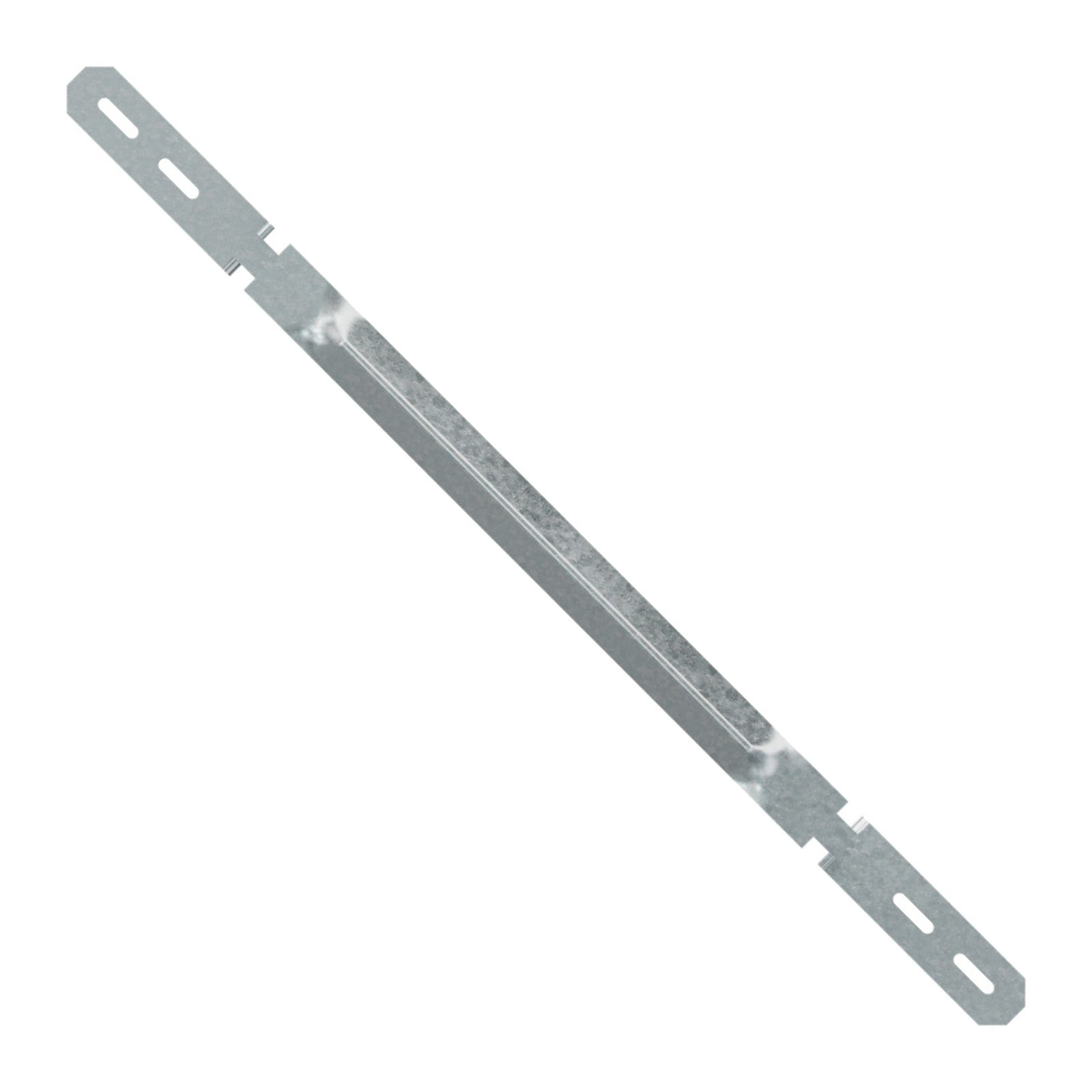

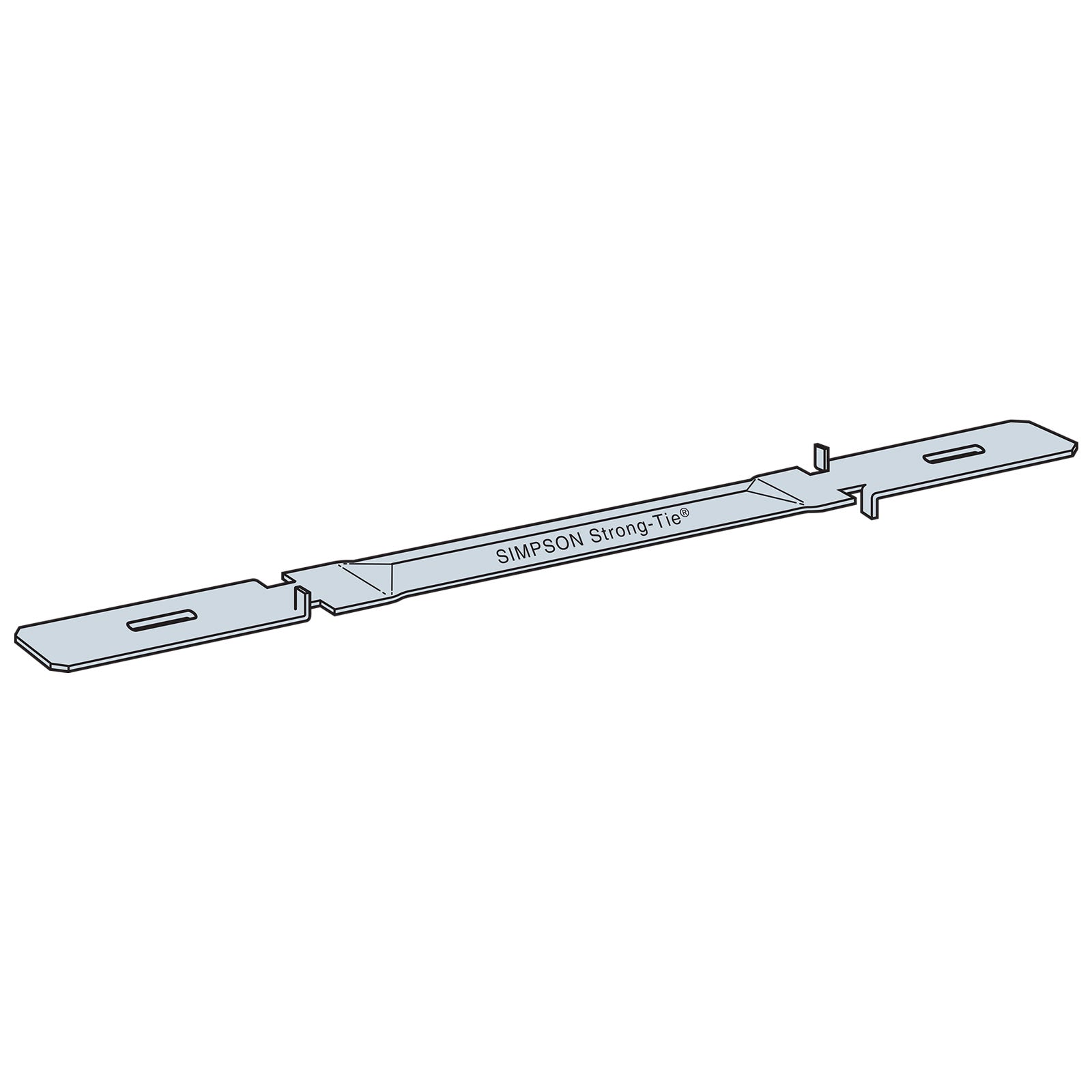

The Simpson Strong-Tie WT Wedge Form Tie is designed to secure concrete forms in place during pouring, ensuring accurate spacing and structural integrity. Its 5/8-inch wide formed "V" design provides rigidity, making it ideal for low foundation wall applications. Constructed from 18-gauge galvanized steel, it offers durability and corrosion resistance.
Key Features:
- Material: 18-gauge galvanized steel for enhanced durability and corrosion resistance.
- Design: 5/8-inch wide formed "V" shape for rigidity and accurate form spacing.
- Compatibility: Available in various lengths to accommodate wall thicknesses from 6 to 12 inches.
- Application: Suitable for use with both composite and lumber form boards.
Applications:
- Securing concrete forms during pouring for walls up to 4 feet high.
- Ideal for low foundation wall applications in residential and commercial construction.
Installation:

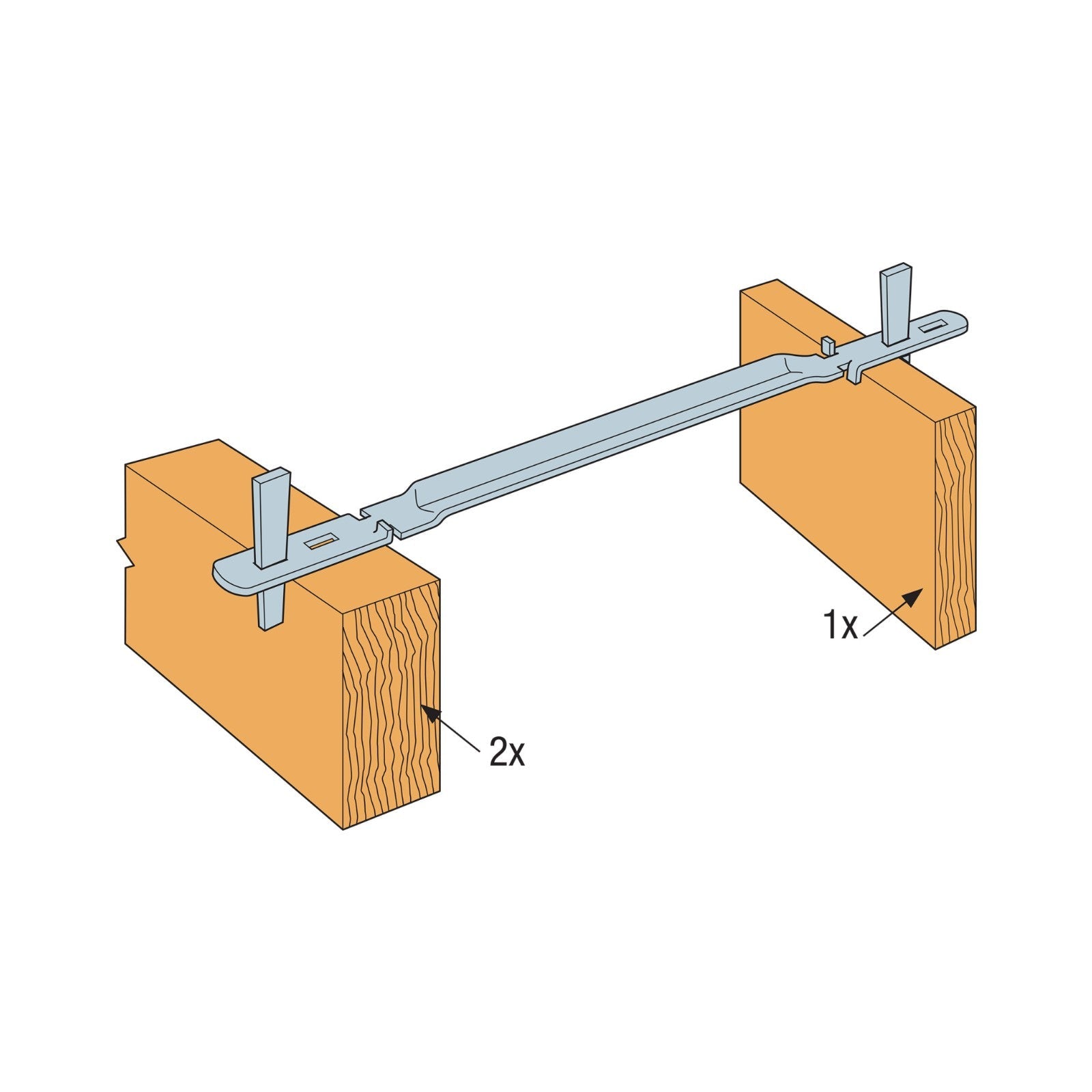

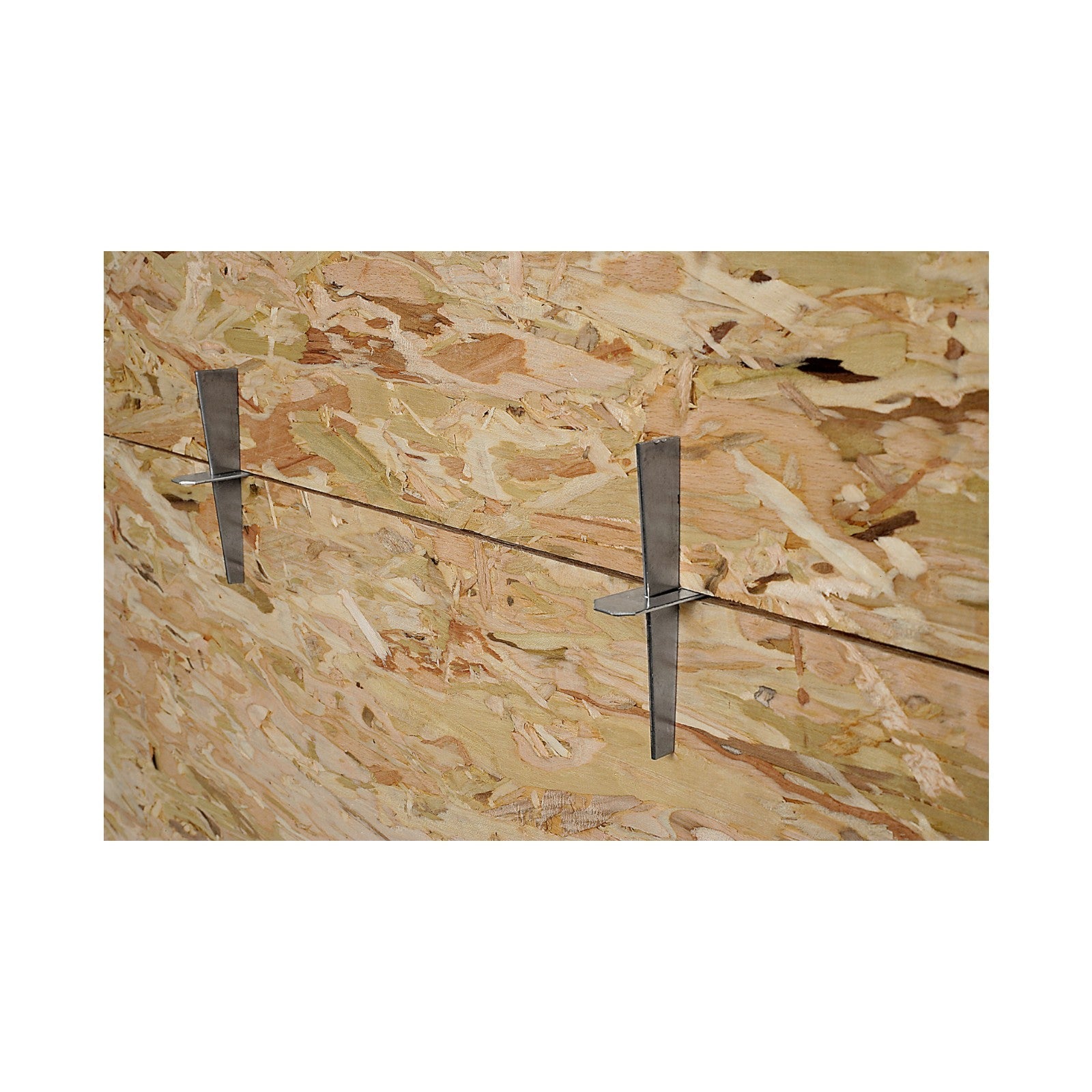

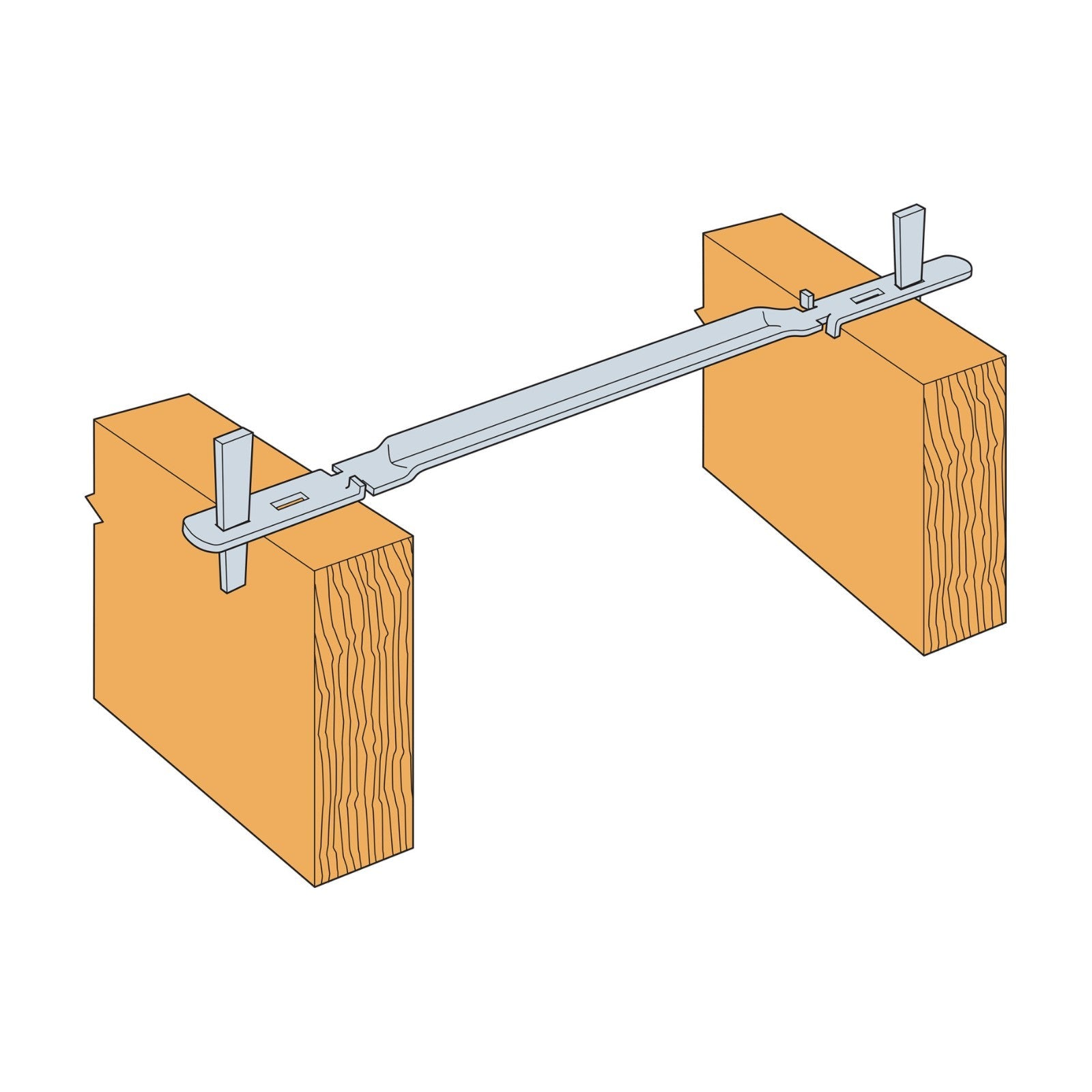

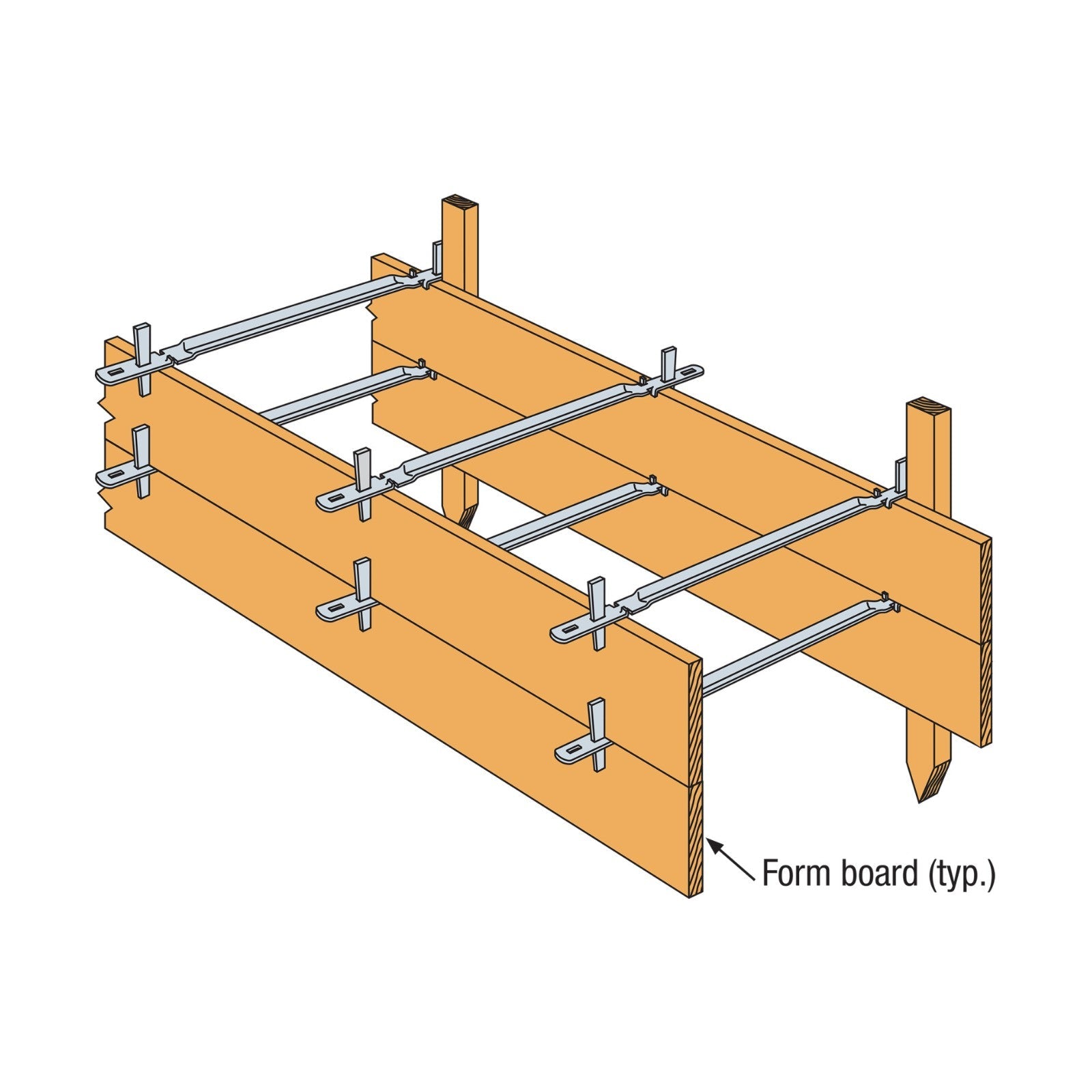

- Insert the WT Wedge Form Tie between form boards at the desired spacing.
- Use two W1 wedges (sold separately) per tie to secure the forms in place.
- Not recommended for wall pours greater than 4 feet high.
