SKU: SBCP5

M&W Custom Spreader Beam End Caps - Pair | For 5" Pipe

Regular price $2,87500
Ships FREE in 1-3 business days.

Description

Building a spreader beam to your own specifications starts with a length of pipe and a set of end caps rated to handle the load, and that is exactly what this kit provides. Add these end caps to standard A53 Grade B, Schedule 40 pipe and you have a custom spreader bar sized to your job, instead of ordering a fixed off-the-shelf beam that might be the wrong length for the next lift. Steel construction and a high-visibility yellow finish keep it ready for both warehouse and jobsite use, and each kit is matched to a specific pipe diameter, so working load limit depends on the pipe size and spread length you choose.

Key Features

  • Modular spreader bar system: Pair these end caps with your own A53 Grade B, Schedule 40 pipe to build a spreader beam sized to your application.
  • Made in the USA: The end caps are domestically made for quality you can trust.
  • Individually proof-loaded per OSHA requirements, with certification paperwork included.
  • Hardware included: Ships complete with retaining bolts and capacity tags.
  • Industry-compliant: Manufactured to exceed ASME B30.20 and OSHA regulations.

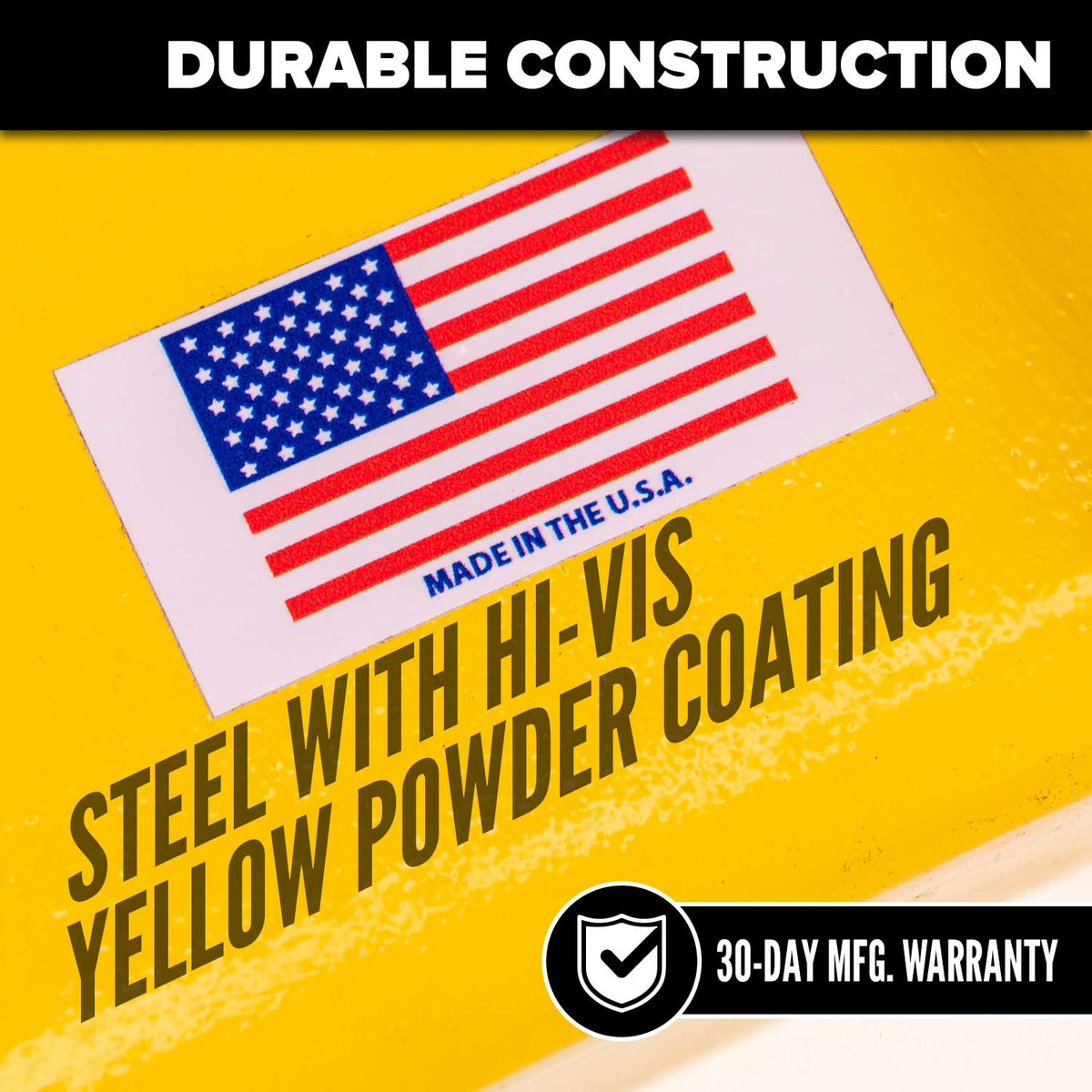

  • Durable powder coat finish that resists scratches, chips, and general wear.
  • Working load limit varies by pipe diameter and spread length, so capacity should be confirmed against the specific pipe you plan to use.
  • 30-day limited manufacturer's warranty.

Applications

  • Custom or modular spreader bar builds for loads that do not fit a standard off-the-shelf beam length.
  • Rigging shops and fabricators that keep pipe stock on hand and want flexibility in spreader bar sizing.
  • Jobsite and warehouse lifts needing a spreader beam configuration built around available pipe rather than a fixed catalog length.
  • Crews that need a range of capacities and spread lengths from one modular system instead of multiple dedicated beams.

Specifications

Safety Factor: 3:1
Rated For Overhead Lifting: Yes
Shackle Size: 3/4" - 1-1/4" (not included)
Material: Steel
Finish: High visibility yellow powder coated paint
Type: For 5" Pipe
Item Weight: 50 lbs.
Standards: Exceeds all ASME B30.20 and OSHA regulations when assembled to specifications using AS53 Grade B Schedule 40 pipe.
Proof loaded per OSHA requirements.
Manufacturer Name: M&W
Manufacturer Part Number: 19500
Shipping and Returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Additional Info: Minimum horizontal top rigging angle of 45°; M&W recommends a min of 60°
