Shop more SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers
SKU: HSUR4.12/16

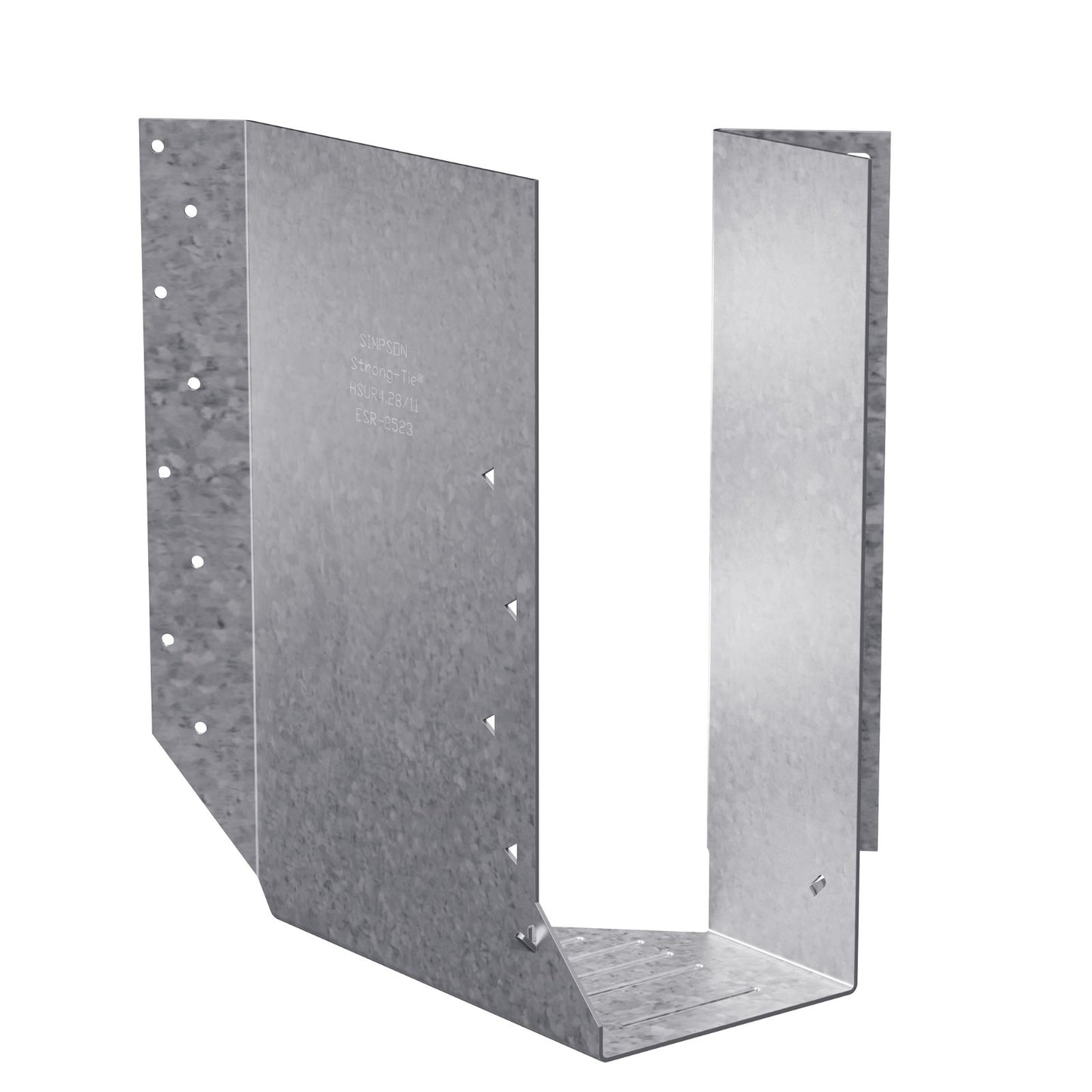

Simpson HSUR4.12/16 I-Joist Hanger Skew Right - G90 Galvanized
Simpson HSUR4.12/16 I-Joist Hanger Skew Right - G90 Galvanized
Regular price
$75.00
Sale price
$75.00
Regular price
Unit price
per
0% off
Description:
Description:
Simpson Strong-Tie HSUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUR4.12/16 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- These hangers will normally accommodate a 40° to 50° skew.
- Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
- The joist end may be square cut or bevel cut.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 15-3/4"
Fasteners required: Face - (24) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 1-1/2" Nails
Width: 4-1/8"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 4" X 16"
Product Guide: View Spec Sheet
