SKU: SUL2.56/14

Simpson SUL2.56/14 I-Joist Hanger Skewed Left - G90 Galvanized

Simpson SUL2.56/14 I-Joist Hanger Skewed Left - G90 Galvanized!

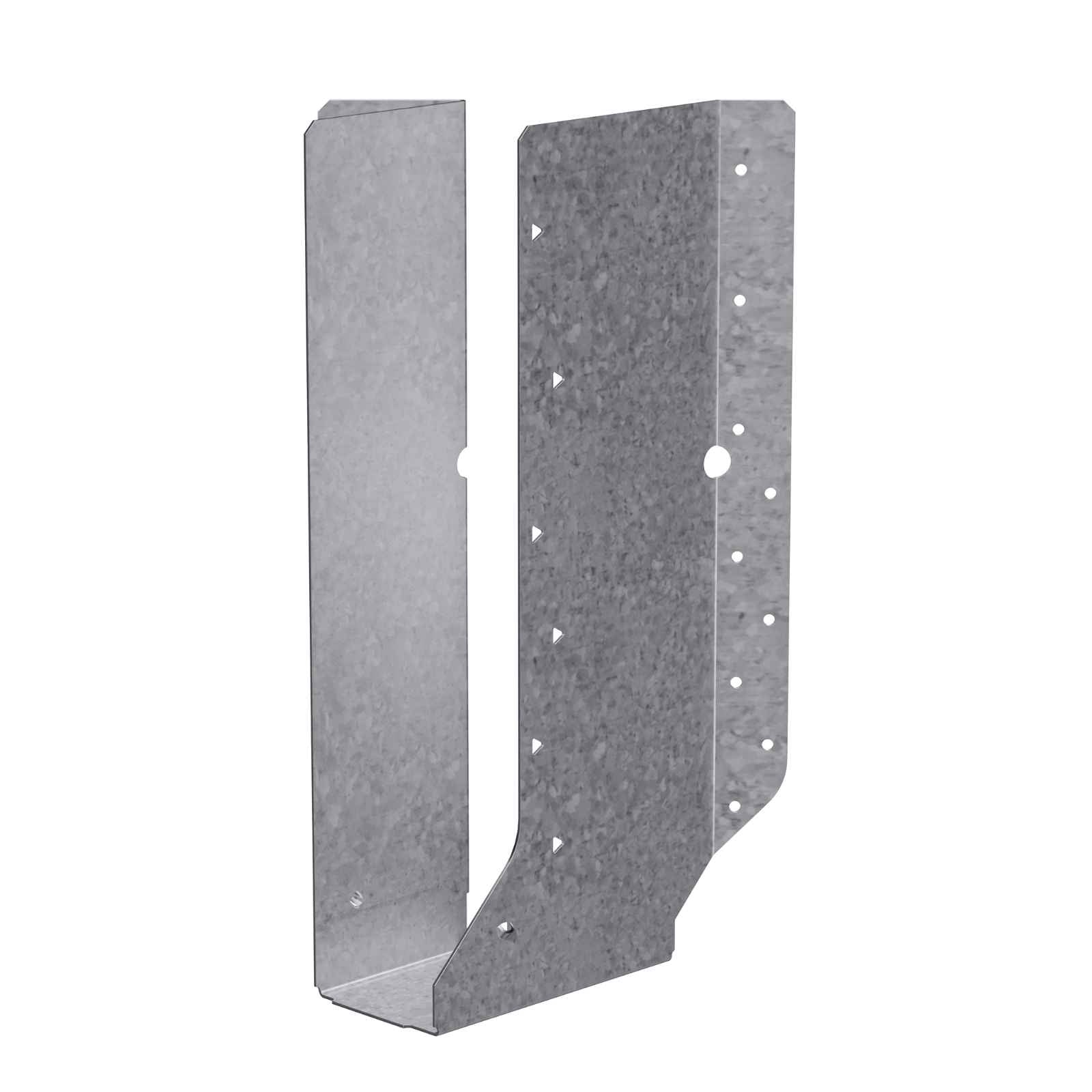

  • Simpson SUL25614 IJoist Hanger Skewed Left G90 Galvanized image 1 of 2

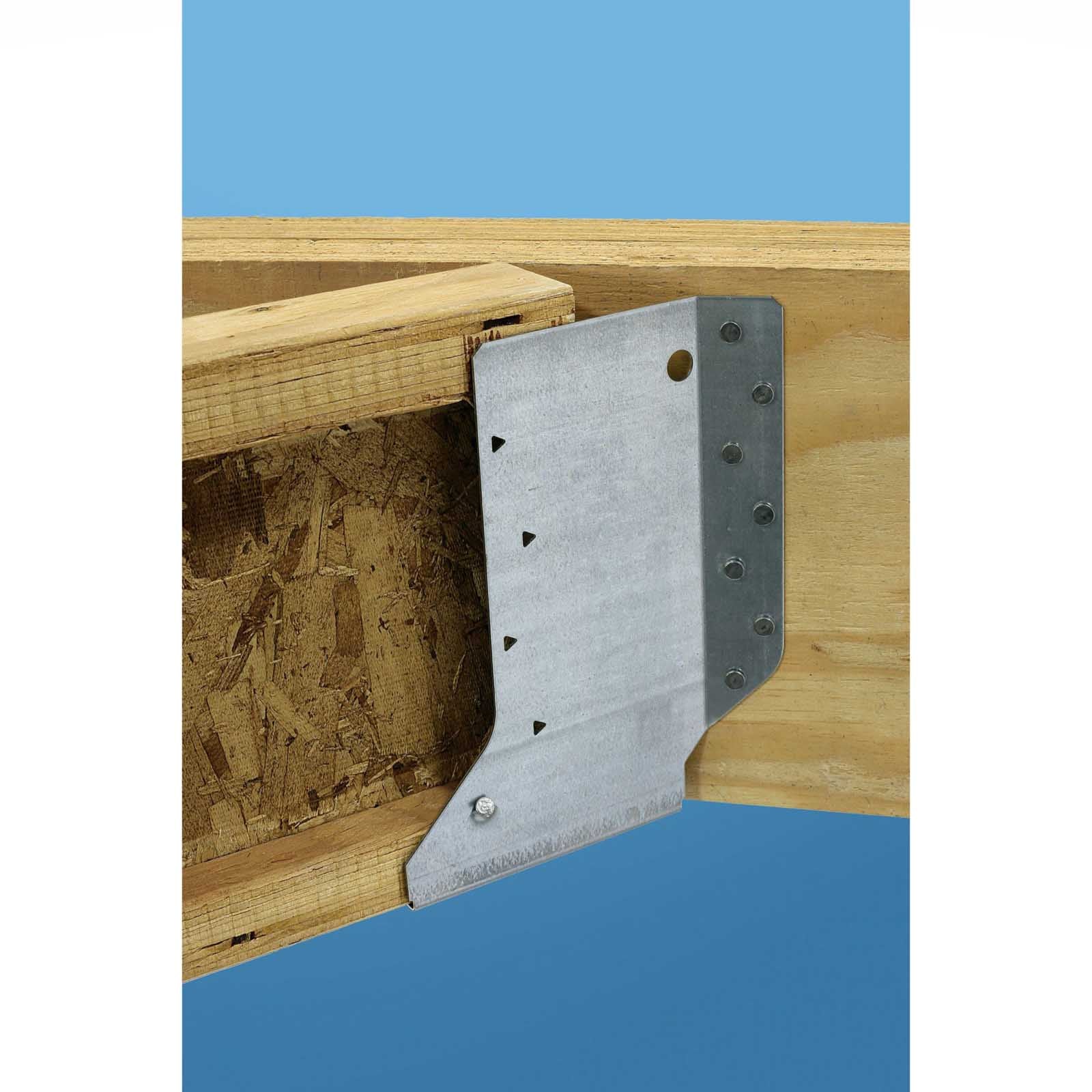

  • Simpson SUL25614 IJoist Hanger Skewed Left G90 Galvanized image 2 of 2

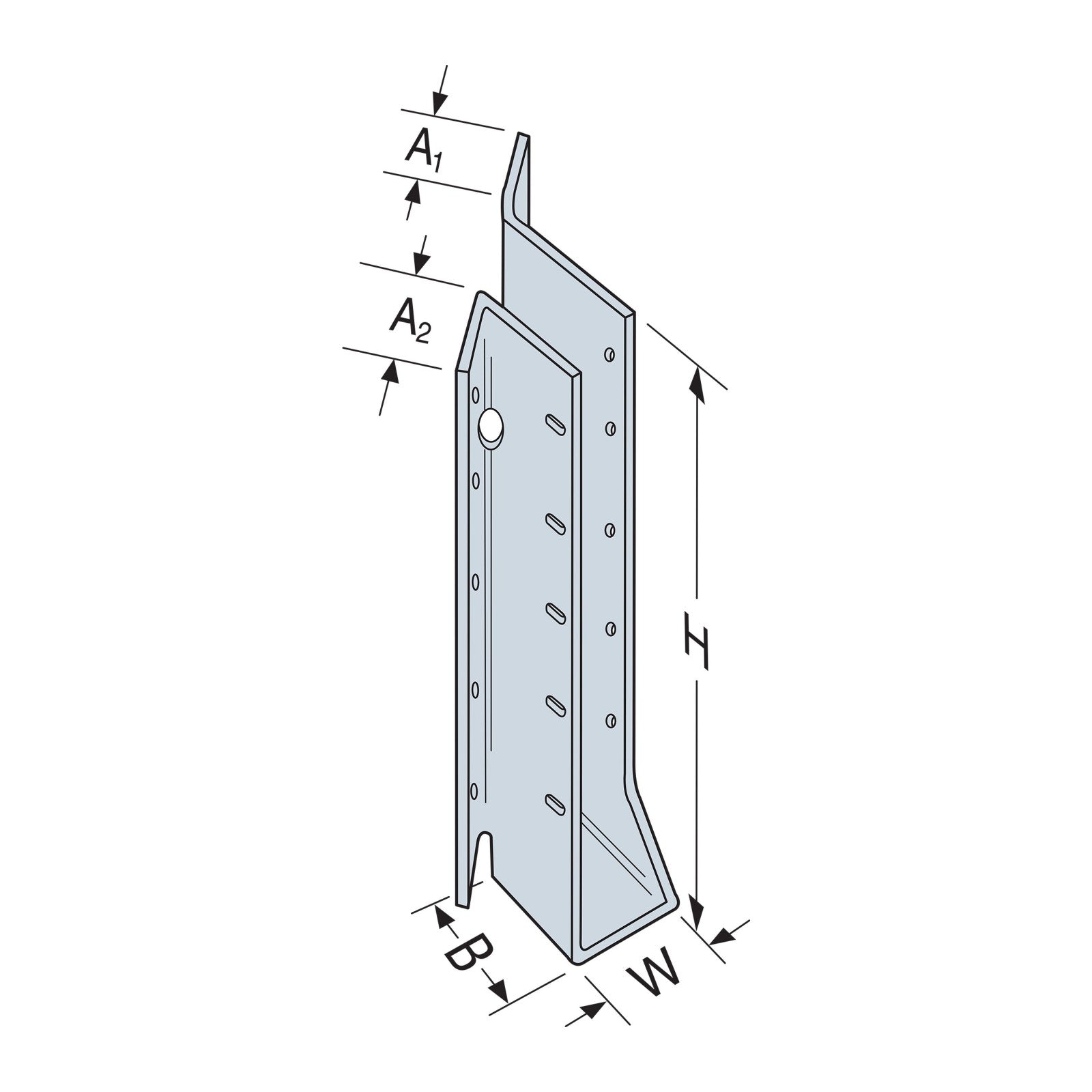

  • Simpson Strong-Tie SUL specifications
  • Simpson Strong-Tie SUL standard installation
1 4

Continue Browsing

SUR/SUL Skewed 45 Hangers
SKU: SUL2.56/14

Simpson SUL2.56/14 I-Joist Hanger Skewed Left - G90 Galvanized

$34.52

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 6 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: Face - (18) 0.162" x 3-1/2" Nails OR (18) SD9112 Screws Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws
For Treated Lumber: No
Height: 13-5/16"
Joist size: 2-1/2" X 14"
Manufacturer name: Simpson Strong-Tie
Width: 2-9/16"
Description

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL2.56/14 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

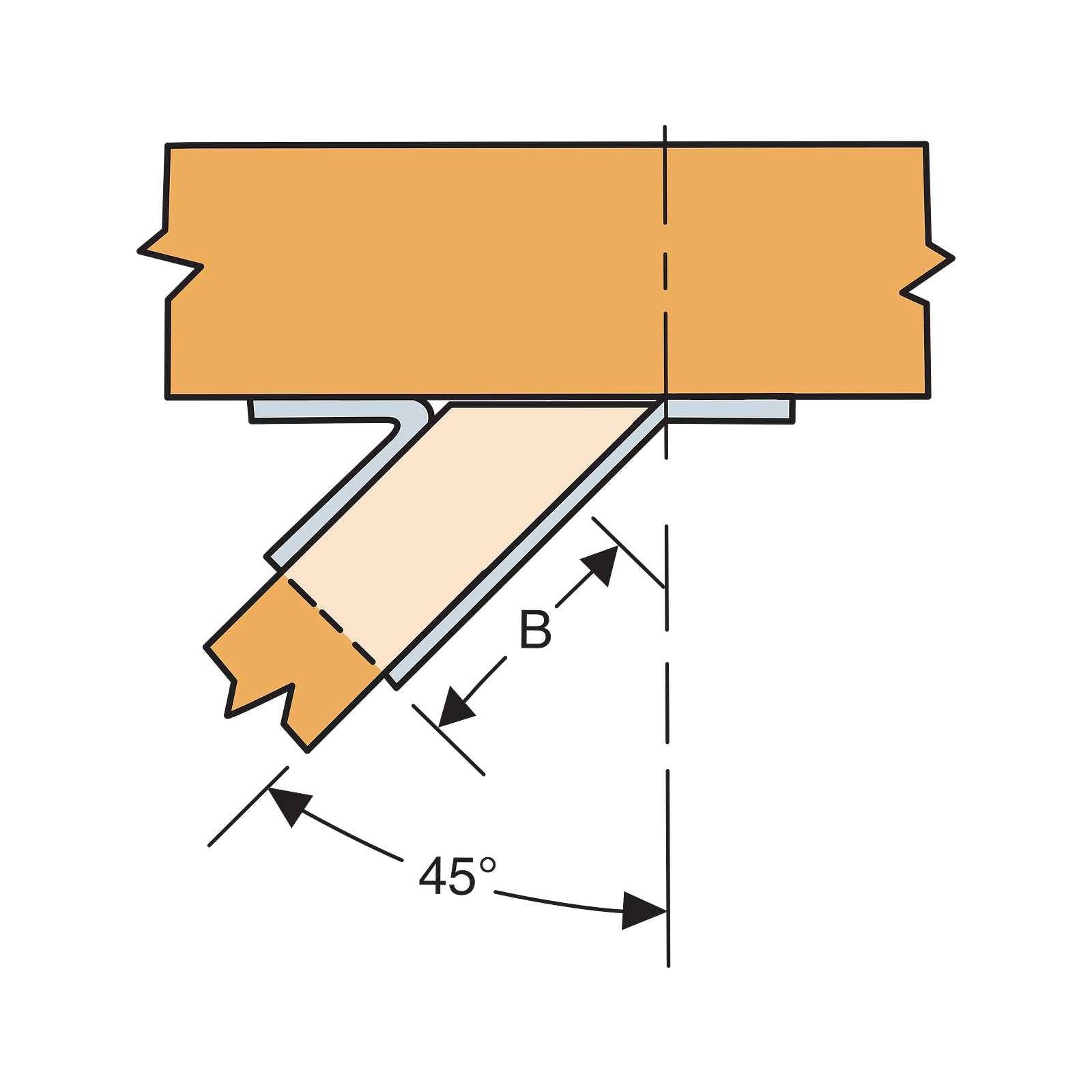

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
