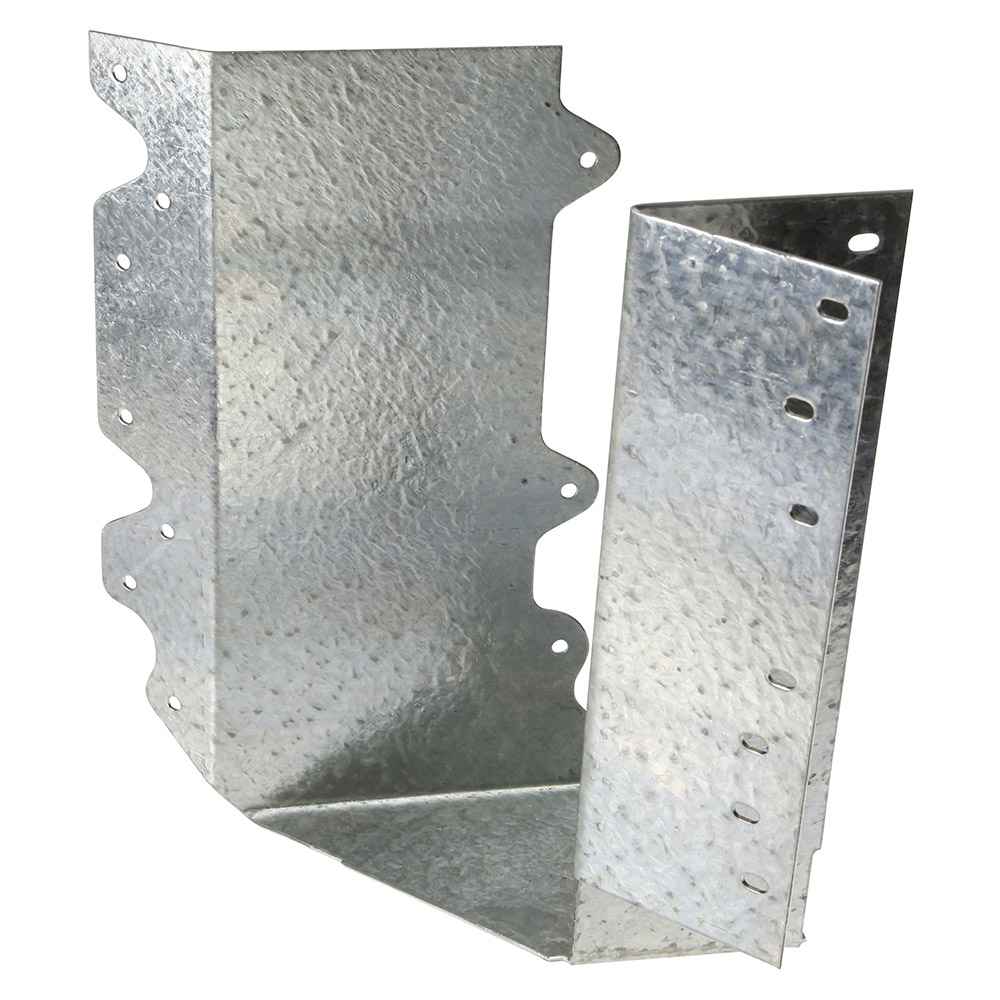

Simpson SUL210-2Z 2x10 Double 45 Degree Joist Hanger Skewed Left - Zmax Finish
Simpson SUL210-2Z 2x10 Double 45 Degree Joist Hanger Skewed Left - Zmax Finish
Description:
Description:

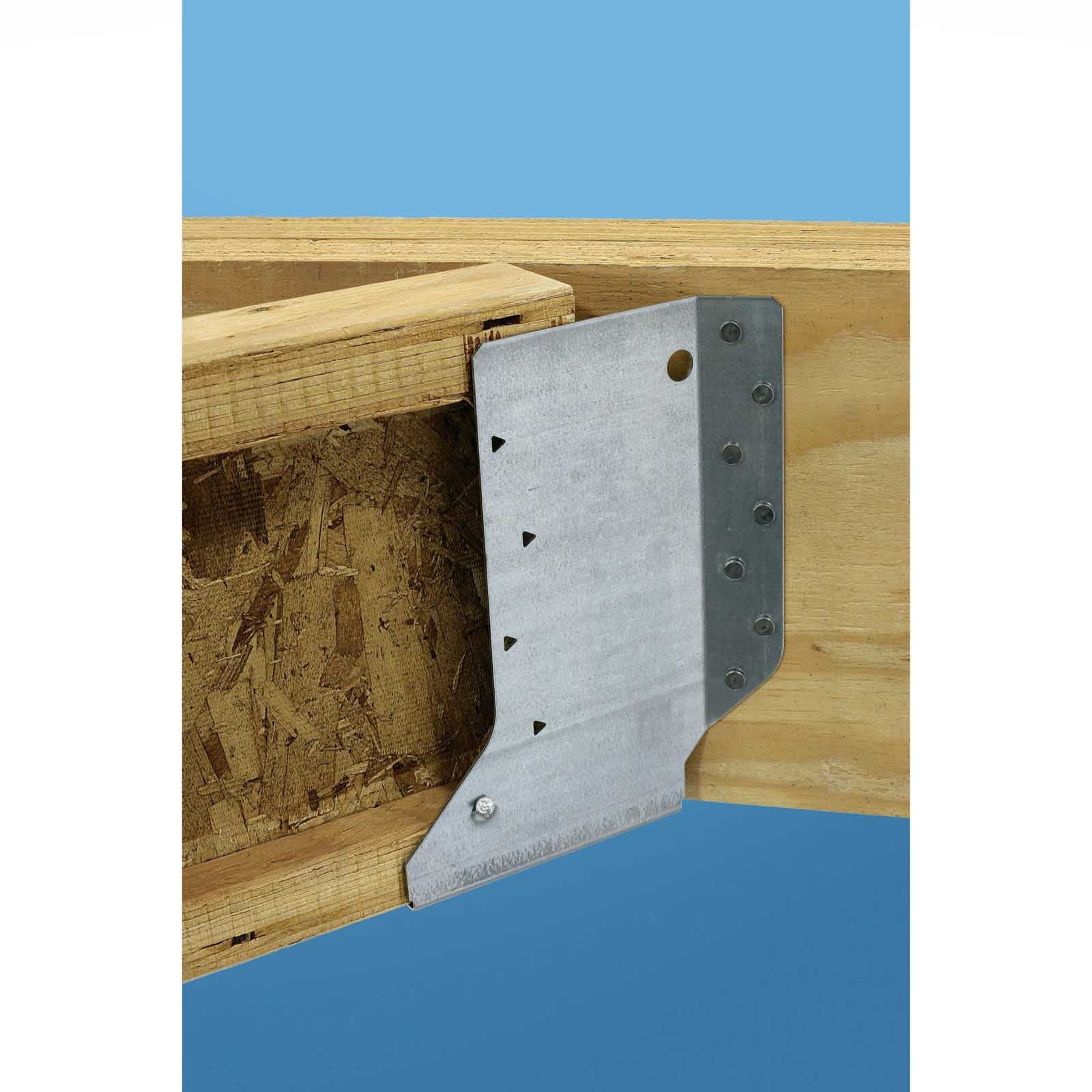

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL210-2Z skewed joist hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- These hangers will normally accommodate a 40° to 50° skew.

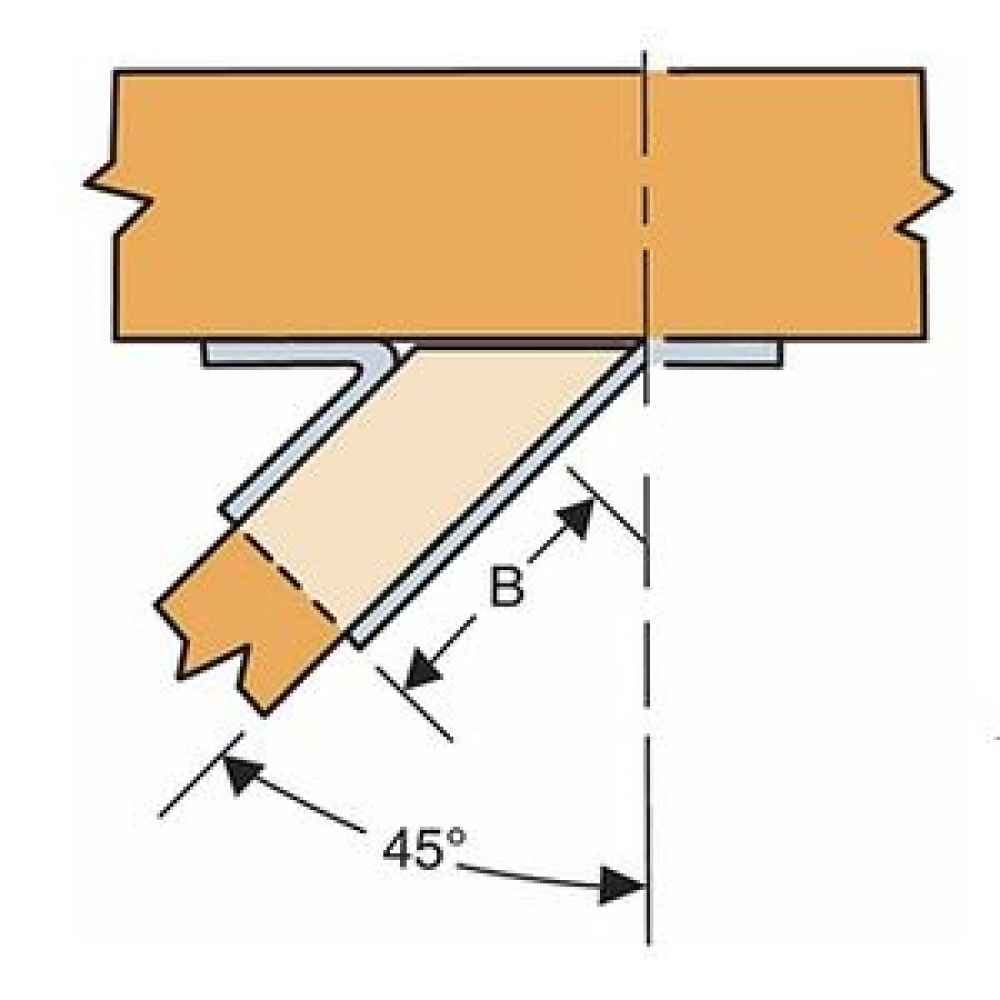

- Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
- The joist end may be square cut or bevel cut.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:

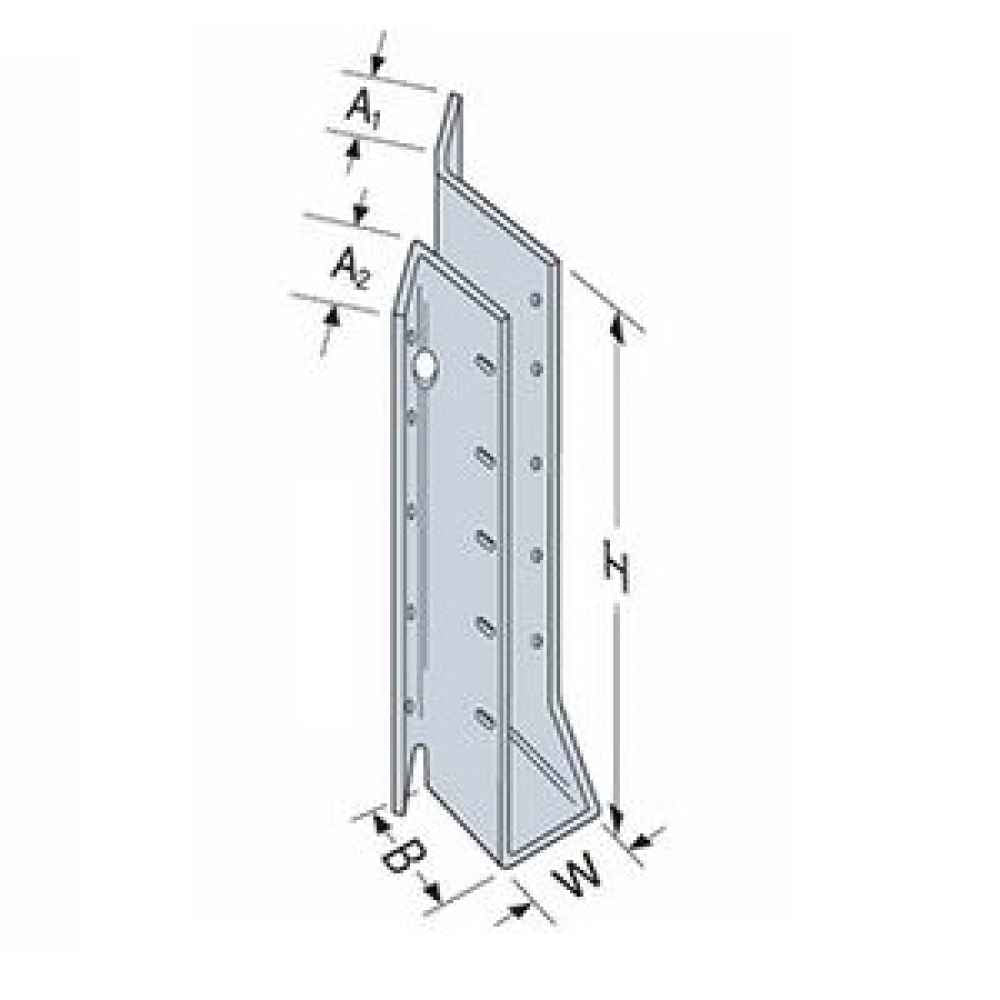

Height: 8-11/16"
Fasteners required: Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws Joist - (6) 0.162" x 2-1/2" Nails OR (6) SD9112 Screws
Width: 3-1/8"
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Joist size: Double 2X10
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-These hangers will normally accommodate a 40° to 50° skew.
-Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
-The joist end may be square cut or bevel cut.
