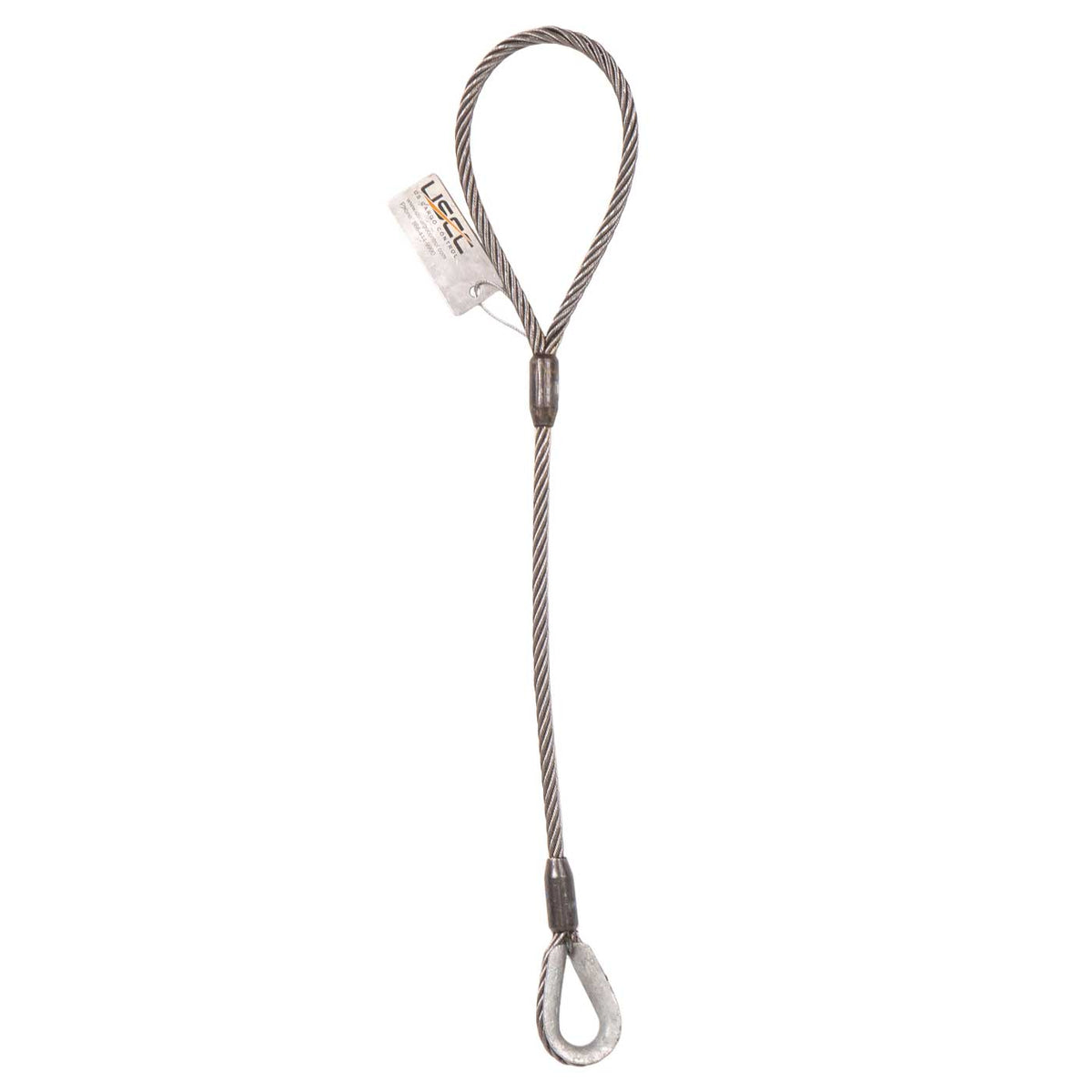

5/8" x 14' Standard Eye & Thimble Wire Rope Sling
5/8" x 14' Standard Eye & Thimble Wire Rope Sling!
5/8" x 14' Standard Eye & Thimble Wire Rope Sling
Specifications
Thimble dimensions: 1-3/4"W x 3-1/4"L

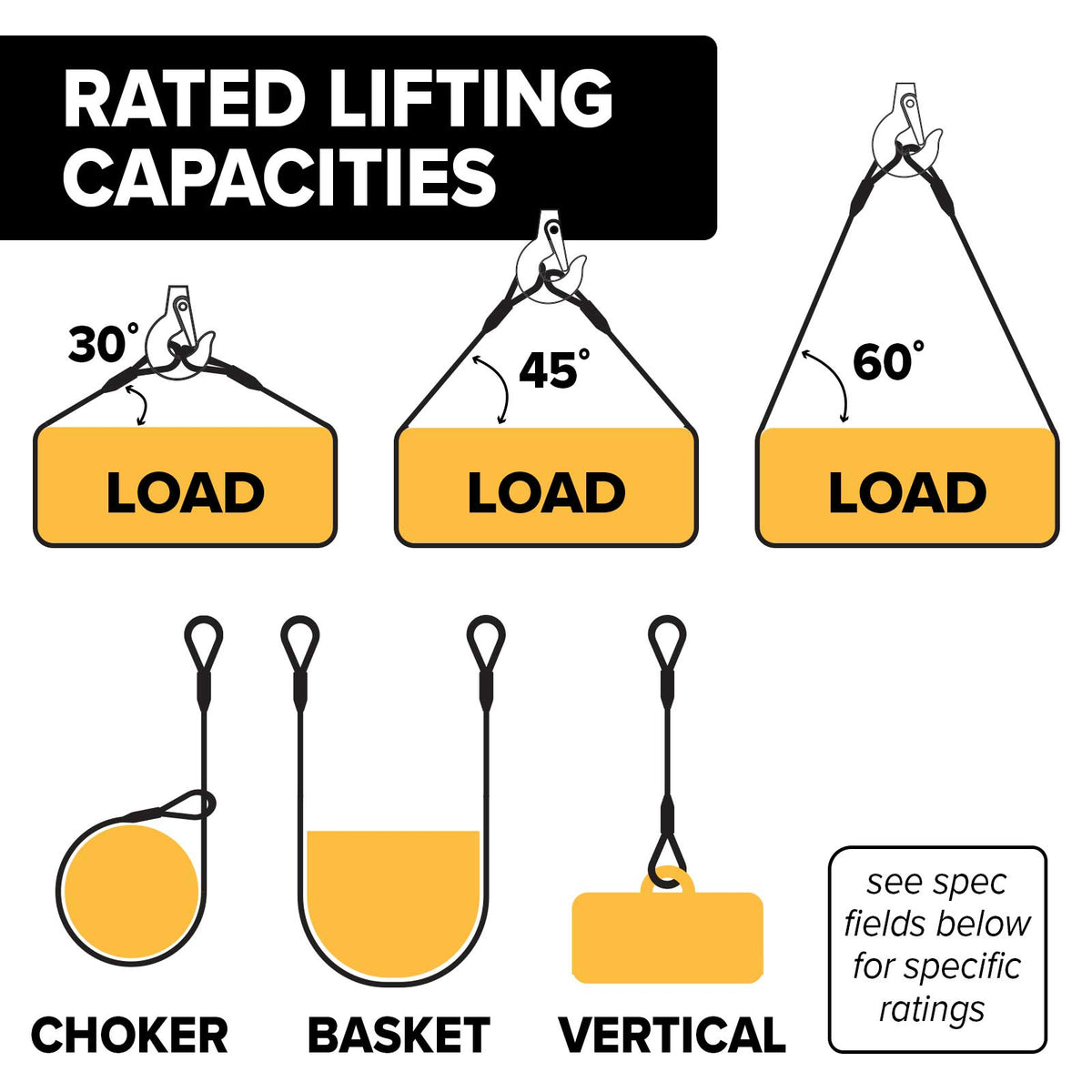

Rated capacities for basket hitch based on a D/d ratio of 25

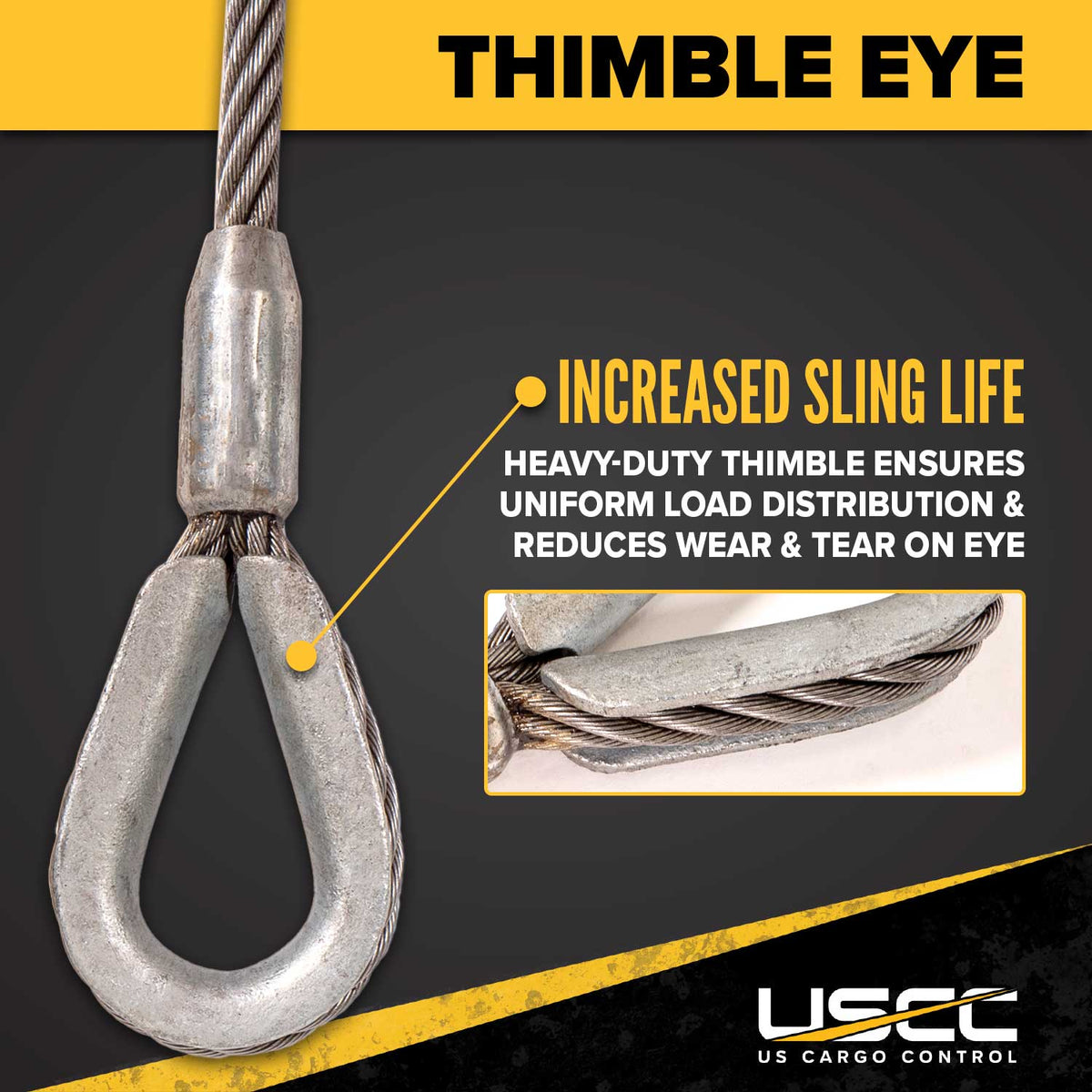

This 5/8-inch sling is rated to 3.9 tons and built around a simple idea: protect the eye, protect the load. A thimble sits inside the Flemish eye at each end of this Eye & Thimble Wire Rope Sling, reducing wear and keeping the load spread evenly across the connection.
Key Features
- A thimble eye wire rope sling built for long-term, dependable eye protection
- Thimble-lined Flemish eye at each end

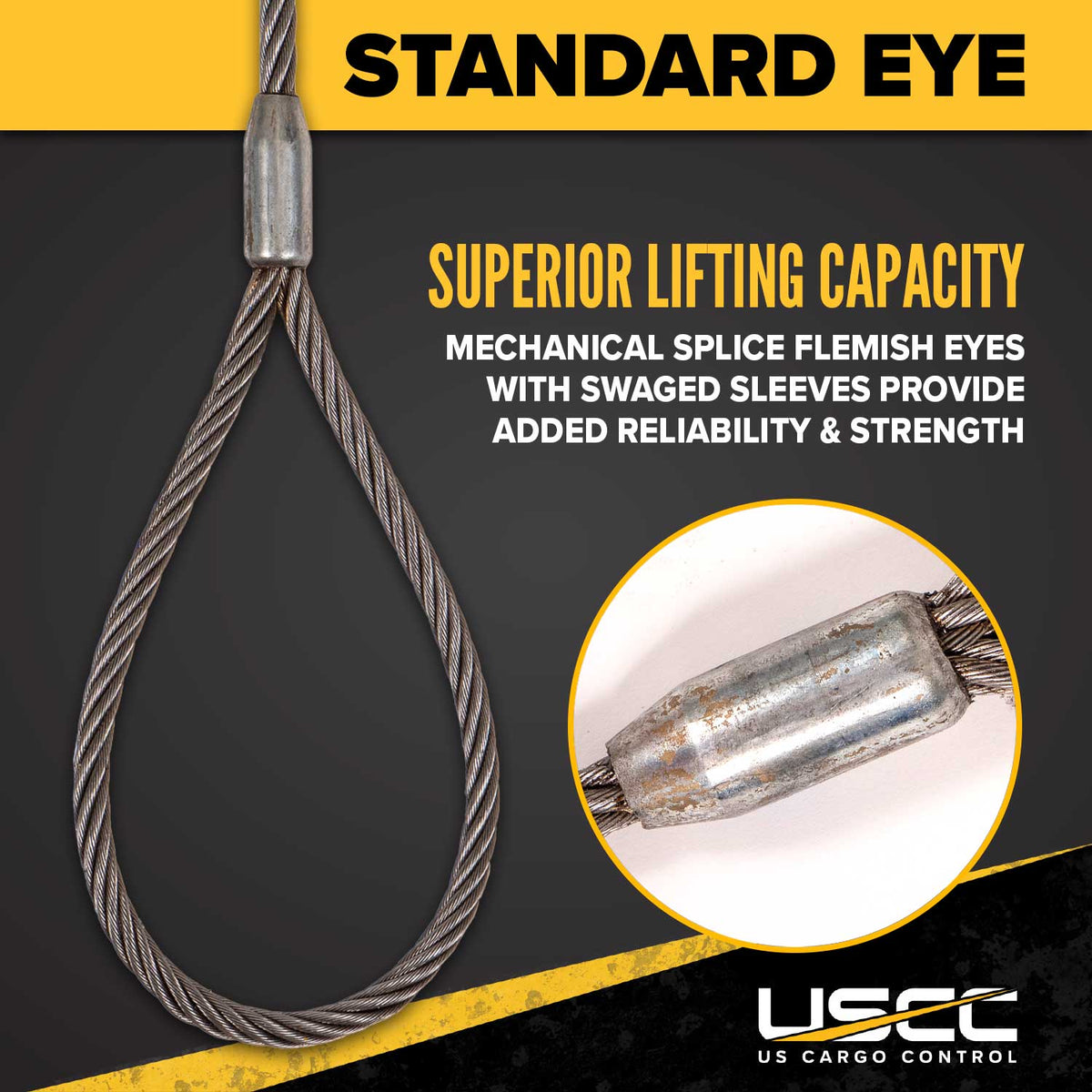

- Mechanical splice construction, stronger than a hand-tucked eye of the same size

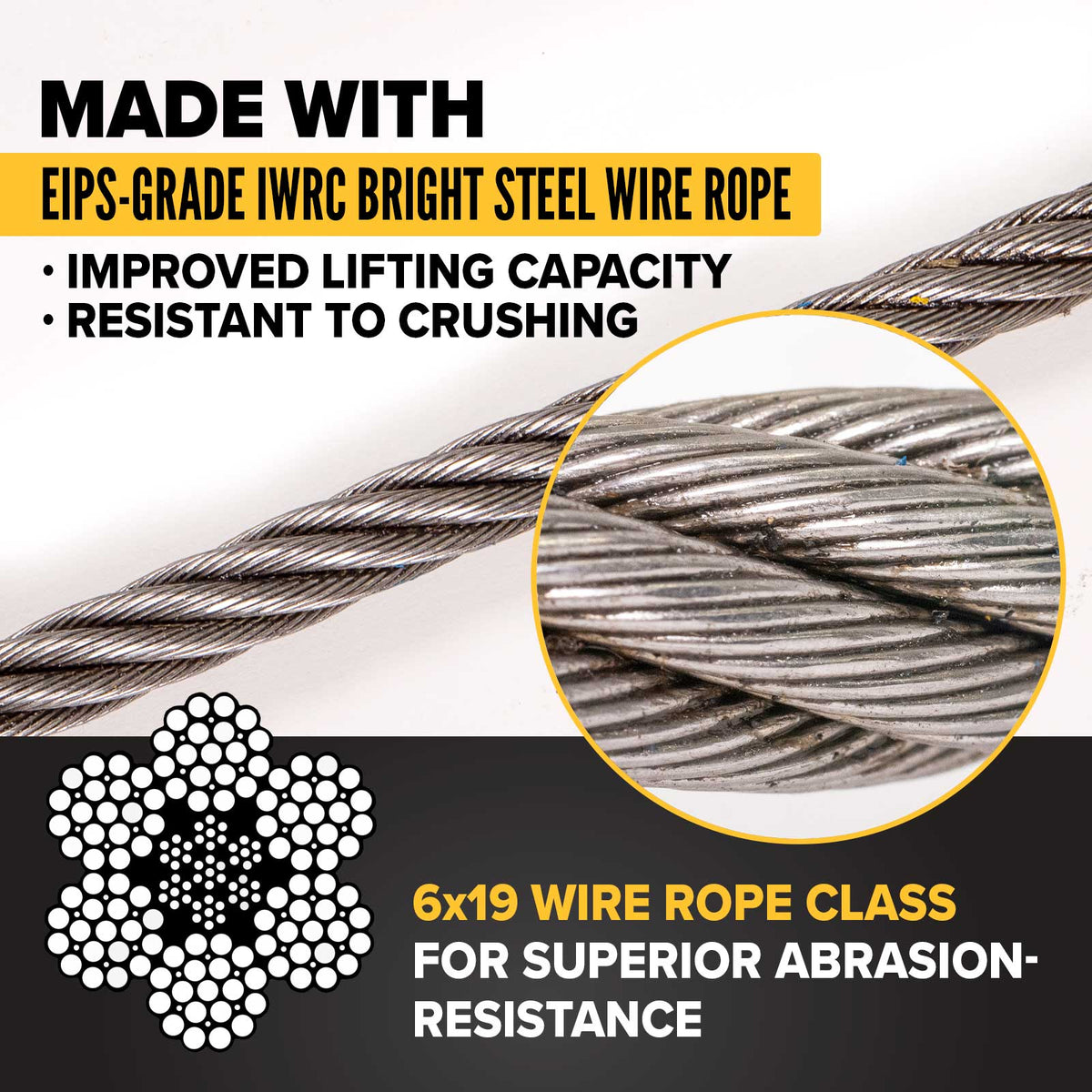

- EIPS bright wire rope over an independent core, generally 6x19
- Works from -40°F / -40°C all the way to 400°F / 204°C

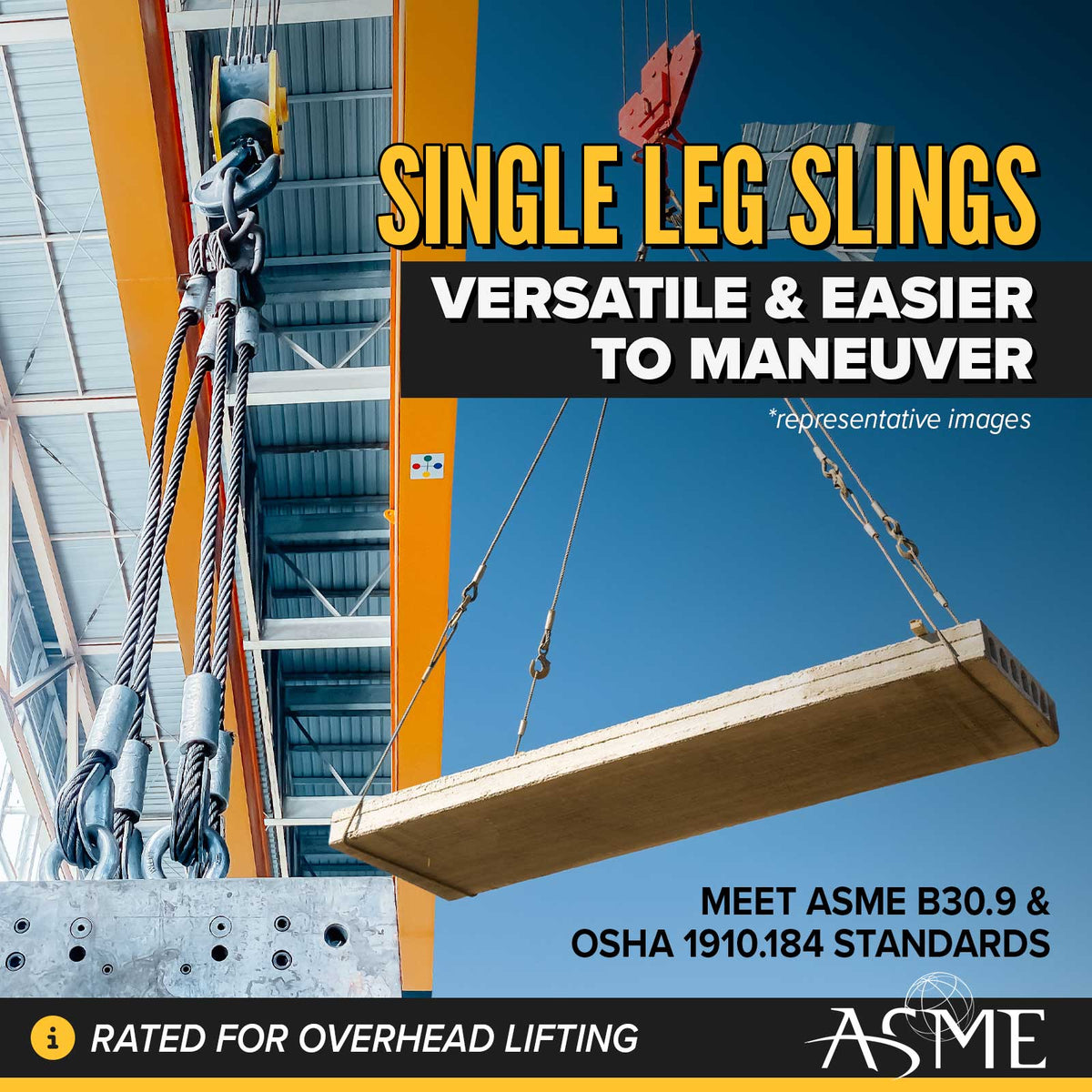

- Built in line with ASME B30.9 and OSHA 1910.184
Applications
- Heavier single-leg jobs that still call for a fixed eye over a hook
- Jobsites that prefer a simpler rig than a multi-leg sling
- A variety of hitch angles and attachment styles
- Our team can add shackles, protection sleeves, or talk through our bridle options for more stability
Looking for improved load stability and greater lifting capacity? Check out our 2-leg, 3-leg, and 4-leg wire rope slings.
Round out your rigging setup with our full selection of lifting and rigging equipment, including essential wire rope sling accessories such as shackles, wire rope sling protection, and rigging hooks.
