SKU: CMSDF-10-24

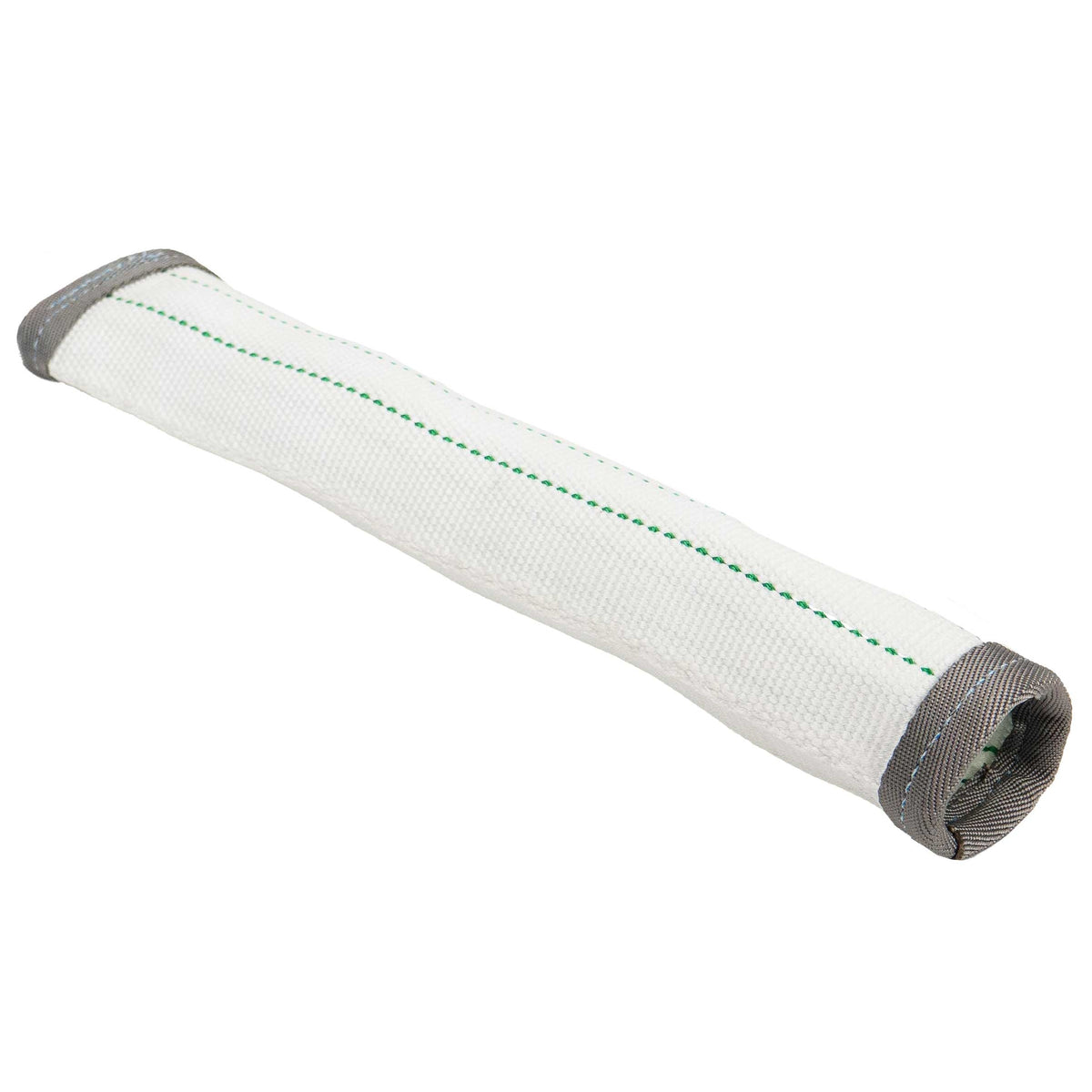

CornerMax® Cut-Resistant Sling Protection Sleeve for 10" Webbing | 24" Long

Regular price $52900
Ships FREE in 5-10 business days.

Description

At the top of the CornerMax® size range, this sleeve is built for the widest synthetic slings in a rigging setup, where a narrow cut resistant sling sleeve simply won't reach across the webbing. It's still the same Dyneema® fiber construction that flexes around round and curved loads and holds a tested cut-resistance rating.

Key Features

  • Sized for 1-ply and 2-ply synthetic slings up to 10 inches wide
  • Sized for 3-ply and 4-ply synthetic slings up to 8 inches wide
  • Inside circumference of 19-3/4 inches; the sling's full circumference (both sides together) needs to fit within that before you order
  • Full 90 degree contact with the load edge is required for the rated protection to apply
  • Not designed for wire rope or chain slings

Applications

  • Large-diameter pipe, coil, or heavy rounded steel stock rigged with the widest synthetic slings on the job, wrapped in a cut-resistant rigging sleeve sized to match
  • High-capacity basket-hitch or roundsling rigs needing sharp edge sling protection at full sling width
  • Fabrication and steel yards that need a CornerMax sling protector sized for their largest slings

ASME Guidance

"Slings in contact with edges, corners, protrusions, or abrasive surfaces shall be protected with a material of sufficient strength, thickness, and construction to prevent damage." - ASME B30.9 (2021) 9-5.10.4(d)

Specifications

Width: 10" Sleeve OAL
Length: 24"
Item Weight: 3.2 lbs.
Shipping and Returns: This item cannot be returned due to safety risks.
Additional Info: Protection rating: 12,500 lbs. WLL per inch of sling contact
