SKU: HUC46TF

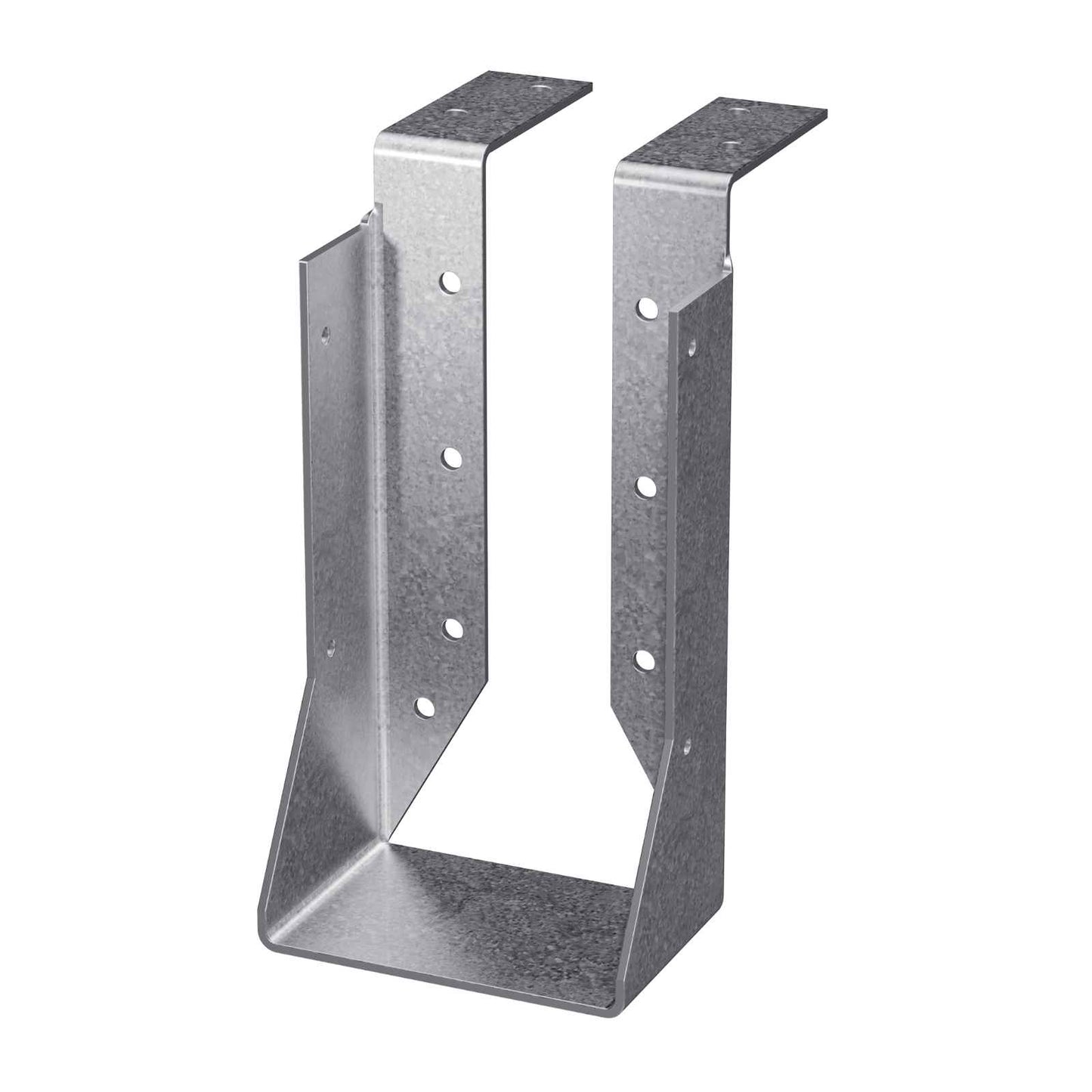

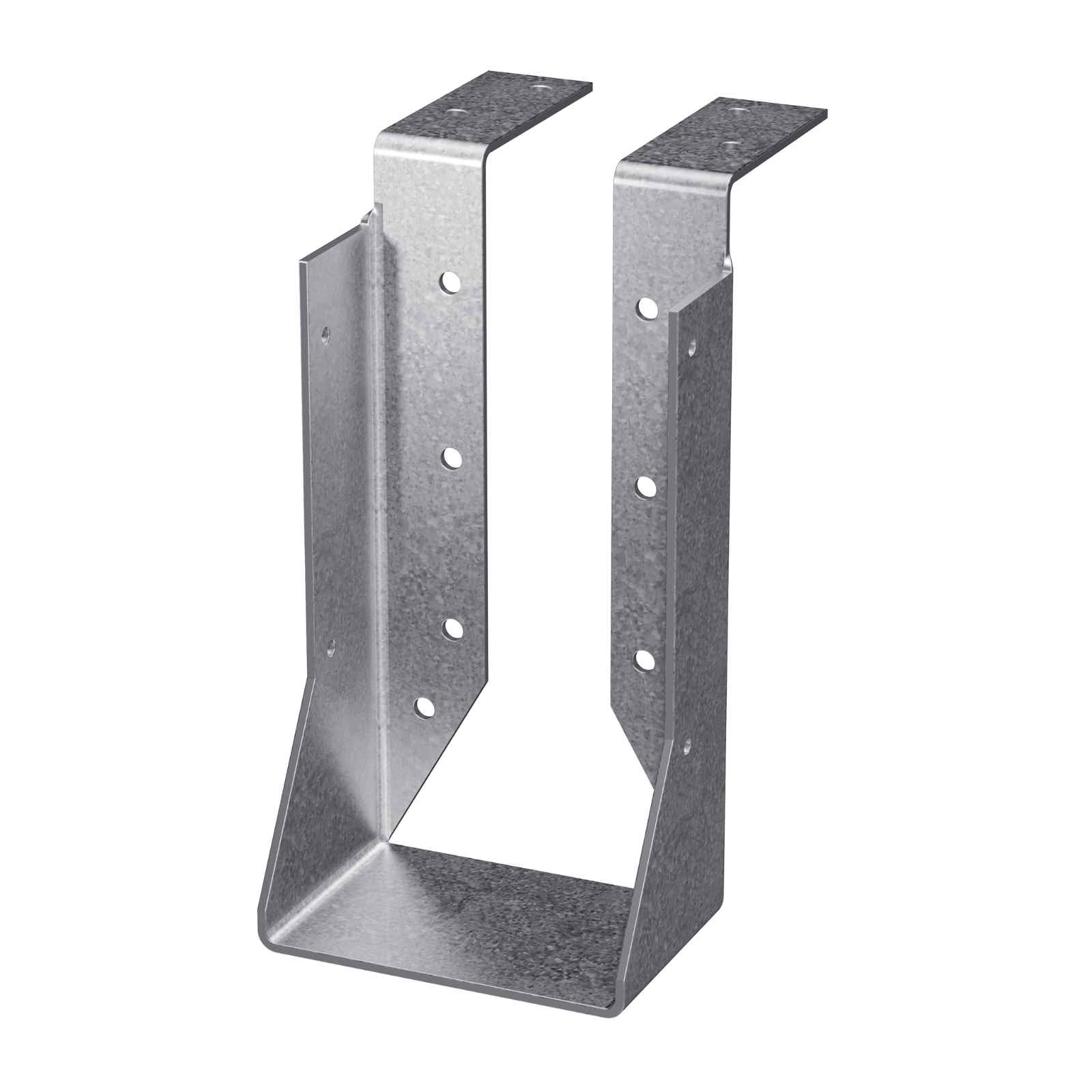

Simpson HUC46TF 4x6 Concealed Top Flange Face Mount Hanger - G90 Galvanized

Simpson HUC46TF 4x6 Concealed Top Flange Face Mount Hanger - G90 Galvanized!

  • Simpson HUC46TF 4x6 Concealed Top Flange Face Mount Hanger G90 Galvanized

Continue Browsing

HUTF/HUCTF Top Flange Joist Hangers
SKU: HUC46TF

Simpson HUC46TF 4x6 Concealed Top Flange Face Mount Hanger - G90 Galvanized

$28.72

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 2-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (10) 0.162" x 3-1/2" Nails Joist - (4) 0.148" x 3" Nails
For Treated Lumber: No
Height: 5-3/8"
Joist size: 4X6
Manufacturer name: Simpson Strong-Tie
Width: 3-9/16"
Description
  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.

Simpson Strong-Tie HUCTF hangers are heavy duty 12 gauge top mount hangers. These series of hangers are not acceptable for nailer or welded applications. HUCTF joist hangers feature concealed flanges that are bent inward and are not visible once installed. The Strong-Tie HUC46TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:

  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
