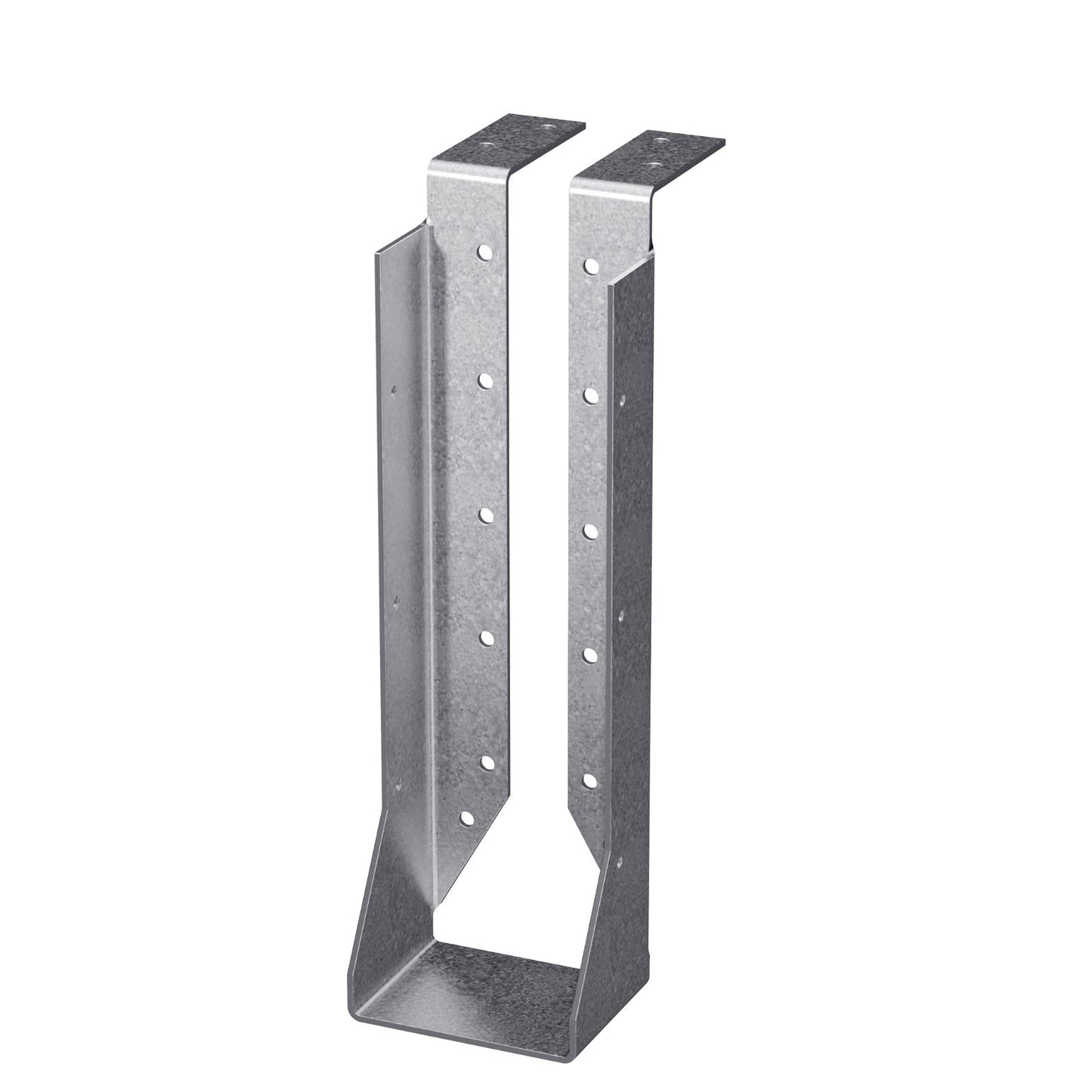

Simpson HUC210-2TF Double 2X10 Concealed Top Flange Face Mount Hanger - G90 Galvanized

SKU: HUC210-2TF

$40.36
Made to Order
Standard Lead Time 2-3 days.

Simpson Strong-Tie HUCTF hangers are heavy duty 12 gauge top mount hangers. These series of hangers are not acceptable for nailer or welded applications. HUCTF joist hangers feature concealed flanges that are bent inward and are not visible once installed. The Strong-Tie HUC210-2TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HUCTF hangers are heavy duty 12 gauge top mount hangers. These series of hangers are not acceptable for nailer or welded applica...

Read More

Simpson Strong-Tie HUCTF hangers are heavy duty 12 gauge top mount hangers. These series of hangers are not acceptable for nailer or welded applications. HUCTF joist hangers feature concealed flanges that are bent inward and are not visible once installed. The Strong-Tie HUC210-2TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (14) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 3" Nails

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
9-1/8"

Joist Size:
Double 2X10

Product Guide Document:
Top_Flange_Solid_Sawn_Hangers.pdf

Thickness:
12 Gauge

Width Spec:
3-1/8"

Product Guide:
