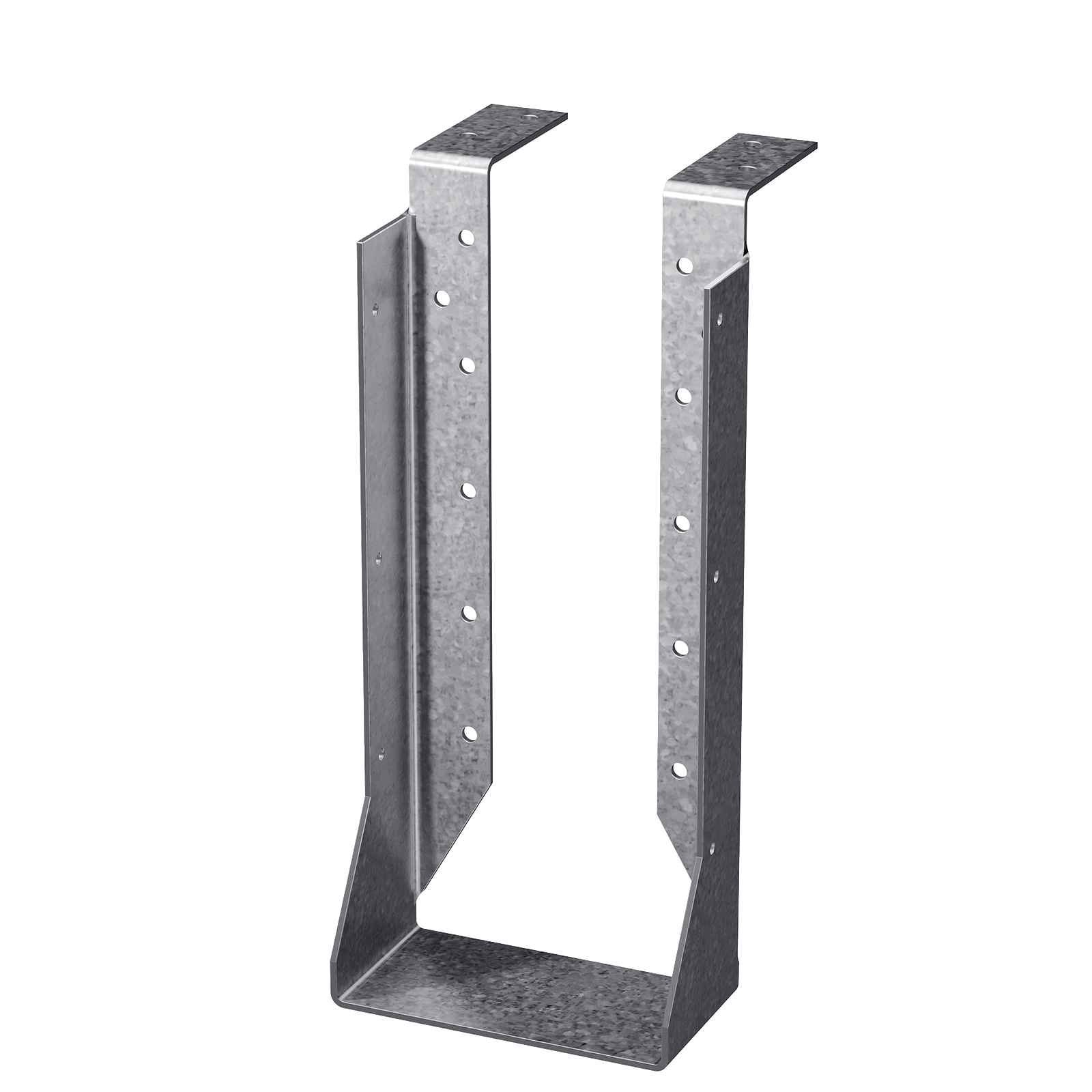

Simpson HUC210-3TF Heavy Top-Flange Hanger with Concealed Flanges - G90 Galvanized

Simpson HUC210-3TF Heavy Top-Flange Hanger with Concealed Flanges - G90 Galvanized

Regular price $53.98
Sale price $53.98 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 9 hours 14 minutes


Simpson Strong-Tie HUCTF hangers are heavy duty 12 gauge top mount hangers. These series of hangers are not acceptable for nailer or welded applications. HUCTF joist hangers feature concealed flanges that are bent inward and are not visible once installed. The Strong-Tie HUC210-3TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING


Material: Galvanized Steel
Height: 9-1/8"
Fasteners required: See Spec Sheet
Thickness: 12 Gauge
Quantity: 1
Width: 4-11/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: Triple 2X10
Product Guide: View Spec Sheet


•Rough beam sizes are available by special order
•The hanger can be sloped a maximum of 45°, with no skew options available
•HUCTF-series hangers are tested, load rated and code compliant


• Use all specified fasteners.
• Not acceptable for nailer or welded applications; see W and B hangers.
• The minimum header or ledger size that can be used with this hanger is 3 1/2".
