SKU: HUC612TF

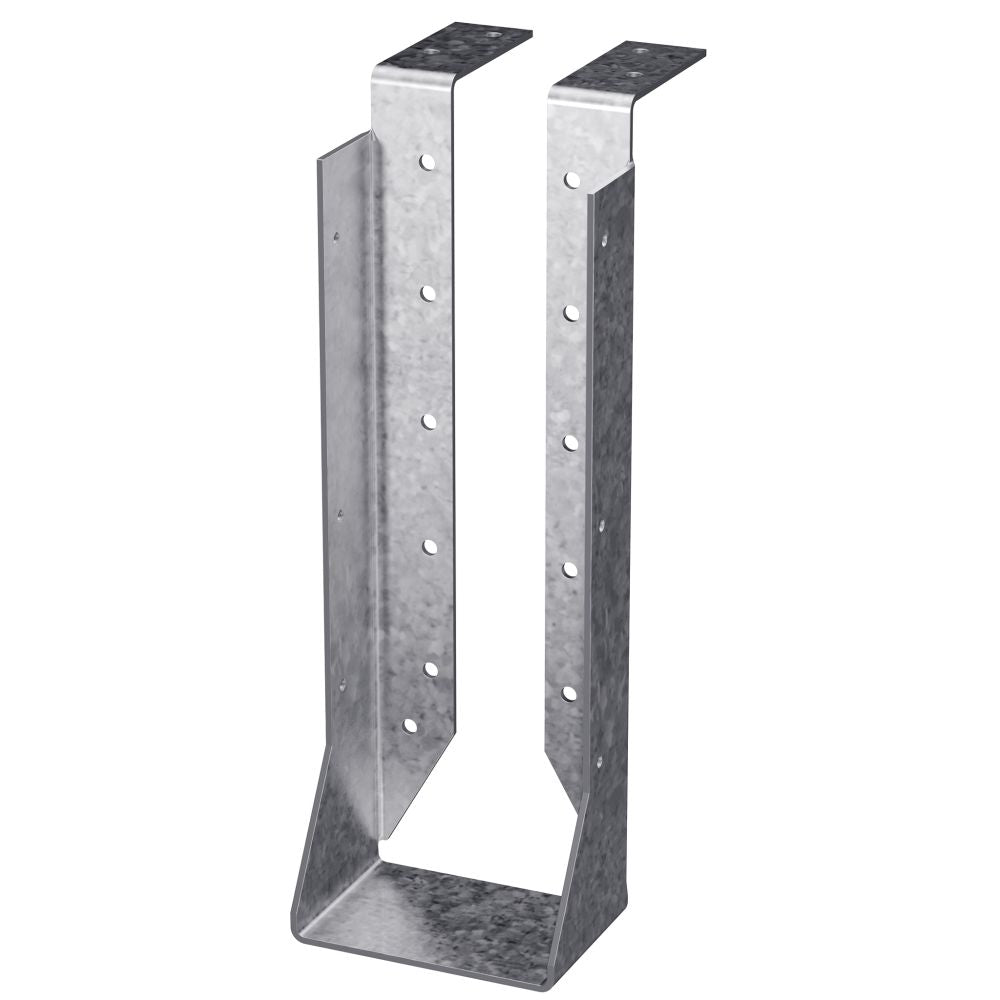

Simpson HUC612TF 6x12 Concealed Top Flange Face Mount Hanger - G90 Galvanized

Simpson HUC612TF 6x12 Concealed Top Flange Face Mount Hanger - G90 Galvanized

Regular price $47.30
Sale price $47.30 Regular price
0% off
Made to Order
Ships in 2-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie HUCTF hangers are heavy duty 12 gauge top mount hangers. These series of hangers are not acceptable for nailer or welded applications. HUCTF joist hangers feature concealed flanges that are bent inward and are not visible once installed. The Strong-Tie HUC612TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 11"
Fasteners required: Face - (16) 0.162" x 3-1/2" Nails Joist - (6) 0.162" x 3-1/2" Nails
Width: 5-1/2"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 6X12
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Not acceptable for nailer or welded applications; see W and B hangers.
-The minimum header or ledger size that can be used with this hanger is 3 1/2".
