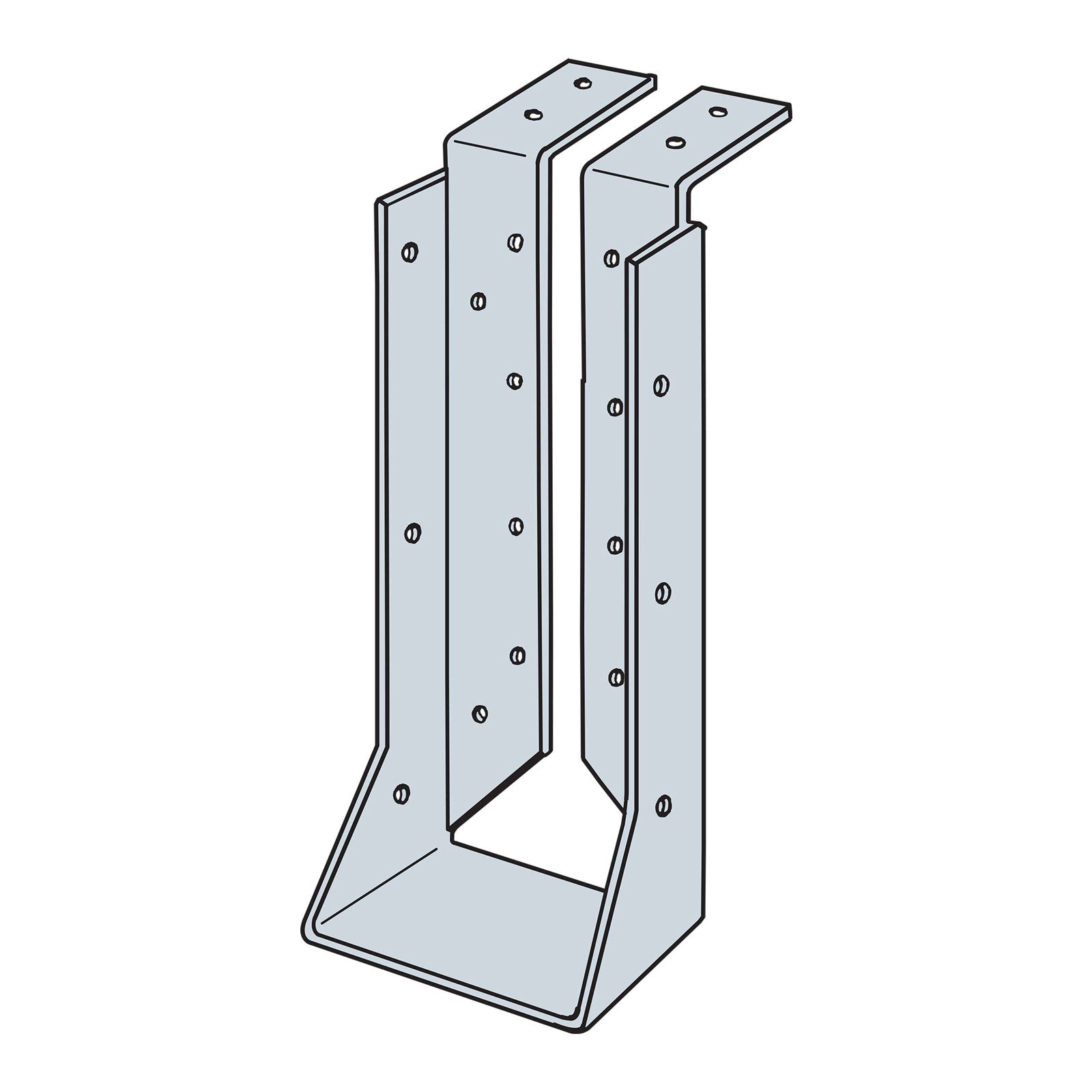

Simpson HUC312TF Heavy Top-Flange Hanger with Concealed Flanges - G90 Galvanized
Simpson HUC312TF Heavy Top-Flange Hanger with Concealed Flanges - G90 Galvanized
Ships in 1-3 business days.
Description:
Description:
This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product
Simpson Strong-Tie HUCTF hangers are heavy duty 12 gauge top mount hangers. These series of hangers are not acceptable for nailer or welded applications. HUCTF joist hangers feature concealed flanges that are bent inward and are not visible once installed. The Strong-Tie HUC312TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 11"
Fasteners required: See Spec Sheet
Thickness: 12 Gauge
Quantity: 1
Width: 2-9/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 3X12
Product Guide: View Spec Sheet
Features
Features
•Rough beam sizes are available by special order
•The hanger can be sloped a maximum of 45°, with no skew options available
•HUCTF-series hangers are tested, load rated and code compliant
Installation
Installation
• Use all specified fasteners.
• Not acceptable for nailer or welded applications; see W and B hangers.
• The minimum header or ledger size that can be used with this hanger is 3 1/2".
