SKU: U24R

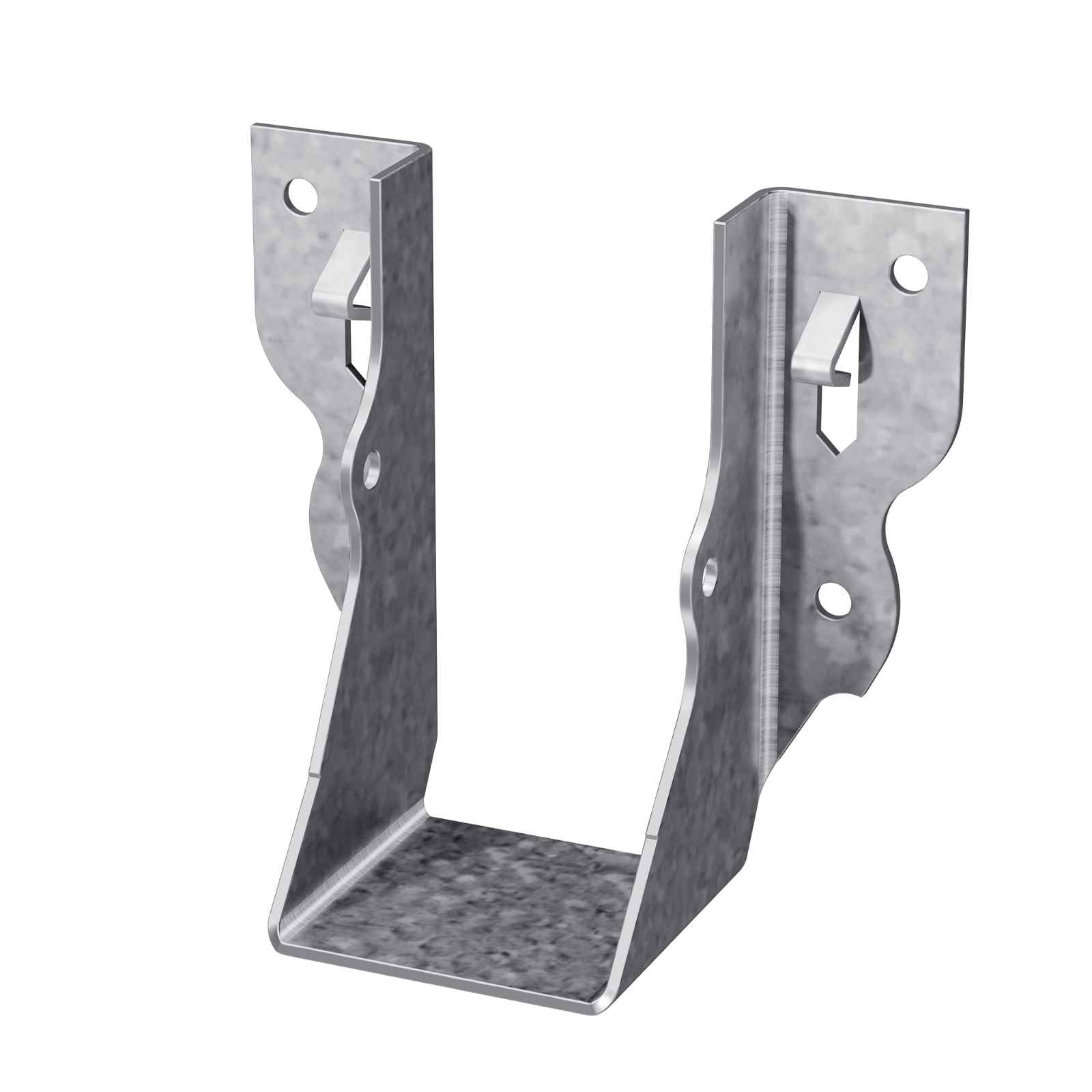

Simpson U24R Rough Cut 2x4 Face Mount Joist Hanger - G90 Galvanized

Simpson U24R Rough Cut 2x4 Face Mount Joist Hanger - G90 Galvanized!

Skip to product information
1 of 2
$4.58

Request Bulk Pricing
Ships Oct 11
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Header - (4) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 1-1/2" Nails
For Treated Lumber: No
Height: 3-5/8"
Joist size: Rough 2X4
Manufacturer name: Simpson Strong-Tie
Width: 2"
Description

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 2x4". If you have a nominal joist measuring 1-1/2x3-1/2" you will need an U24 Joist Hanger


Simpson Strong-Tie U face mount hangers are a durable hanger designed specifically for use with rough cut lumber. The Strong-Tie U24R joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
