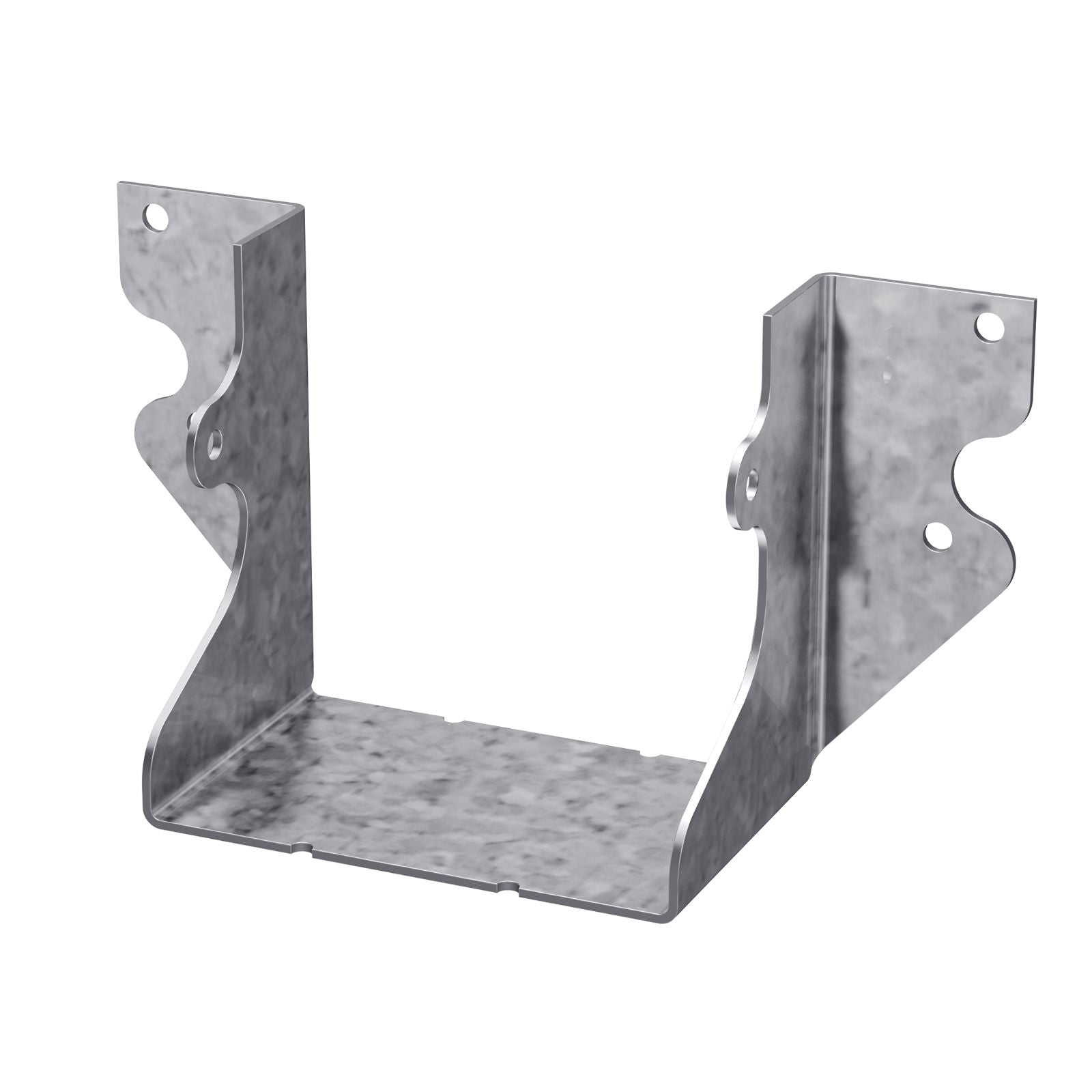

Simpson U44R Rough Cut 4x4 Face Mount Joist Hanger - G90 Galvanized

SKU: U44R

$5.97
Made to Order
Standard Lead Time 1-2 days.

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 4x4". If you have a nominal joist measuring 3-1/2x3-1/2" you will need an U44 Joist Hanger


Simpson Strong-Tie U face mount hangers are a durable hanger designed for use with rough cut lumber. The Strong-Tie U44R joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 4x...

Read More

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 4x4". If you have a nominal joist measuring 3-1/2x3-1/2" you will need an U44 Joist Hanger


Simpson Strong-Tie U face mount hangers are a durable hanger designed for use with rough cut lumber. The Strong-Tie U44R joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Header - (4) 0.162" x 3-1/2" Nails Joist - (2) 0.162" x 3-1/2" Nails

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
2-5/8"

Joist Size:
4X4

Product Guide Document:
Face_Mount_Hangers_Load_Table_for_Rough_Lumber_Douglas_Fir_Southern_Pine.pdf

Thickness:
16 Gauge

Width Spec:
4"

Product Guide:
