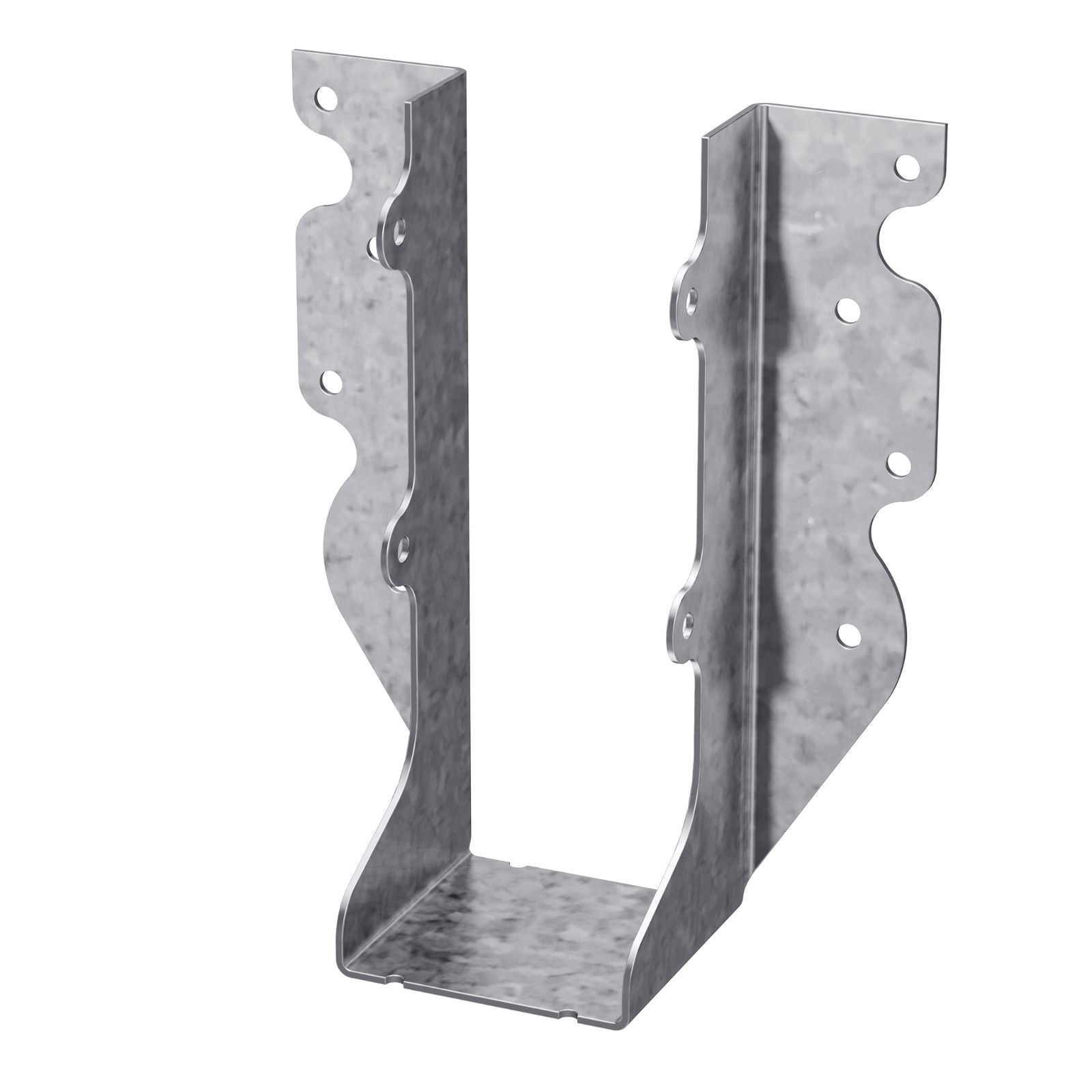

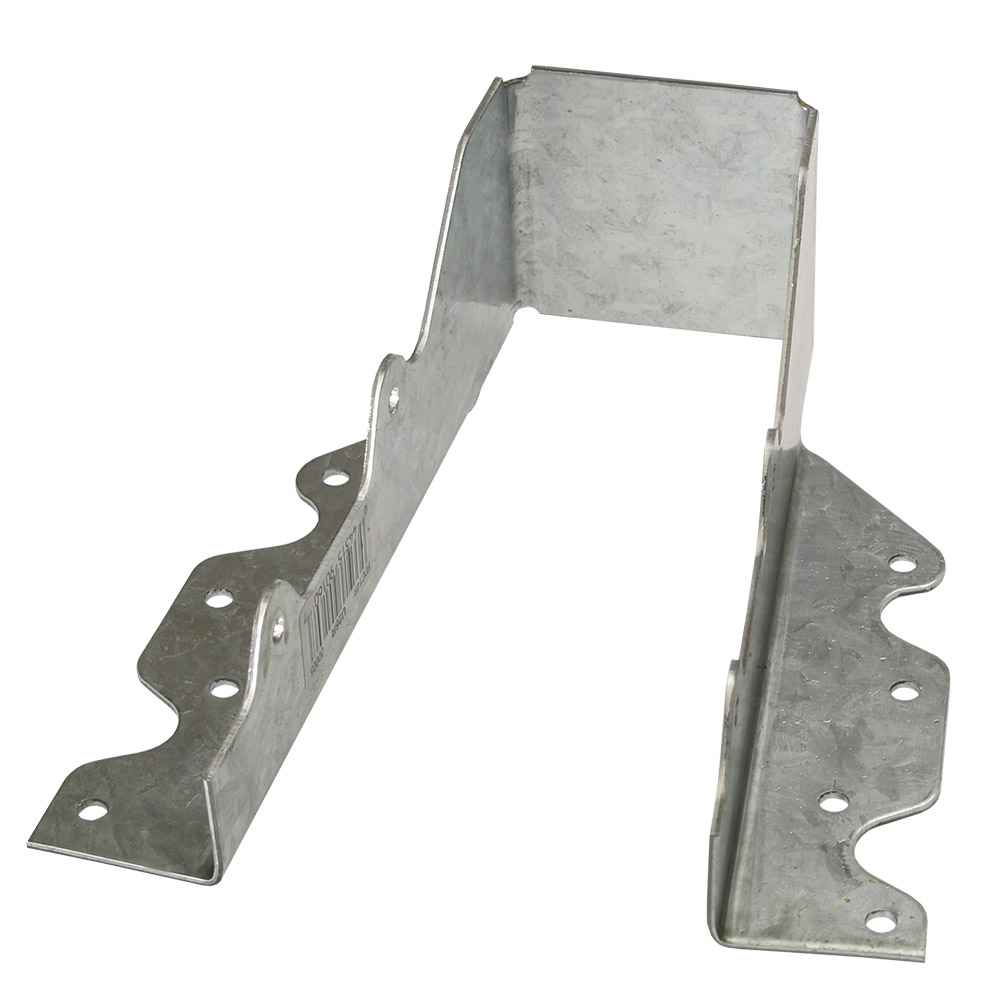

Simpson U26R Rough Cut 2x6 Face Mount Joist Hanger - G90 Galvanized

Simpson U26R Rough Cut 2x6 Face Mount Joist Hanger - G90 Galvanized

Regular price $5.05
Sale price $5.05 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships May 27 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 2x6". If you have a nominal joist measuring 1-1/2x5-1/2" you will need an U26 Joist Hanger


Simpson Strong-Tie U face mount hangers are a durable hanger designed specifically for use with rough cut lumber. The Strong-Tie U26R joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 5-5/8"
Fasteners required: Header - (8) 0.162" x 3-1/2" Nails Joist - (4) 0.148" x 1-1/2" Nails
Width: 2"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: Rough 2X6
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
-Joists sloped up to 1/4:12 achieve load tables.
