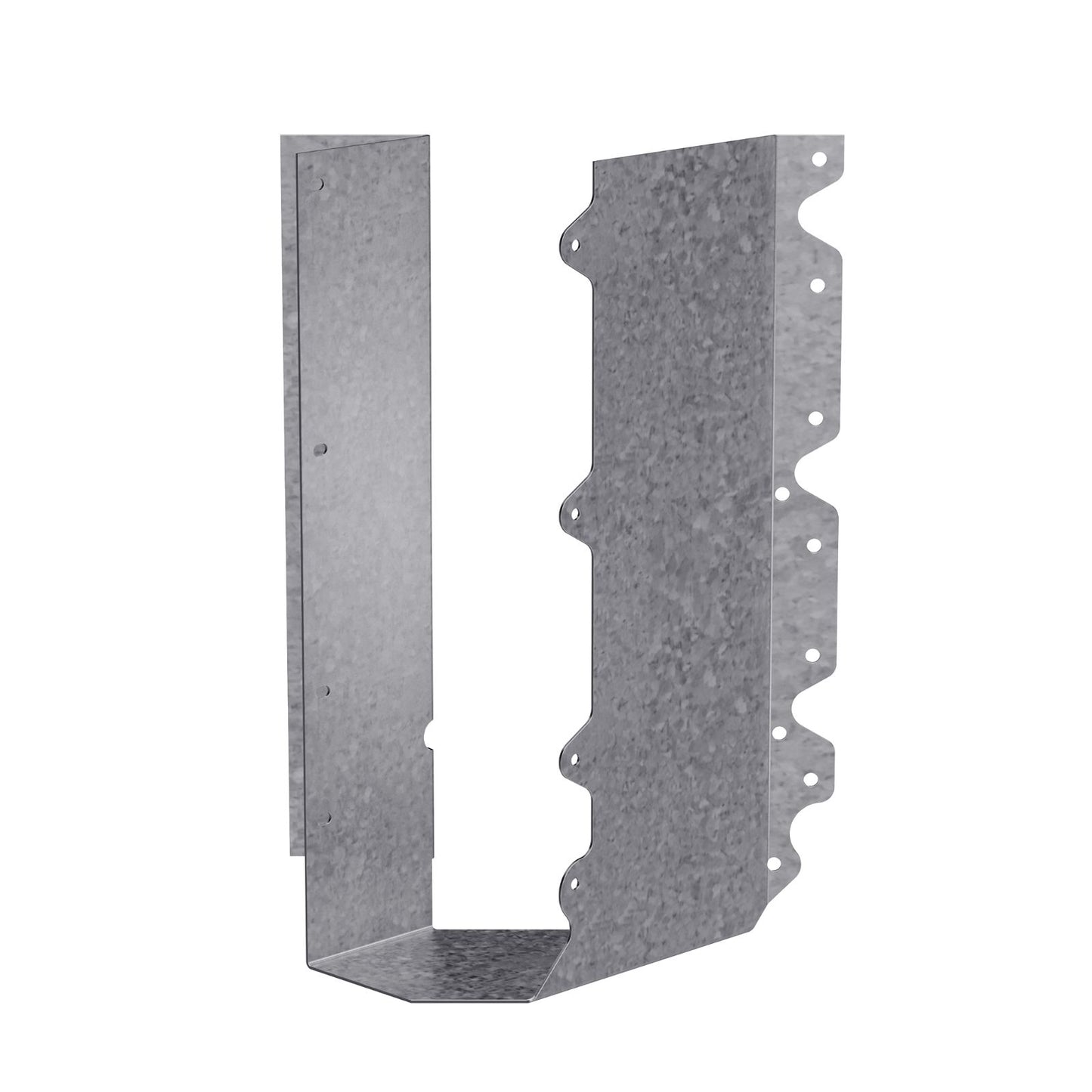

Simpson SUL414 Joist Hanger Skewed Left - Galvanized

SKU: SUL414

$39.38

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL414 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

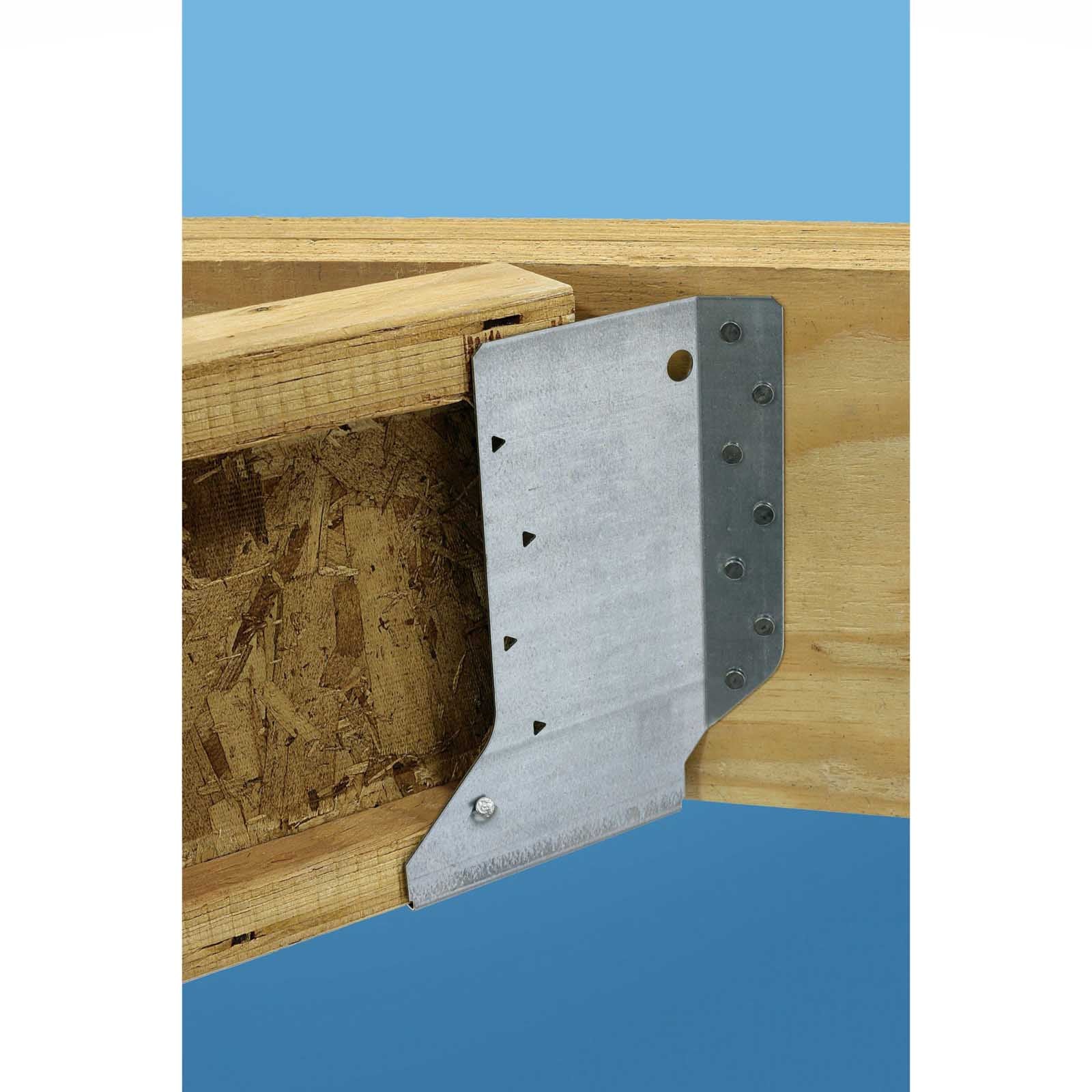

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie ...

Read More

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL414 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (18) 0.162" x 3-1/2" Nails OR (18) SD9112 Screws Joist - (8) 0.162" x 3-1/2" Nails OR (8) SD9112 Screws

For Treated Lumber:
no

Finish Spec:
G90 Galvanized

Height:
12-1/2"

Joist Size:
4X14

Manufacturer Name:
Simpson Strong-Tie

Thickness:
16 Gauge

Width Spec:
3-9/16"

Product Guide:

Read More

Show Less
