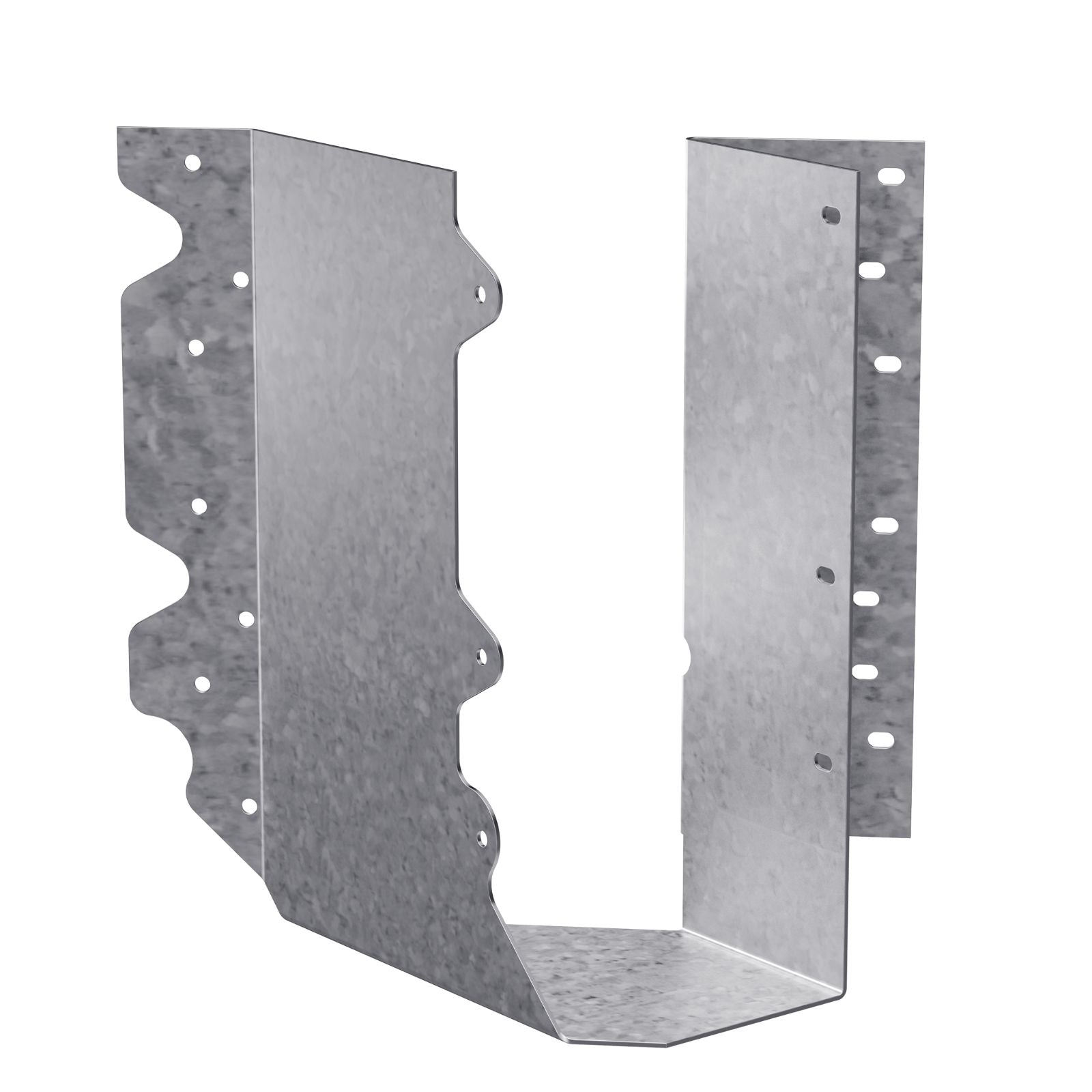

Simpson SUR210-2 Joist Hanger Skewed Right - Galvanized

SKU: SUR210-2

$27.47

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR210-2 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

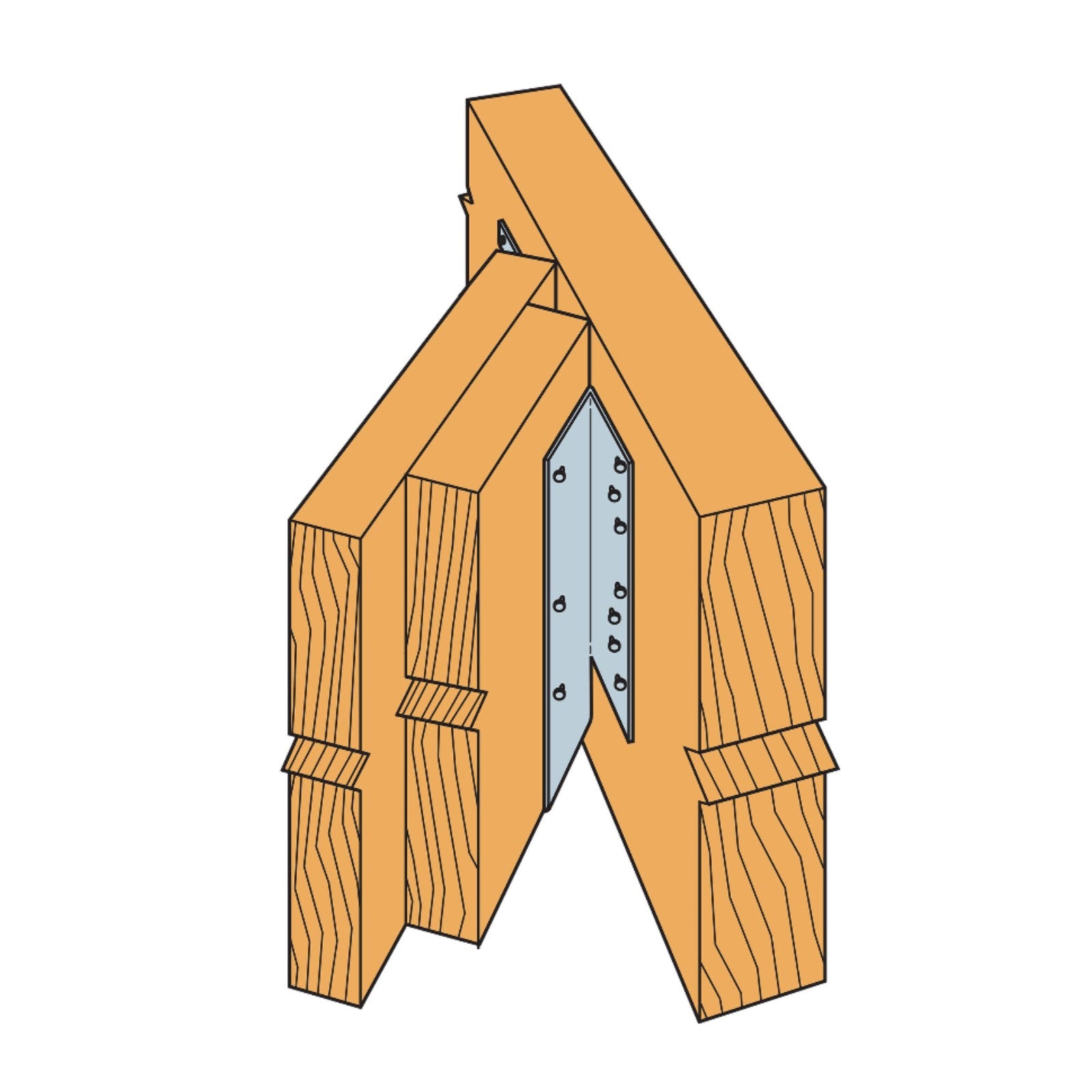

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-...

Read More

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR210-2 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws Joist - (6) 0.162" x 2-1/2" Nails OR (6) SD9112 Screws

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
8-11/16"

Joist Size:
Double 2X10

Thickness:
16 Gauge

Width Spec:
3-1/8"
