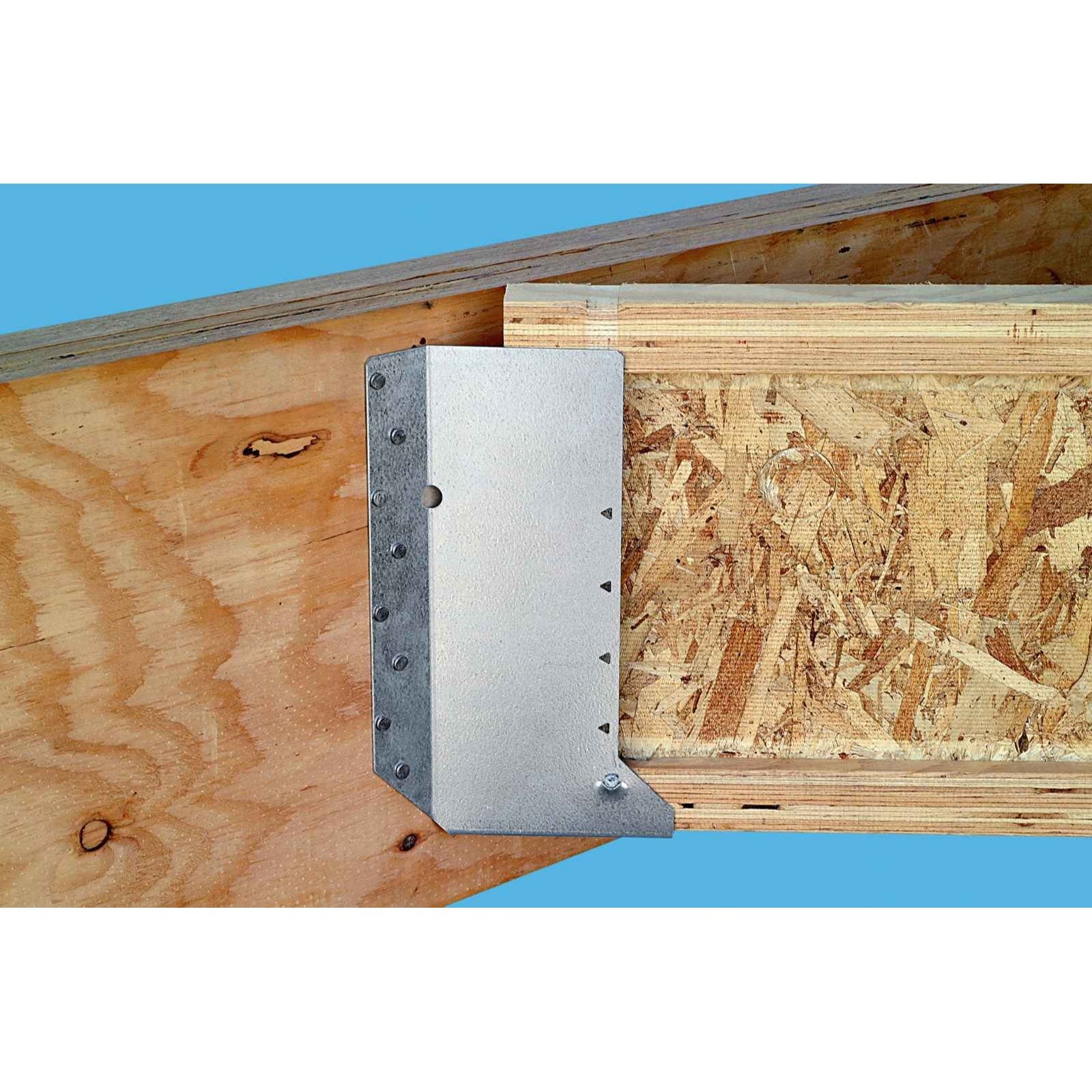

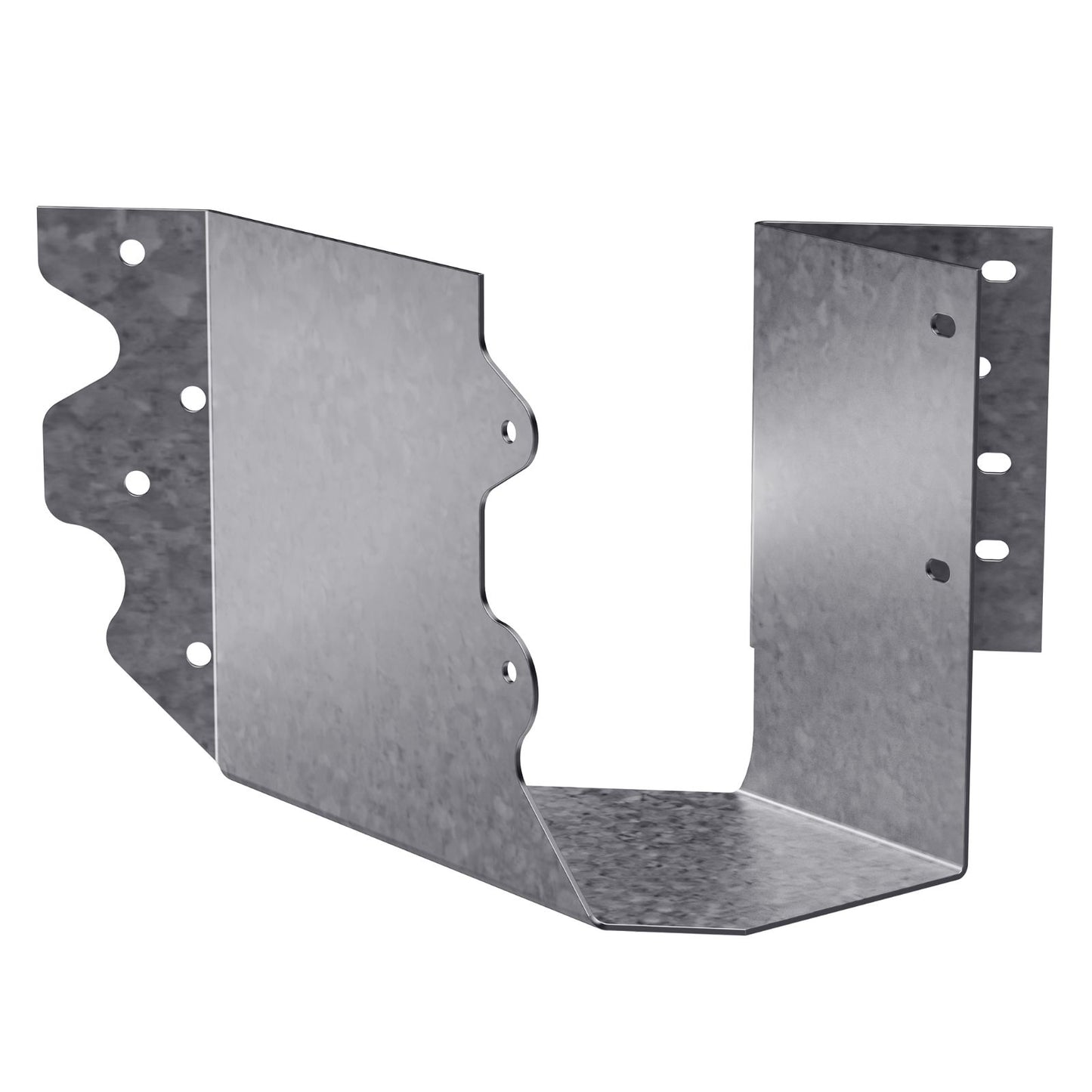

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR26-2 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

• Use all specified fasteners.
• These hangers will normally accommodate a 40° to 50° skew.
• Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
• The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

-Use all specified fasteners.
-These hangers will normally accommodate a 40° to 50° skew.
-Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
-The joist end may be square cut or bevel cut.
