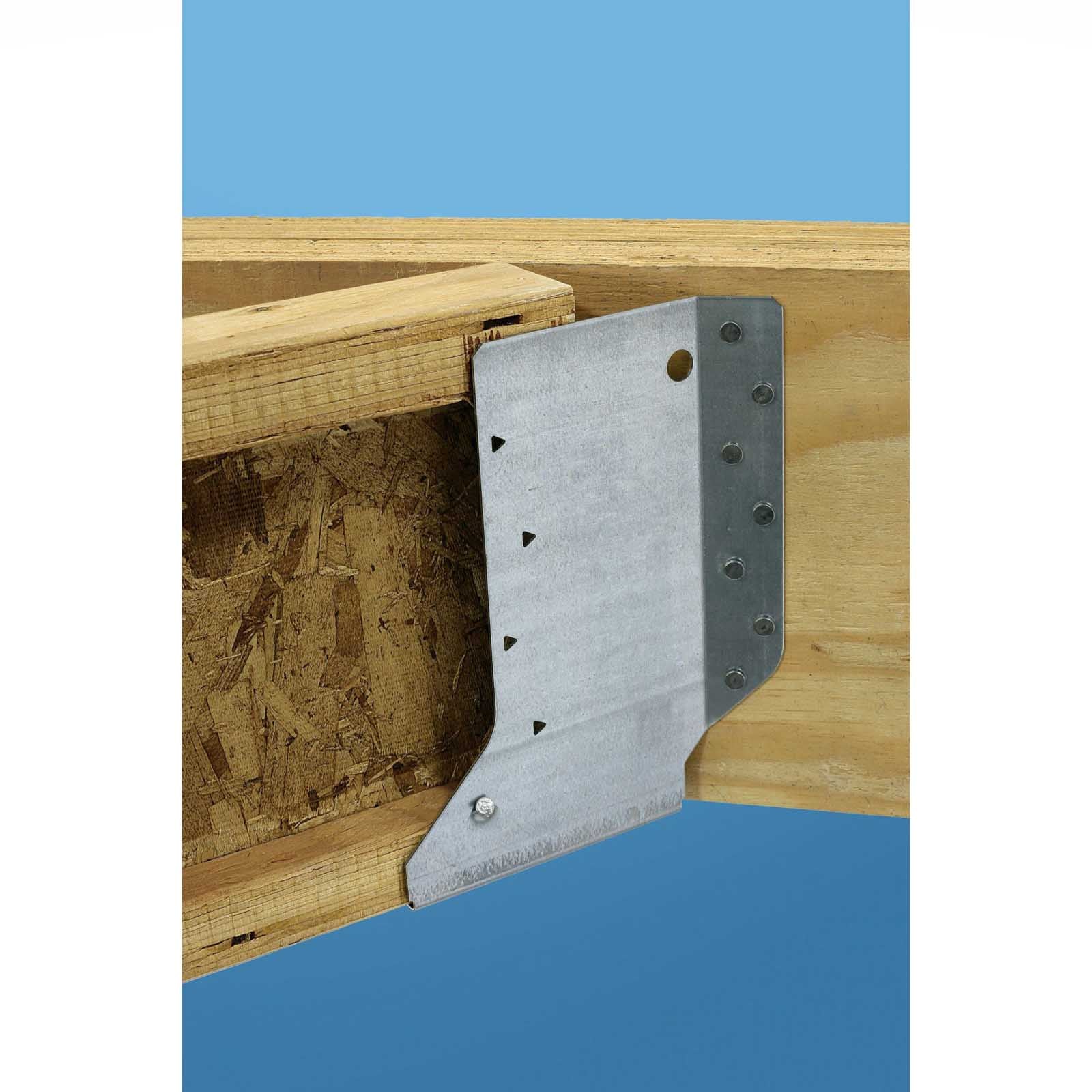

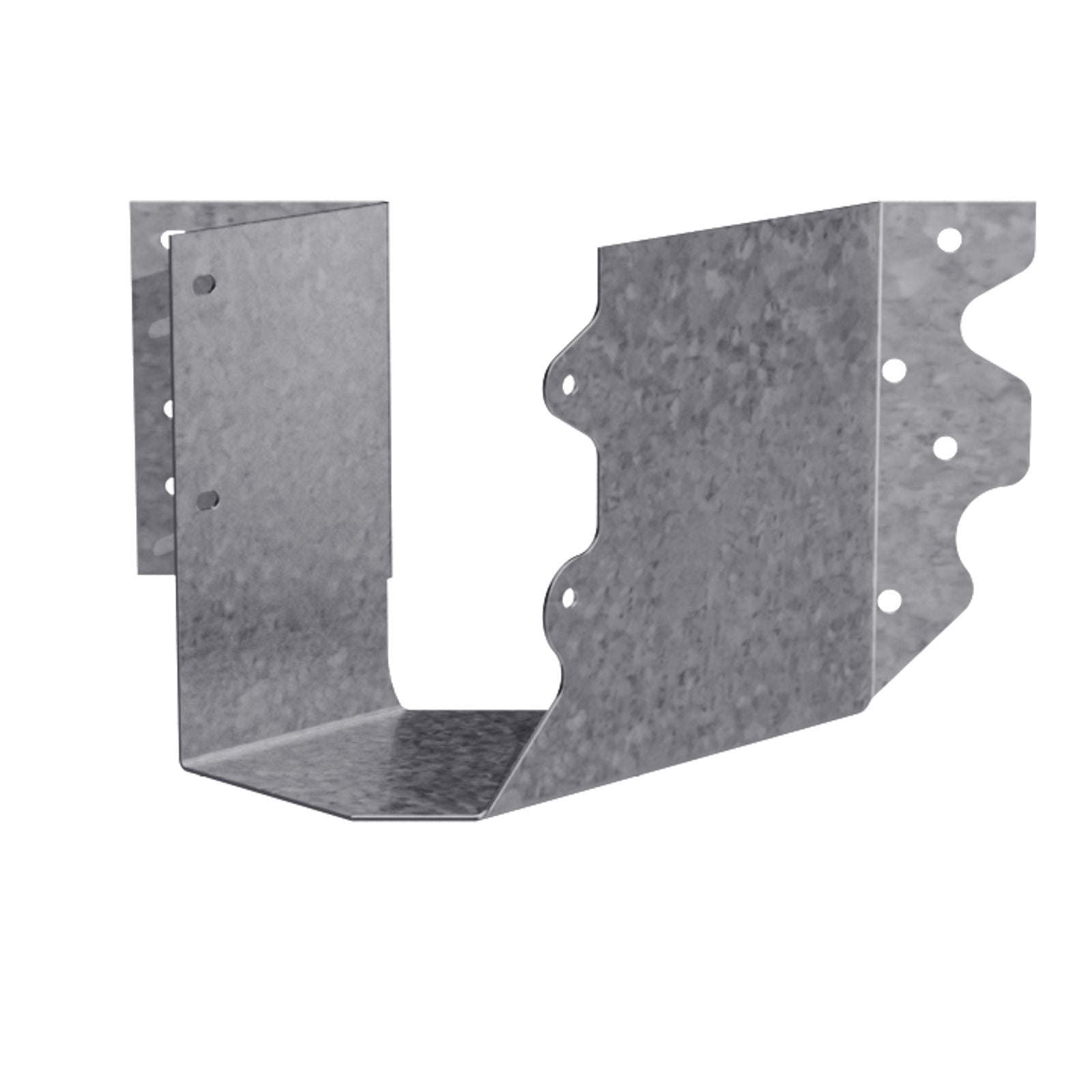

Simpson SUL46 Joist Hanger Skewed Left - Galvanized

SKU: SUL46

$26.77

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL46 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-T...

Read More

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL46 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (8) SD9112 Screws Joist - (4) SD9112 Screws

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
4-3/4"

Joist Size:
4X6

Thickness:
16 Gauge

Width Spec:
3-9/16"

Product Guide:
